New Power FC Software RasPexi Viewer - Page 13 - RX7Club.com - Mazda RX7 Forum

Power FC Forum Apex Power FC Support and Questions.

New Power FC Software RasPexi Viewer

Reply



Old 02-23-17, 11:31 AM
  #301
REVIT
5 Year Member

REVIT93RX7's Avatar

Join Date: Mar 2008
Location: Florida
Posts: 125
Thanks: 0
Thanked 0 Times in 0 Posts
CarTune

Thanks for the update I think the more people we can get to use this product the more features we can add. This currently is setup for my RX7 but it should be able to work with any car that uses a PFC. Also the architecture is setup so we could use it with other ECUs if desired. Thanks again for the update
REVIT93RX7 is offline
Reply With Quote
Old 06-25-17, 04:28 PM
  #302
Senior Member
Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
After a long time with no updates . I am happy to present a beta version of the Raspexi successor PowerTune . This compiled version is for Windows (works great on Tablets ) , I will release a Raspberry pi version soon .

https://github.com/BastianGschrey/PowerTune/releases

Whats new :
Works on Windows , Linux , Mac OSX
Supports Apexi Power FC and Adaptronic ( select and modular)
Works for 13B-REW (Tested)
Supports all Nissan Engines ( not yet tested )
Currently only static Dashboards implemented
reads all live messages from Power FC (Basic , Advanced,Sensors , Map position , Aux)
Easy setup of Aux in the Gui ( no more annoying CFG file )
Dashboards can be swiped ( ideal for Windows Tablet and Raspberry Pi )
GoPro remote recording via Wifi from Gui
Datalogging to txt File FC edit style (Apexi)
Datalogging to csv file (Adaptronic)

Please give me feedback what you think so far
Markus1981 is offline
Reply With Quote
Old 06-29-17, 09:36 PM
  #303
Junior Member

Join Date: May 2017
Location: British Columbia
Posts: 13
Thanked 1 Time in 1 Post
Very cool project!
lcfd is offline
Reply With Quote
The Following User Says Thank You to lcfd For This Useful Post:
Markus1981 (07-14-17)
Old 07-09-17, 01:36 AM
  #304
Full Member
iTrader: (3)

Kakashi07's Avatar

Join Date: Jul 2006
Location: Georgia
Posts: 177
Thanks: 0
Thanked 0 Times in 0 Posts
I am willing to test this on my R32 GTR! I am impressed that this has been going on for so long. If only I knew this while I still had my FD....
Kakashi07 is offline
Reply With Quote
Old 07-12-17, 02:41 AM
  #305
Rotary Enthusiast
iTrader: (22)

Join Date: Nov 2007
Location: san diego
Posts: 791
Thanks: 0
Thanked 0 Times in 0 Posts
K. Got my raspberry pi 2 sitting in my room right now. I'll backtrack on the thread and hopefully pick up a screen soon.
DR_Knight is offline
Reply With Quote
Old 07-14-17, 05:32 AM
  #306
Senior Member
Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
Originally Posted by Kakashi07 View Post
I am willing to test this on my R32 GTR! I am impressed that this has been going on for so long. If only I knew this while I still had my FD....

Hi Kakasi

Yes please test PowerTune on your GTR the windows release is availble here :
https://github.com/BastianGschrey/PowerTune/releases

Please give me feedback should you have any issues. I have only been able to test on FD3S but i implemented the decoder for Nissan , should anything not display correctly let me know and i will fix it if needed .

Thanks :-)
Markus1981 is offline
Reply With Quote
Old 07-14-17, 05:37 AM
  #307
Senior Member
Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
Originally Posted by DR_Knight View Post
K. Got my raspberry pi 2 sitting in my room right now. I'll backtrack on the thread and hopefully pick up a screen soon.
I haven't made a pi release yet , but plan to compile one next week :-) Currently only a windows version is available

PowerTune can currently do the following :

Decode all Live messages from Power FC
Advanced
Basic
Aux
Sensors
Map Position

Read out GPS data via serial (Must be NMEA 0183 compliant )

Start stop go Pro Wifi Remote

Log Data to text file in a simmilar style to FC Edit .

Supports Adaptronic ECU live message readout via Serial
( Big Thanks to Adaptronic for giving us the protocol )
Markus1981 is offline
Reply With Quote
Old 07-14-17, 06:06 AM
  #308
Senior Member
Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
Originally Posted by DR_Knight View Post
K. Got my raspberry pi 2 sitting in my room right now. I'll backtrack on the thread and hopefully pick up a screen soon.
I haven't made a pi release yet , but plan to compile one next week :-) Currently only a windows version is available
Markus1981 is offline
Reply With Quote
Old 07-15-17, 06:39 AM
  #309
Can Post Only in New Member Section

Join Date: Jul 2017
Location: oakland
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
need direction with a plug and play aem for 93 rx7

Is there an apt

​​​​​​​ tuner here in the bay area?
Originally Posted by REVIT93RX7 View Post
Thanks for the update I think the more people we can get to use this product the more features we can add. This currently is setup for my RX7 but it should be able to work with any car that uses a PFC. Also the architecture is setup so we could use it with other ECUs if desired. Thanks again for the update
iam2bb4u is offline
Reply With Quote
Old 09-09-17, 09:13 AM
  #310
Senior Member
Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
Video of PowerTune in action on a RX7 with Windows 10 Laptop

Markus1981 is offline
Reply With Quote
Old 09-09-17, 10:30 AM
  #311
Senior Member
Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
Originally Posted by Markus1981 View Post
Beta 16 Download
Download for windows :
https://drive.google.com/open?id=0Bw...HF2QTd0bVFfa0E

Download for raspberry Pi2&3
https://drive.google.com/open?id=0Bw...W02azB3bENaWGM

Last edited by Markus1981; 09-15-17 at 04:33 AM.
Markus1981 is offline
Reply With Quote
Old 09-15-17, 04:32 AM
  #312
Senior Member
Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
Powertune Beta16 Raspberry Pi3 with FC Hako on FD3S


Last edited by Markus1981; 09-15-17 at 02:25 PM.
Markus1981 is offline
Reply With Quote
Old 12-04-17, 02:33 AM
  #313
Senior Member
Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
Since yesterday PowerTune the Raspexi successor works now on RB26DETT . Tested on Nissan Skyline R32 GTR with Apexi Power FC and Datalogit

Here The image for Raspberry PI

https://drive.google.com/open?id=1cF...HtXDBtiO4R1qjq

Windows version can be found here

https://drive.google.com/open?id=1p0...5CZj5cD6gjJHOZ
Markus1981 is offline
Reply With Quote
Old 12-06-17, 05:59 AM
  #314
Senior Member
Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
Here is a video of the current version running on a RB26DETT R32 GT-R big thanks to Alpheus Booth for sending the video
Markus1981 is offline
Reply With Quote
Old 12-07-17, 12:23 PM
  #315
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,296
Thanks: 0
Thanked 2 Times in 2 Posts
Is this now displayed through a tablet (like an andriod or apple) or is it some sort of proprietary screen?

P
ptrhahn is offline
Reply With Quote
Old 12-08-17, 11:43 AM
  #316
Senior Member
Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
Originally Posted by ptrhahn View Post
Is this now displayed through a tablet (like an andriod or apple) or is it some sort of proprietary screen?

P
Hi

The video above shows a Raspberry Pi with the official Raspberry Pi Touch screen .
I just prefer this screen as it has a tablet like look with the frame. You can put on almost any screen that you like as long as it has a minimum Resolution of 800x480 pixels .
Unfortunately it won't run on Android or IOS , but it can run on a Windows Tablet or Laptop as well .
If you don't want to use a touch screen you can also connect a screen via RCA or HDMI and use a mouse .
Here a link to the screen used in the video and picture
https://www.amazon.com/Raspberry-Pi-7-Touchscreen-Display/dp/B0153R2A9I/ref=sr_1_3/130-3534819-8853151?ie=UTF8&qid=1512750728&sr=8-3&keywords=raspberry+pi+official+touchscreen https://www.amazon.com/Raspberry-Pi-7-Touchscreen-Display/dp/B0153R2A9I/ref=sr_1_3/130-3534819-8853151?ie=UTF8&qid=1512750728&sr=8-3&keywords=raspberry+pi+official+touchscreen

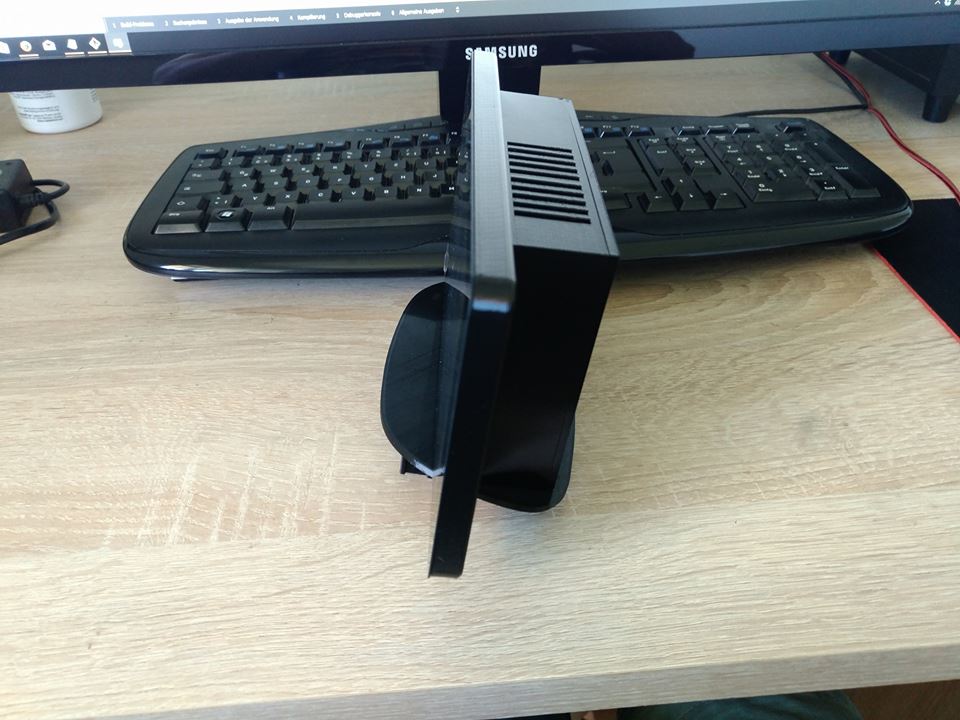

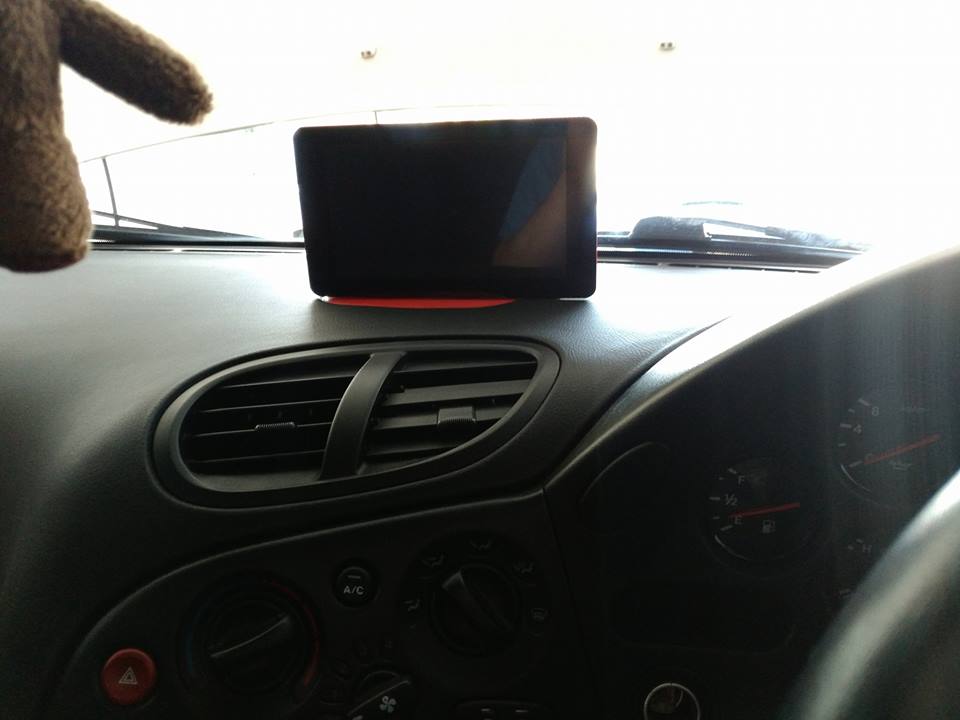

For The RX7 Bastian made a nice 3d printable mount that mounts in the original speaker location without drilling .It houses the Raspberry Pi2 or Pi3 as well as all the wires and the screen.
He made the files freely available so people can 3D print the mounts themselves . Just make sure you print it in PTEG or ABS so it does not deform on a hot summers day .
You can find all the info on the Facebook Page
https://www.facebook.com/Raspexi/

New Power FC Software RasPexi Viewer-18698066_807913816049550_6887696152624478037_n.jpgNew Power FC Software RasPexi Viewer-18698550_807913732716225_6582759024429439352_n.jpg

Last edited by Markus1981; 12-08-17 at 11:45 AM.
Markus1981 is offline
