Pineapple Racing Hi-temp Dual EGT gauge kit

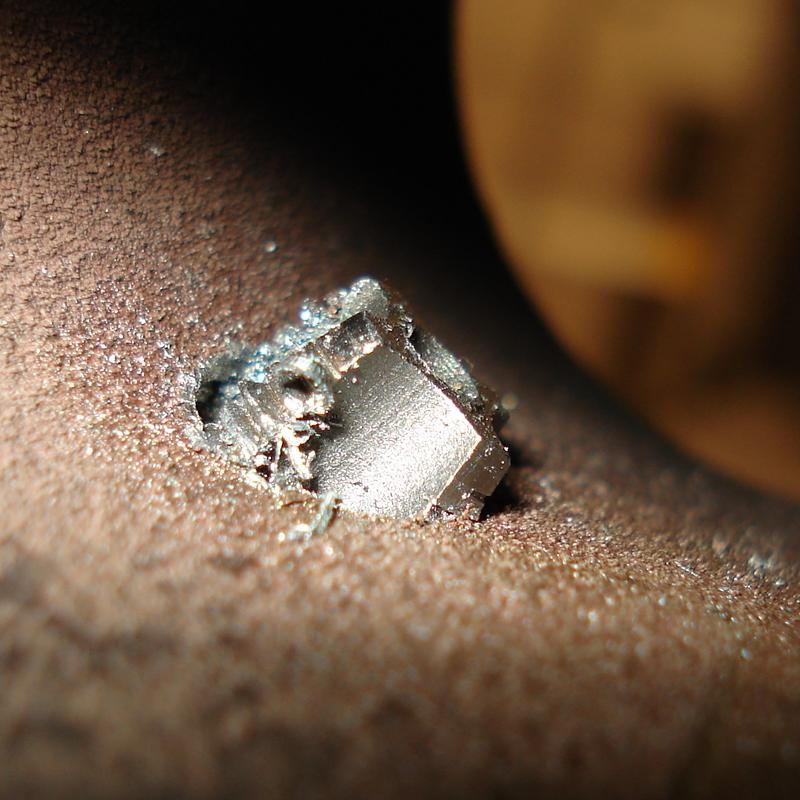

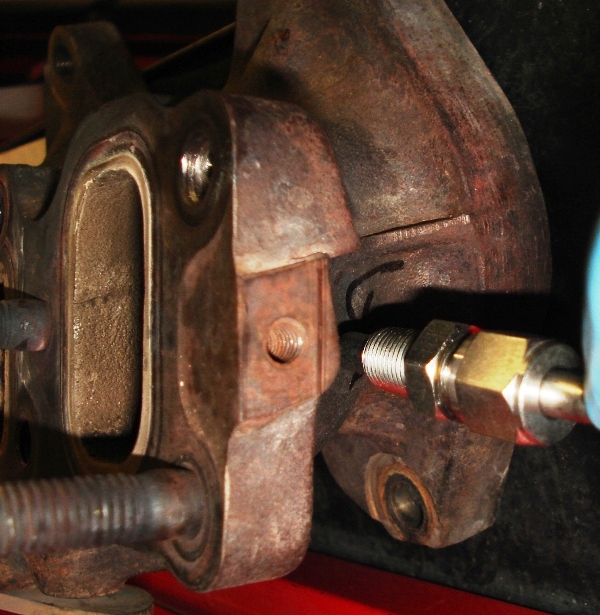

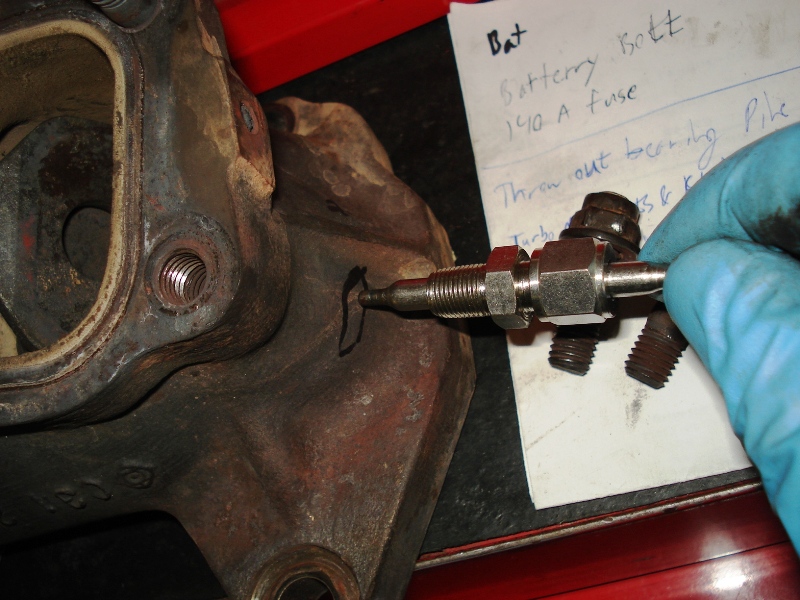

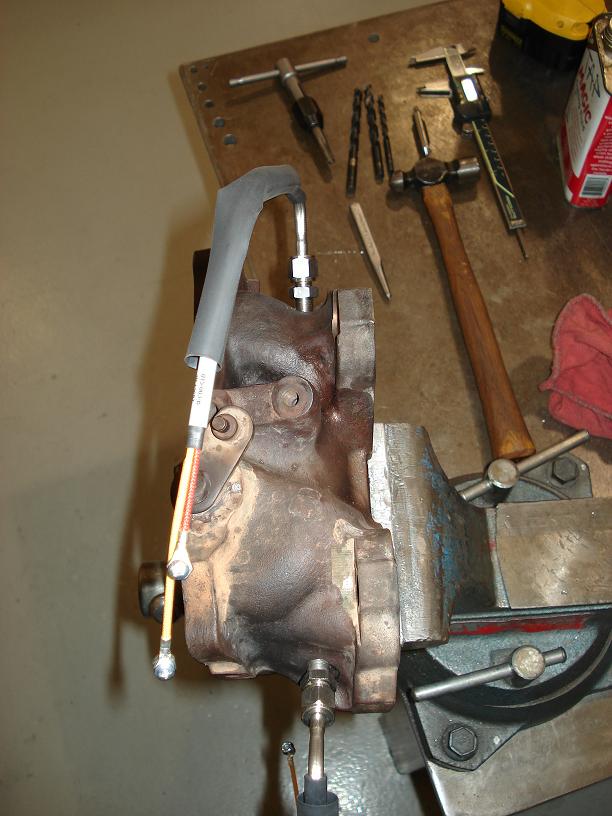

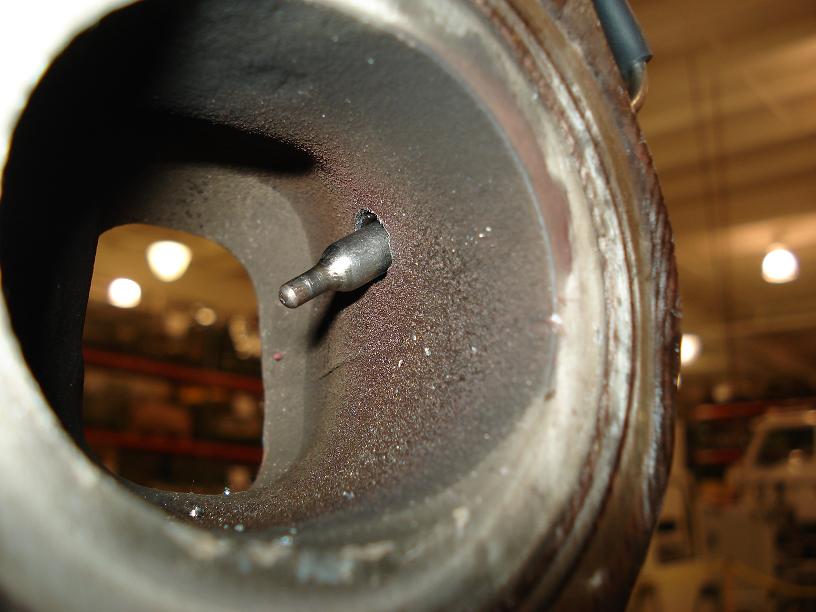

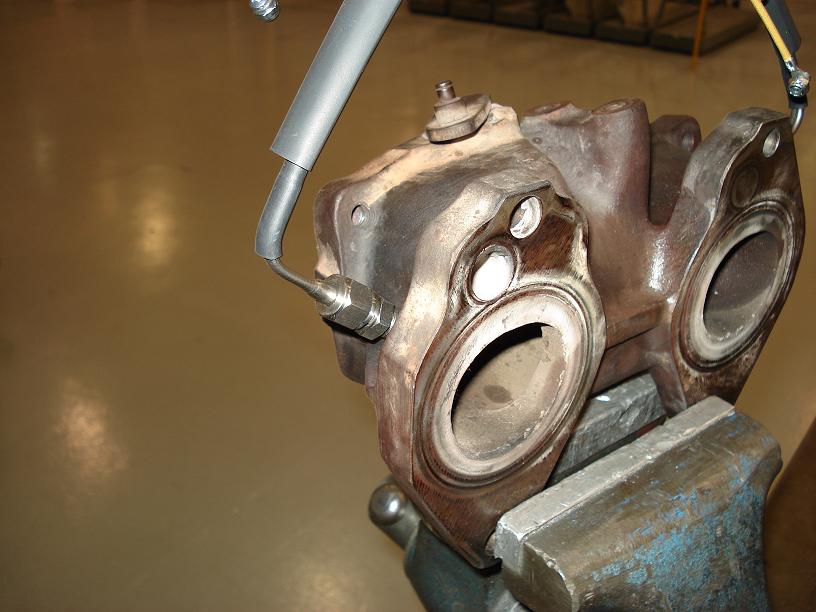

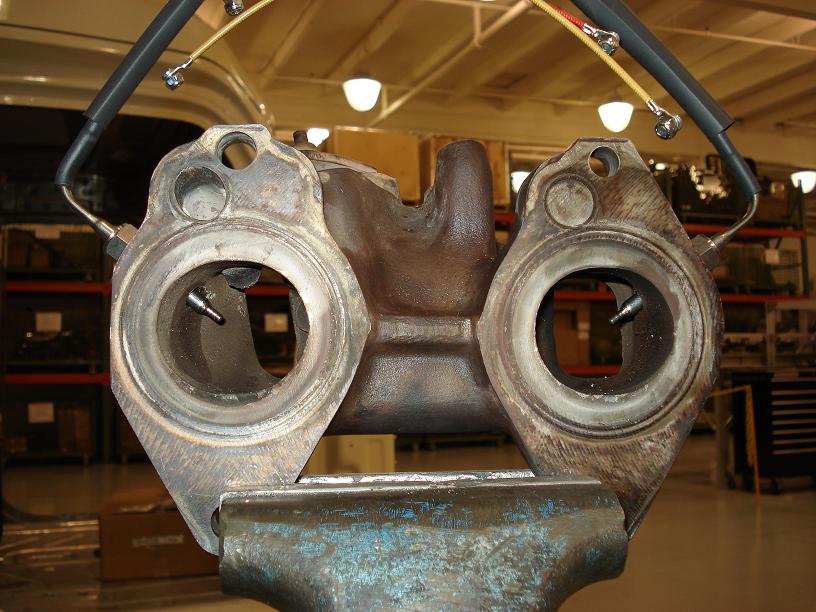

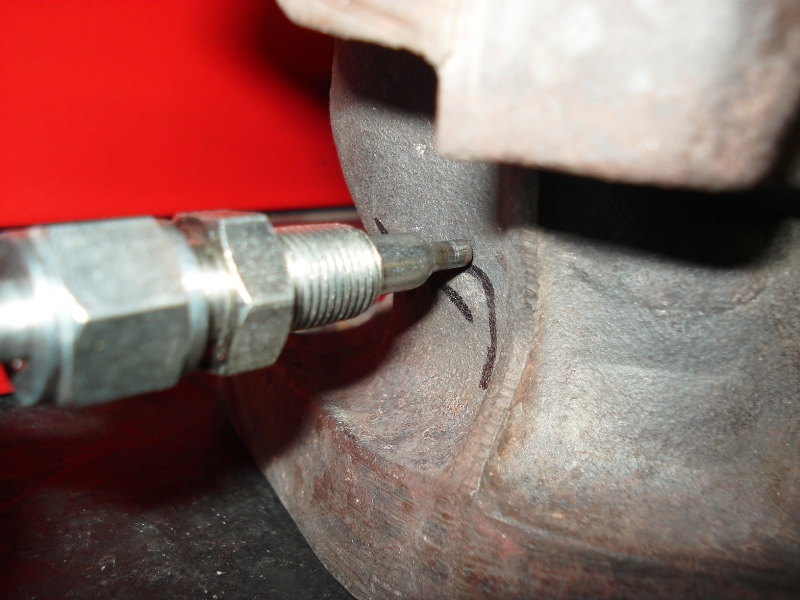

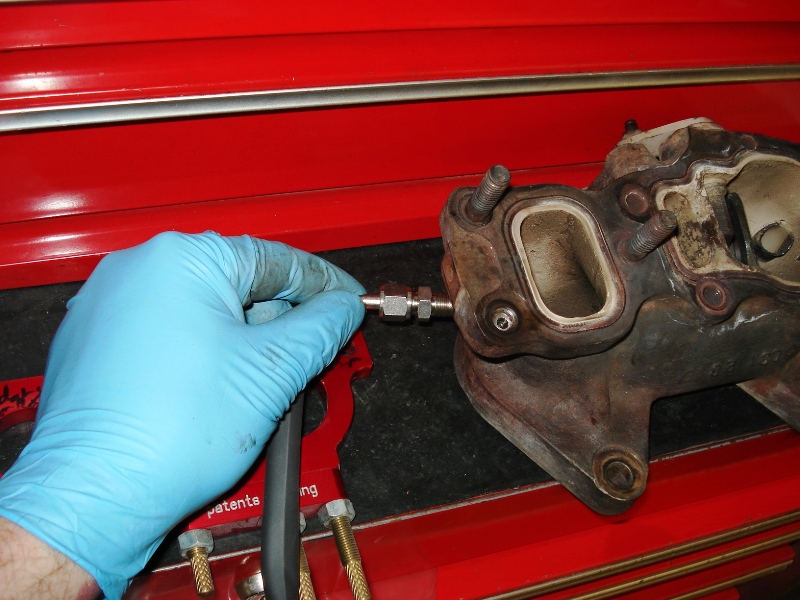

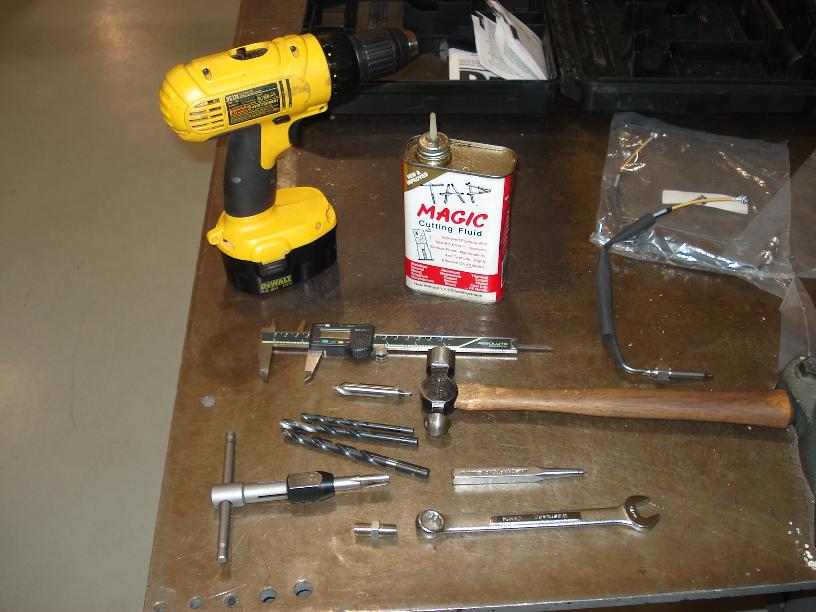

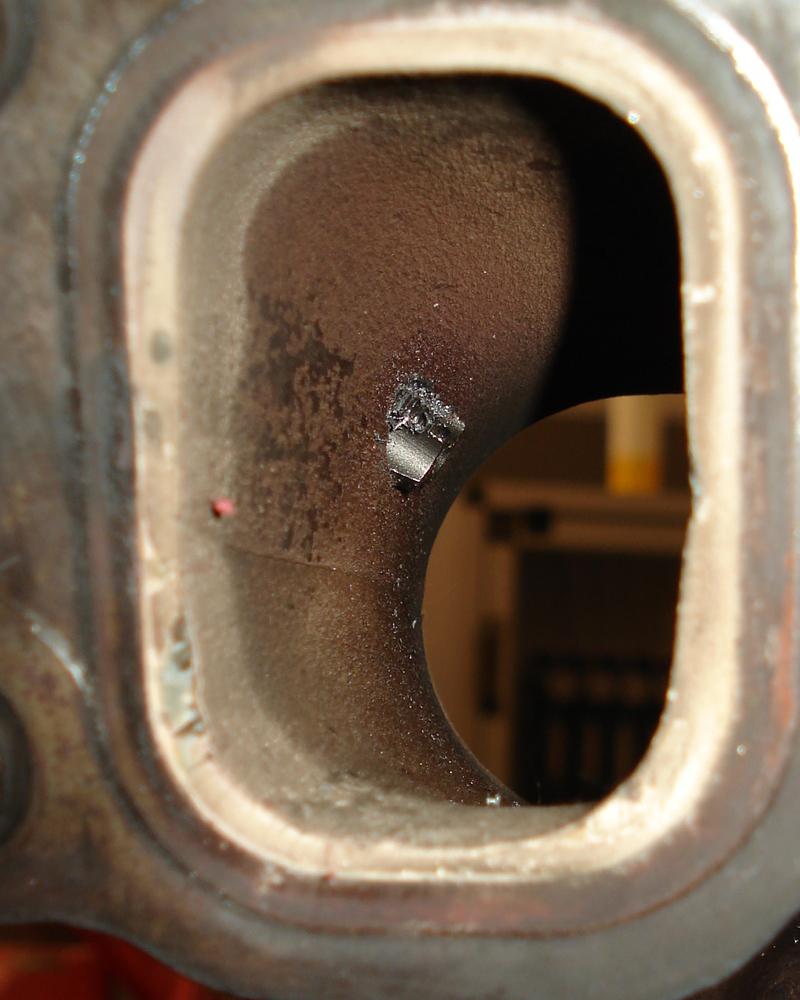

Alright done, you need a 1/8-27 NPT tap, 1/4" and letter S drill bits, punch, hammer, Drill, Vise (highly recommended) and a steady hand. When you tap only go a 1/8" past the inner surface for proper fit up.
Thread Starter
Rotary Freak
Joined: Aug 2001
Posts: 2,267
Likes: 3
Sorry, the GB is now over. We still sell them at the normal price of $249 for the kit, through our we site. PineappleRacing.com Online Store
As for the Inconel manifold, Inconel is a nickel-based "super alloy". Pain in the butt to work with. Your manifold is obvioulsy tubular and not cast, so you should drill a hole for each probe and use the provided tube clamps.
As for the Inconel manifold, Inconel is a nickel-based "super alloy". Pain in the butt to work with. Your manifold is obvioulsy tubular and not cast, so you should drill a hole for each probe and use the provided tube clamps.
Dan Cernese
Joined: Aug 2001
Posts: 208
Likes: 0
From: Pepperell, MA
both probes already died?!
Originally Posted by dhcernese
maybe the specs are somewhere: Hewitt Industries of L.A., part #015-003-B, thermocouple assy. They are only millivolt signals, however. The first "feature" listed is "fast response": http://www.hewittindustries.com/thermo.htm
- Continuous Operating Temperature Range: -55 to 1100°C / -67 to 2000 °F
- No limit to useful life
Yea right, ...1500 miles and they're both dead! Time to replace them already. Unfortunately, there are not exactly the most easy thing to get out. I'll have to wait until later this year.
One reads 0 ohms and the other 5.8 ohms. Very odd.
Thread Starter
Rotary Freak
Joined: Aug 2001
Posts: 2,267
Likes: 3
Originally Posted by dhcernese
- Lifetime Warranty
- Continuous Operating Temperature Range: -55 to 1100°C / -67 to 2000 °F
- No limit to useful life
Yea right, ...1500 miles and they're both dead! Time to replace them already. Unfortunately, there are not exactly the most easy thing to get out. I'll have to wait until later this year.
One reads 0 ohms and the other 5.8 ohms. Very odd.
- Continuous Operating Temperature Range: -55 to 1100°C / -67 to 2000 °F
- No limit to useful life
Yea right, ...1500 miles and they're both dead! Time to replace them already. Unfortunately, there are not exactly the most easy thing to get out. I'll have to wait until later this year.
One reads 0 ohms and the other 5.8 ohms. Very odd.
Last edited by Blake; Feb 2, 2007 at 07:15 PM. Reason: spelling
Thread Starter
Rotary Freak
Joined: Aug 2001
Posts: 2,267
Likes: 3
Originally Posted by FrankV702
Hey Blake, how long are these probes supposed to last? I just got my gauge kit in the mail today (looks really nice) but I really hope the probes just dont last 1500 miles.
- Lifetime Warranty
- Continuous Operating Temperature Range: -55 to 1100°C / -67 to 2000 °F
- No limit to useful life
If they failed after 1500 miles, it is a defect or some other problem (broken wire, shorts to ground, too much vibration). Hard to imagine two defective probes, so I would suspect another problem until everything else was ruled out.
Dan Cernese
Joined: Aug 2001
Posts: 208
Likes: 0
From: Pepperell, MA
Originally Posted by Blake
Like Hewitt says,
- Lifetime Warranty
- Continuous Operating Temperature Range: -55 to 1100°C / -67 to 2000 °F
- No limit to useful life
If they failed after 1500 miles, it is a defect or some other problem (broken wire, shorts to ground, too much vibration). Hard to imagine two defective probes, so I would suspect another problem until everything else was ruled out.
- Lifetime Warranty
- Continuous Operating Temperature Range: -55 to 1100°C / -67 to 2000 °F
- No limit to useful life
If they failed after 1500 miles, it is a defect or some other problem (broken wire, shorts to ground, too much vibration). Hard to imagine two defective probes, so I would suspect another problem until everything else was ruled out.
