here's my idea, I've considered this from a few different places and I've thought this would be the best in regards to weight. use the Fd front and end plates and housings, but instead of using the 20B thick centerplate, P-Port the housings and use regular FD centerplates. For the eccentric shaft, take two FD e-shafts, have a machine shop cut and key them into individual sections so it can be pieced together in a manner of your choosing (firing sequence like that of the 4 rotor e-shaft that is sold elsewhere). I'm thinking about doing some designing in google sketchup and seeing what I can come up with.
#31
use the Fd front and end plates and housings, but instead of using the 20B thick centerplate, P-Port the housings and use regular FD centerplates. For the eccentric shaft, take two FD e-shafts, have a machine shop cut and key them into individual sections so it can be pieced together in a manner of your choosing (firing sequence like that of the 4 rotor e-shaft that is sold elsewhere).
Now if weight is a concern and you have deep pockets aluminum side plates can be used.
#32
On flats
iTrader: (29)
Join Date: Oct 2004
Location: Albuquerque
Posts: 1,379
Likes: 0
Received 0 Likes
on
0 Posts
Yes, there is. You're talking about a completely custom installation. The appropriate mounting solution would be one that is custom fabricated. . .just like every other component of the build.
What makes you think that ANYTHING will be "off-the-shelf"?
What makes you think that ANYTHING will be "off-the-shelf"?
#33
dorito powered
iTrader: (5)
Join Date: Mar 2008
Location: Lincoln, NE
Posts: 2,839
Likes: 0
Received 0 Likes
on
0 Posts
no, the "typical" 4 rotor uses 2 large center irons like the ones found in 3 rotors, this is from my understanding, to allow properly sized intake ports. My idea was illiminate the need for those ports by P-porting the housings.
#34
Senior Member
Join Date: Nov 2008
Location: Czech republic
Posts: 357
Likes: 0
Received 0 Likes
on
0 Posts
No. There is only one genuine MFR 4 rotor-R26B and this engine hasn´t anything like factory... Two center irons that carry stationary gears appear slightly wider then usuall 13B center, but nowhere near like 20B thick plate... And your idea isn´t anything new, actually almost every custom build 4 rotor is short crank-modified 13B/12A center irons, full PP...
#35
Banned. I got OWNED!!!
Join Date: Dec 2007
Location: paradise Florida
Posts: 946
Likes: 0
Received 0 Likes
on
0 Posts
personally, i dont see why anybody has come up with a modular eccentric shaft/bearing kit..
if you made a modular 1 rotor eshaft, with a bearing journal on one side, and a connecting piece on the other side. With the appropriate centerplate bearings, you could stack the engine as much as you wanted.
if you made a modular 1 rotor eshaft, with a bearing journal on one side, and a connecting piece on the other side. With the appropriate centerplate bearings, you could stack the engine as much as you wanted.
#38
here's my idea, I've considered this from a few different places and I've thought this would be the best in regards to weight. use the Fd front and end plates and housings, but instead of using the 20B thick centerplate, P-Port the housings and use regular FD centerplates. For the eccentric shaft, take two FD e-shafts, have a machine shop cut and key them into individual sections so it can be pieced together in a manner of your choosing (firing sequence like that of the 4 rotor e-shaft that is sold elsewhere). I'm thinking about doing some designing in google sketchup and seeing what I can come up with.
#39
dorito powered
iTrader: (5)
Join Date: Mar 2008
Location: Lincoln, NE
Posts: 2,839
Likes: 0
Received 0 Likes
on
0 Posts
here's my idea, I've considered this from a few different places and I've thought this would be the best in regards to weight. use the Fd front and end plates and housings, but instead of using the 20B thick centerplate, P-Port the housings and use regular FD centerplates. For the eccentric shaft, take two FD e-shafts, have a machine shop cut and key them into individual sections so it can be pieced together in a manner of your choosing (firing sequence like that of the 4 rotor e-shaft that is sold elsewhere). I'm thinking about doing some designing in google sketchup and seeing what I can come up with.
The real 26b is way different the just two engine slap together. The e-shaft has the rotor phased at 90 instead of 180 like the 2 rotor engines. That is why they sound so good because of the order they fire at. You could sort of phase them the same by rotating the the shafts 90 and get it that way but I think work better when they are phased front to back 90 intervals.
#41
Senior Member
Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes
on
0 Posts
Shorty 4 rotor
I always wondered how thin you could go with the side plates. If the engine is Peripheral Ported, the side plates just need to contain the combustion and distribute the oil and water. Could you make a super short 4 rotor using narrow (3/4" or so) side plates? Aim for the length of a 20B or so. E-shaft could be just like the other kits out there, keyed on eccentrics.
Oil-wise, you don't need a ton of passages, just supply oil to the e-shaft bearings and evacuate the oil from the rotors. Run a stock car external dry sump system, pulling the oil from a return passage that wouldn't require an oil pan and scavenge tubes.
Coolant-wise, I haven't cut apart a side plate to see how thick the metal is or how they are internally ported so I can't say.
I just wondered about this one day.
-Trent
Oil-wise, you don't need a ton of passages, just supply oil to the e-shaft bearings and evacuate the oil from the rotors. Run a stock car external dry sump system, pulling the oil from a return passage that wouldn't require an oil pan and scavenge tubes.
Coolant-wise, I haven't cut apart a side plate to see how thick the metal is or how they are internally ported so I can't say.
I just wondered about this one day.
-Trent
#42
#43
Banned. I got OWNED!!!
Join Date: Dec 2007
Location: paradise Florida
Posts: 946
Likes: 0
Received 0 Likes
on
0 Posts
I always wondered how thin you could go with the side plates. If the engine is Peripheral Ported, the side plates just need to contain the combustion and distribute the oil and water. Could you make a super short 4 rotor using narrow (3/4" or so) side plates? Aim for the length of a 20B or so. E-shaft could be just like the other kits out there, keyed on eccentrics.
Oil-wise, you don't need a ton of passages, just supply oil to the e-shaft bearings and evacuate the oil from the rotors. Run a stock car external dry sump system, pulling the oil from a return passage that wouldn't require an oil pan and scavenge tubes.
Coolant-wise, I haven't cut apart a side plate to see how thick the metal is or how they are internally ported so I can't say.
I just wondered about this one day.
-Trent
Oil-wise, you don't need a ton of passages, just supply oil to the e-shaft bearings and evacuate the oil from the rotors. Run a stock car external dry sump system, pulling the oil from a return passage that wouldn't require an oil pan and scavenge tubes.
Coolant-wise, I haven't cut apart a side plate to see how thick the metal is or how they are internally ported so I can't say.
I just wondered about this one day.
-Trent
the idea is you could make a pp 4 rotor about 16 inches long!
one day
#44
Banned. I got OWNED!!!
Join Date: Dec 2007
Location: paradise Florida
Posts: 946
Likes: 0
Received 0 Likes
on
0 Posts
i'm going to correct myself.
it would be more like 17 or 18 inches at the shortest.
thats still almost the length of a 13b, and shorter than a 20b.. so damn..
it would be more like 17 or 18 inches at the shortest.
thats still almost the length of a 13b, and shorter than a 20b.. so damn..
#46
Senior Member
iTrader: (1)
Join Date: Dec 2008
Location: Vancouver, BC
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
This is one of those projects thats always on the back burner for me. Every couple of weeks I think about it a bit more and sometimes work on some designs. THis season is devoted to getting the new drag chassis prepped and sorted out. Next year I may actually get around to some actual fabrication.
I figure the easiest way to do it, is similar to how granny's did it, except instead of modifying the eshafts I was going to explore building a coupler that could be bolted in place of the flywheel of the front engine and bolted in place of the crank pulley of the rear engine.
I figure the easiest way to do it, is similar to how granny's did it, except instead of modifying the eshafts I was going to explore building a coupler that could be bolted in place of the flywheel of the front engine and bolted in place of the crank pulley of the rear engine.
#47
Senior Member
iTrader: (1)
Join Date: Dec 2008
Location: Vancouver, BC
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts

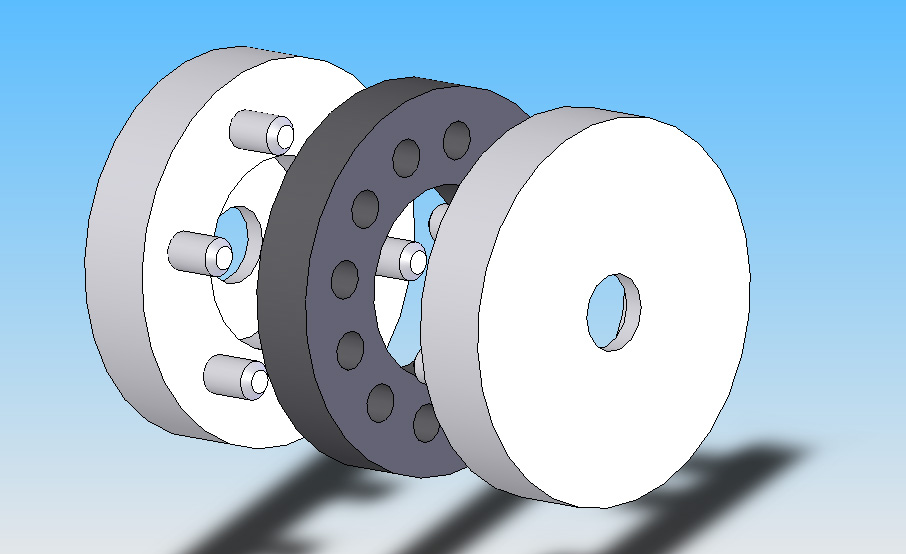

This is one idea I've had for the coupler. It's based on the coupler system used inside an eaton super charger. The middle section would be made out of delrin or uhwm-pe. This would help absorb vibrations between the two engines.
