stock vs LS vs 2jz weight

Old 05-04-14, 10:02 AM
  #1
Mostly stock
Thread Starter
iTrader: (5)

Mr3plus1's Avatar

Join Date: Dec 2005
Location: Houston
Posts: 379
Likes: 0
Liked 0 Times in 0 Posts
Exclamation stock vs LS vs 2jz weight

This should be the definitive answer to how much swapping these cars throws off the weight/balance of the car. All 3 were weighed on the same precision scales with roughly half a tank of gas.

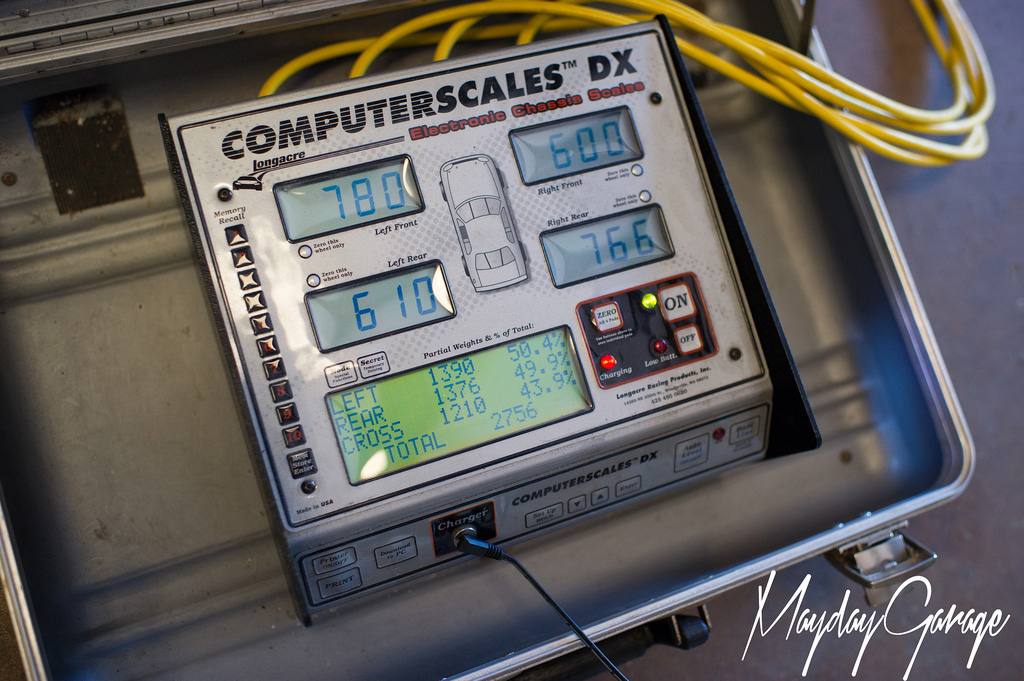

First off is a stock '93 R1. Well, stock on the inside at least - all the way down to the air pump.

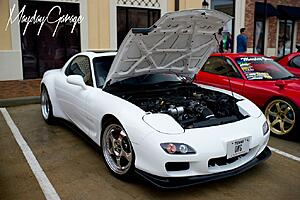

Next up is a '94 LS powered touring. No power steering and no ABS, but otherwise a full interior including A/C. Rear mounted battery.

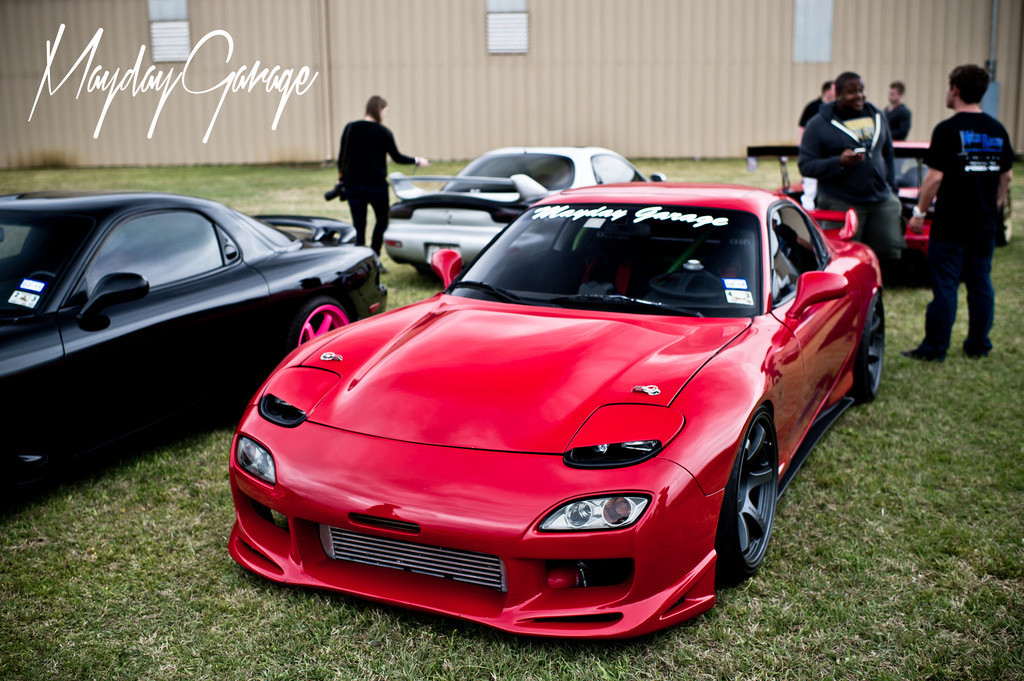

Last we have a '93 2jz powered touring. No A/C, but it does have full interior and a half cage in it. Rear mounted battery also.






All 3 cars are on coilover suspension, so corner balancing to get a perfect 50/50 isnt out of the question. The LS powered RX7 is making around 380whp. The 2jz is well over 700whp.

And for anyone curious here's all 3 with their drivers in them.

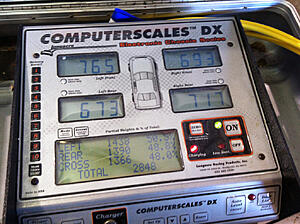

stock R1 -

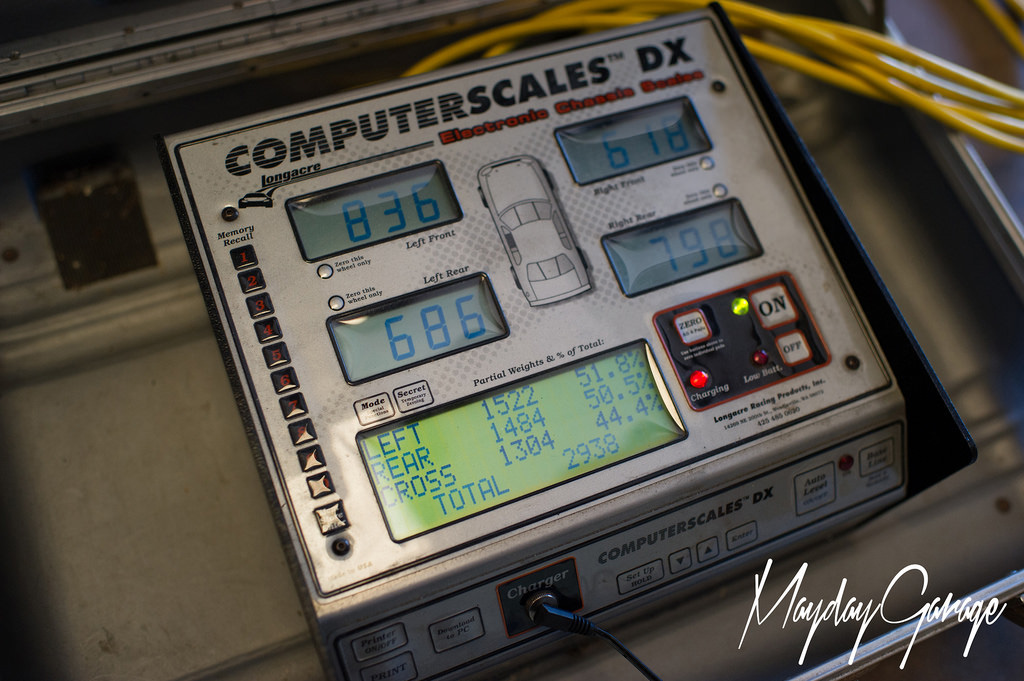

LS powered -

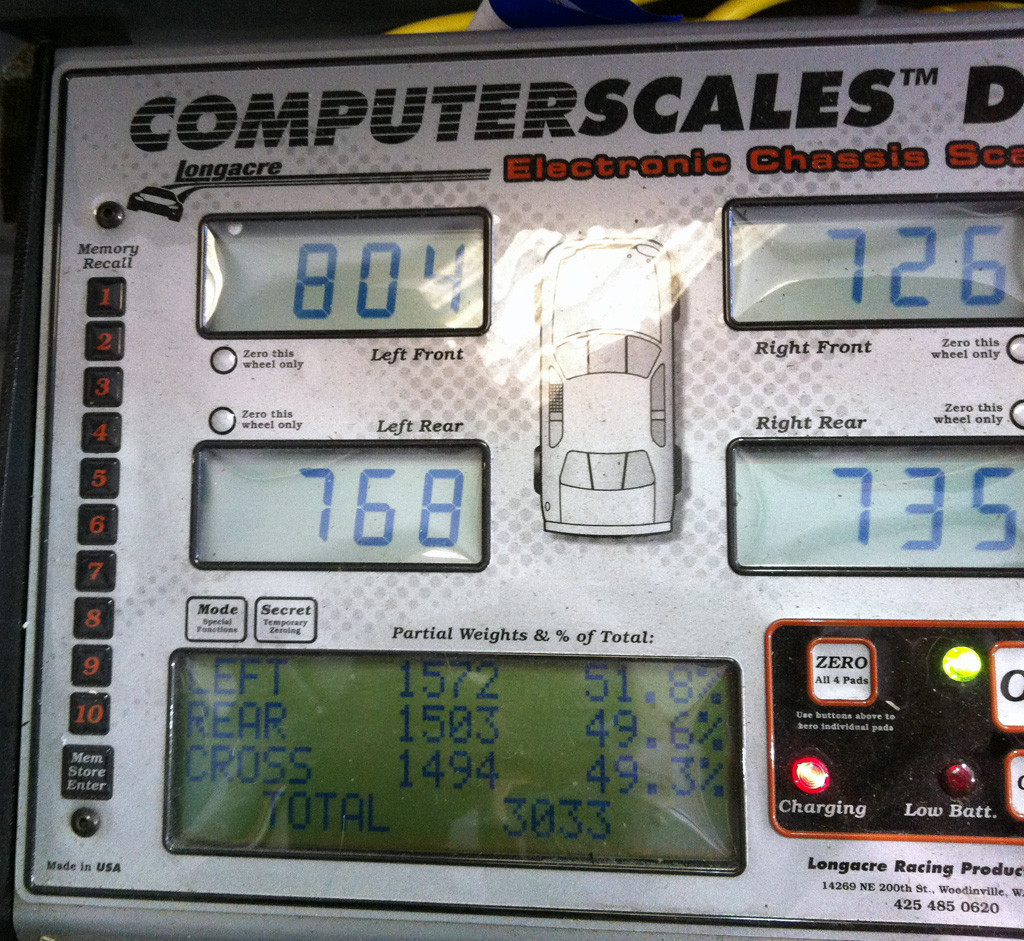

2jz powered -



Hopefully this clears up the whole 'you swap out the 13b and ruin the 50/50 balance these cars have' debate. Bring on the flames.
Mr3plus1 is offline
Old 05-04-14, 10:08 AM
  #2
Sponsor
RX7Club Vendor
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 10,961
Liked 47 Times in 42 Posts
Agreed, a proper swap will have very little effect on handling and maybe only a slight weight penalty. Weigh an ls swapped car with no sunroof and it bet it will be even closer.
__________________
http://irperformance.com
Engine builds, single turbo kits, parts sales, performance upgrades, maintenance, tuning
732-662-1794 [email protected]
Brand new Mazda oem 13brew motors available. $4599 NO CORE FEE. VERY LIMITED. Check out our new turbo kits http://www.irperformance.com/product...zda/rx7/turbo/
IRPerformance is offline
Old 05-04-14, 10:17 AM
  #3
Senior Member
iTrader: (8)

jayscoobs's Avatar

Join Date: Jul 2011
Location: Bay Area, CA
Posts: 588
Likes: 0
Liked 0 Times in 0 Posts
Also imagine how the stock fd would weight if it had the twins ripped out. Smaller battery. No a/c. It would widen the gap further.
jayscoobs is offline
Old 05-04-14, 10:21 AM
  #4
Sponsor
RX7Club Vendor
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 10,961
Liked 47 Times in 42 Posts
I've done an LS swap and kept both AC and power steering. Couldn't tell the difference in handling but the car was much easier to drive on the street because of the torque curve. You will save weight by ditching the twins and control system, then gain some back with a bigger turbo, intercooler, etc. I never understood why people are so worried about saving 20 lbs. I can see if you are racing professionally where every bit counts. I personally like to have creature comforts when I go for a cruise or take a girl out. I'm a fan of all 3 engines but to each his own.
__________________
http://irperformance.com
Engine builds, single turbo kits, parts sales, performance upgrades, maintenance, tuning
732-662-1794 [email protected]
Brand new Mazda oem 13brew motors available. $4599 NO CORE FEE. VERY LIMITED. Check out our new turbo kits http://www.irperformance.com/product...zda/rx7/turbo/

Last edited by IRPerformance; 05-04-14 at 10:24 AM.
IRPerformance is offline
The following users liked this post: IRPerformance
Venom13132 (09-21-18)
Old 05-04-14, 03:00 PM
  #5
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts
It is kind of important where the weight is in the car for handling.

You are kidding yourself if you think there won't be any handling difference between a 16" long 425lb stock 13BREW and a 30" long 594lb 2JZ.

You are telling me you wouldn't feel a difference if someone put 175lb cement block on the intercooler support on a stock RX-7. OK great for you, but I assure you other drivers will notice.

I am not saying either of these two bad *** swaps are not without their merit. Just that you need to enjoy them for what they are and stop trying to justify how it doesn't affect the handling.

I am dreaming of a 16.5" long 425lb VW W8 in my RX-8. OMG the flat crank V-8 music.
BLUE TII is offline
Old 05-04-14, 07:20 PM
  #6
Full Member

ImamurA's Avatar

Join Date: Feb 2005
Location: Trinidad
Posts: 154
Likes: 0
Liked 2 Times in 1 Post
Also, remember the weight of the other swaps would also be higher placed than the stock rotary and raise the centre of gravity and increase the weight transfer at the front...
ImamurA is offline
Old 05-04-14, 09:34 PM
  #7
Full Member
iTrader: (3)

Join Date: Apr 2006
Location: houston, tx
Posts: 112
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by ImamurA View Post
Also, remember the weight of the other swaps would also be higher placed than the stock rotary and raise the centre of gravity and increase the weight transfer at the front...
yeah, even though they could easily be adjusted to balance and the weight gain is not significant, we all agree that where the weight is placed is the biggest factor in all this. where the motor sits how high or low or forward or backwards it will still be different and drive different. how different we don't know. mine is the 2jz powered one
kbhoioejma is offline
Old 05-05-14, 01:55 PM
  #8
Full Member

ImamurA's Avatar

Join Date: Feb 2005
Location: Trinidad
Posts: 154
Likes: 0
Liked 2 Times in 1 Post
very nice car...did you notice a big difference in the handling when you did the swap?...like more understeer than before?...no hate or anything by the way...
ImamurA is offline
Old 05-05-14, 02:59 PM
  #9
FD + 2JZGTE = WIN! **D
iTrader: (19)

YoshiFD3S's Avatar

Join Date: Mar 2004
Location: King George, VA USA
Posts: 1,670
Likes: 0
Liked 0 Times in 0 Posts
Is that 2JZ swap somehow still running stock twins or is it single turbo?
YoshiFD3S is offline
Old 05-05-14, 05:34 PM
  #10
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts
Single in a sexy engine bay. If you google 2jz RX-7 you will find great pics of his car.
BLUE TII is offline
Old 05-06-14, 12:50 PM
  #11
Full Member
iTrader: (3)

Join Date: Apr 2006
Location: houston, tx
Posts: 112
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by ImamurA View Post
very nice car...did you notice a big difference in the handling when you did the swap?...like more understeer than before?...no hate or anything by the way...
we havent had a chance to test them out yet on a track or anything. the red r1 is doing a vmount in a month or so. i need to replace some bushings and we will all try to hit the track. even swap cars and drive to see the difference.
kbhoioejma is offline
Old 05-14-14, 10:10 AM
  #12
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,141
Liked 6 Times in 6 Posts
Originally Posted by BLUE TII View Post
It is kind of important where the weight is in the car for handling.

You are kidding yourself if you think there won't be any handling difference between a 16" long 425lb stock 13BREW and a 30" long 594lb 2JZ.

You are telling me you wouldn't feel a difference if someone put 175lb cement block on the intercooler support on a stock RX-7. OK great for you, but I assure you other drivers will notice.

I am not saying either of these two bad *** swaps are not without their merit. Just that you need to enjoy them for what they are and stop trying to justify how it doesn't affect the handling.

I am dreaming of a 16.5" long 425lb VW W8 in my RX-8. OMG the flat crank V-8 music.
Most of the extra weight in the LS swap is in the t56 transmission... The best place for extra weight. Most of the LS FD swaps are actually heavier in the REAR by half to one percent.
LargeOrangeFont is offline
Old 05-14-14, 12:24 PM
  #13
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts
Yes, the LSx swap will have much less affect than the 2JZ swap on chassis dynamics.

The LSx is around 28" to the crank pulley, and only weighs 70lbs more than the fully dressed 13B-REW.

As you say, once you add the beefy transmission and rear end you have added even more weight, though in the case of the transmission it is in the best possible area.

LSx swap makes a lot of sense. We are in the land of the V8 where it is cheap, plentiful parts and everyone is familiar with it.

The 2JZ swap is bad *** for its JDMness and the fact you are basically making a better Supra. Maybe the 2JZ swap is even bad *** because it makes no sense.

It will be really hard to defend its affects on chassis dynamics though.

Compared to a 2JZ a '60s small block Chevy V8 weighs less, is shorter and THE engine Americans know how to make power cheaply with.
BLUE TII is offline
Old 05-14-14, 02:02 PM
  #14
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,401
Likes: 0
Liked 108 Times in 98 Posts
we went spec E30 racing, and it really taught us how important weight distribution really is.

at the time the minimum weight for the class was 2750lbs, with driver. the problem was that a stock E30 is 2700lbs, so once you remove all the stuff you need to remove, and add a light driver, we were at 2550lbs.

the E30 like the toyota engine is a big iron straight 6, with the trans its in the 900lbs range, so a stock E30 has something around a 60/40 weight distribution.

at 2550lbs, the car was running 1:58's at sears point. we added more than 200lbs of ballast in the trunk* to bring it up to minimum weight.

you'd expect adding 200lbs to a ~150hp car would slow it down, but we actually dropped a couple of tenths off the lap times.

imagine what would happen if instead of adding 200lbs in the trunk we removed the boat anchor BMW calls an engine and replaced it with something that was lighter?

in short the big iron straight 6 is cool, sounds great, but its not great if you need to turn....

*the stupid part is that we were only legally allowed to add 100lbs of ballast, which make us wonder how they came up with a 2750 minimum weight, when the car is 2400!
j9fd3s is offline
Old 05-14-14, 02:34 PM
  #15
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts
I just want to repeat that I think the 2JZ swap is bad *** and I love it for what it is.

My friend swapped a 2JZ into his MkIII Supra turbo and it makes that heavy car MOVE and it really sounds amazing with open wastegate and turbo sounds.

Plus, it has been WAAAAAAY more reliable than all his 7Ms were.
BLUE TII is offline
Old 05-18-14, 11:50 AM
  #16
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,141
Liked 6 Times in 6 Posts
Originally Posted by BLUE TII View Post
Yes, the LSx swap will have much less affect than the 2JZ swap on chassis dynamics.

The LSx is around 28" to the crank pulley, and only weighs 70lbs more than the fully dressed 13B-REW.

As you say, once you add the beefy transmission and rear end you have added even more weight, though in the case of the transmission it is in the best possible area.

LSx swap makes a lot of sense. We are in the land of the V8 where it is cheap, plentiful parts and everyone is familiar with it.

The 2JZ swap is bad *** for its JDMness and the fact you are basically making a better Supra. Maybe the 2JZ swap is even bad *** because it makes no sense.

It will be really hard to defend its affects on chassis dynamics though.

Compared to a 2JZ a '60s small block Chevy V8 weighs less, is shorter and THE engine Americans know how to make power cheaply with.
Interestingly enough the rear end swap to a Ford 8.8 is about weight neutral. In my FC going to the 8.8 with hybrid half shafts was within a pound of the turbo 2 diff and half shafts.

I like the v8 swap for its simplicity. I have far less to worry about on the track, the car runs cooler, and maintenance is a bit cheaper. I can run the car harder on the track for longer than I ever could with the rotary.
LargeOrangeFont is offline
Old 05-18-14, 10:31 PM
  #17
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts
Interestingly enough the rear end swap to a Ford 8.8 is about weight neutral. In my FC going to the 8.8 with hybrid half shafts was within a pound of the turbo 2 diff and half shafts.

The FC has a super heavy long pinion rear end- its basically how Mazda got 50/50 weight distribution on the FC.

The graphics/illustration clearly shows this in the Yamaguchi book with all the weight over the front and rear tires.

The FD short pinion rear with its smaller dimensions and thin casting is quite a bit lighter (and weaker).

I am betting the 2ZJ FD in this thread has an upgraded rear and that is why both the rear and front gained weight and it stayed 50/50 (though it could be a big sub box I guess).

Having the weight on the ends of the car makes it handle like a Subaru, understeer on turn in, oversteer on exit and slow to rotate. The upside is things happen slower so its good for learning to drift.
BLUE TII is offline
Old 05-19-14, 02:00 AM
  #18
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,141
Liked 6 Times in 6 Posts
The Ford diff is still not much heavier.. It's only 72 lbs.

2jzs are fine and everything, but rotary guys cry about killing the car's soul.. That's what does it, not a v8.
LargeOrangeFont is offline
Old 05-19-14, 12:29 PM
  #19
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts

2jzs are fine and everything, but rotary guys cry about killing the car's soul


Well, we rotary guys need to get over it and think of it as building a better Supra instead.
BLUE TII is offline
Old 05-19-14, 12:31 PM
  #20
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,141
Liked 6 Times in 6 Posts
Originally Posted by BLUE TII View Post

2jzs are fine and everything, but rotary guys cry about killing the car's soul


Well, we rotary guys need to get over it and think of it as building a better Supra instead.
Or a better Corvette as the case may be.
LargeOrangeFont is offline
Old 05-26-14, 10:49 AM
  #21
Senior Member
5 Year Member
iTrader: (1)

christianRX7's Avatar

Join Date: Mar 2007
Location: San Diego
Posts: 305
Likes: 0
Liked 0 Times in 0 Posts
Well if u really think about it the LS1 sits at 300 hp NA and that's just the beginning not even with a turbo throw some bolt on on and well u will start saying whats a JZ and still pumping cheap gas and reliable then if that's not enough u can go turbo then ur making crazy power y u wouldent go LS1 in the U.S. is crazy
christianRX7 is offline
Old 05-27-14, 11:43 PM
  #22
Full Member
iTrader: (3)

Join Date: Apr 2006
Location: houston, tx
Posts: 112
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by BLUE TII View Post

2jzs are fine and everything, but rotary guys cry about killing the car's soul


Well, we rotary guys need to get over it and think of it as building a better Supra instead.
hahaha the funny thing about this comment is that i really wanted a supra and was about to buy one but got an fd instead bc i know they're much lighter. looks wise i like both evenly. i like how small the fd is. so i said F it and throw a 2j in it.

also my rear end is still stock for now.... until it breaks. i was looking at the ford 8.8 rear but mike (the white LSx fd in this comparison thread) said just to get a turbo II rear. oh and no subs either... i don't even have a radio in it unfortunately

the car is a blast to drive on the street with e85. i would have to dial the boost back on the track when i do go... or get better and wider tires. 740whp just blows the tires off

btw the scale pic above of my fd (2jz) without me in it is the wrong pic. thats scale pic is the stock r1 with the driver

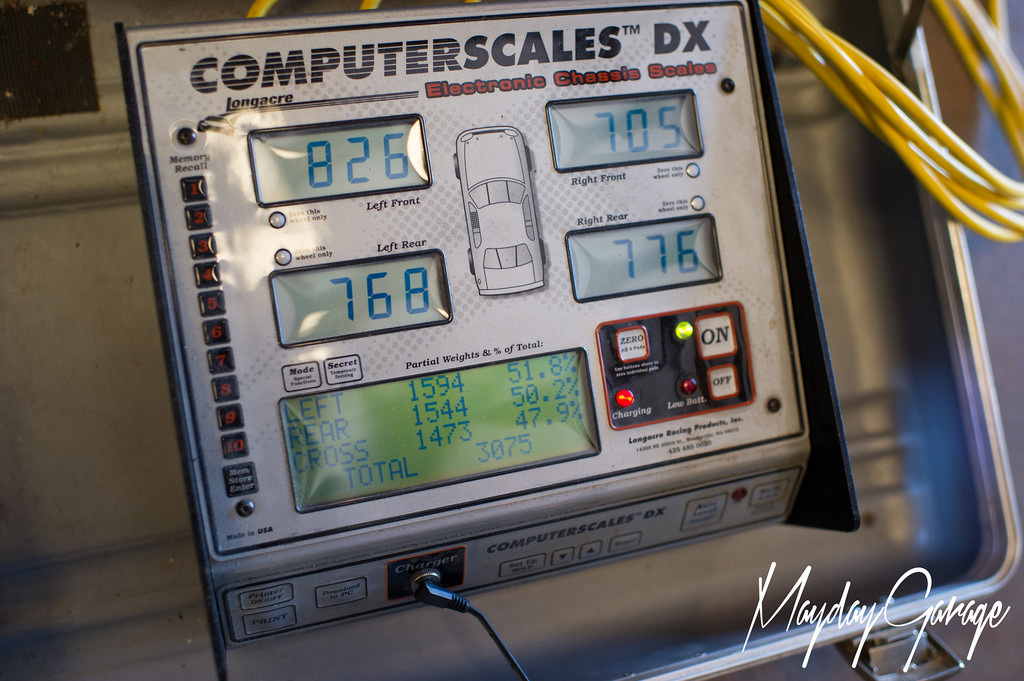

this is the correct weight of the car without the driver for the 2jz fd (my fd)

kbhoioejma is offline
Old 06-12-14, 11:06 PM
  #23
Junior Member
iTrader: (2)

Join Date: Nov 2008
Location: Miami
Posts: 23
Liked 0 Times in 0 Posts
Nice^! I'll be posting up my 2jz build soon. My motor is good to go and the subframe is actually getting built now. It'll be the second jz fd here in south florida. I am doing the ford rear end as well.
Drft_lock is offline
Old 06-13-14, 01:53 PM
  #24
SEMI-PRO
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Liked 29 Times in 27 Posts

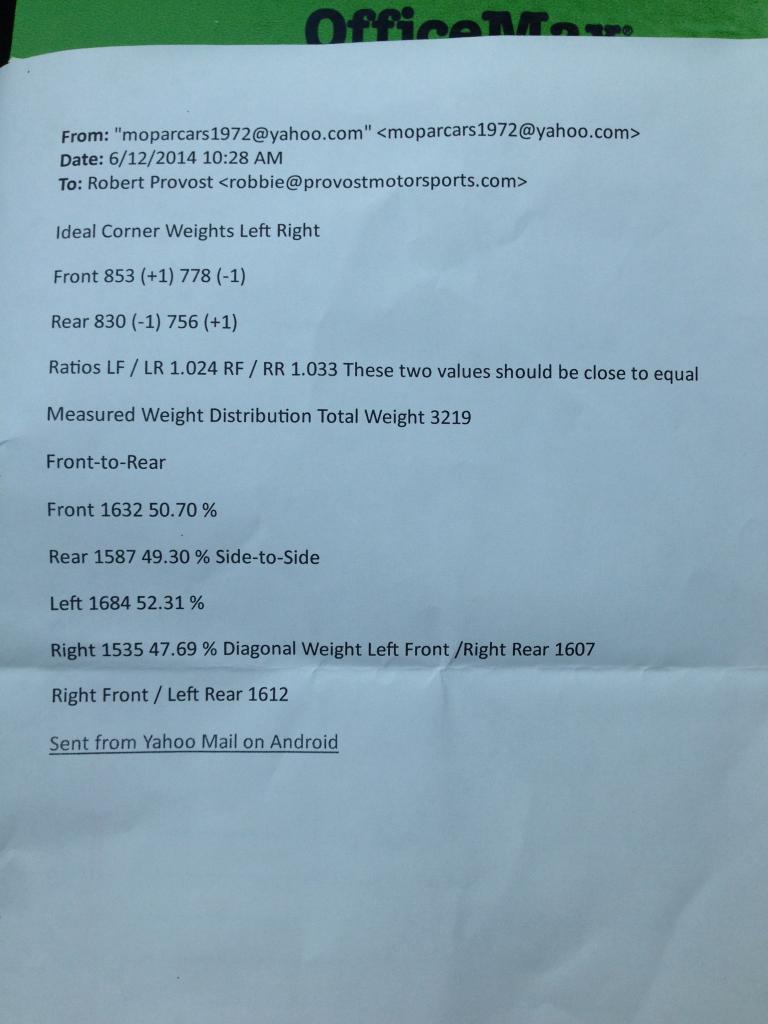

Just to keep the information flowing my LS3 FD was corner balanced and I have A/C, full interior, stock leather seats, sunroof, roll bar and heavy Work Meister S1r wheels in 18x9.5 and
18x11 on the car.

It still was 50.7% front and 49.3% rear.
Half tank of gas and 245lb driver.
3219lb
2974lb without driver and still half tank of fuel.
Balance was done with driver.
Here is the sheet
Name:  8F7C27C4-5EED-4225-9EBC-9508029DBC42.jpg
Views: 4349
Size:  62.0 KB
ZoomZoom is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Wicked93gs
Other Engine Conversions - non V-8
0
08-23-15 10:14 AM


Thread Tools
Search this Thread
Quick Reply: stock vs LS vs 2jz weight


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
