S4 EFI 13b into street bug
03-08-08, 03:13 AM
#1
Full Member
Thread Starter
Join Date: Nov 2007
Location: Los Angeles
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
S4 EFI 13b into street bug
Hello rotorheads
Here is my project. I have a ways to go but I will get there...
Would you believe that I've never driven an RX-7?
Seriously, I have no idea what this will be like...
Here is my project. I have a ways to go but I will get there...
Would you believe that I've never driven an RX-7?
Seriously, I have no idea what this will be like...
03-09-08, 01:00 PM
#2
Nice Bug Man,, Love Even More With A Rotary,, Rx7 Are Fun To Drive And
Anything With Rotary Makes It Better Too,down Here In Florida I Saw A
Porche With A Rotary Was Not A Newer One But Hey They Still
Expensive,mike Lowe Was Tunning It. If You Know Mike Lowe He Is The
Man . He A Good Ase Mechanic , His Rx7 Ran So Good ,,he Knows
Rotary.but Anyways.rotary Makes Anything Be Different,
Anything With Rotary Makes It Better Too,down Here In Florida I Saw A
Porche With A Rotary Was Not A Newer One But Hey They Still
Expensive,mike Lowe Was Tunning It. If You Know Mike Lowe He Is The
Man . He A Good Ase Mechanic , His Rx7 Ran So Good ,,he Knows
Rotary.but Anyways.rotary Makes Anything Be Different,
03-24-08, 05:19 AM
#6
Adolf Hitler Verfechter
Join Date: Sep 2002
Location: Northern South Africa
Posts: 969
Likes: 0
Received 0 Likes
on
0 Posts
Very nice!
Your intake does make it allot easier with yours being a 6 Port.My oil filler tube is more in the way.
Electric water pump!Yeah,thats is going to rock
Your intake does make it allot easier with yours being a 6 Port.My oil filler tube is more in the way.
Electric water pump!Yeah,thats is going to rock
03-24-08, 07:02 PM
#7
Full Member
Thread Starter
Join Date: Nov 2007
Location: Los Angeles
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
Yeah, it looks easier... but the intake is facing the decklid, and it's going to take some crazy piping toget it through the airflow meter and a K&N. I wish the inlet was on the passenger side.
Trending Topics
05-10-08, 01:18 AM
#8
Full Member
Thread Starter
Join Date: Nov 2007
Location: Los Angeles
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts

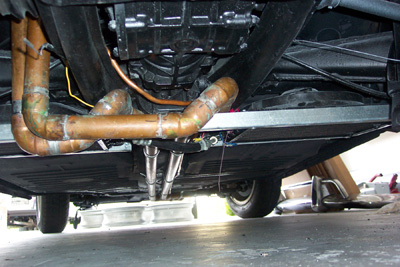

I've got plumbing from the motor to inside the car. With aluminum tube and a pipe cutter it's easy enough. I still need to make brackets to support the pipes though. Kennedy Engineering says that 1.25" pipe is adequate so I'm trying it, though it does look awfully small. I want to keep the volume of coolant to a minimum so it doesn't take forever to warm up. The short tube at the highest point will be replaced with a filler & cap.
05-10-08, 05:13 PM
#12
Full Member
Join Date: Jul 2004
Location: Florida
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Nice! It looks like the engine is supported from the tranny only. Are you going to add a bracket to sopport tyhe engine ? I installeda 13 b in my ghia but used a front cover from an earlier model to support the engine.
05-11-08, 04:19 AM
#14
Full Member
Thread Starter
Join Date: Nov 2007
Location: Los Angeles
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the comments.
Yep, the alternator is going on the side. Perhaps a high output GM or ?? No need to run the stocker since I'll be making the bracket myself. With an electric fan and electric water pump it might be wise to beef it up. How's your baja Jeff? I'd like to see a good vid of a street driven rotorbeetle, not just dragstrip passes and burnouts.
The motor is hanging right now and I would like to change the front cover to use the earlier mount. Is it fairly easy? I can imagine there is CAS alignment, any other gochas? I think that once I replace the exhaust mani with a header, the motor (sans water pump & housing) will weigh in close to the og VW motor.
I noticed the green oval... Wow, love it. That's a scary power to weight ratio. The though has crossed my mind that when I'm done with this it would be easy to swap in a turbo motor, (particularly since I am tentatively planning a Haltech for this project) but then the T1 trans would no longer be adequate and the money pit gets deep fast...
Can't wait to drive this, or even start the engine. I am concerned about the noise though. I have limited space for mufflers, and I am trying to build a daily driver.
Yep, the alternator is going on the side. Perhaps a high output GM or ?? No need to run the stocker since I'll be making the bracket myself. With an electric fan and electric water pump it might be wise to beef it up. How's your baja Jeff? I'd like to see a good vid of a street driven rotorbeetle, not just dragstrip passes and burnouts.
The motor is hanging right now and I would like to change the front cover to use the earlier mount. Is it fairly easy? I can imagine there is CAS alignment, any other gochas? I think that once I replace the exhaust mani with a header, the motor (sans water pump & housing) will weigh in close to the og VW motor.
I noticed the green oval... Wow, love it. That's a scary power to weight ratio. The though has crossed my mind that when I'm done with this it would be easy to swap in a turbo motor, (particularly since I am tentatively planning a Haltech for this project) but then the T1 trans would no longer be adequate and the money pit gets deep fast...
Can't wait to drive this, or even start the engine. I am concerned about the noise though. I have limited space for mufflers, and I am trying to build a daily driver.
05-11-08, 03:15 PM
#17
Full Member
Thread Starter
Join Date: Nov 2007
Location: Los Angeles
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
That's because I was still thinking of using them. Originally I had planned on making a tubeframe (attached to the mounts) that would protect the oil pan, but in the interest of saving weight & time I'm looking at the front mount. The late model mounts actually have an advantage; they would connect further forward on the car where the sheetmetal is thicker and structurally stronger. The tail end or a beetle is acually pretty flimsy.
About the trans, that's good news. I will be buying a built T1 after I check out the stock ratios. I was concerned because there is a local guy that has a NA 13b VW thing that has been burning through "Pro Street" transmissions... I'm not going to be launching it hard so I'm hoping that will help. I'm thinking I might go with a 3.88 R&P and heavy overdrive in 4th because this will be a daily driver and I want good MPG on the freeway. If 3rd can reach 80mph, that will cover my need for quick accelleration.
About the trans, that's good news. I will be buying a built T1 after I check out the stock ratios. I was concerned because there is a local guy that has a NA 13b VW thing that has been burning through "Pro Street" transmissions... I'm not going to be launching it hard so I'm hoping that will help. I'm thinking I might go with a 3.88 R&P and heavy overdrive in 4th because this will be a daily driver and I want good MPG on the freeway. If 3rd can reach 80mph, that will cover my need for quick accelleration.
05-11-08, 03:59 PM
#18
Full Member
Join Date: Jul 2004
Location: Florida
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts

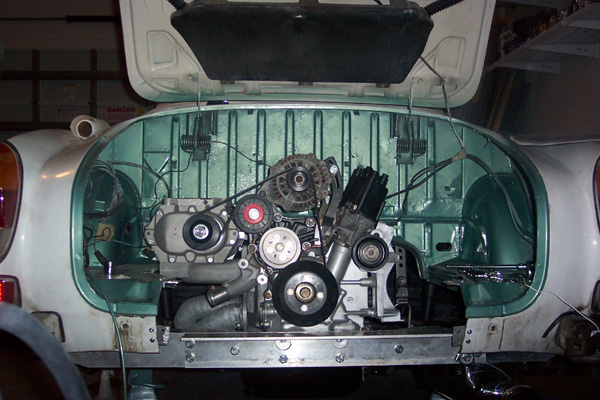

Attached are some pictures of my set-up. I used aluminum angle for the bracket. It is bolted to the bumper support.
I am going to change the radiator. I received an aluminum radiator from Howe racing.
I am going to change the radiator. I received an aluminum radiator from Howe racing.
05-11-08, 04:09 PM
#19
Full Member
Join Date: Oct 2003
Location: SoCal
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
what is that guy in the thing doing to the trannys...hell I have a 2110 turbo motor atached to the same trans I had behind my 12abp....its still good and I drive like a psycho on a daily basis....it might be his tire size and if I'm not mistaken things have reduction gears....that might be his problem...
05-11-08, 09:19 PM
#20
Full Member
Join Date: Jul 2004
Location: Florida
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Hi:

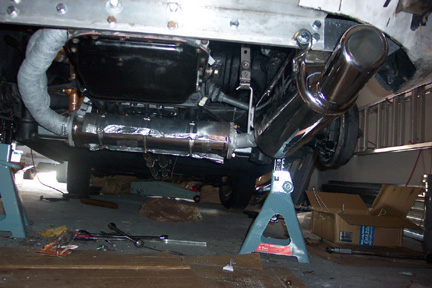

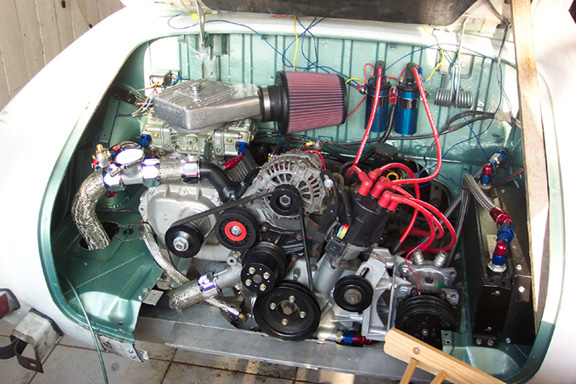

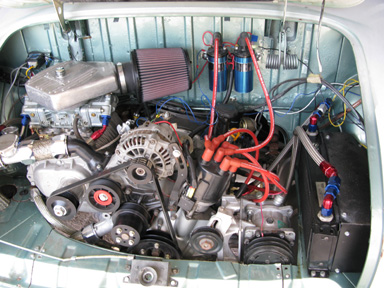

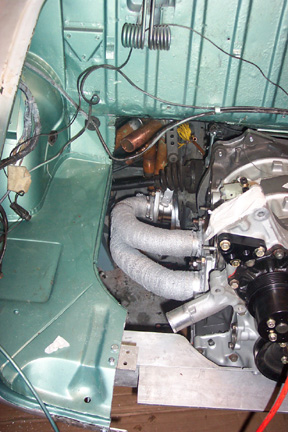

Attached is a current picture of the engine compartment. Also the exhaust. I instaaled a presilencer under the traany with a heat shield and a muffler. both from racing beat.
I got some good info from this forum:
http://frost.bbboy.net/vwengineconversions
Attached is a current picture of the engine compartment. Also the exhaust. I instaaled a presilencer under the traany with a heat shield and a muffler. both from racing beat.
I got some good info from this forum:
http://frost.bbboy.net/vwengineconversions
05-12-08, 12:53 AM
#22
Full Member
Thread Starter
Join Date: Nov 2007
Location: Los Angeles
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
Wow, that's awesome. Is it loud? I have a 3 row like you did and I'm wondering if a thin aluminum rad would be better because of easier flow through it. I guess I'll give mine a try first.
Alright, since a turbo is not out of the question I will definitely get the Haltech.
Alright, since a turbo is not out of the question I will definitely get the Haltech.
05-12-08, 12:55 AM
#23
Full Member
Thread Starter
Join Date: Nov 2007
Location: Los Angeles
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
05-12-08, 03:06 AM
#25
Full Member
Join Date: Oct 2003
Location: SoCal
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
If you change the front cover you can use a VW traction bar for the mount...all you have to do is weld the engine mount to the bar...the bar attaches to the extra holes in the bumper mount...
