lidman

Starting a thread about my project. This is the plan:
RX3-1973
13B REW, A-spec GT3574, LINK engine management

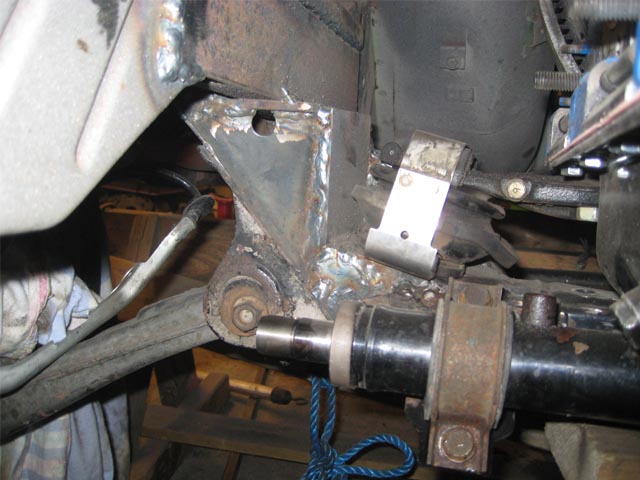

Mazda Miata front suspension
Volvo 1030 rear axel, 4,10:1, torsendiff , 4-link

RoTaRyBoYz

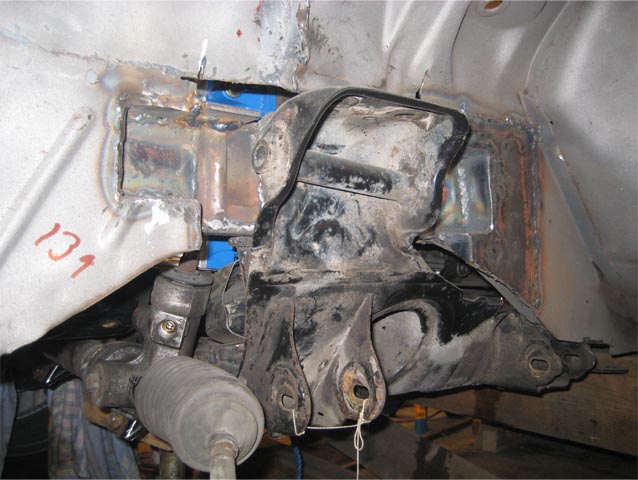

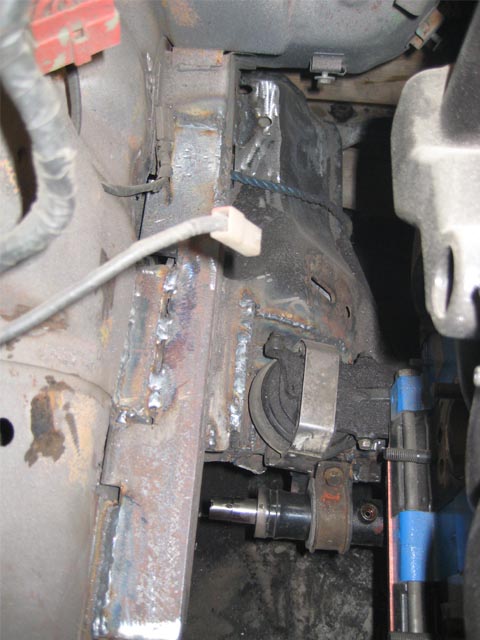

Nice car dude... Can we got some pics of the miata front suspension, also is that a Volvo Independent rear you going to install?

thafox

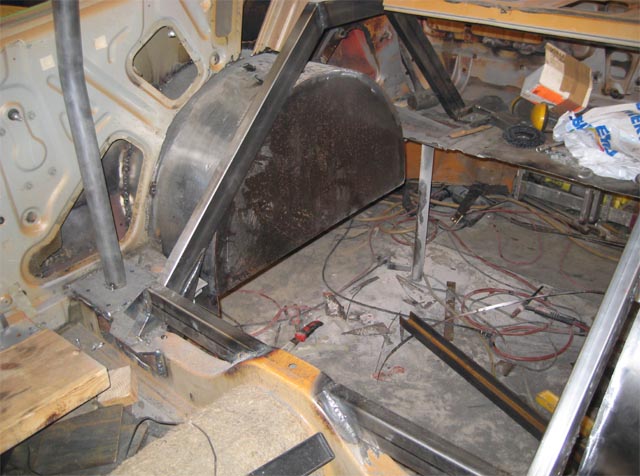

very nice, mini tubbed 2 huh, would also like to see some more pic's of the sus, and the 4link setup, thnx, an good luck with the project

chino_rx3

iTrader: (3)

Hey thanks for making it worth seen this area..is always lame .. thanks for

pictures and info,,i got my rx3 on hold working on my 1st gen to get it driving local

once done getting it ready for local use i will be back working on rx3.

Thanks again love seen rx3 in the works,cant wait to see more pictures.

this is my rx3 in works




And rx7 im working on,

lidman

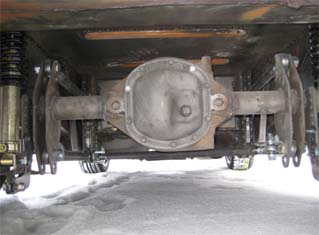

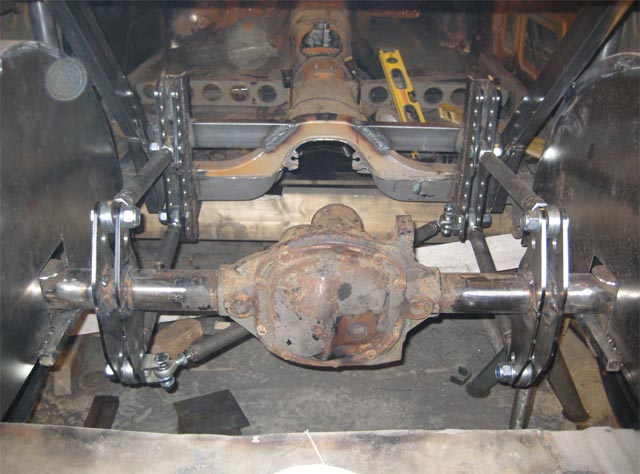

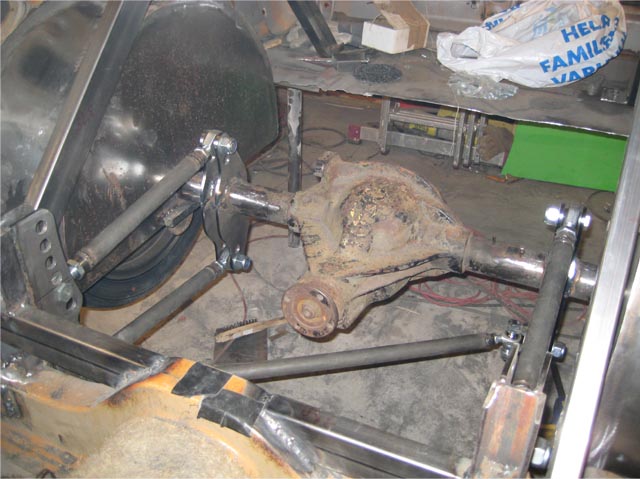

Ok, here are some more pics. Today I fabricated and installed the 4-link. Not to easy. It actually took me 2 days.

chino_rx3

iTrader: (3)

Nice work man ,,what kind of engine you putting in it, are you going turbo or nos. or both or ?

Well im keeping mine the way it is for now engine wise, once done with body work painting and car is running good ill go a different set up.

lidman

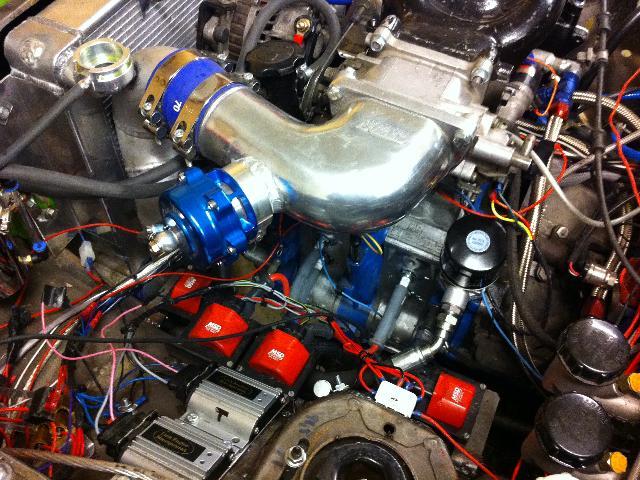

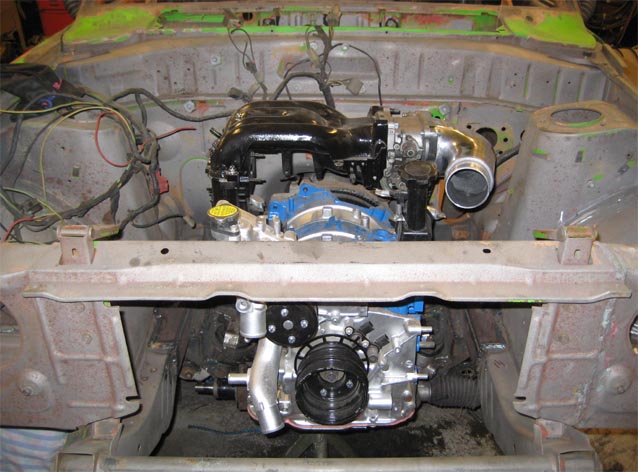

I have a full doweled 1996 REW engine with a large streetport. A-spec GT3574 turbo. TIAL 44 mm wastegate. LINK engine management. Good luck with your project.

lidman

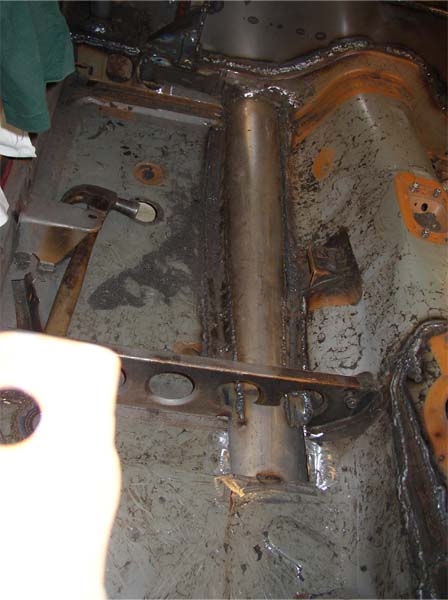

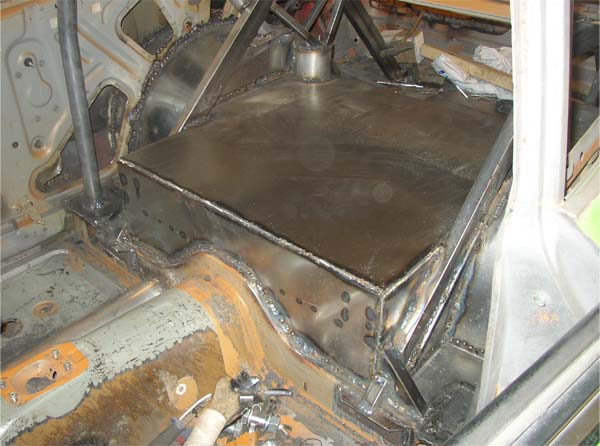

Some new pictures. Floor allmost finished.

RXn407

damn chino, let the man post HIS project on HIS thread.be respectful, you can start your own too,its OK!!!
NIce fab work on the back half Lidman. I like the attention to detail when you did the reinforcement.

MadChad

great project brother. you really dont f*#k around this has taken alot of time to get you to this point. keep us posted---MadChad.

lidman

Now I have spent some time in the garage again. I´ve had a lot of other things to do (they say that you have to work to earn some money ).

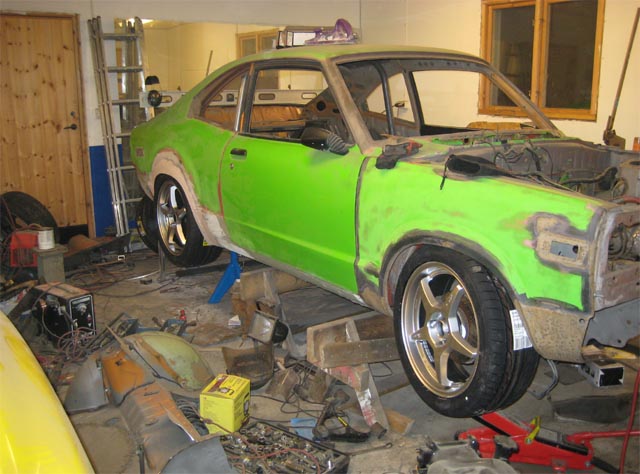

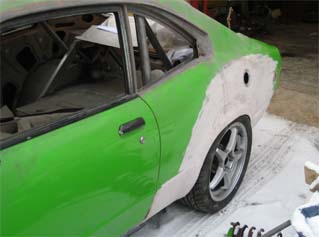

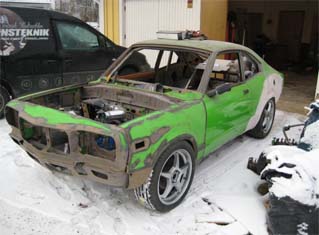

The car is on its wheels, so it feels like I may be able drive it this summer.

lidman

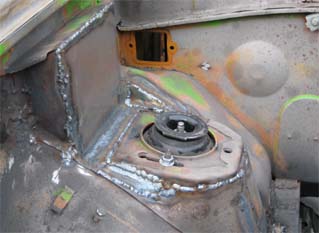

Lowered struttowers.

ultimatejay

iTrader: (1)

Looks good, one question. Why are you going through the whole hassle with putting a Miata front end suspension when it looks like you are setting up for drag racing?

toyo_kogyo

OMG! Thats some major work there lidman, I can understand why you removed the rear leaf's, as for the miata front end?

I dont understand why, is this car being built for street or what are you doing with it?

looking forward to the next update!

lidman

I´m building the car mainly for street but whant to be able to use it for drag. I will have the rear axel bent to get some minus camber. The reason I choose the Volvo axel is that they are quite cheap and it is easy to find parts for it here in Sweden.

lidman

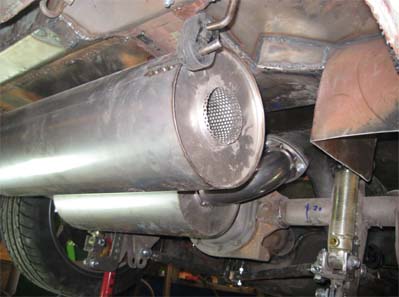

Exhaust system.

lidman

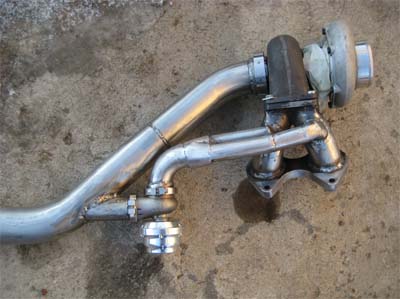

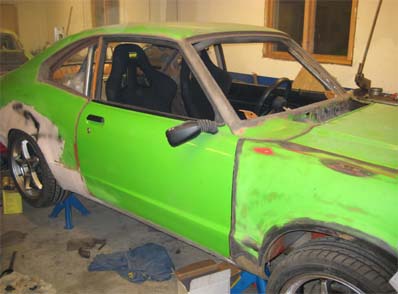

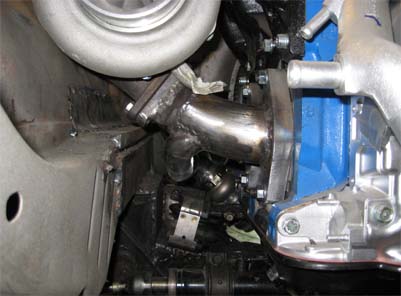

Exhaust manifold and downpipe finnished. Seats installed and I have begun to install/fabricate everything regarding steering.

lidman

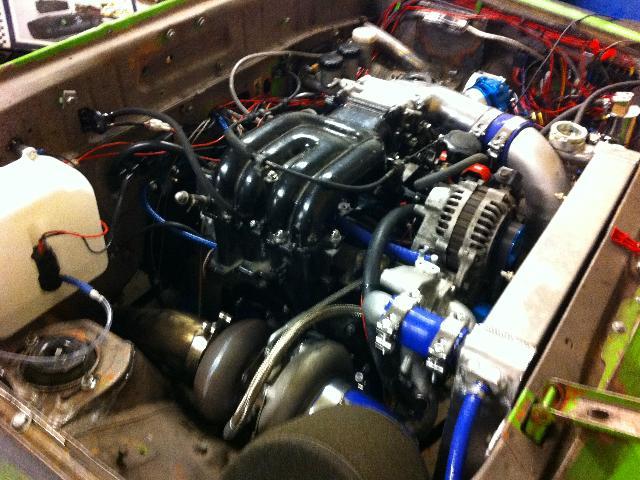

Finally I have got time to spend on my car, so now it is started. Everything seems to work, but right now I can´t get it to idle.

1973rx3

Awesome, keep up the good work!

ovielito

nice build bud. must say that you have talent but you need to clean up alittle bit everything looks messy. keep on building.

lidman

Thanks for your kind words. Right now I am trying to get everything to work and get the car approved for driving on public roads. Then I will tear everything apart and have it painted.

lidman

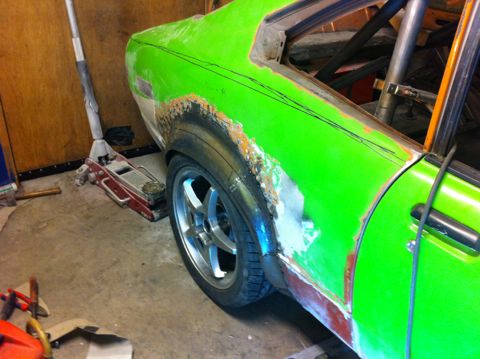

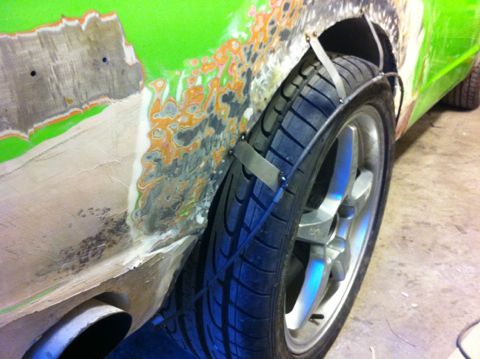

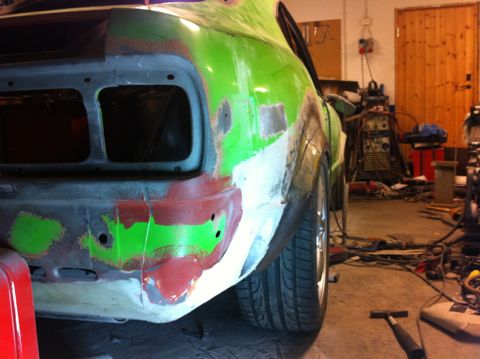

Need to get the car wider..

lidman

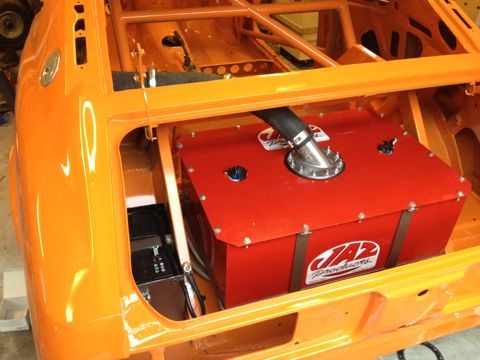

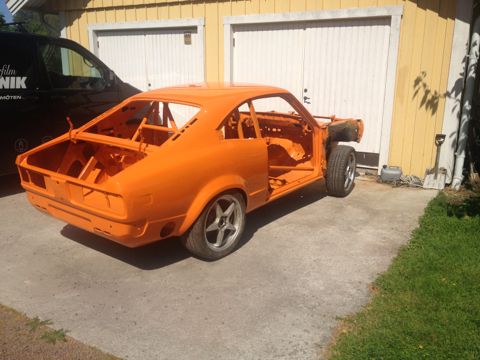

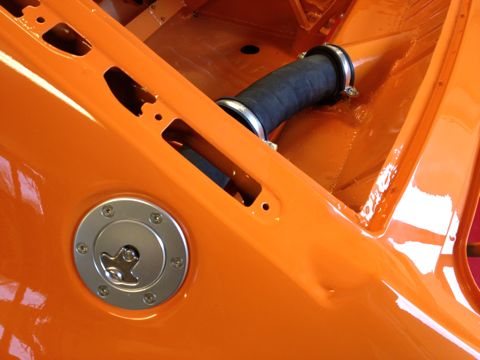

Painted!

banzaitoyota

looks great!

carlosrx3

Looks real nice. I love the color and all that fab work done. Nice and clean. GOOD JOB!
