My brake upgrade.................
*TII caliper
*E30 rotor= will change to a 2ndGen rotor
*Custom brake bracket
*Non turbo brake line
The Rx2 and 2ndgen use different threads on the brake line you will need to improvise!!!

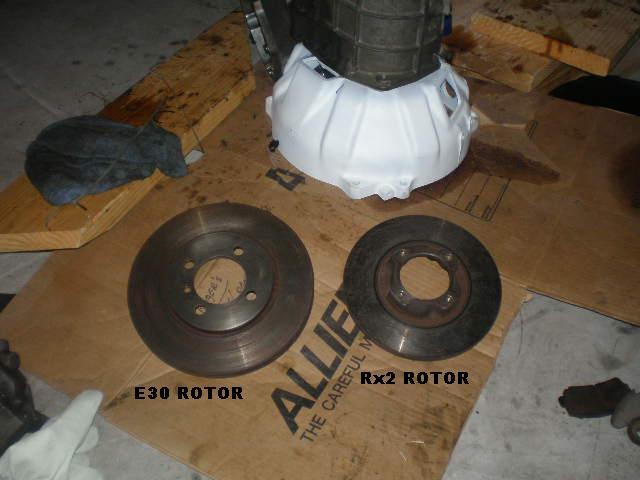

I used the E30 rotor because is was readily available for me to use. With this set up I was able to keep the Rx2 hub with no mod done the Rx2 spindle.

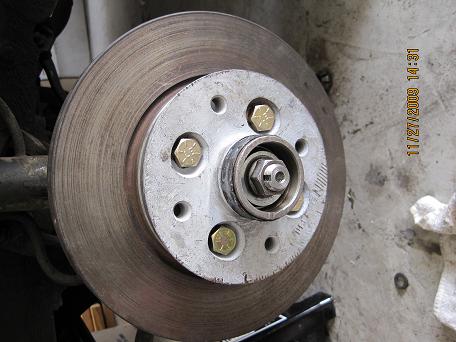

I removed the stock rotor from the Rx2 hub(removed 4 bolts). The E30 rotor was machined to fit into the Rx2 hub with the same spec.
I drilled the original four holes on the hub bigger for the new hardware I was using to bolt the E30 rotor to the Rx2 hub.
The stock hardware was used to mount the bracket onto the strut assembly.

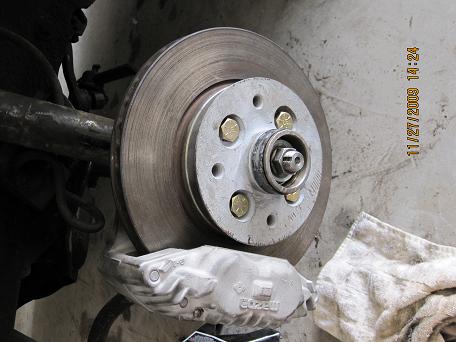

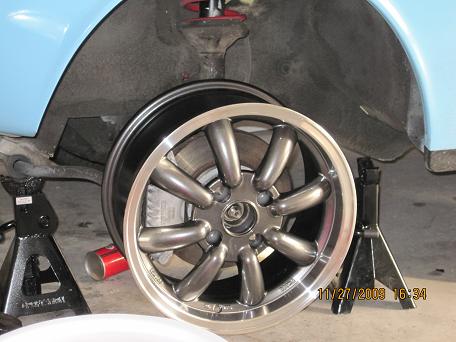

I mounted the caliper in front of the rotor instead of behind because of clearance issues. It can be done, however I didn't want to waste time on trying to make it fit.
I'm definitely looking for feedback good or bad.
I'm looking for 2ndGen hub if someone want to donate one. The next step is to mount a 2ndGen hub onto the Rx2 spindle using a custom made bearing.
*TII caliper
*E30 rotor= will change to a 2ndGen rotor
*Custom brake bracket
*Non turbo brake line
The Rx2 and 2ndgen use different threads on the brake line you will need to improvise!!!
I used the E30 rotor because is was readily available for me to use. With this set up I was able to keep the Rx2 hub with no mod done the Rx2 spindle.
I removed the stock rotor from the Rx2 hub(removed 4 bolts). The E30 rotor was machined to fit into the Rx2 hub with the same spec.
I drilled the original four holes on the hub bigger for the new hardware I was using to bolt the E30 rotor to the Rx2 hub.
The stock hardware was used to mount the bracket onto the strut assembly.
I mounted the caliper in front of the rotor instead of behind because of clearance issues. It can be done, however I didn't want to waste time on trying to make it fit.
I'm definitely looking for feedback good or bad.
I'm looking for 2ndGen hub if someone want to donate one. The next step is to mount a 2ndGen hub onto the Rx2 spindle using a custom made bearing.
#29
JETFUEL
Thread Starter
iTrader: (1)
Join Date: Nov 2003
Location: MA,NY,CT,TX, HAITI & CHILE
Posts: 359
Likes: 0
Received 2 Likes
on
2 Posts
Thank you! I wish I had more time to work on it.
I didn'f forget about you. I'm just slacking! I never thought about making the bracket bigger for bigger rotor. You gave me something to think about. For now I will work on getting the kinks out of this project before I start another one.
I didn'f forget about you. I'm just slacking! I never thought about making the bracket bigger for bigger rotor. You gave me something to think about. For now I will work on getting the kinks out of this project before I start another one.
#30
Leave my avatar alone!!!
iTrader: (8)
Join Date: Feb 2005
Location: Spartanburg SC
Posts: 1,656
Likes: 0
Received 0 Likes
on
0 Posts
Im talking even with this bracket it looks like it could hold a slightly larger rotor it seems like not the entire brake pad surface is covered by the rotor itself. hope this makes sence.
#39
Senior Member
iTrader: (4)
Yeah physically small brakes are true. My mate here in San Jose with a ported 12a and Miata 6 speed conversion with stock drum/disk setup that stops really well. Maybe going rear disc would be better served and money wise. I dont think guys are doing all this work to marginally improve braking. The lack of new rotors really forces people to do more than they should.
#41
ROTARY KING
iTrader: (7)
Replacement strut and shocks are available..... but only in aussie land. their made by KYB front are excel-g 363008 and rear are excel-g 341010. When i called KYB they told i have to called the distributor in aussie land to have them shipped to the us. Hope this help some one looking for replacement with out having to use spacer or do any modifications.
