RX-5 engine bay pictures
Hey guys

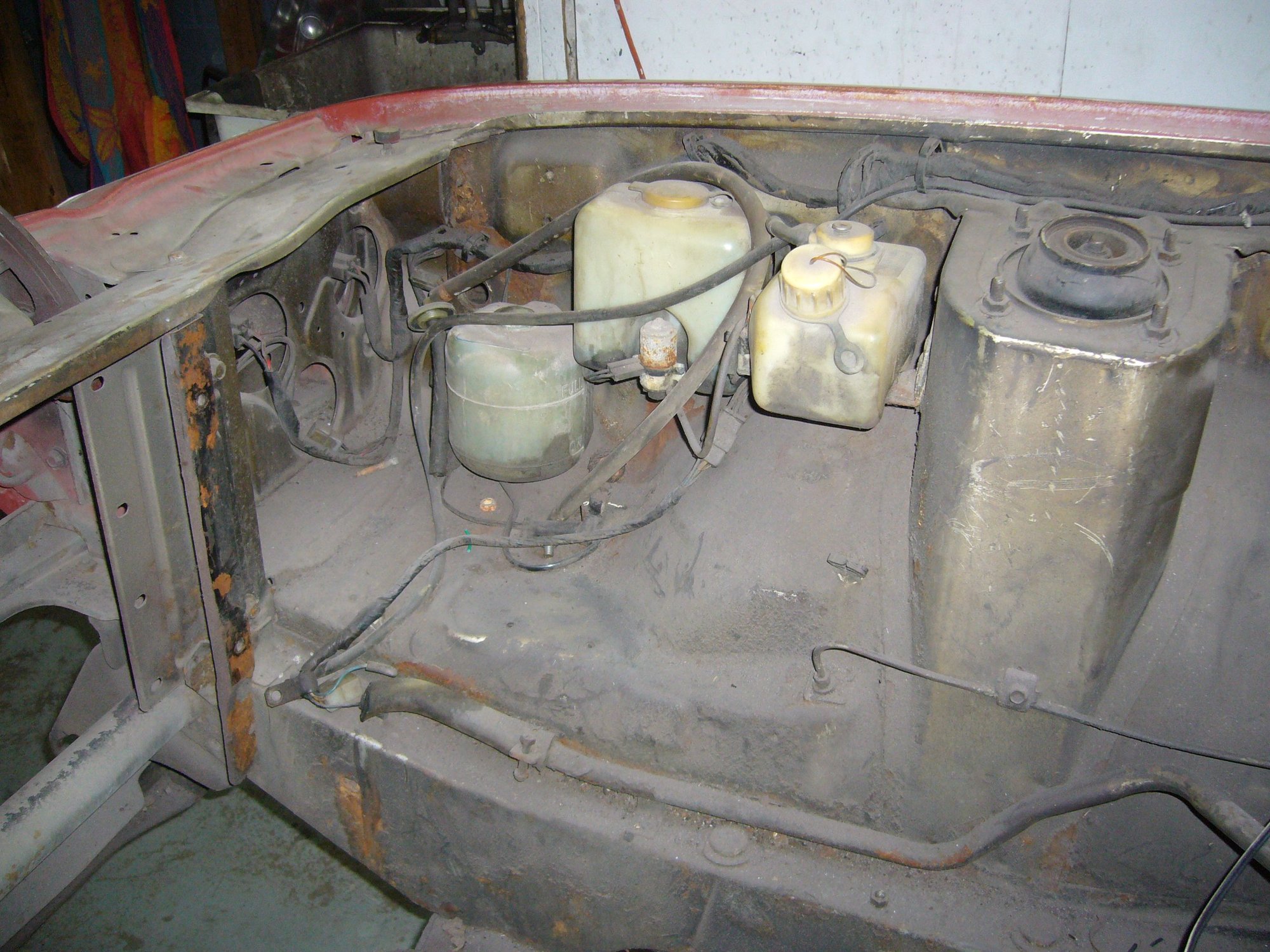

putting together a RX-5 that was stripped down and repainted. But it’s over 2 years since it was torn down. And i did not take enough pictures. Anyone that got a stock RX-5 that would not mind taking alot of close ups of the harness and connected parts to it arround the fenders? I have no idea where a few of the things should connect.
hoping someone can help.
JT
putting together a RX-5 that was stripped down and repainted. But it’s over 2 years since it was torn down. And i did not take enough pictures. Anyone that got a stock RX-5 that would not mind taking alot of close ups of the harness and connected parts to it arround the fenders? I have no idea where a few of the things should connect.
hoping someone can help.
JT
www.AusRotary.com
Joined: Apr 2003
Posts: 905
Likes: 273
From: Melbourne, Australia
There's a heap in this thread: AusRotary - Login
Thread Starter
Rotary Enthusiast
Joined: May 2003
Posts: 912
Likes: 1
From: Norway

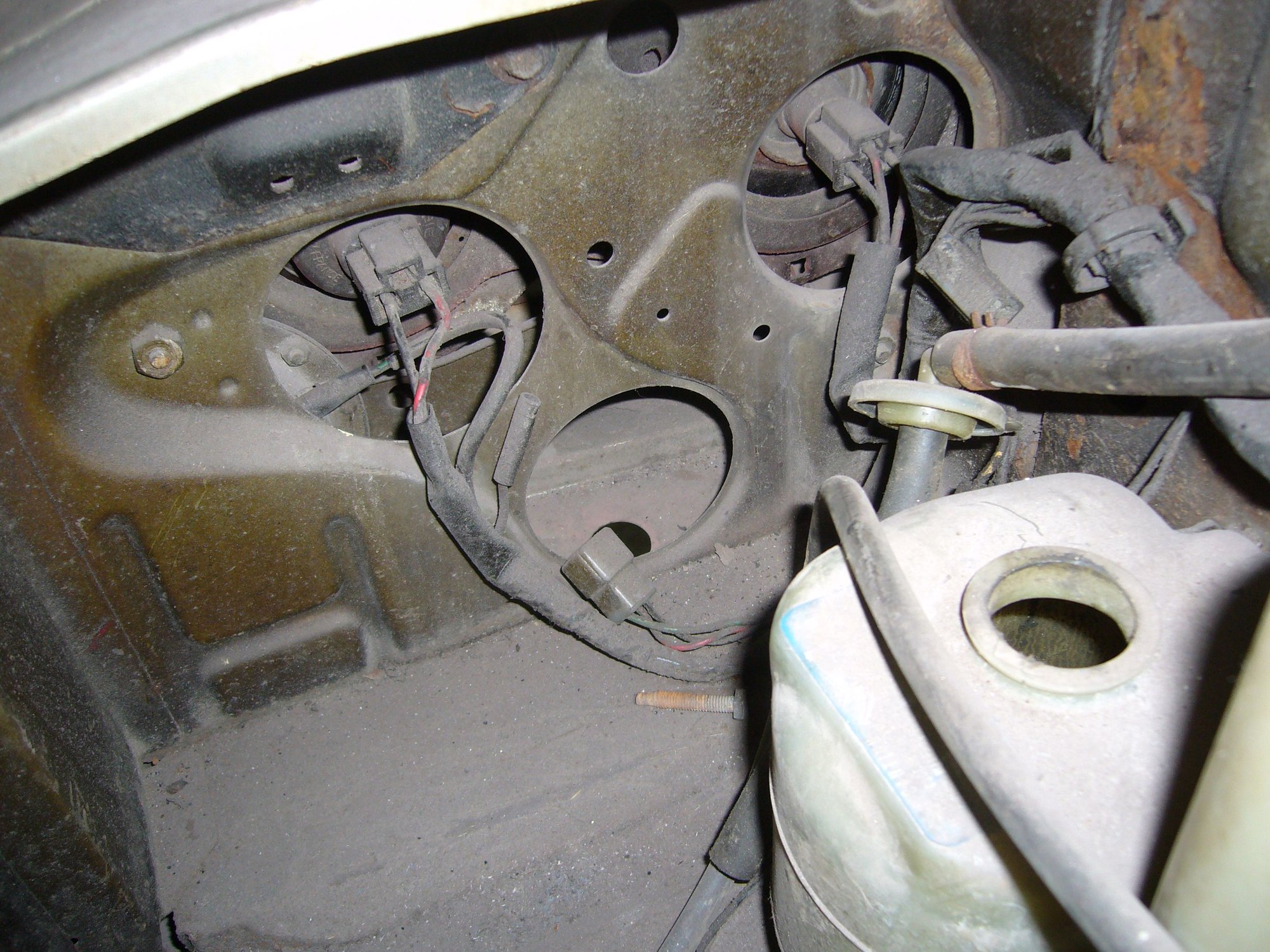

Thanks, looking esp for closeups of where the wiring harnes goes to the headlights on both sides and ignition + enginge wiring harnes. And on LHD, i think RHD things are abit off as something might be switched over an so on.
JT
JT
