Hitachi carb rebuild. Tips/Tricks?

Old 02-17-14, 12:42 PM
  #1
DGRRX
Thread Starter
iTrader: (3)

djmtsu's Avatar

Join Date: May 2002
Location: Murfreesboro TN
Posts: 2,243
Likes: 0
Received 0 Likes on 0 Posts
Hitachi carb rebuild. Tips/Tricks?

Hey guys,

As my engine is nearing the 'build' phase, I am about to rebuild my carb.

This is a 76 Cosmo, 13B, Hitachi.

The engine is NOT getting a streetport, but the ports have been 'cleaned up', and the manifold has also been smoothed. The only other mods are road race header, and electronic ignition, no emissions.

Any tips and tricks you guys can give me while I'm rebuilding the carb? I have had great success rebuilding Nikki's, so I am not worried about that.

Going emissions delete, are there do dads I can strip from the Hitachi, like a Nikki?

Thanks!
djmtsu is offline
Old 02-17-14, 07:31 PM
  #2
Senior Member
iTrader: (4)

OZZYINCALI's Avatar

Join Date: Jul 2008
Location: san jose, california
Posts: 456
Likes: 0
Received 0 Likes on 0 Posts
Hitachi is a lot easier than a nikki. Just draw a picture/ map on paper or a shoe box that you can either tape or poke through the pieces you pull off the carb. That's how I knew what pieces went where after I pulled the throttle plate/mid section and top out of the the carb dip bucket.
OZZYINCALI is offline
Old 02-18-14, 04:54 PM
  #3
DGRRX
Thread Starter
iTrader: (3)

djmtsu's Avatar

Join Date: May 2002
Location: Murfreesboro TN
Posts: 2,243
Likes: 0
Received 0 Likes on 0 Posts
Its rebuilt now. Pretty easy.

What I was looking for though, is info on whether people had done Nikki style tricks. Mechanical secondaries and such.
djmtsu is offline
Old 02-18-14, 05:40 PM
  #4
RX for fun
iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,912
Likes: 0
Received 3 Likes on 3 Posts
Ditch the hitachi and run a nikki. You just need to redrill/tap new studs to the 13-B intake
Siraniko is offline
Old 02-18-14, 05:59 PM
  #5
DGRRX
Thread Starter
iTrader: (3)

djmtsu's Avatar

Join Date: May 2002
Location: Murfreesboro TN
Posts: 2,243
Likes: 0
Received 0 Likes on 0 Posts
I was told a Nikki is too small.
djmtsu is offline
Old 02-18-14, 09:45 PM
  #6
Senior Member
iTrader: (4)

OZZYINCALI's Avatar

Join Date: Jul 2008
Location: san jose, california
Posts: 456
Likes: 0
Received 0 Likes on 0 Posts
CA

Originally Posted by djmtsu View Post
Its rebuilt now. Pretty easy.

What I was looking for though, is info on whether people had done Nikki style tricks. Mechanical secondaries and such.
Oops, sorry mate I thought you were just looking for rebuild tips. Wackys right, guys have been ditching the hitachi for a nikki for decades. It's possible to use the stock 4 port manifold if you drill and tap it to the nikki pattern.
OZZYINCALI is offline
Old 02-18-14, 10:00 PM
  #7
Senior Member
iTrader: (3)

Redline-RX3's Avatar

Join Date: Jan 2011
Location: BC Canada
Posts: 270
Likes: 0
Received 1 Like on 1 Post
My experience is that I could get more CFM from a modded Nikki than a Hitachi as the Nikki's Prim and Sec venturies were removable . Depending on the engine I would bore the secondary venturies like crazy and re-jet accordingly . The Hitachi I could only do the primaries and re-jet.
Both carbs are good and both can be changed to mechanical secondaries.
Redline-RX3 is offline
Old 02-19-14, 07:05 AM
  #8
DGRRX
Thread Starter
iTrader: (3)

djmtsu's Avatar

Join Date: May 2002
Location: Murfreesboro TN
Posts: 2,243
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Redline-RX3 View Post
Both carbs are good and both can be changed to mechanical secondaries.
Show me!!
djmtsu is offline
Old 02-19-14, 02:53 PM
  #9
RX for fun
iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,912
Likes: 0
Received 3 Likes on 3 Posts
Didnt work
Siraniko is offline
Old 02-19-14, 02:56 PM
  #10
RX for fun
iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,912
Likes: 0
Received 3 Likes on 3 Posts

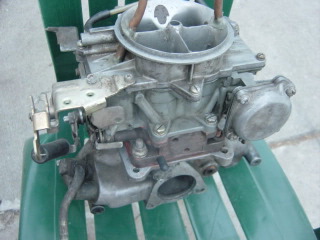

My 80s set-up. RX-2 carb and 76 13-B intake
Attached Thumbnails Hitachi carb rebuild.  Tips/Tricks?-dsc06315.jpeg
Siraniko is offline
Old 02-19-14, 04:00 PM
  #11
RX for fun
iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,912
Likes: 0
Received 3 Likes on 3 Posts
Originally Posted by Siraniko View Post
Didnt work
Posting pix didnt work lol
Siraniko is offline
