correct wheel offset and tires for rx2

Old 12-19-06, 11:45 PM
  #1
Eats, Sleeps, Dreams Rotary
Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Recieved 1 Like on 1 Post
correct wheel offset and tires for rx2

I'm looking to get some new wheels for my rx2. I want some 15x6 or 15x7. What is the correct wheel offset for this car so that the wheels and tires are not sticking out of the fender wells- I hate that look. I want the wheel and tire to be right at or better inside the outer fender wells. Also, what size tires and width rims fit the best on these cars.
ultimatejay is offline
Old 12-19-06, 11:53 PM
  #2
raysspl.com
10 Year Member

d0 Luck's Avatar

Join Date: Sep 2003
Location: L.A.
Posts: 3,508
Likes: 0
Recieved 0 Likes on 0 Posts
+10 in the front and 0 offset in the rear is good... of course, backspacing is relevant in this. i'm basing it off on a 15x7 and 15x8 wheels. if you would go any wider or thinner in diamater, then offset would drastically change as well.
d0 Luck is offline
Old 12-19-06, 11:53 PM
  #3
RX for fun
iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,912
Likes: 0
Recieved 3 Likes on 3 Posts
I cant remember the off-set on my bro's RX-2 but in my RX-3's, I was able to fit 15x10 and 15x9 with 4.75 backspace.
Siraniko is offline
Old 12-20-06, 08:12 AM
  #4
Rotary Enthusiast
10 Year Member
iTrader: (1)

Smeagol's Avatar

Join Date: Mar 2001
Location: Sacramento, CA
Posts: 956
Likes: 0
Recieved 0 Likes on 0 Posts
I have 15x7s with 7mm offset on my '2 right now, and they are fairly flush with the fenders. I think they look pretty good. Could possibly get away with a lower offset but I don't have anything lower besides 15x8 Eps with 0 offset, and those stick out way too far.

Mike
Smeagol is offline
Old 12-20-06, 10:12 AM
  #5
Crash Auto?Fix Auto.
iTrader: (3)

classicauto's Avatar

Join Date: May 2003
Location: Hagersville Ontario
Posts: 7,830
Likes: 0
Recieved 1 Like on 1 Post
What about a '74 RX-4 wagon?
classicauto is offline
Old 12-21-06, 05:55 PM
  #6
OLDROTA
5 Year Member

Jaime Enriquez's Avatar

Join Date: Apr 2003
Location: Los Angeles
Posts: 1,389
Likes: 0
Recieved 1 Like on 1 Post
The RS-8's on my car run a +9 on a 6.5 in front and +15 on a 7 in back. Fronts are about as wide as you really want to go without rubbing like a ****...but 7 has plenty of room in the rear...I'd say 1/2" on the inner fender and 1" to the outer. To fit an 8" is easy in the rear. Just gotta try 'em. I would say a 7.5" with a 0 offset or an 8" with a +5 or +10 would work about right. NOW JUST FIND THE RIMS WITH THE CORRECT PCD!! I'm lookin' at some Work 4-spoke equips...$$$$, but you can get 110.

BTW...tires are currently 195/50/15 all around, but 205-215 will fit proper on the 7" in the rear without rubbing.
Jaime Enriquez is offline
Old 12-21-06, 11:22 PM
  #7
Eats, Sleeps, Dreams Rotary
Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Recieved 1 Like on 1 Post
Thanks for the info guys. Now I just have to find em.
ultimatejay is offline
Old 12-22-06, 12:25 AM
  #8
Senior Member
10 Year Member

islandsnow's Avatar

Join Date: Jun 2004
Location: SoCal
Posts: 598
Likes: 0
Recieved 0 Likes on 0 Posts

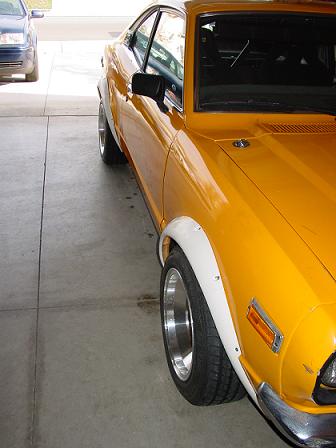

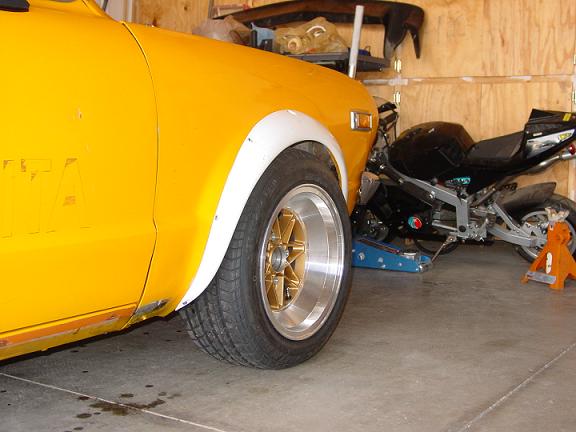

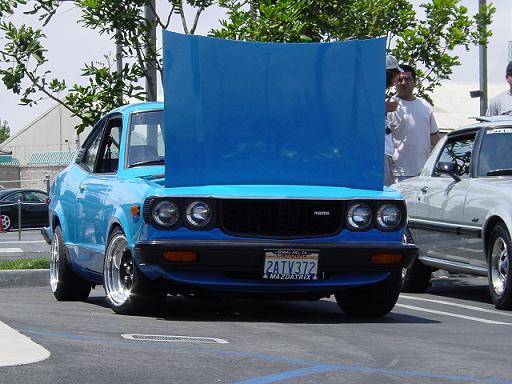

heres a few pictures just to give you an idea on how it looks with a wide wheels. the blue rx3 has 14x8 with 0 offset in the rear and 14x7.5 +4 offset. The yellow rx3 with flares are 14x8 -14 offset all the way around, the rear will fit a 10 with the right offset. Sorry not a rx2 but the clearance are almost the same as the rx3

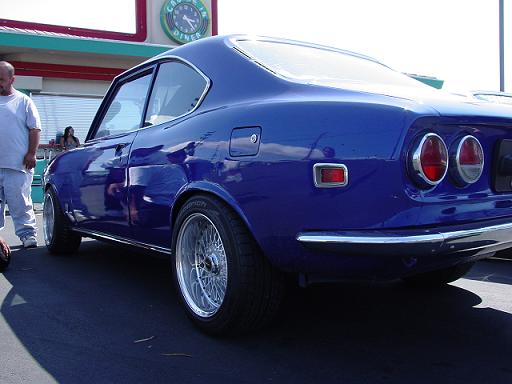

The blue rx2 is not mine but he's also a member, I'm almost sure those are 15x8 with zero offset. change your bolt pattern to 4x4.5 you'll have more wheels option.....
Attached Thumbnails correct wheel offset and tires for rx2-909.jpg   correct wheel offset and tires for rx2-951.jpg   correct wheel offset and tires for rx2-2.jpg   correct wheel offset and tires for rx2-1.jpg
islandsnow is offline
Old 12-22-06, 01:40 PM
  #9
I can haz rotary?
10 Year Member
iTrader: (1)

Jesuscookies's Avatar

Join Date: Oct 2002
Location: Southern California
Posts: 3,793
Likes: 0
Recieved 0 Likes on 0 Posts
Originally Posted by islandsnow
heres a few pictures just to give you an idea on how it looks with a wide wheels. the blue rx3 has 14x8 with 0 offset in the rear and 14x7.5 +4 offset. The yellow rx3 with flares are 14x8 -14 offset all the way around, the rear will fit a 10 with the right offset. Sorry not a rx2 but the clearance are almost the same as the rx3

The blue rx2 is not mine but he's also a member, I'm almost sure those are 15x8 with zero offset. change your bolt pattern to 4x4.5 you'll have more wheels option.....
The blue 2 belongs to 73IMPORT. Maybe he can chime in on what offstet his wheels are. I found a set for my 2 but they are 7.5 with a +20. I wonder if I can get those to fit with a set of spacers?
Jesuscookies is offline
Old 12-22-06, 07:18 PM
  #10
OLDROTA
5 Year Member

Jaime Enriquez's Avatar

Join Date: Apr 2003
Location: Los Angeles
Posts: 1,389
Likes: 0
Recieved 1 Like on 1 Post
Hey Jesus....those should fit without spacers....+20 was our stock offset.
Jaime Enriquez is offline
Old 12-22-06, 09:02 PM
  #11
I can haz rotary?
10 Year Member
iTrader: (1)

Jesuscookies's Avatar

Join Date: Oct 2002
Location: Southern California
Posts: 3,793
Likes: 0
Recieved 0 Likes on 0 Posts
Originally Posted by Jaime Enriquez
Hey Jesus....those should fit without spacers....+20 was our stock offset.
yeah but stock wheel size was 5.5, which means about 3 inches of backspace. With a 7.5 inch rim, I am looking at 4 inches of backspace. Is there enough clearance in front for 4 inches of backspace?
Jesuscookies is offline
Old 01-04-07, 04:33 PM
  #12
Junior Member
5 Year Member

Join Date: Sep 2006
Location: pomona ,ca
Posts: 16
Likes: 0
Recieved 0 Likes on 0 Posts
wheels

Ultimatejay, I have a set of 15X7 riken mesh wheels(black center)(with two tires)+10 offset that would probably fit perfect.make offer. Mike Garibay (909)576-4337 Pomona area (L.A.)thanks
espritmike is offline
Old 01-04-07, 05:47 PM
  #13
Full Member
10 Year Member

GLC13B's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 110
Likes: 0
Recieved 0 Likes on 0 Posts
Mazda wheel sizes, bolt patterns and offset

Ultimatejay, I hope this help you out !

http://ausrotary.dntinternet.com/for...ic.php?t=26681
GLC13B is offline
Old 01-04-07, 08:02 PM
  #14
See you [email protected]@king?
iTrader: (7)

chiquirx7's Avatar

Join Date: Sep 2005
Location: CT
Posts: 2,335
Likes: 0
Recieved 0 Likes on 0 Posts

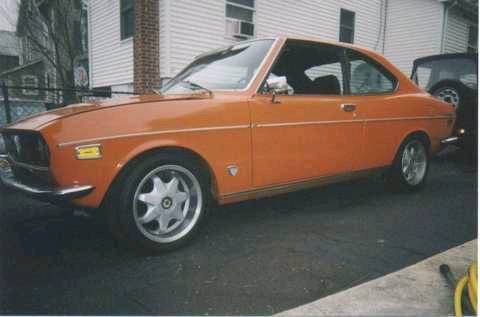

my rx2 with 15
Attached Thumbnails correct wheel offset and tires for rx2-rx2-15.jpg
chiquirx7 is offline
Old 01-04-07, 10:07 PM
  #15
Full Member
10 Year Member

GLC13B's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 110
Likes: 0
Recieved 0 Likes on 0 Posts
Rx-2

Hey, Did this rx-2 come from Newport News, Virginia ?
GLC13B is offline
Old 01-19-07, 02:23 PM
  #16
Eats, Sleeps, Dreams Rotary
Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Recieved 1 Like on 1 Post
Does anyone know if a 15x7 with a +20mm wheel will fit my rx2?
ultimatejay is offline
Old 01-19-07, 02:36 PM
  #17
raysspl.com
10 Year Member

d0 Luck's Avatar

Join Date: Sep 2003
Location: L.A.
Posts: 3,508
Likes: 0
Recieved 0 Likes on 0 Posts
yup. it'll fit nicely, but nowhere near flush... i'm running 15x8 0 offset wheels all around and it was a tight fit but i made it happen.
d0 Luck is offline
Old 01-19-07, 03:27 PM
  #18
Full Member

Join Date: Jun 2004
Location: BC, Canada
Posts: 198
Likes: 0
Recieved 1 Like on 1 Post
Have you found a wheel with a 4X110 bolt pattern yet??

Thats the problem I had selecting wheels for my RX3.

When I was chalanged with figuring out the correct offset I checked all the sites and found a large variation in what people were saying they have. I wondered about the 15 X10 wheels without tubs and figured they must be happy with a different "look" than I was going for.

My best advise is that there is a lot of good information on how to measure offset on a wheel. Using the wheels you have now (I had 2 sets, original and some 13 X 6) measure, measure and measure! I had to concider both the location of the strut and the steering arm to make sure the wheel would fit. The 15 inch wheels reached beyound the steering arm to give me clearance so the strut was the only interference point!

I determined that an offset around + 12 was best for clearence on the strut and the fenders.

I could only find a +20 offset in a 15 X 7 with a 4 X 110 bolt pattern! This will be close to the strut, but gives me more room at the fender! They are made by ROH called "snyper".

I've ordered the wheels, but have not got them yet. Maybe today!!
Attached Thumbnails correct wheel offset and tires for rx2-roh-snyper%5B1%5D.jpg
EDSRX3 is offline
Old 01-19-07, 08:36 PM
  #19
I can haz rotary?
10 Year Member
iTrader: (1)

Jesuscookies's Avatar

Join Date: Oct 2002
Location: Southern California
Posts: 3,793
Likes: 0
Recieved 0 Likes on 0 Posts

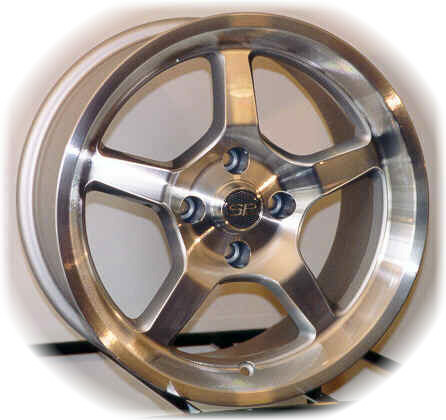

The ROH's you have pictured will fit. I had a set of them on my duece.



Originally Posted by verrethe
Have you found a wheel with a 4X110 bolt pattern yet??

Thats the problem I had selecting wheels for my RX3.

When I was chalanged with figuring out the correct offset I checked all the sites and found a large variation in what people were saying they have. I wondered about the 15 X10 wheels without tubs and figured they must be happy with a different "look" than I was going for.

My best advise is that there is a lot of good information on how to measure offset on a wheel. Using the wheels you have now (I had 2 sets, original and some 13 X 6) measure, measure and measure! I had to concider both the location of the strut and the steering arm to make sure the wheel would fit. The 15 inch wheels reached beyound the steering arm to give me clearance so the strut was the only interference point!

I determined that an offset around + 12 was best for clearence on the strut and the fenders.

I could only find a +20 offset in a 15 X 7 with a 4 X 110 bolt pattern! This will be close to the strut, but gives me more room at the fender! They are made by ROH called "snyper".

I've ordered the wheels, but have not got them yet. Maybe today!!
Jesuscookies is offline
Old 01-21-07, 09:48 PM
  #20
Eats, Sleeps, Dreams Rotary
Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Recieved 1 Like on 1 Post
Right on. I found a set of brand new Konig rewinds 15x7 with a + 20mm offset. There are local, so I am going to drive my duece down to the shop and mount one up to see if the fit is ok. So what tire sizes fit the best with 15x7 all around?
ultimatejay is offline
Old 01-22-07, 07:52 PM
  #21
Full Member
5 Year Member

Join Date: Feb 2006
Location: Califonia
Posts: 57
Likes: 0
Recieved 0 Likes on 0 Posts
I belive 205/50/15 are recomended. I have heard of 215s being forced to fit but you have to go with a smaller overall diameter, I think it's about 3/8s smaller but I don't recall the aspect percentage.
Wile we are on the subject, If you realy want to build a 350 HP car, a 205 width tire won't get the power to the ground. You will have a hard time getting the car to hook unless you go with a much wider tire. I believe godzilladefenseforce said he has 225 width rear tires on his and still feels like he is in ice in first and second gear. (he has a s5 turbo II engine like you want to set up yours) Check his website out, he mention it in the image gallery where posted pictures of the car with work equip wheels.
Cuthbert_rx2 is offline
Old 01-22-07, 11:47 PM
  #22
Eats, Sleeps, Dreams Rotary
Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Recieved 1 Like on 1 Post
Originally Posted by Cuthbert_rx2
I belive 205/50/15 are recomended. I have heard of 215s being forced to fit but you have to go with a smaller overall diameter, I think it's about 3/8s smaller but I don't recall the aspect percentage.
Wile we are on the subject, If you realy want to build a 350 HP car, a 205 width tire won't get the power to the ground. You will have a hard time getting the car to hook unless you go with a much wider tire. I believe godzilladefenseforce said he has 225 width rear tires on his and still feels like he is in ice in first and second gear. (he has a s5 turbo II engine like you want to set up yours) Check his website out, he mention it in the image gallery where posted pictures of the car with work equip wheels.

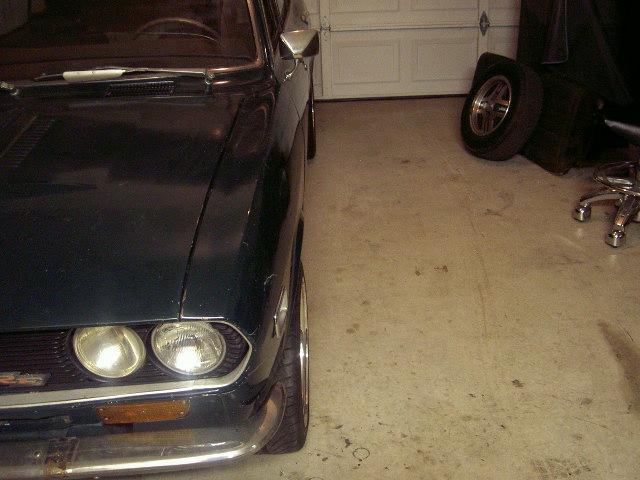

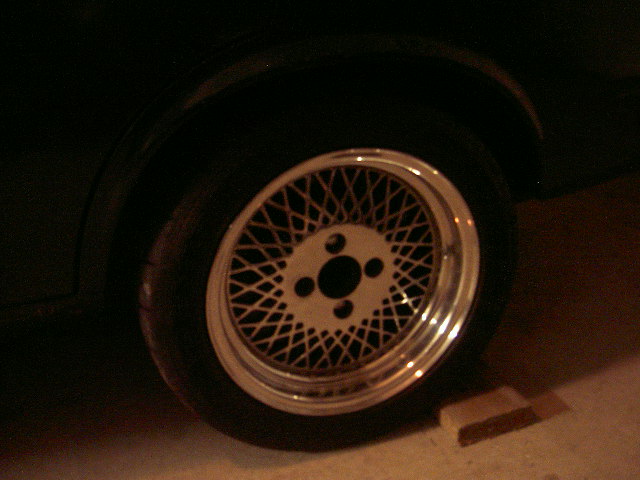

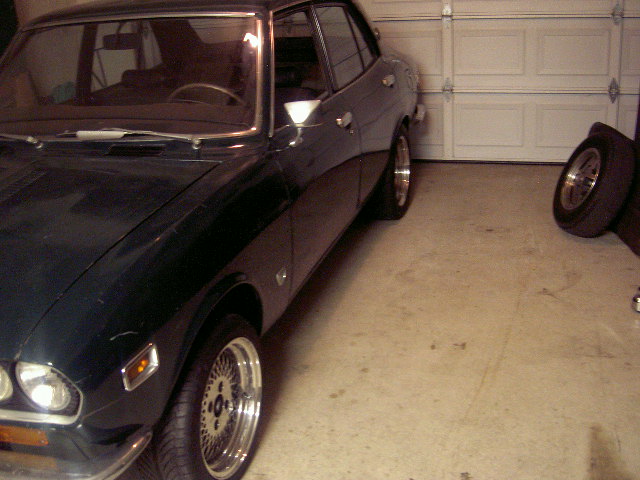

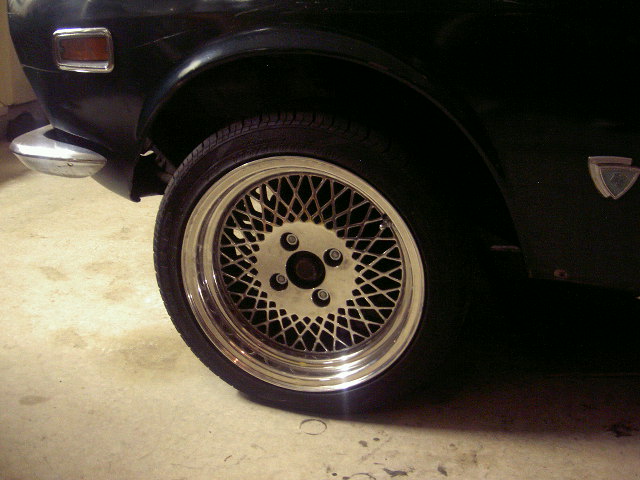

Thanks Cuthbert. I just got some wheels today finally. They are polished enki's 15x7.5 with a 7mm offset. The front tires are 195/45/15, which he said he had a very hard time finding, and the rears are 205/50/15. The offset looks really good on the car. I don't know about the smaller tires in the front because it makes the car look high in the front. What do you guys think?

Cuthbert, regarding the size tires and hooking up- drag radials. Just can't drive in the rain, but it never rains here in Cali. hehe. Here are some pics of me new wheels.
Attached Thumbnails correct wheel offset and tires for rx2-new-wheels-004.jpg   correct wheel offset and tires for rx2-new-wheels-005.jpg   correct wheel offset and tires for rx2-new-wheels-006.jpg   correct wheel offset and tires for rx2-new-wheels-007.jpg
ultimatejay is offline
Old 01-23-07, 10:50 AM
  #23
Rotary Enthusiast
10 Year Member
iTrader: (1)

Smeagol's Avatar

Join Date: Mar 2001
Location: Sacramento, CA
Posts: 956
Likes: 0
Recieved 0 Likes on 0 Posts
nice!

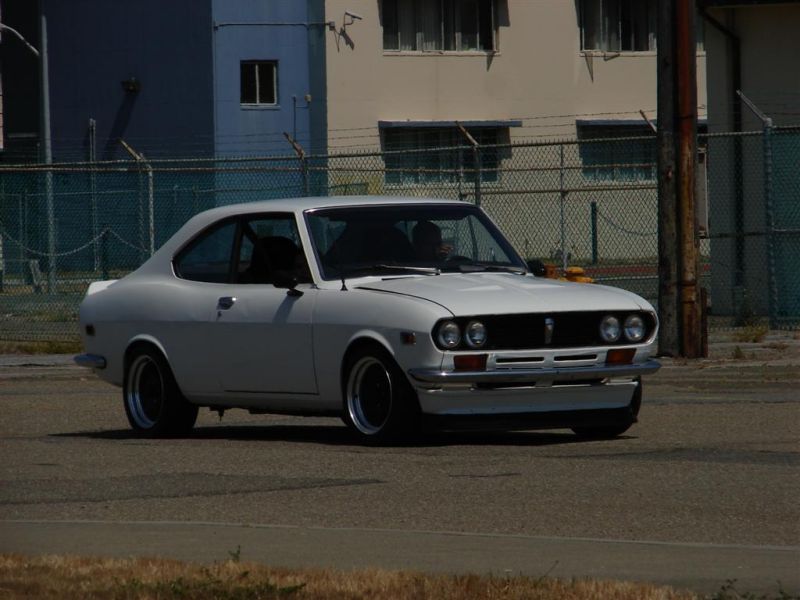

Exact same wheels I have on my '2 right now, although mine are 15x7s w/black centers. You sure yours are 7.5" wide? I didn't think they made a 7.5, but you never know.

Attached Thumbnails correct wheel offset and tires for rx2-imgp0672.jpg   correct wheel offset and tires for rx2-62465588.onoznyhw.jpg
Smeagol is offline
Old 01-23-07, 02:36 PM
  #24
Eats, Sleeps, Dreams Rotary
Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Recieved 1 Like on 1 Post
Originally Posted by Smeagol
Exact same wheels I have on my '2 right now, although mine are 15x7s w/black centers. You sure yours are 7.5" wide? I didn't think they made a 7.5, but you never know.

The owner told me they were 7.5, but after measuring they are 7. What size tires are you running?
ultimatejay is offline
Old 01-23-07, 02:39 PM
  #25
I can haz rotary?
10 Year Member
iTrader: (1)

Jesuscookies's Avatar

Join Date: Oct 2002
Location: Southern California
Posts: 3,793
Likes: 0
Recieved 0 Likes on 0 Posts
195/50/15 are going to be your best bet. The 205's are going to rub.
Jesuscookies is offline
