Bee-R limiter on carb'd 13b

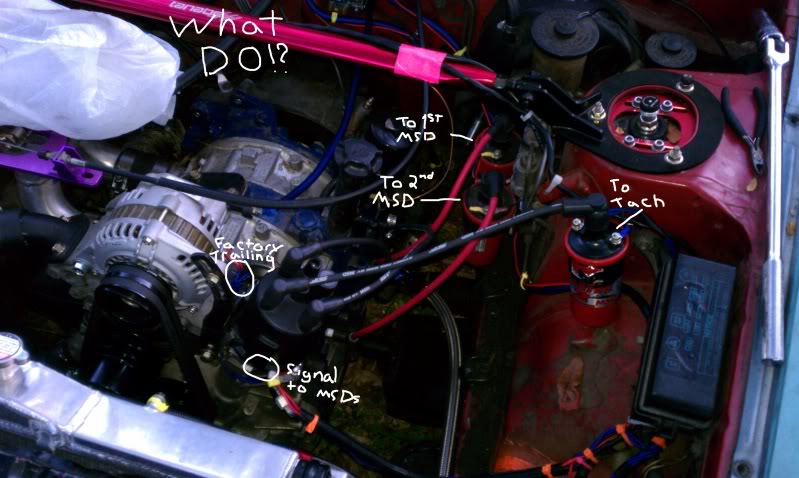

so i have a S4 13b peripheral port in my AE86 corolla. my ignition set up is as follows:
Leading:
2x MSD 6a boxes connected to 2x msd coils and the signal is from the leading magnetic pick up on the distributor
Trailing:
Factory ignitor wired to one msd coil and then ran through the distributor.
i will have a Bee-R limiter very soon and i need to know how to wire it. from the translations ive found on the web so far i found the wiring is as follows:
Red wire: 12V+
Black wire: ground
yellow wire: RPM signal
green wire: ignition signal
and to cut the looped brown wire for rotary engines
now my problem is, everything i have found explaining how to wire this up shows wiring to the ECU. i do not have one so i need a little help to figure out how to run the yellow rpm signal wire.
my main issue is that i do not know how the limiter sends the signal to cut ignition. is it all from the yellow wire? if i wire it to receive signal from the trailing coil, like the tach, would it then only try to cut the trailing coil?
HALP!
Leading:
2x MSD 6a boxes connected to 2x msd coils and the signal is from the leading magnetic pick up on the distributor
Trailing:
Factory ignitor wired to one msd coil and then ran through the distributor.
i will have a Bee-R limiter very soon and i need to know how to wire it. from the translations ive found on the web so far i found the wiring is as follows:
Red wire: 12V+
Black wire: ground
yellow wire: RPM signal
green wire: ignition signal
and to cut the looped brown wire for rotary engines
now my problem is, everything i have found explaining how to wire this up shows wiring to the ECU. i do not have one so i need a little help to figure out how to run the yellow rpm signal wire.
my main issue is that i do not know how the limiter sends the signal to cut ignition. is it all from the yellow wire? if i wire it to receive signal from the trailing coil, like the tach, would it then only try to cut the trailing coil?
HALP!
#4
Rotary Enthusiast
iTrader: (2)
Join Date: May 2005
Location: E-L Netherlands
Posts: 1,165
Likes: 0
Received 0 Likes
on
0 Posts
From what i would expect, the ignition signal is cut.
So that would mean you have to splice it into the wiring, in series between the pickup and MSD, allowing it to cut the signal.
However, i never owned a bee-r, nor a carbed rotary so i could be way off
So that would mean you have to splice it into the wiring, in series between the pickup and MSD, allowing it to cut the signal.
However, i never owned a bee-r, nor a carbed rotary so i could be way off
