bori113

Hello I am back. I am done with my project 1 year hard work.

teddyrx2

iTrader: (33)

Dude what radiator is that your running

mwpayne

BEE-YOUTIFUL!

Details..how'd ya do it, where'd ya get the stuff?

13B-RX3

iTrader: (2)

+1

RotorRican

Congrats!
please post more picts and details on the build up.

bori113

the radiador i got it from Summit (griffin radiator) you have to make it fit. tomorow i will post more info and pictures.

bori113

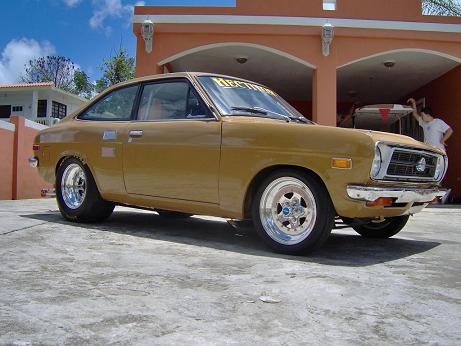

My Baby

13B-RX3

iTrader: (2)

Very clean!!! More pics please.

13btnos

iTrader: (1)

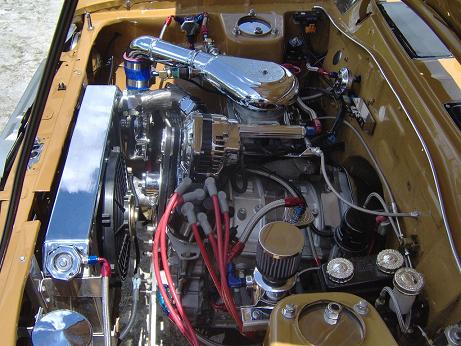

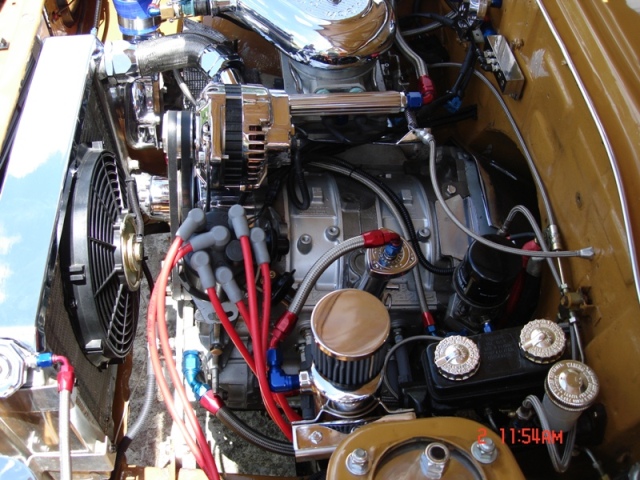

In the picture with your engine bay I noticed that the top of the strut is pulled in. What is the purpose of doing that and do you do anything to the bottom of the strut to compenstate for the changes you did up top? I've got a 1200 also and have noticed that modification to the struts in more than one car and have always wondered why. Also are you running alcohol I don't see an intercooler and what size tires are you running?

bori113

Hi well, about the struts i could tell you were to get them and who was the guy that did the installation but the functions and the reason to be install like dont now all i now is that it goes down the track straight. The tires on thge back are 28x10 and in the front 22.5x4.5x15 m/t. The engine 13b turbo , tranny Turbo II, HP 580 at 21 psi. ECU haltech F10-8 as a right now is using 110 gas, 4 injectors in the throttle body and two more just in case

13btnos

iTrader: (1)

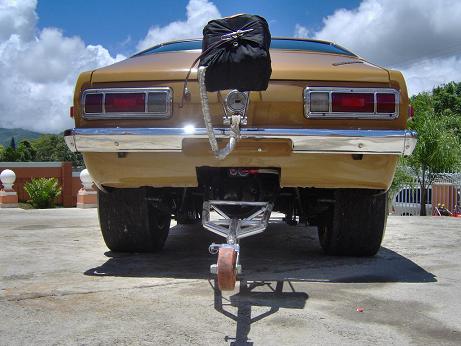

28x10 tires do you have it mini tubbed or half chassis? Any pictures of the rear suspension setup? It's good to see another 1200 here and your setup is very much how I wish mine to be in the future. Here's a link to my car check it out and tell me what you think. Great looking car! What times have you ran in it?

jdr821

iTrader: (1)

The strut are pulled in 1" you also have to cut the terminals of the car on the buttom of the strut(correrlos una pulgada para adentro). That way you can lower your car plus the tires comes inside of the fender( looks better too). By lowering the car you ll have more stability(dont know if i Spell the word right or not but you know what i mean LOL ) going down the track fast. On my starlet I also push the strut back 1/2" so the tire would move 1/2" to the front for better stability down the track.
Just my 2 cents lol

bori113

best time so far was 1/4 mile 9.81 at 139 mph.
