another glc build

Old 12-13-12, 05:07 AM
  #26
Military Rotary Guru!!!
iTrader: (13)

zionfarm's Avatar

Join Date: May 2006
Location: Fort Riley / St.Croix U.S.V.I
Posts: 520
Likes: 0
Received 0 Likes on 0 Posts
No problem man.

Originally Posted by mattallac View Post
thank you zionfarm for uploading my pics , much appreciated . The cable and bracket I fabed were to make the e brake work , clevices from mc master carr (50.00 for both ) and elongating the stock glc brackets (2 1/4 on the passenger side and 4" on the driver side )really easy to do took about 2 hrs. And here is a pic of the camber/caster plates for an rx7 I popped in .Also a pic of the engine bay ready for the 12a and the dash on the above post was a cracked and destroyed sport dash that I fiber glass repaired , I plan on painting it wood grain ;pics to follow
zionfarm is offline
Old 12-19-12, 12:17 AM
  #27
Senior Member
Thread Starter
iTrader: (7)

mattallac's Avatar

Join Date: Nov 2012
Location: crockett ca.
Posts: 273
Likes: 0
Received 0 Likes on 0 Posts

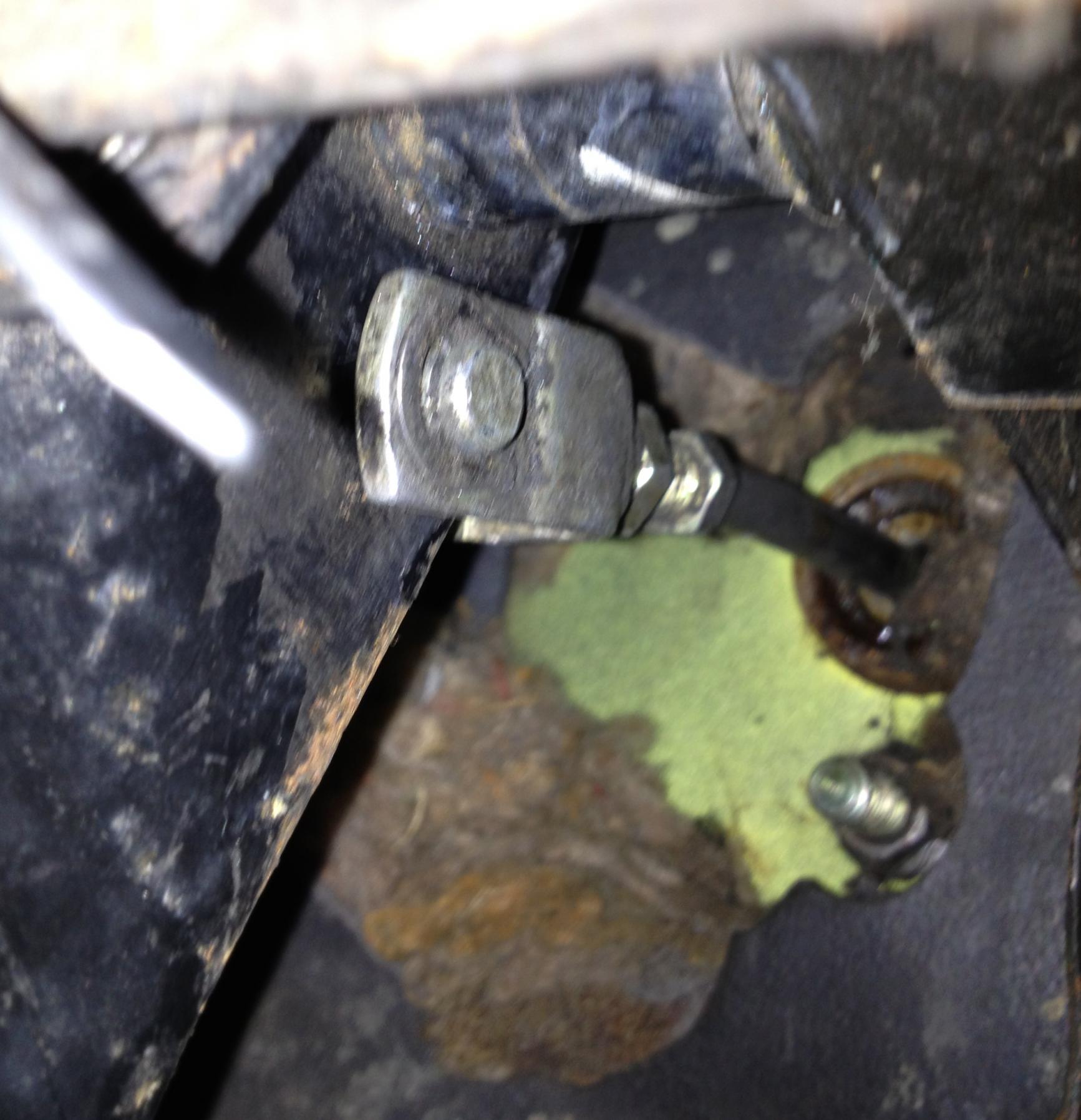

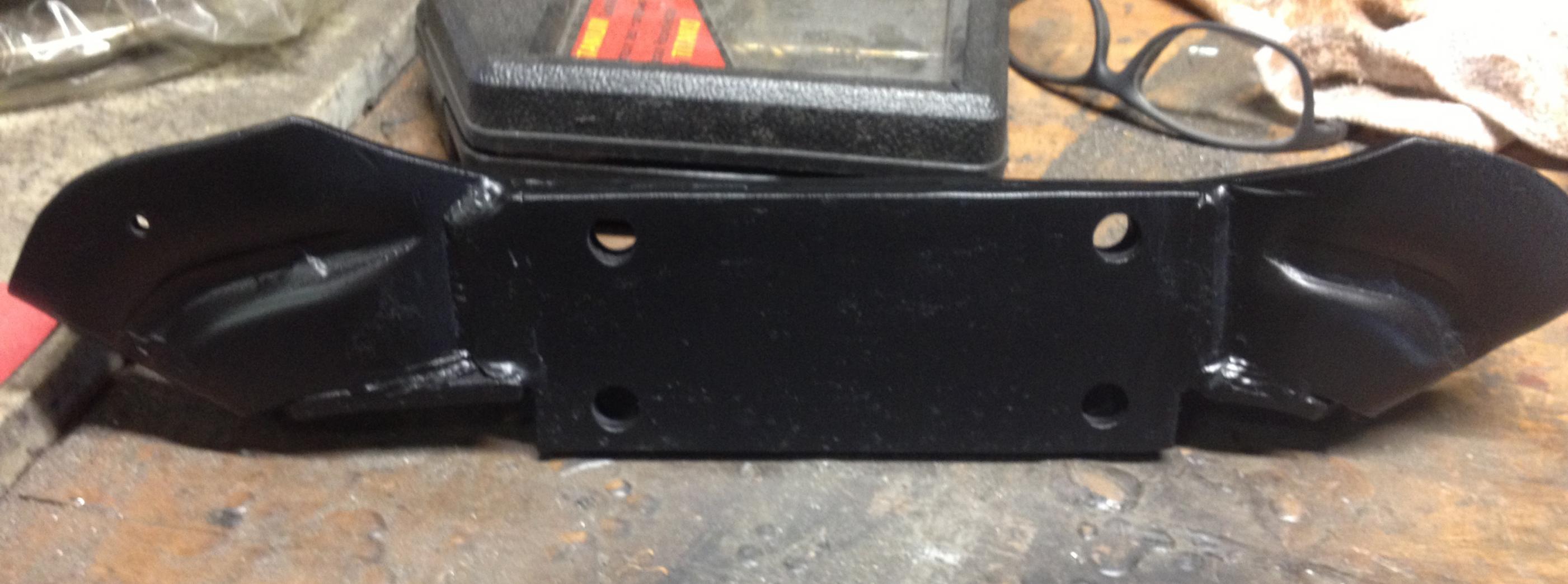

Made my motor mount today , had to drop the motor pretty low .I used a rx7 mount and modified it . Thats a plus because that motor was setting pretty high . Also put the clutch master in pretty easy just drilled a new hole under the pivot point and bent the rod slightly .
Attached Thumbnails another glc build-img_0963.jpg   another glc build-img_0966.jpg
mattallac is offline
Old 12-19-12, 08:37 AM
  #28
Full Member
iTrader: (4)

rotopower74's Avatar

Join Date: Apr 2011
Location: Hartford KY
Posts: 201
Likes: 0
Received 0 Likes on 0 Posts
Keep it coming!!!! Im taking notes....lol
rotopower74 is offline
Old 01-11-13, 11:51 PM
  #29
Senior Member
Thread Starter
iTrader: (7)

mattallac's Avatar

Join Date: Nov 2012
Location: crockett ca.
Posts: 273
Likes: 0
Received 0 Likes on 0 Posts

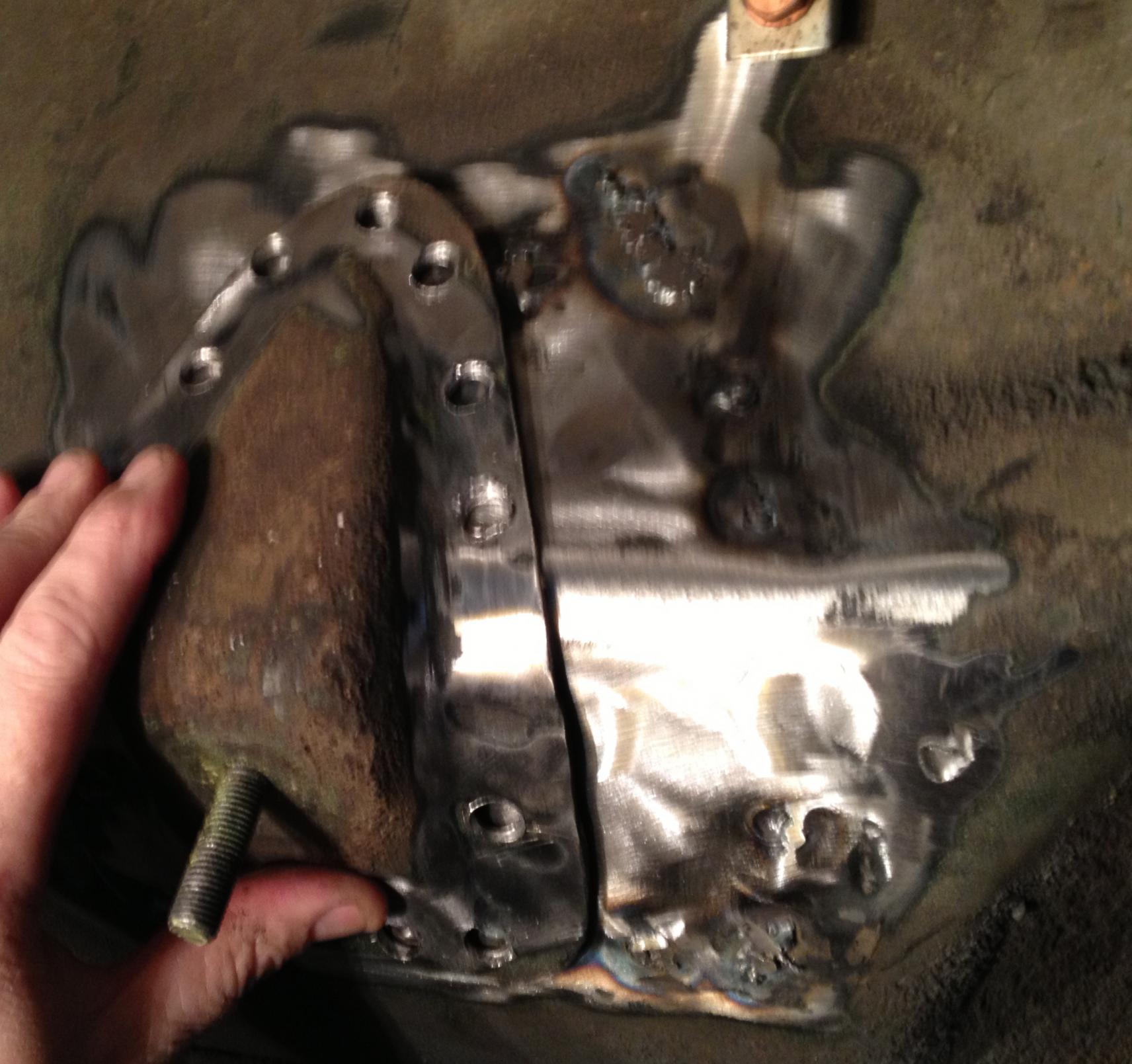

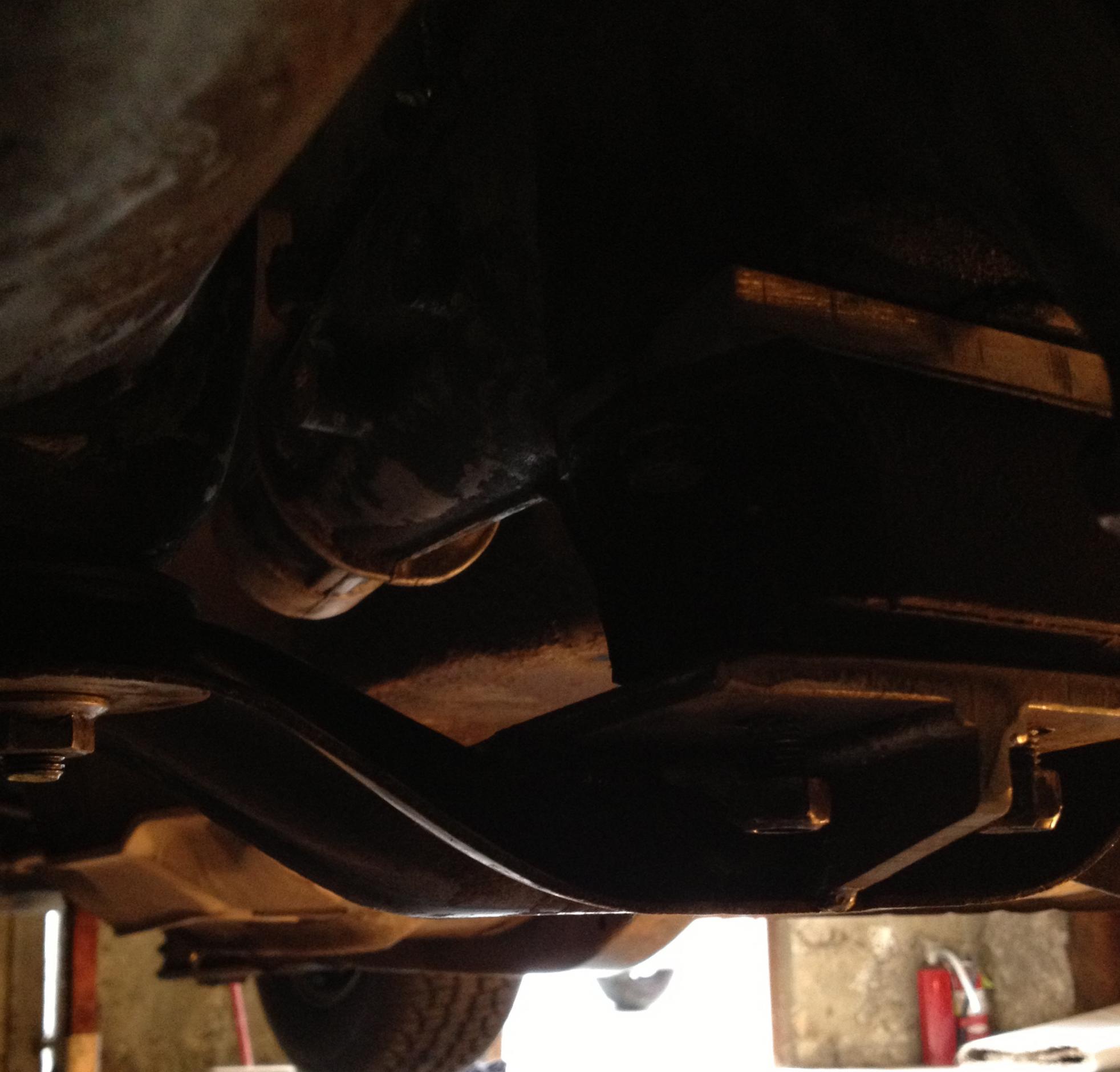

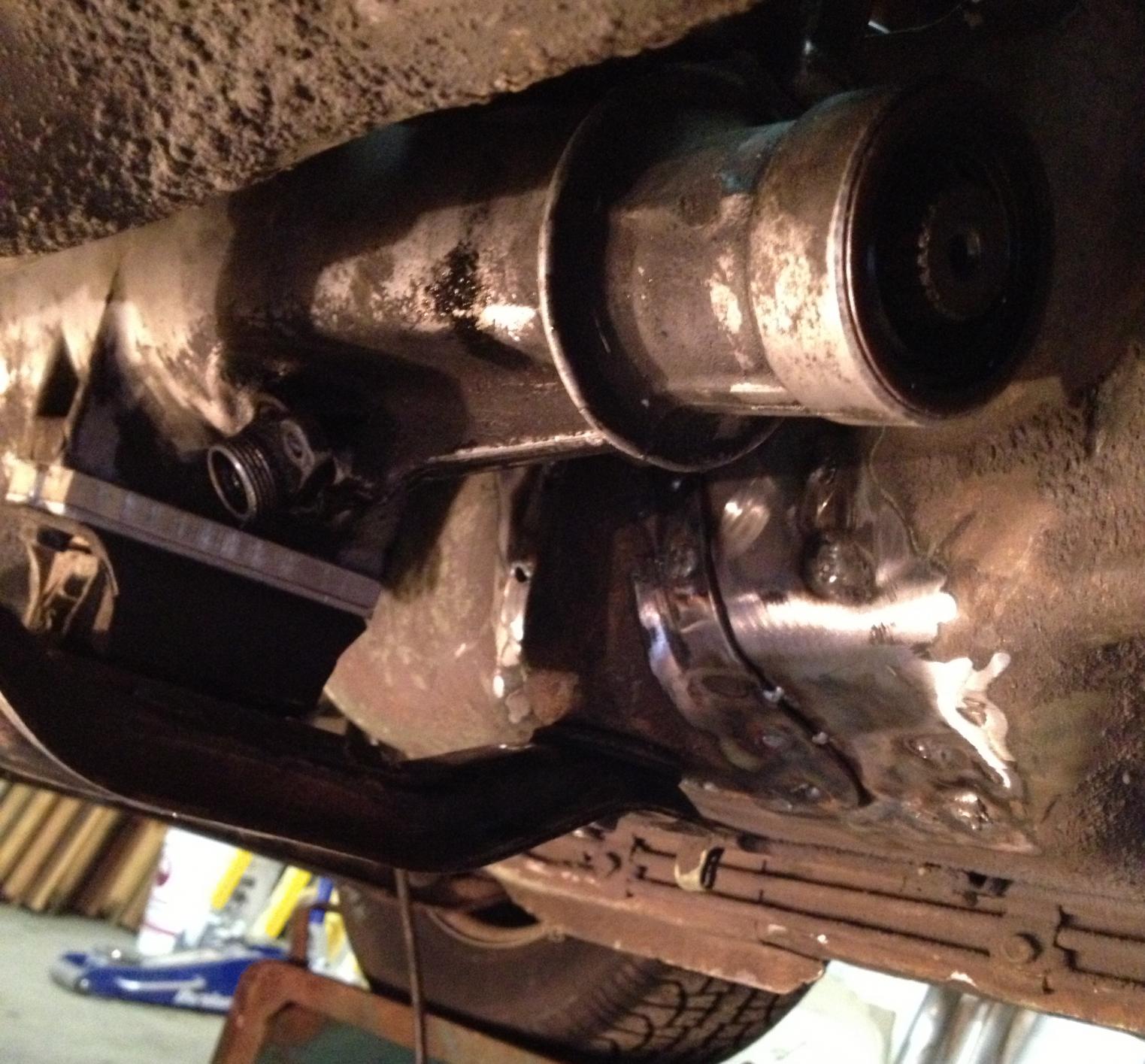

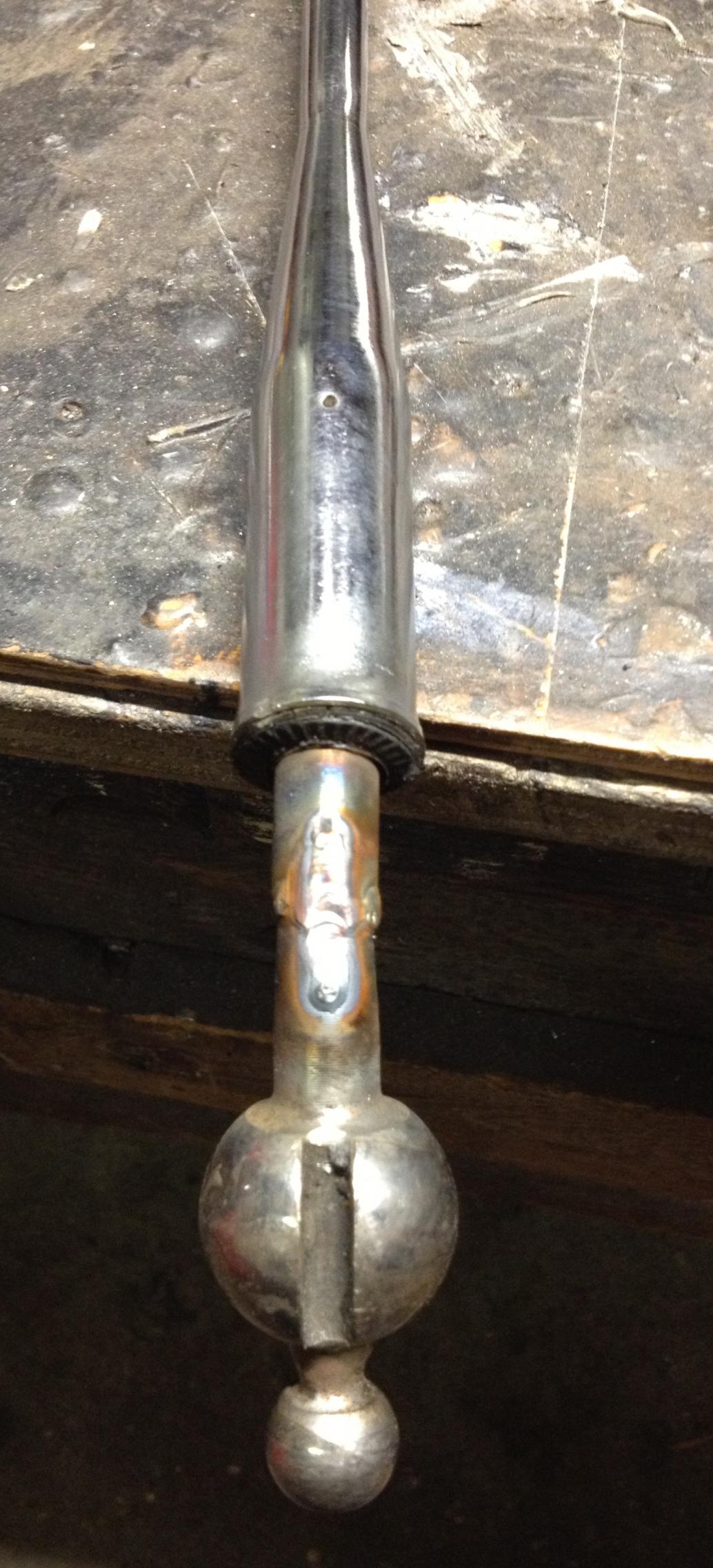

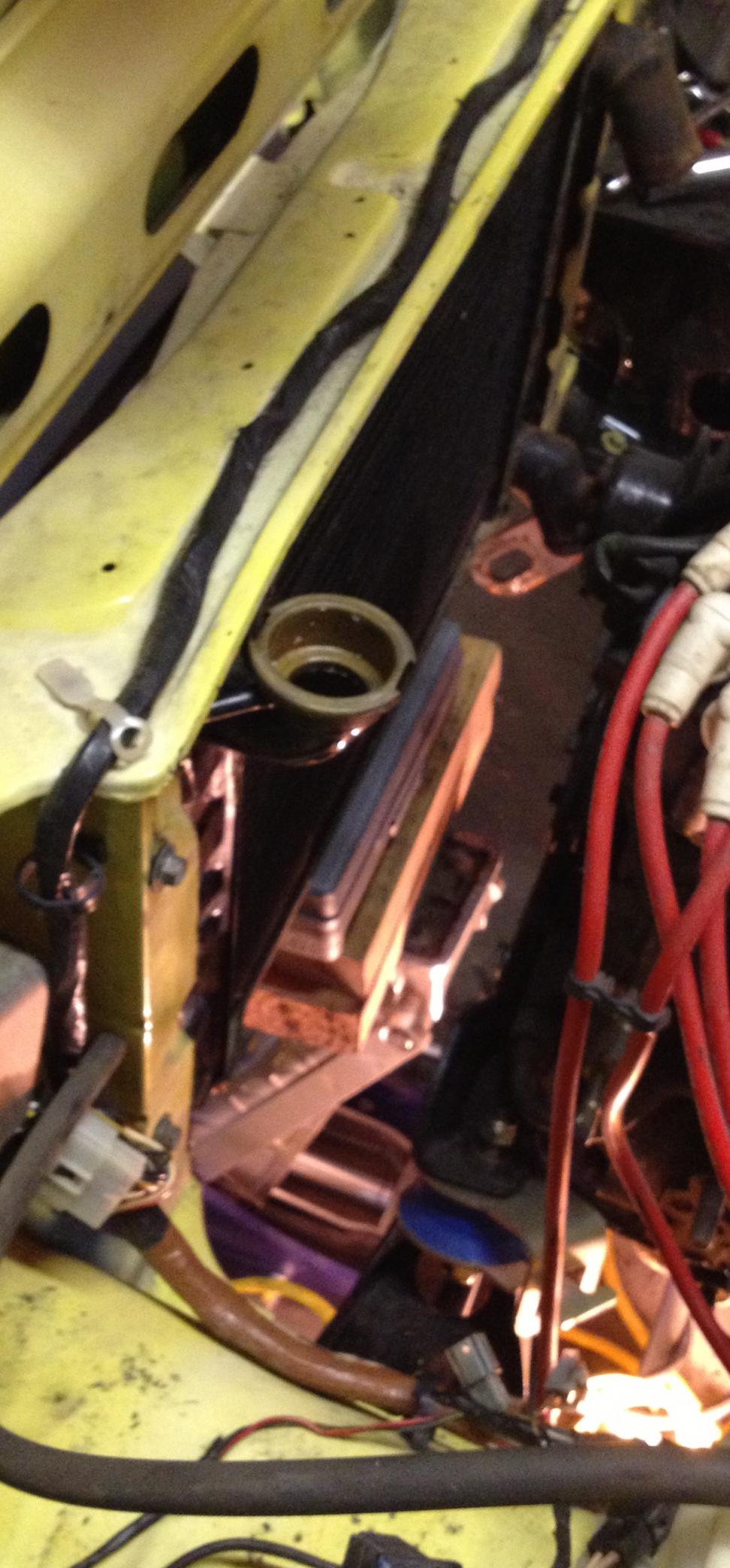

Ok , it's been a while .I moved the cross member mounts forward to shorten up the cross member extension ( it had to much deflection ) . The shifter on the 83 fb was really short so I grafted the fb ball and the glc shifter . Lastly I fit the rx2 radiator , I sweat the tank brackets off the glc rad and put them on the rx2 rad to make it easer to mount . The exhaust is almost done and pics will follow and the one thing I have not read on any other thread is about pinion angle . The 12a down in the front and trans shimmed up in the rear points 5 1/2 degrees down my pinion is up 1 1/2 degrees( that leaves 4 degrees to go ) . I came up with a 40.00 way to adjust the angle up and pics will also follow
Attached Thumbnails another glc build-img_1039.jpg   another glc build-img_1040.jpg   another glc build-img_1041.jpg   another glc build-img_1048.jpg   another glc build-img_1043.jpg

mattallac is offline
Old 01-12-13, 01:44 PM
  #30
Cali Maki OG
iTrader: (1)

VincenzoL's Avatar

Join Date: Sep 2002
Location: Bay Area, NorCal
Posts: 909
Likes: 0
Received 0 Likes on 0 Posts
Impressive as always Matt. Keep up the good work! I hope you are willing to take payments when you want to sell it. Haha!
VincenzoL is offline
Old 01-12-13, 05:52 PM
  #31
What Subscription?
10 Year Member

banzaitoyota's Avatar

Join Date: Apr 2001
Location: Aiken SC USA
Posts: 5,926
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by mattallac View Post
I need to finish this project quick , I have another project that needs my attention
Jealous!
banzaitoyota is offline
Old 01-13-13, 11:02 PM
  #32
Senior Member
Thread Starter
iTrader: (7)

mattallac's Avatar

Join Date: Nov 2012
Location: crockett ca.
Posts: 273
Likes: 0
Received 0 Likes on 0 Posts
glc

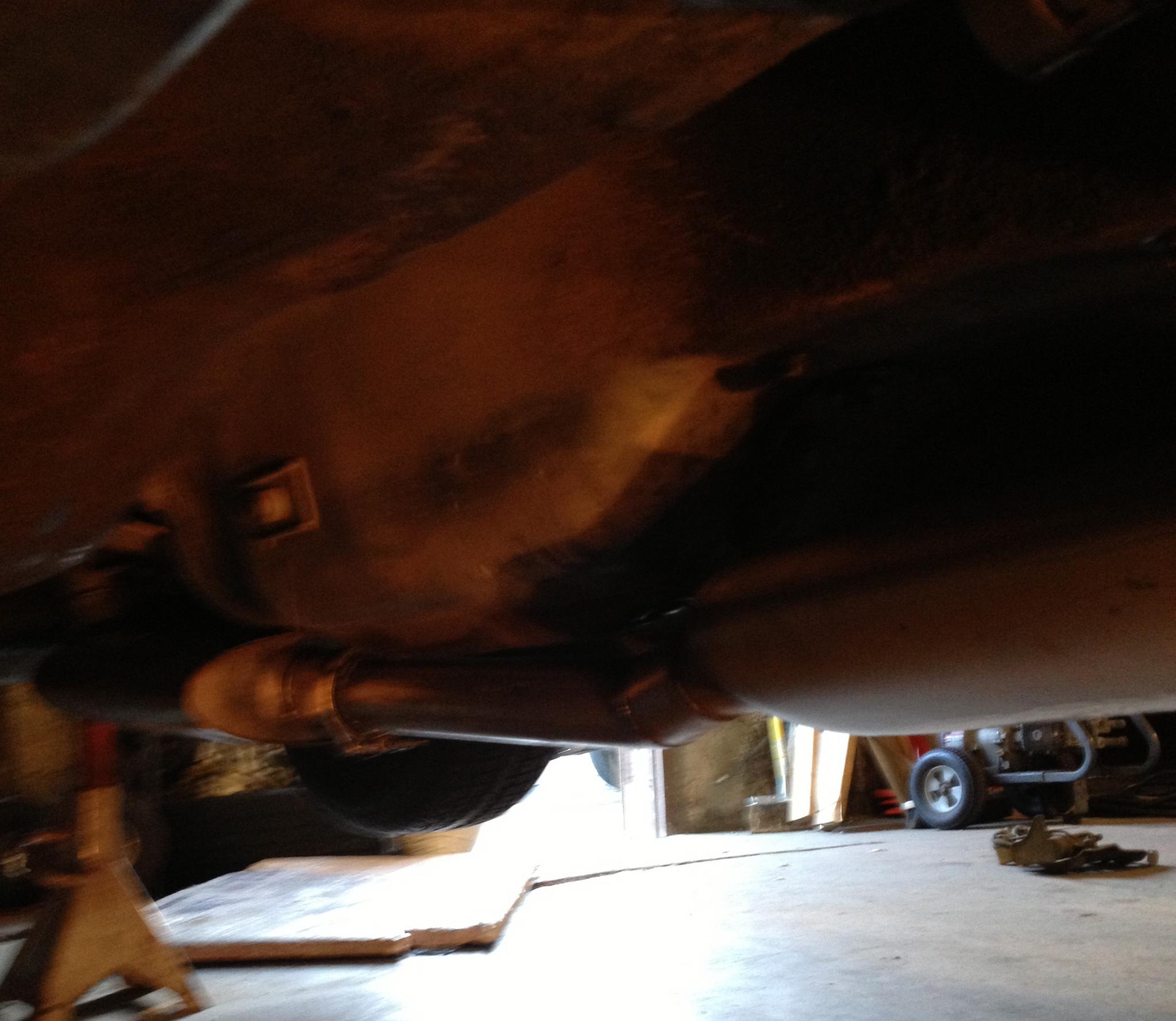

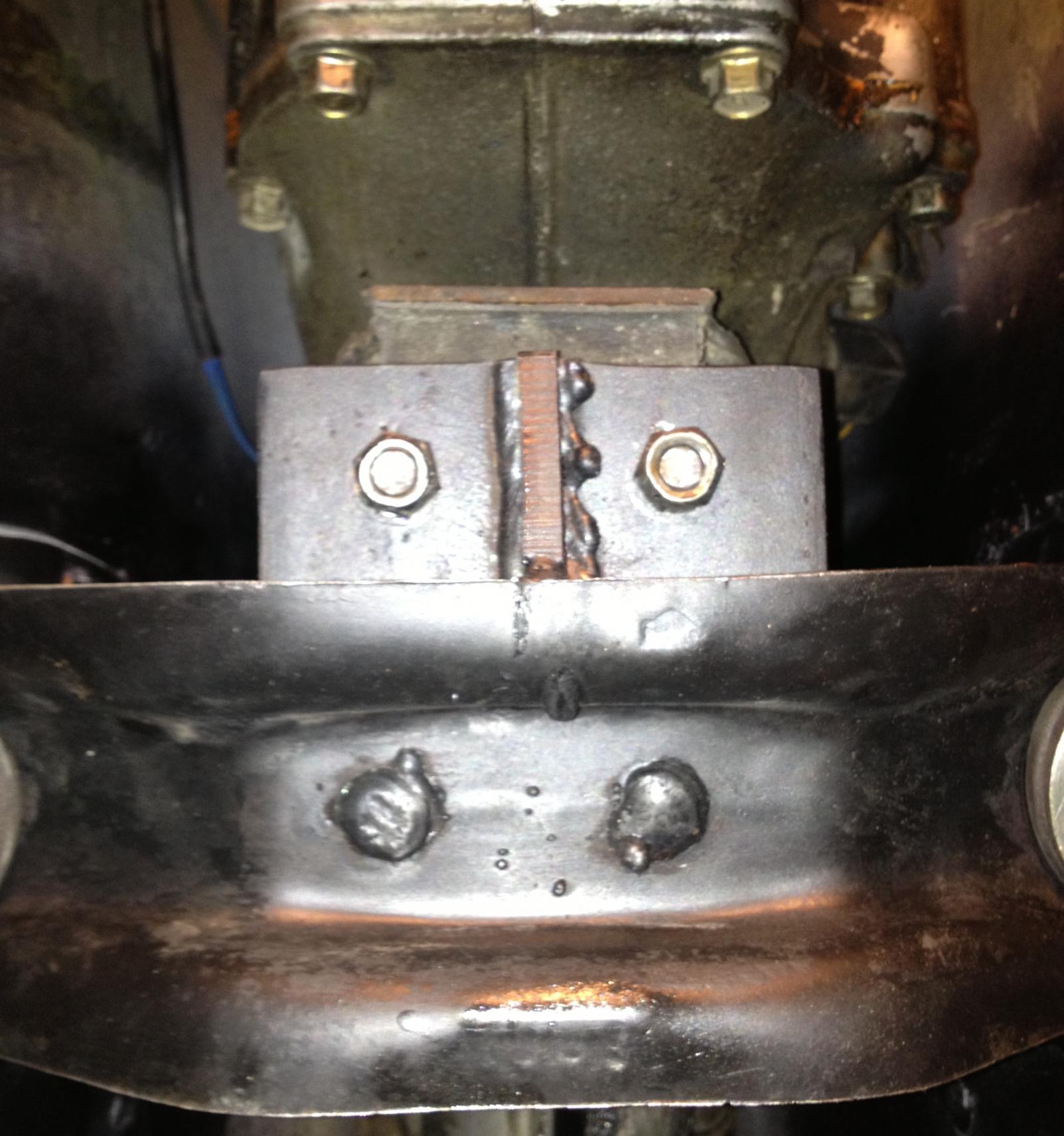

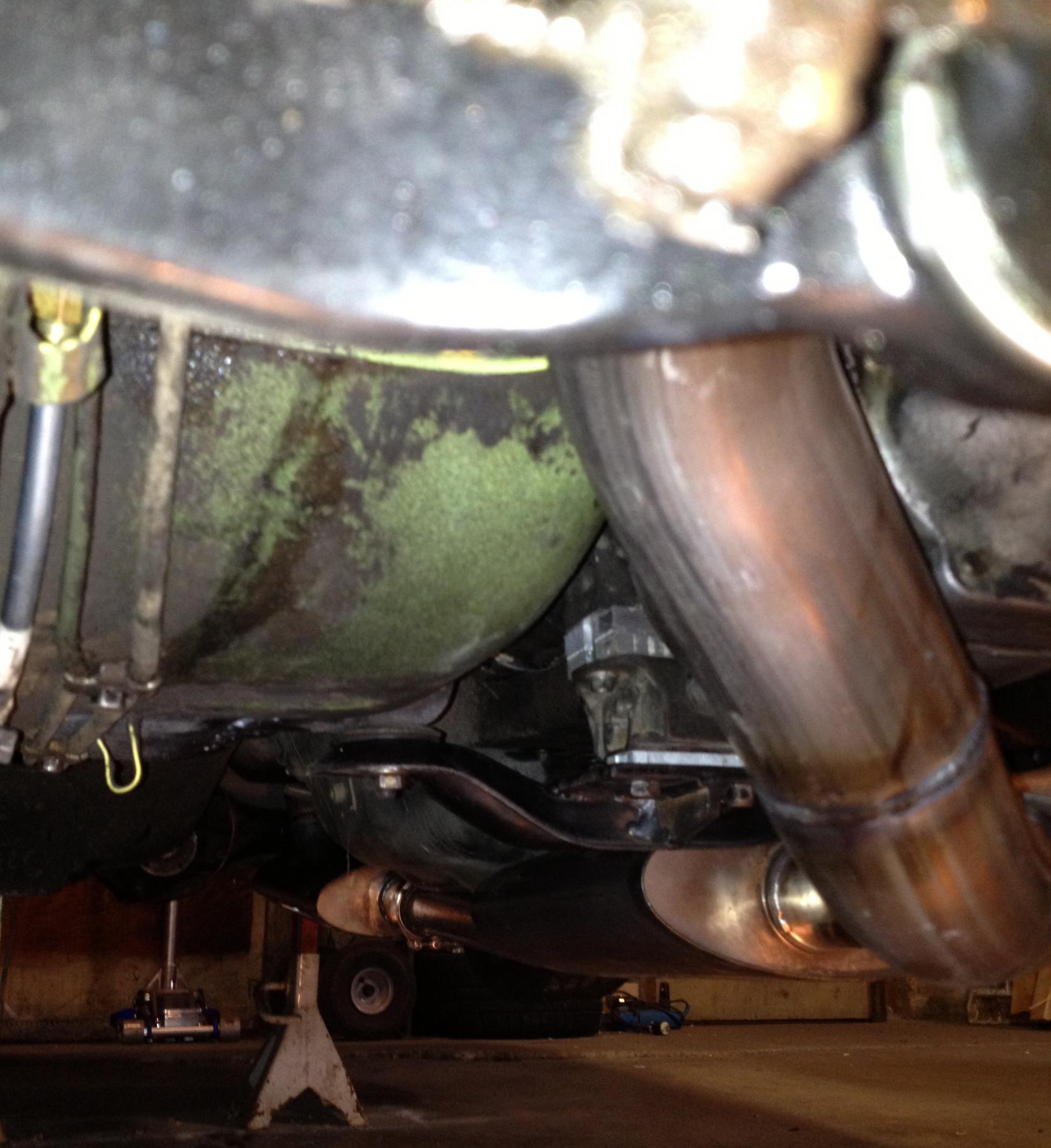

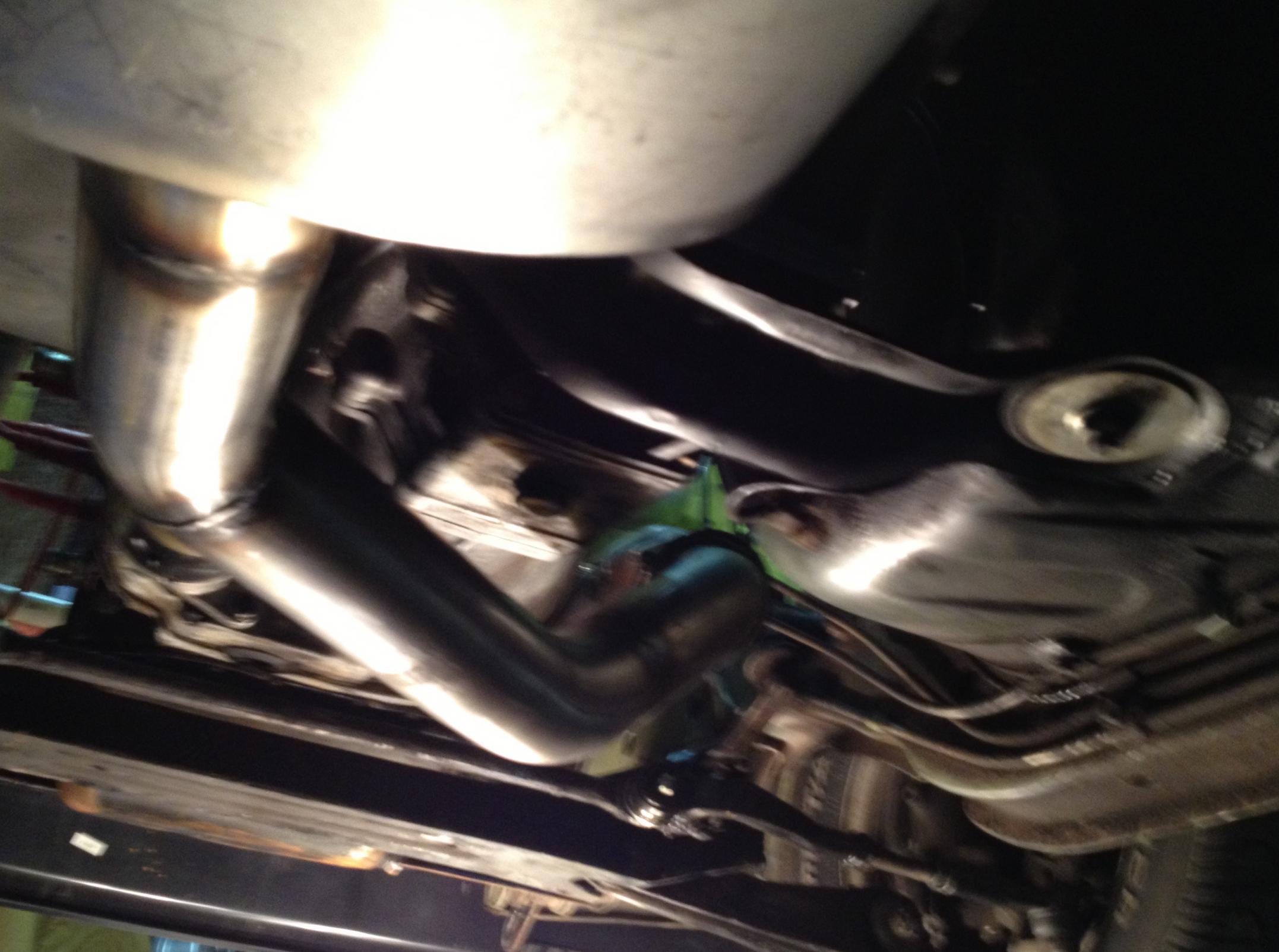

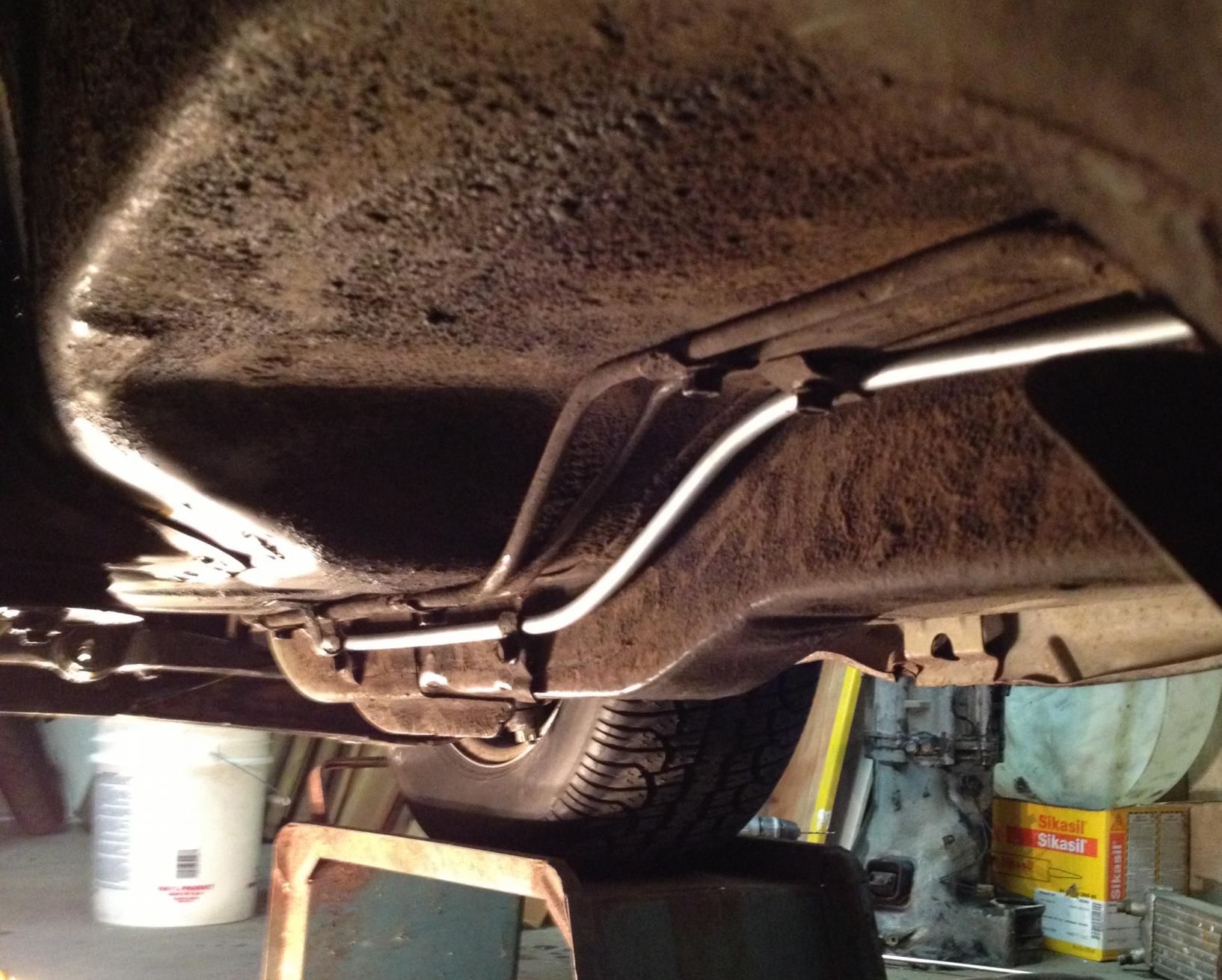

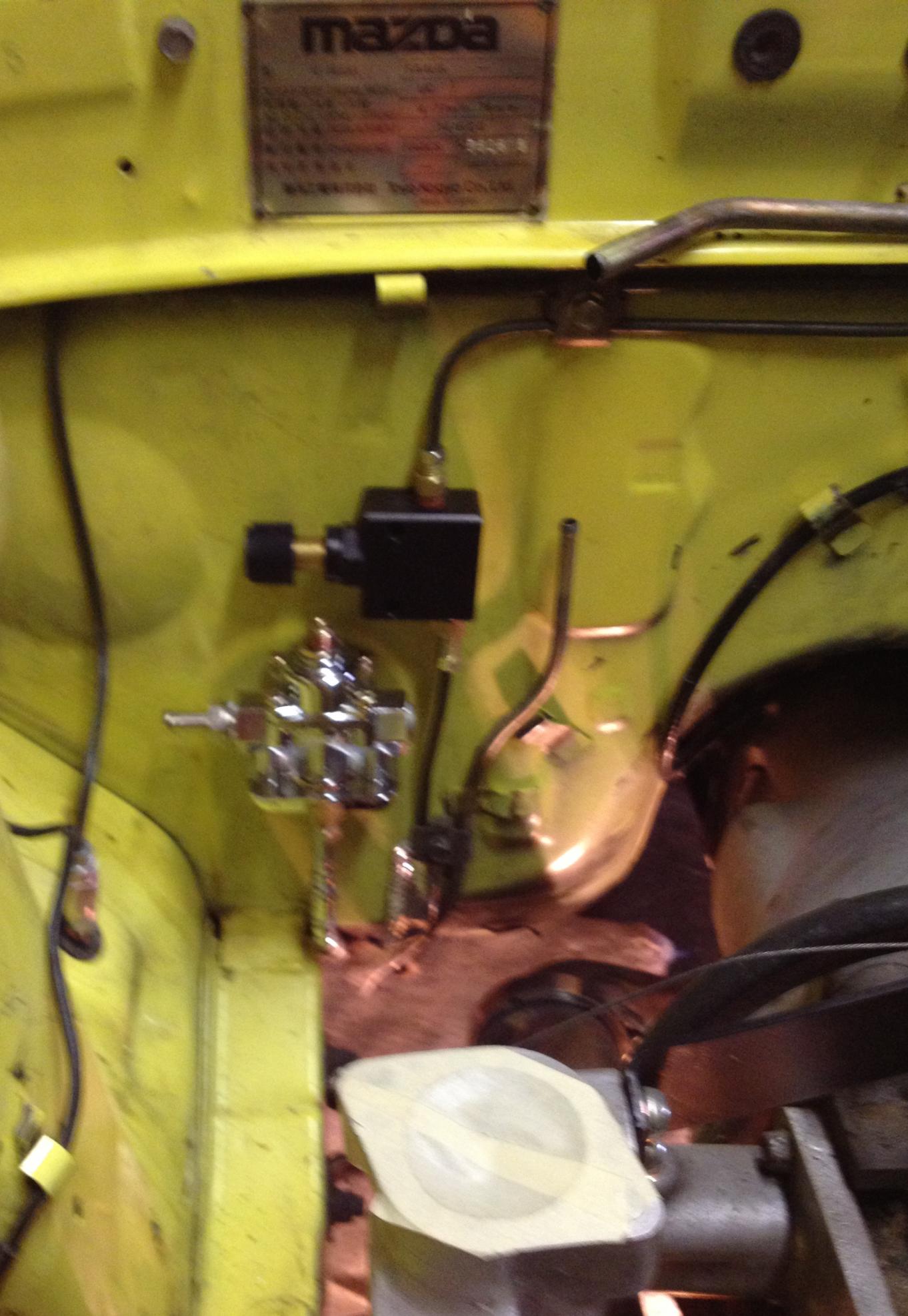

Pretty good day of work today , installed the proportioning valve for the rear brakes , the 5/16 fuel line , rx7(fb) fuel pump and filter ,the whole exhaust(started on that last saturday ,all mandrel bends ,2 borla 2 1/2 in and out and v bands)built the header and installed the fuel pressure regulator .Gotta do 2 posts to fit all the pics .I also included a pic of how short the trans mount is now.
Attached Thumbnails another glc build-img_1052.jpg   another glc build-img_1051.jpg   another glc build-img_1050.jpg   another glc build-img_1054.jpg   another glc build-img_1055.jpg

mattallac is offline
Old 01-13-13, 11:05 PM
  #33
Senior Member
Thread Starter
iTrader: (7)

mattallac's Avatar

Join Date: Nov 2012
Location: crockett ca.
Posts: 273
Likes: 0
Received 0 Likes on 0 Posts

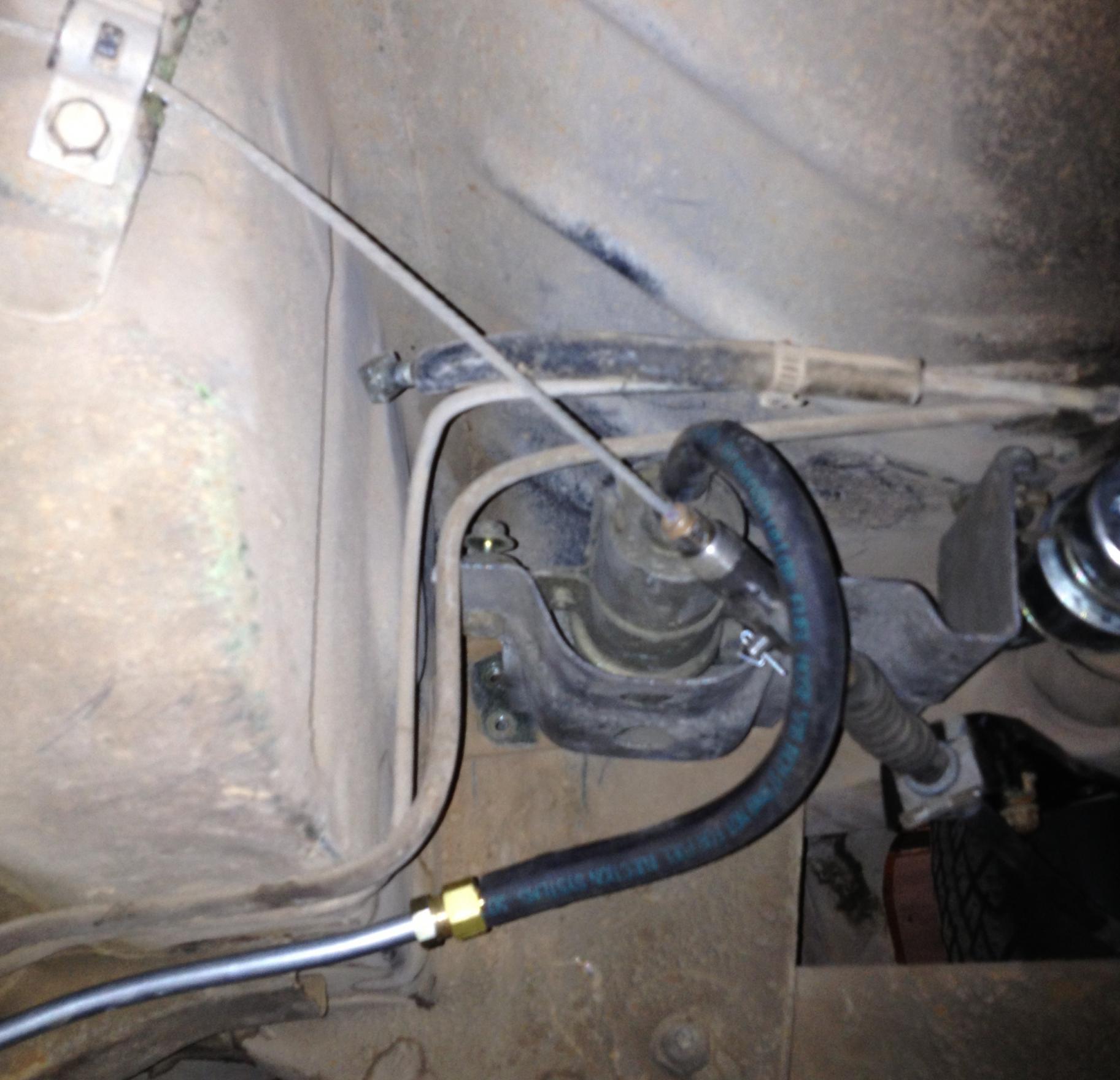

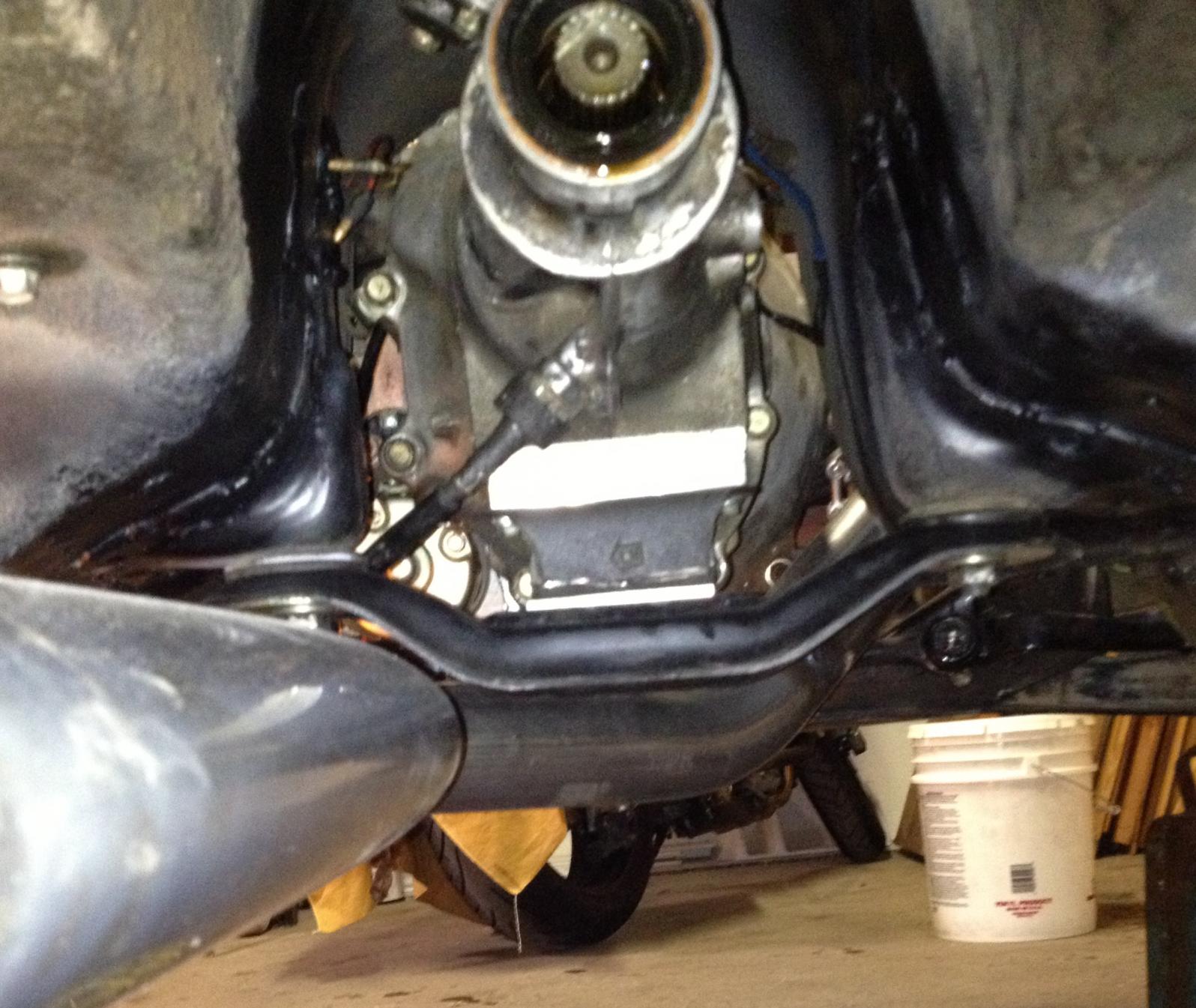

also a pic of how far you have to shim up the trans.
Attached Thumbnails another glc build-img_1057.jpg   another glc build-img_1058.jpg   another glc build-img_1061.jpg   another glc build-img_0896.jpg
mattallac is offline
Old 01-15-13, 06:32 PM
  #34
Full Member
iTrader: (4)

rotopower74's Avatar

Join Date: Apr 2011
Location: Hartford KY
Posts: 201
Likes: 0
Received 0 Likes on 0 Posts
Good job matt!!! im following ur steps!!!!
rotopower74 is offline
Old 01-16-13, 01:27 AM
  #35
Senior Member
Thread Starter
iTrader: (7)

mattallac's Avatar

Join Date: Nov 2012
Location: crockett ca.
Posts: 273
Likes: 0
Received 0 Likes on 0 Posts
no fun

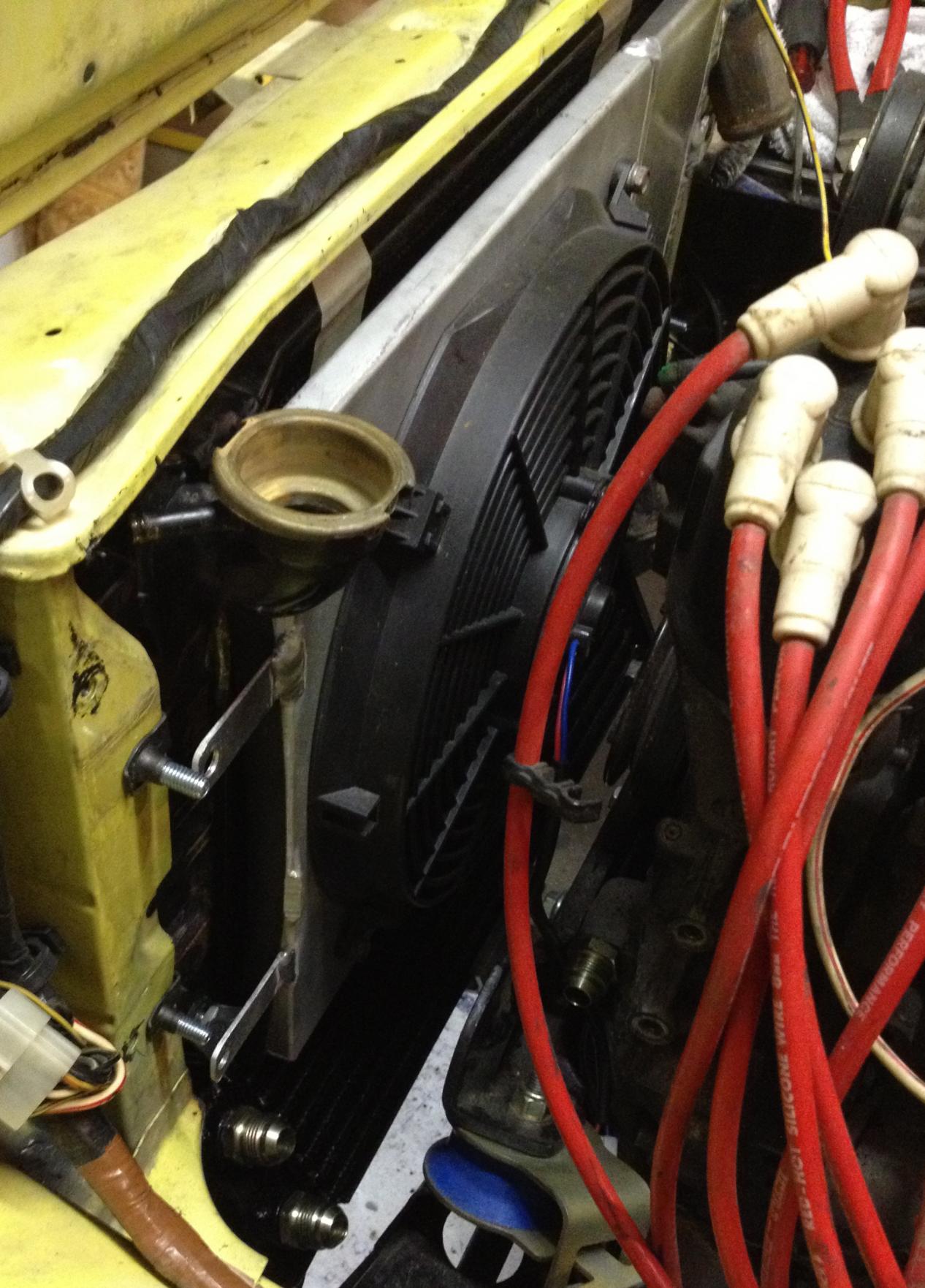

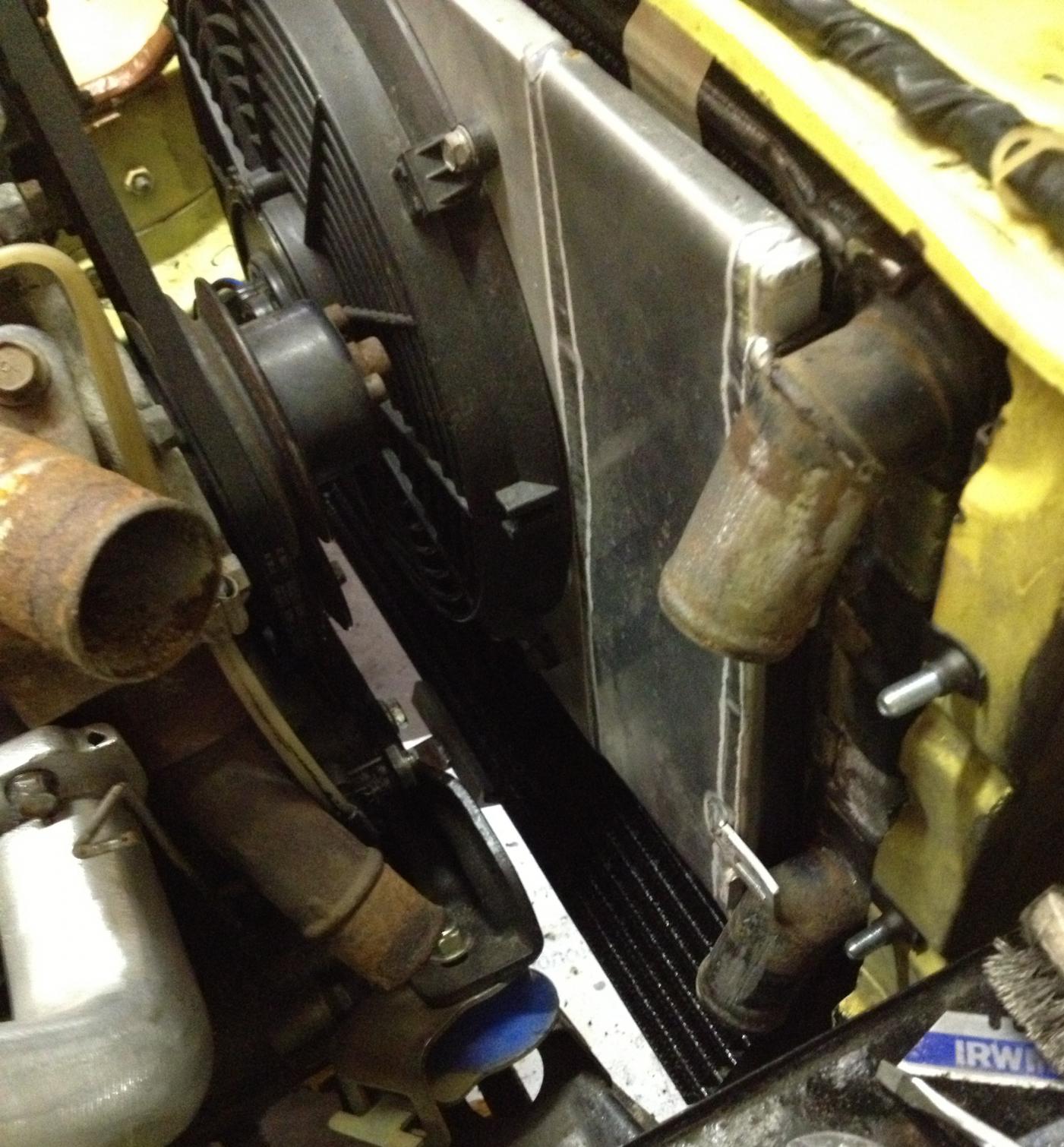

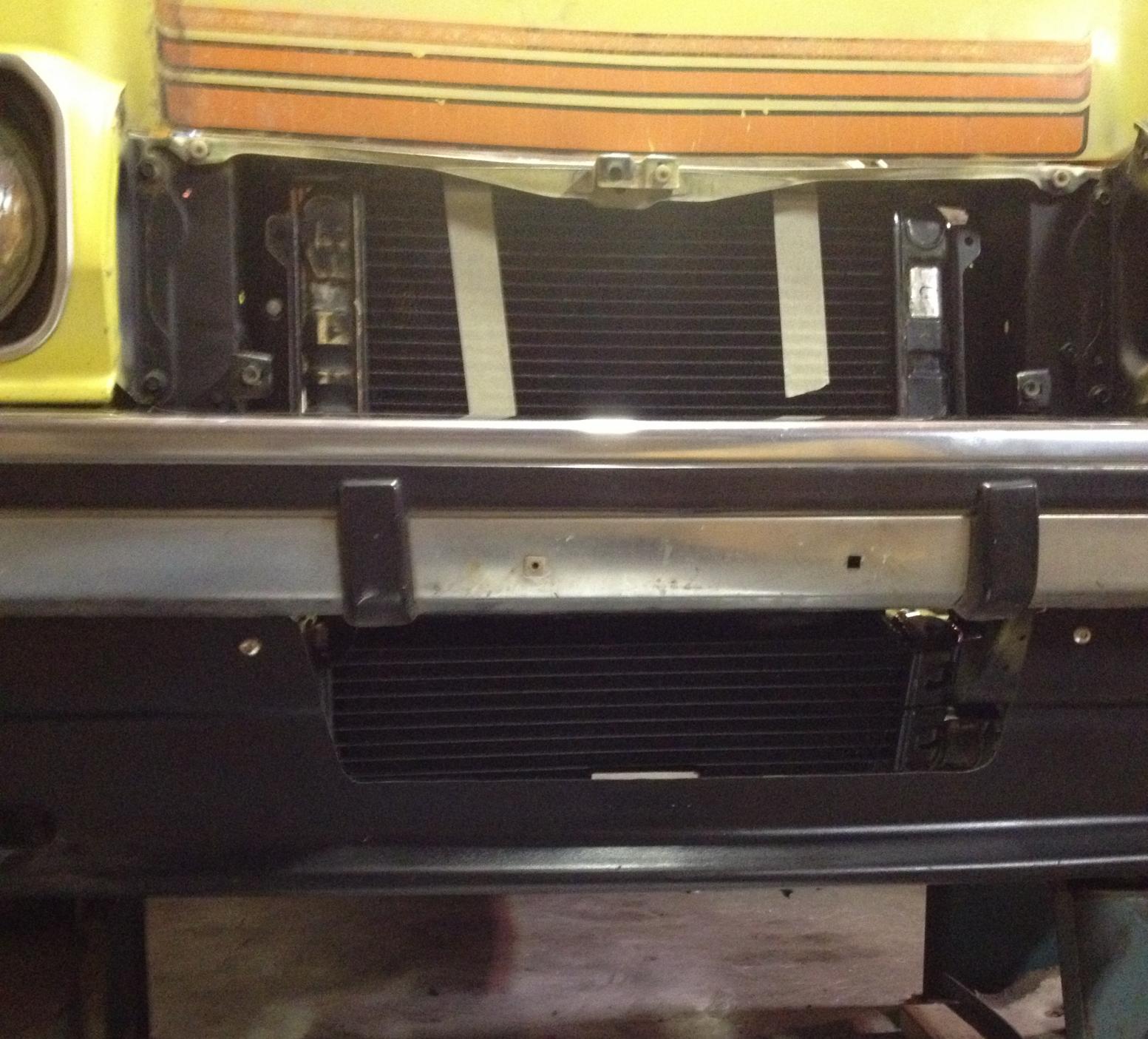

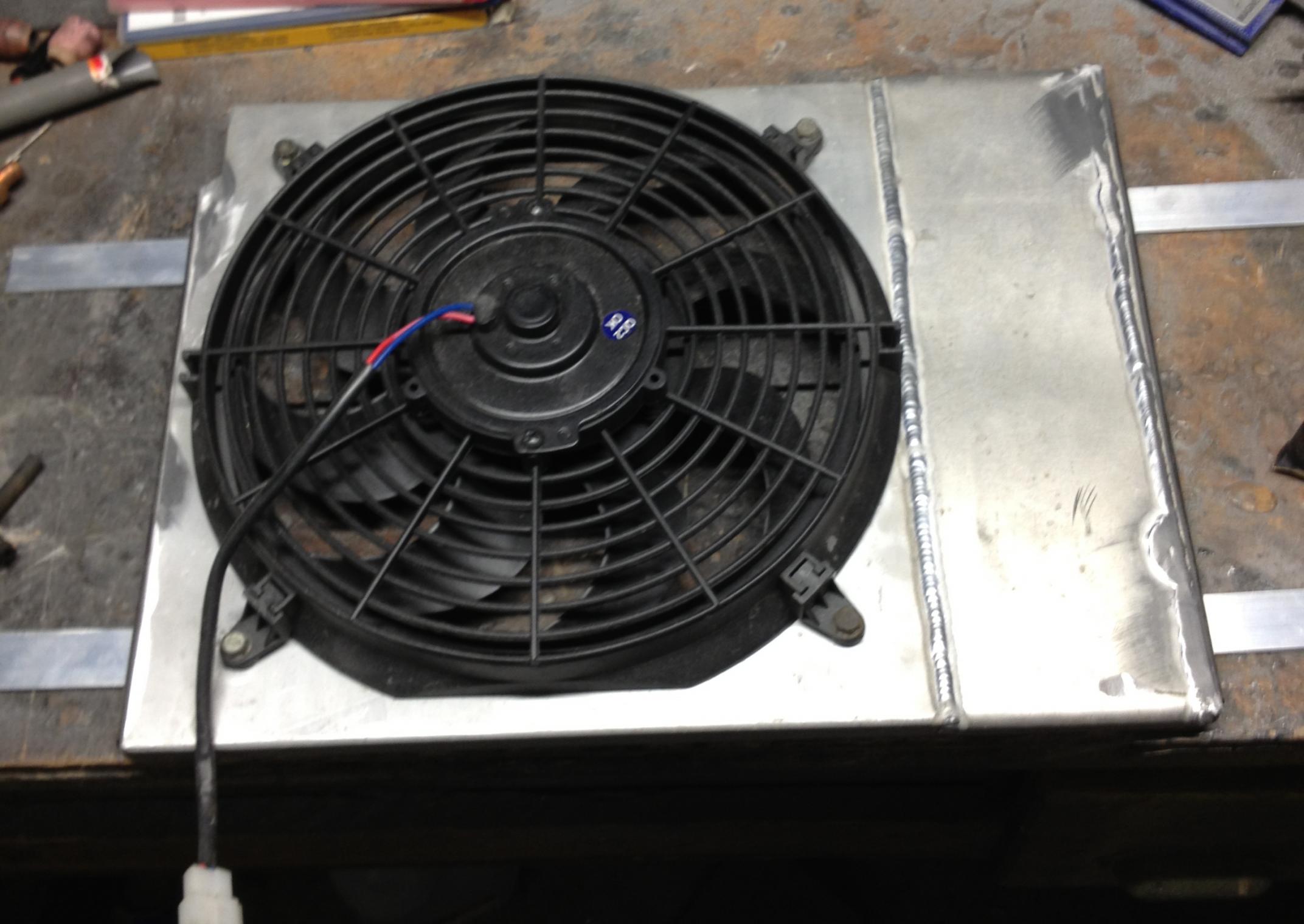

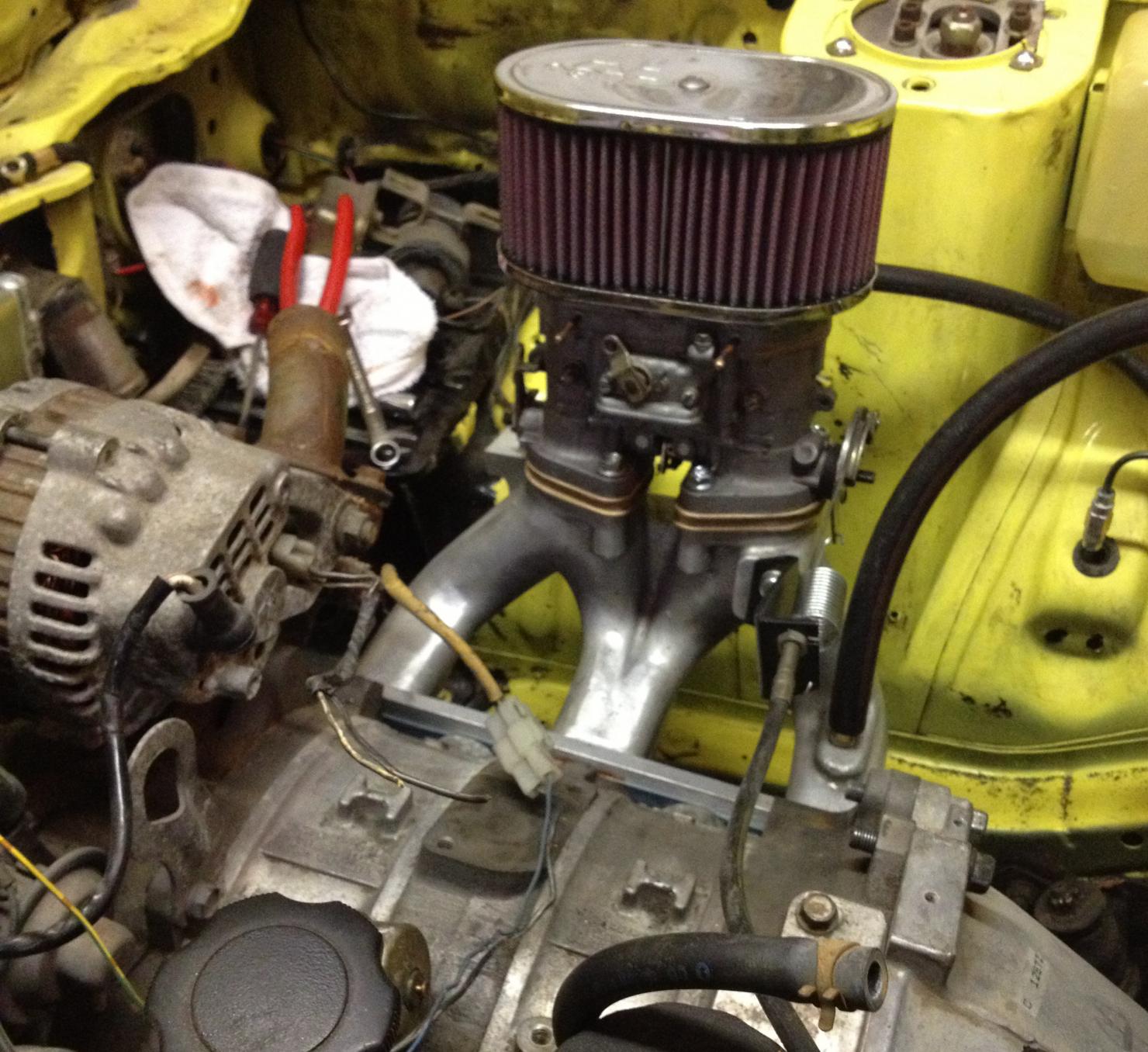

kind of getting burned out because the end is near , here is what I have been working on the last two days :I mounted the radiator and oil cooler , I angled the oil cooler back and made a funky bracket (don't know if its gonna stay ) adapted an electric fan and shroud and rebuilt and mounted the carb .
Attached Thumbnails another glc build-img_1066.jpg   another glc build-img_1068.jpg   another glc build-img_1072.jpg
mattallac is offline
Old 01-16-13, 01:29 AM
  #36
Senior Member
Thread Starter
iTrader: (7)

mattallac's Avatar

Join Date: Nov 2012
Location: crockett ca.
Posts: 273
Likes: 0
Received 0 Likes on 0 Posts
a few more pics

pics
Attached Thumbnails another glc build-img_1070.jpg   another glc build-img_1071.jpg
mattallac is offline
Old 01-16-13, 01:34 AM
  #37
Senior Member
Thread Starter
iTrader: (7)

mattallac's Avatar

Join Date: Nov 2012
Location: crockett ca.
Posts: 273
Likes: 0
Received 0 Likes on 0 Posts
1 more

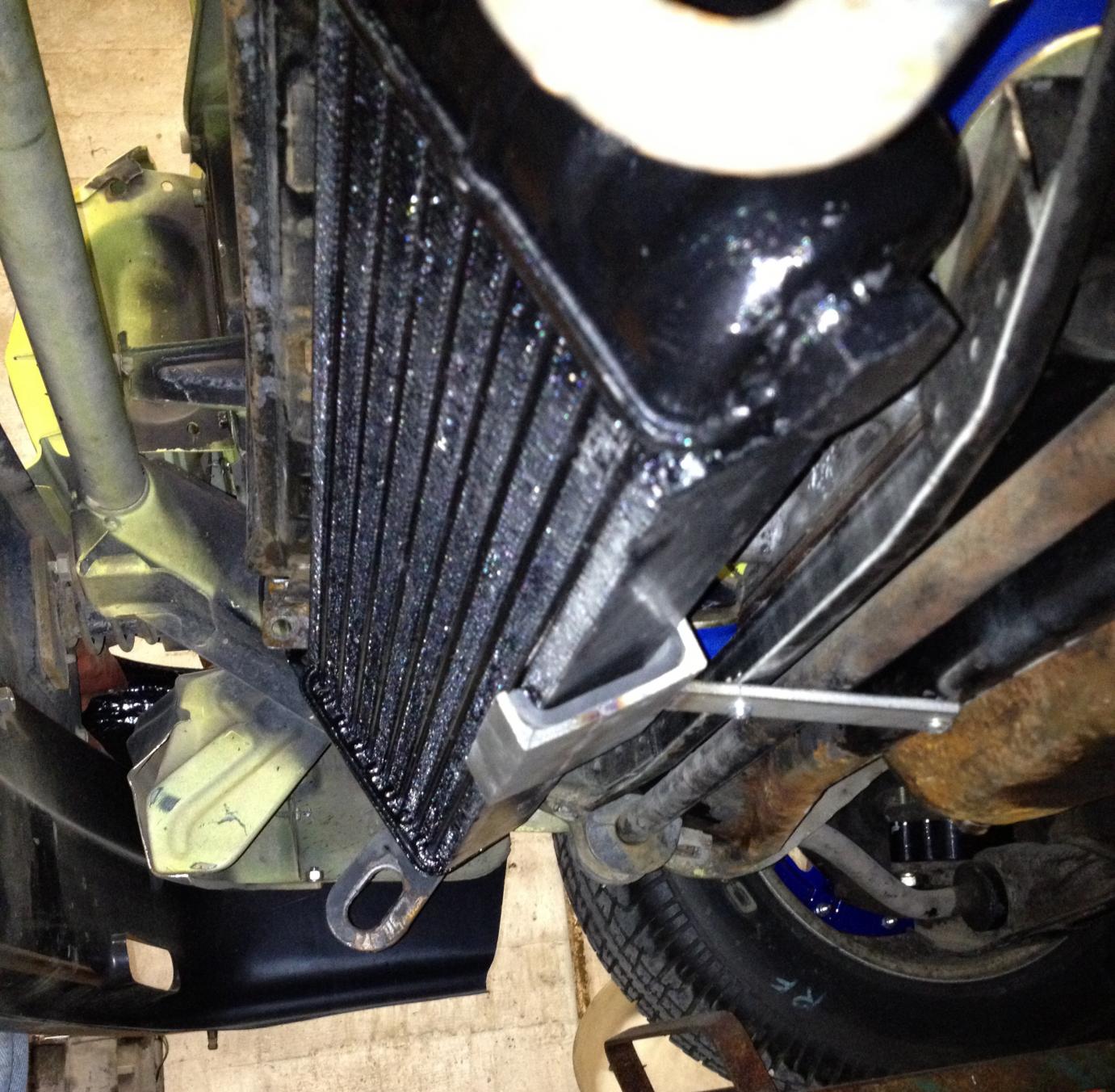

having problem trying to fit all the pics on 1 post. I'm kind of glad it got its own post , I don't know how well this will work ,feedback welcome (good or bad ) and why you like or dislike the design.
Attached Thumbnails another glc build-img_1069.jpg
mattallac is offline
Old 01-22-13, 11:51 PM
  #38
Senior Member
Thread Starter
iTrader: (7)

mattallac's Avatar

Join Date: Nov 2012
Location: crockett ca.
Posts: 273
Likes: 0
Received 0 Likes on 0 Posts
glc

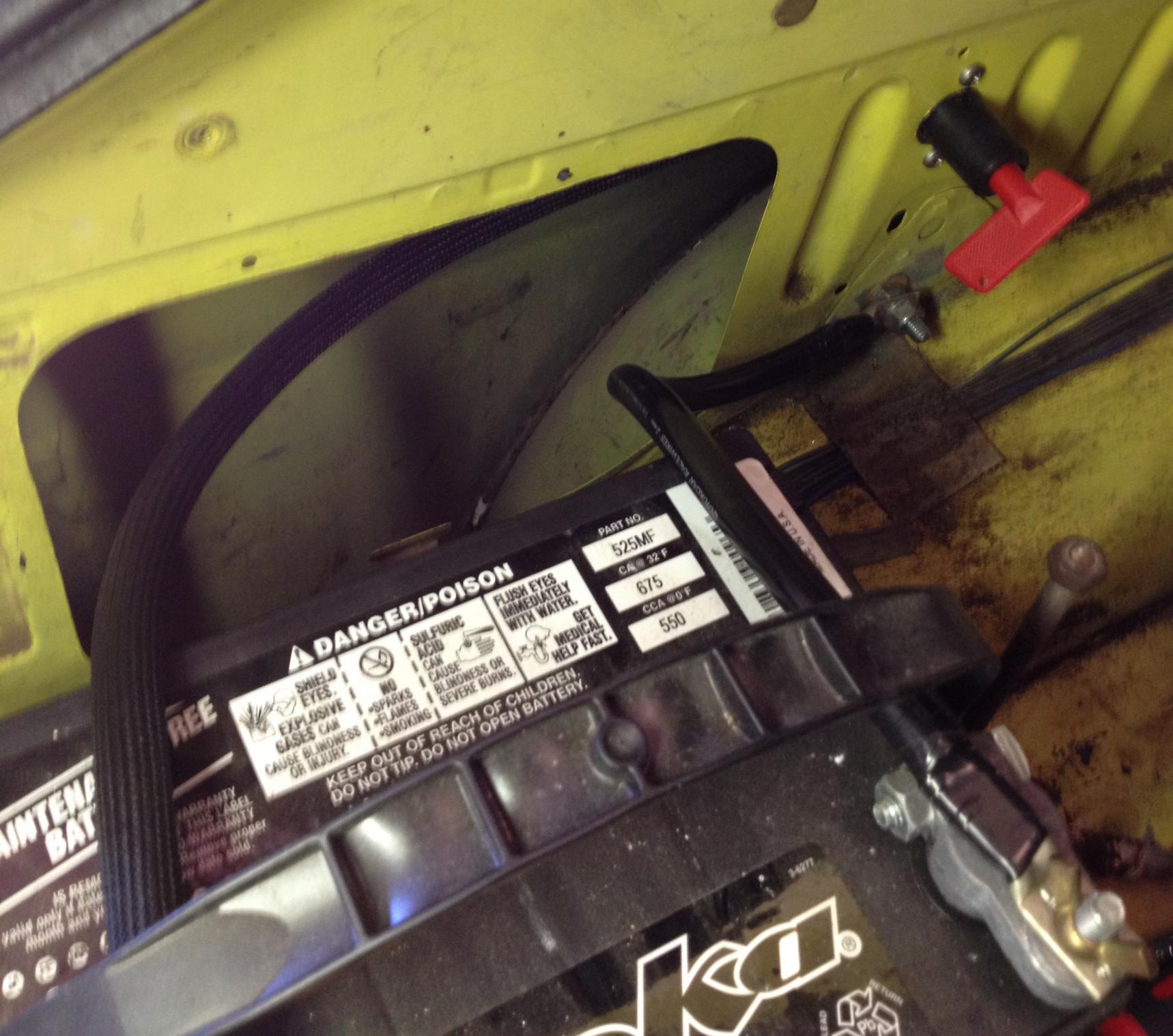

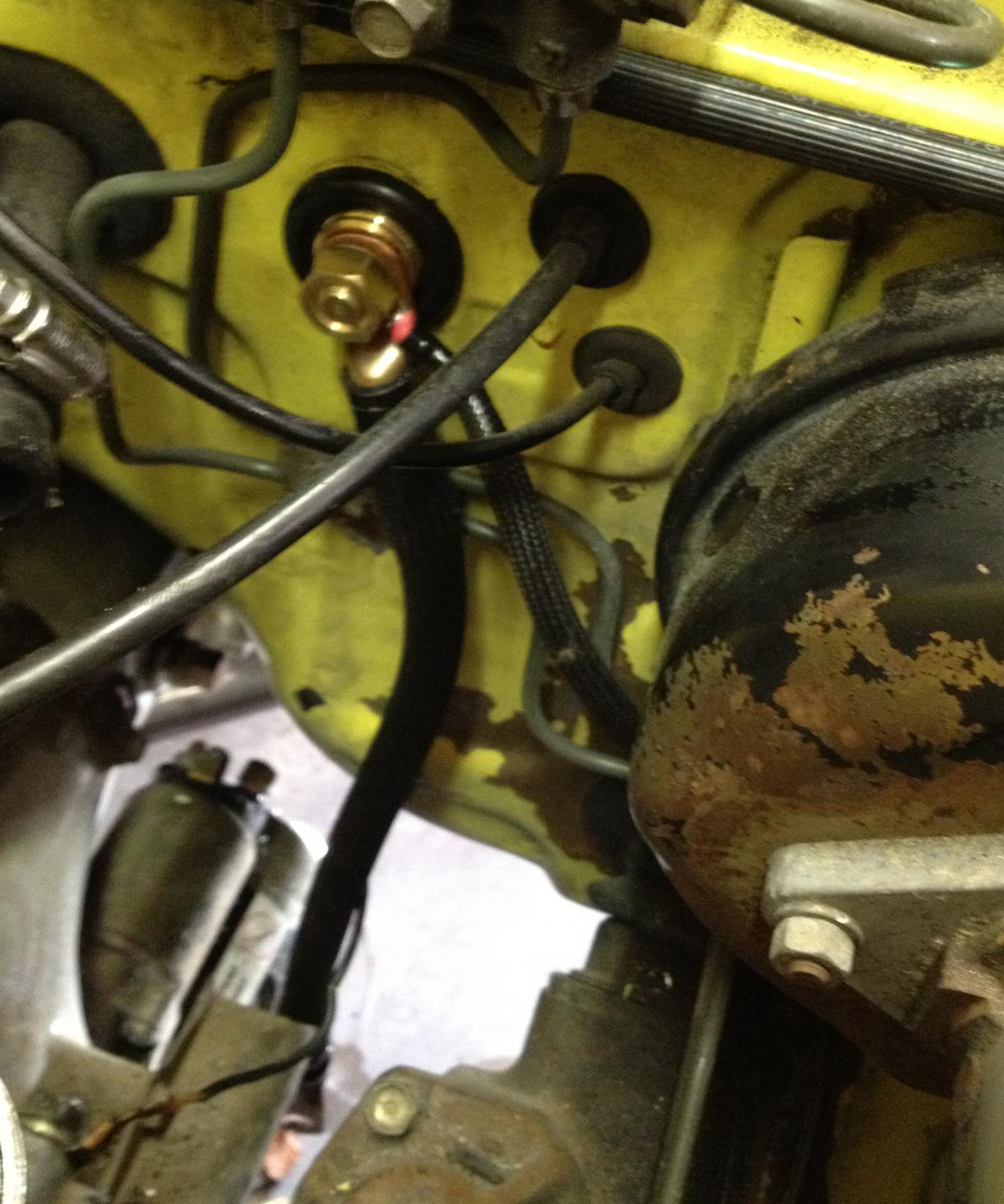

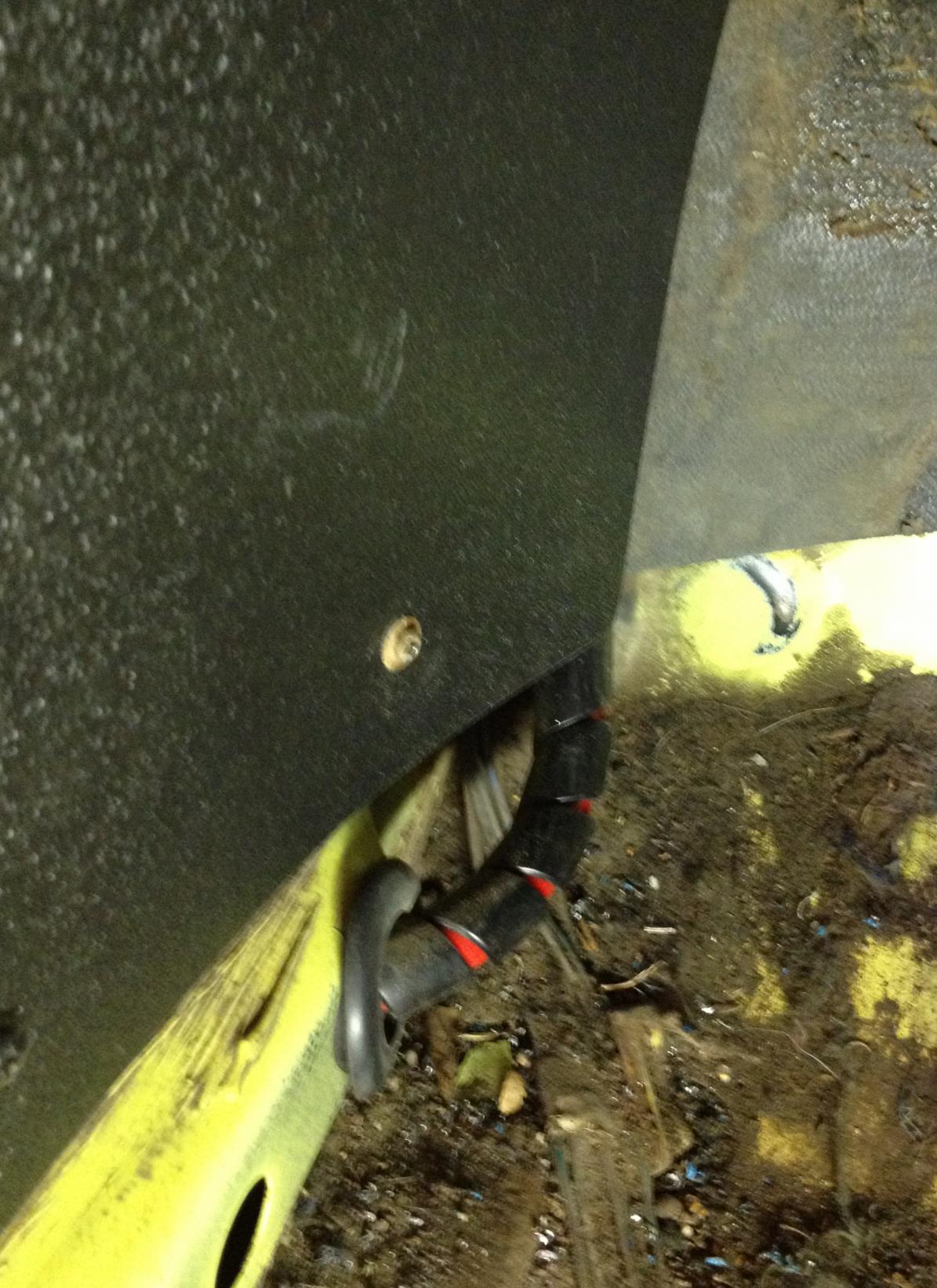

Well here are some pics of the battery in the rear , I ran the cable in the drivers quarter panel and through the drivers lower rocker . I used a thick plastic wrap around the Pos. cable and grommets for all the holes . I also used a battery bulk head to pass the power through the fire wall . I used a disconnect in the rear for the battery , I didn't want to put it outside the car and make it attract attention . I plan on putting a 50 amp marine breaker next to the battery for protection .
Attached Thumbnails another glc build-img_1080.jpg   another glc build-img_1082.jpg   another glc build-img_1084.jpg
mattallac is offline
Old 01-22-13, 11:57 PM
  #39
Senior Member
Thread Starter
iTrader: (7)

mattallac's Avatar

Join Date: Nov 2012
Location: crockett ca.
Posts: 273
Likes: 0
Received 0 Likes on 0 Posts
glc

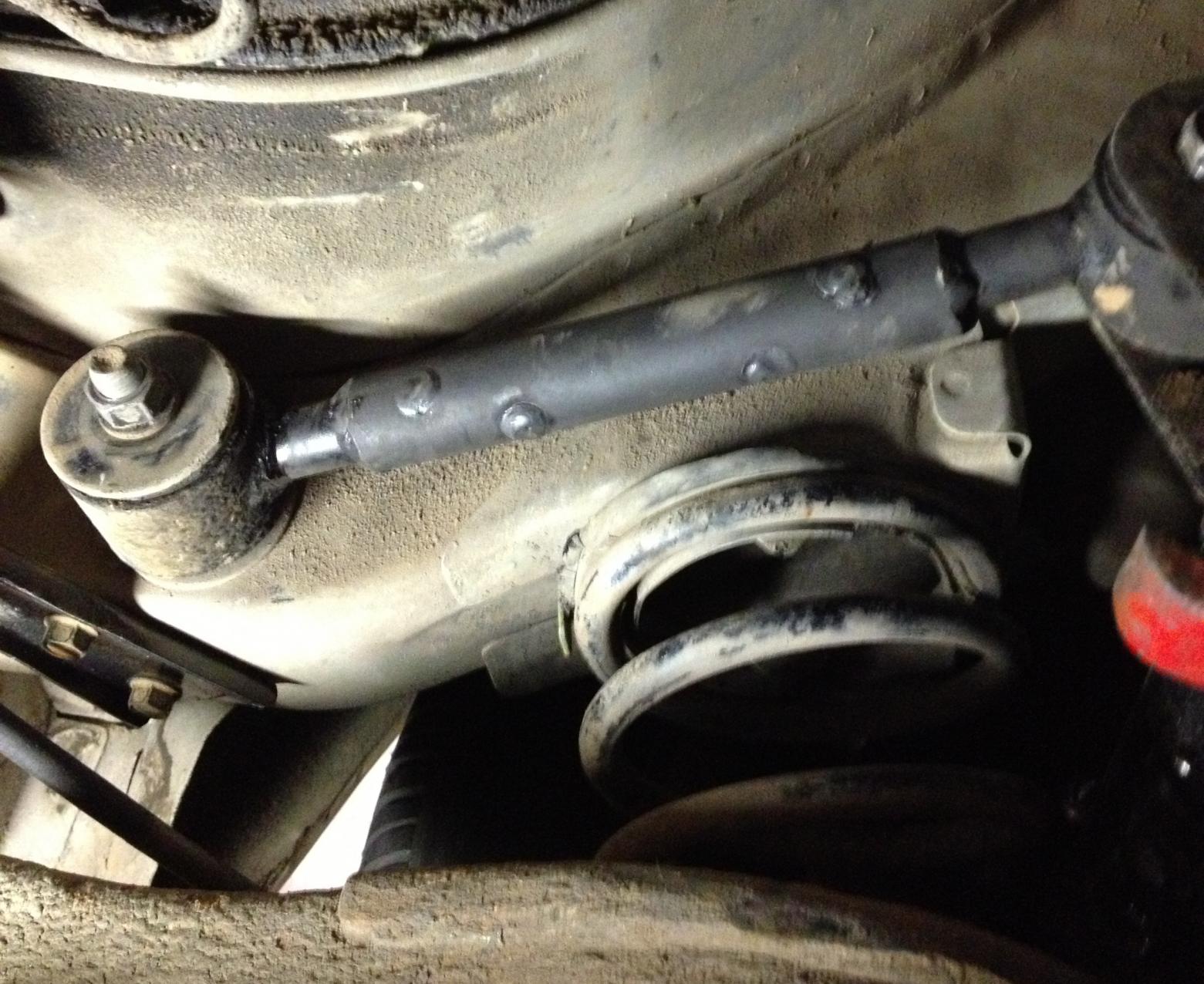

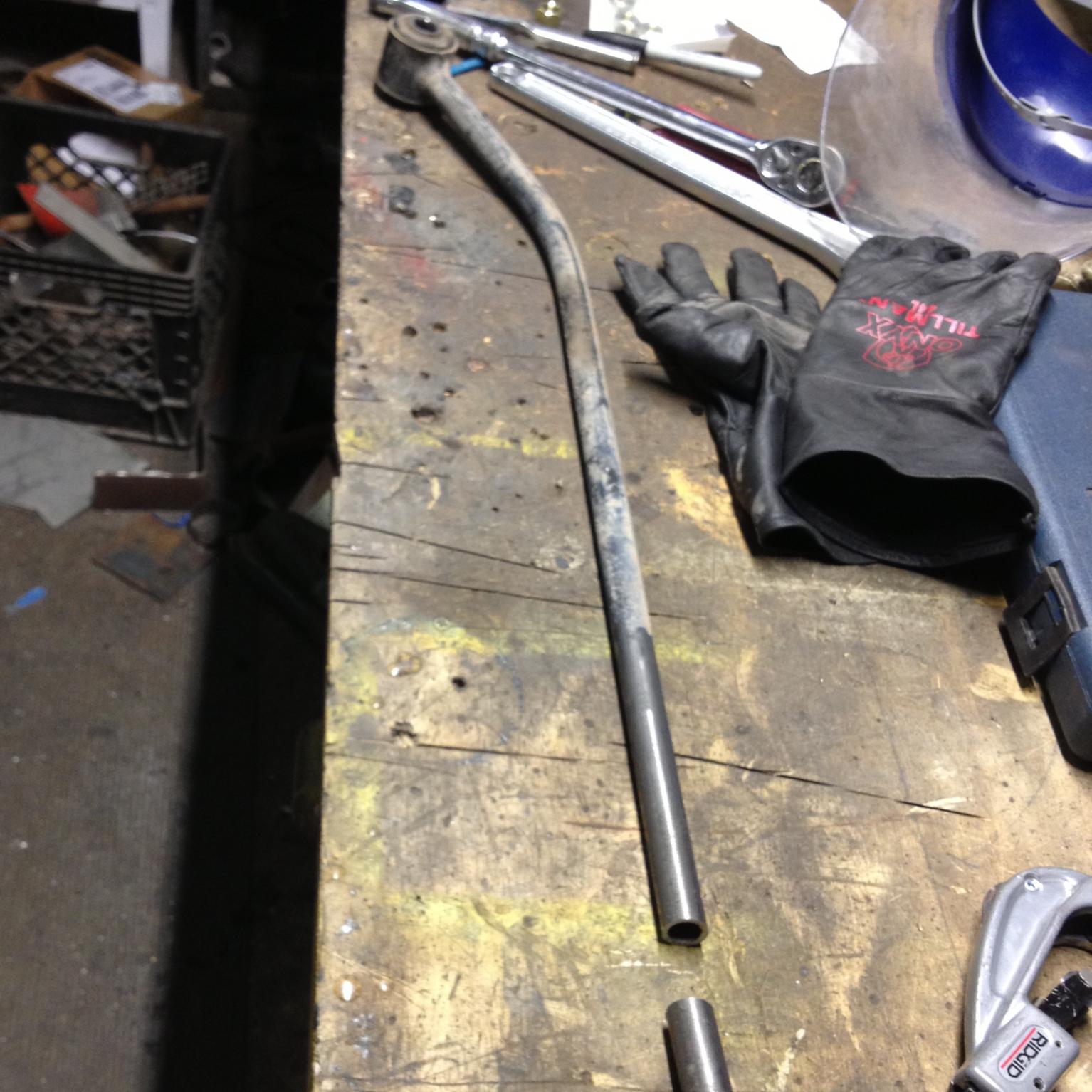

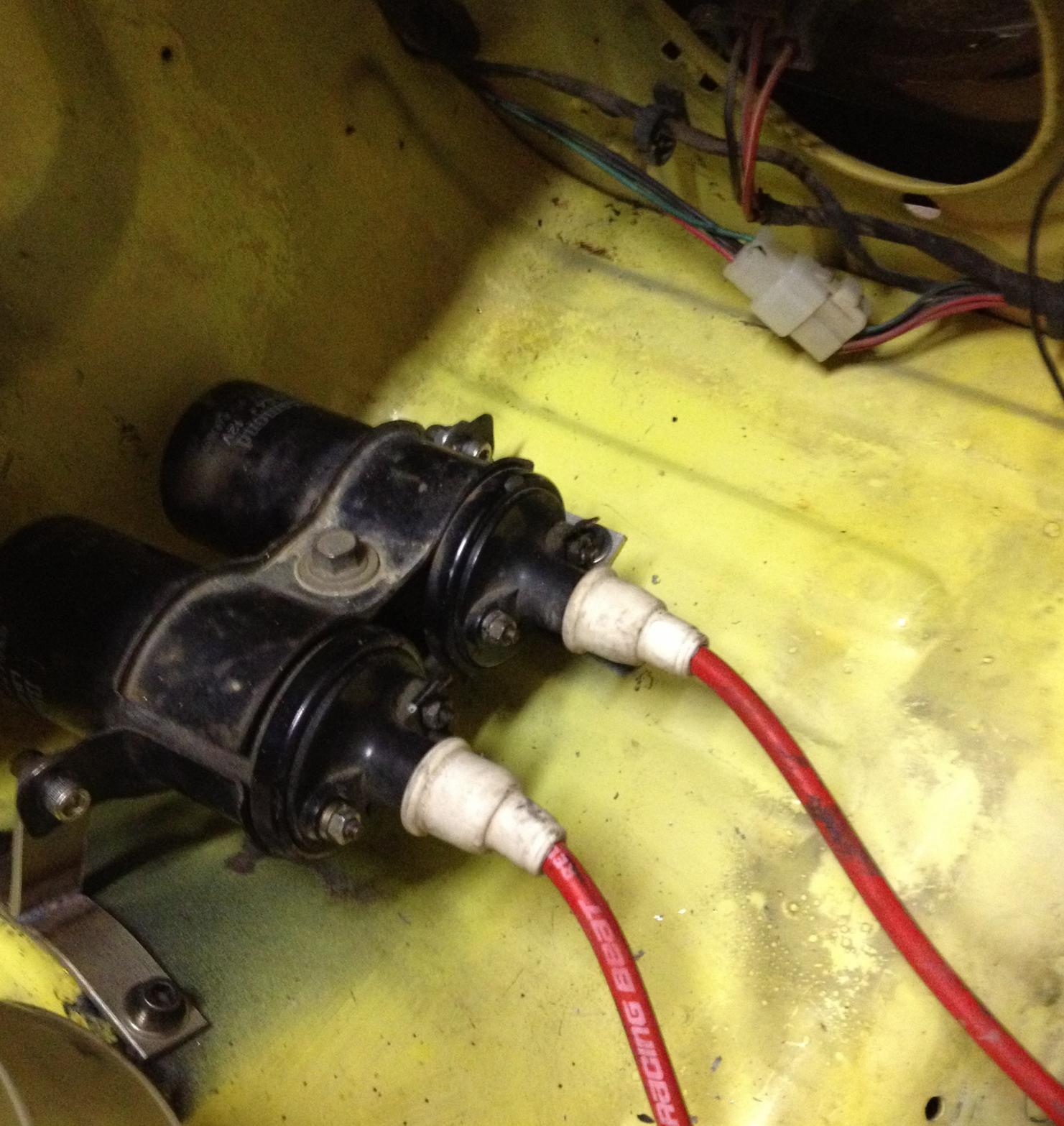

To continue , I also mounted the stock fb coils where the jack use to be and made some alterations to the panhard bar and the upper links to get the correct pinion angle (3 1/2 degrees ) .
Attached Thumbnails another glc build-img_1085.jpg   another glc build-img_1092.jpg   another glc build-img_1093.jpg
mattallac is offline
Old 01-23-13, 10:40 PM
  #40
Full Member
iTrader: (4)

rotopower74's Avatar

Join Date: Apr 2011
Location: Hartford KY
Posts: 201
Likes: 0
Received 0 Likes on 0 Posts
nice!!!!!!!!!!!!!!!!!!!
rotopower74 is offline
Old 04-23-13, 10:40 AM
  #41
Junior Member

rag10's Avatar

Join Date: Mar 2013
Location: Santa Rosa,Ca.
Posts: 36
Likes: 0
Received 0 Likes on 0 Posts
Hey Matt your glc is great saw it saturday! lets see some vids. so two mufflers it sure was quiet!
rag10 is offline
Old 04-23-13, 11:00 PM
  #42
Senior Member
Thread Starter
iTrader: (7)

mattallac's Avatar

Join Date: Nov 2012
Location: crockett ca.
Posts: 273
Likes: 0
Received 0 Likes on 0 Posts
thanks man , a vid is next . your re power 510 is pretty impressive , I appreciate the imagination and fab work you have done . Great meeting you .
mattallac is offline
Old 04-30-13, 06:27 AM
  #43
Junior Member

Mr N4SA's Avatar

Join Date: Feb 2012
Location: Piketberg, South Africa
Posts: 37
Likes: 0
Received 1 Like on 1 Post
Hey Matt,

small word, I found your thread.

Just a small suggestion, I fitted a extra anti-rollbar to my GLC, and it does make a huge difference. I used a rollbar from another GLC, and cut the ends that fits into the lower control arms off, and mounted it below the existing rollbar.

Keep up the build, I love this car.

Adin
Mr N4SA is offline
Old 11-26-13, 01:11 PM
  #44
Full Member

DoughRoller's Avatar

Join Date: Jun 2011
Location: Cincinnati
Posts: 72
Likes: 0
Received 0 Likes on 0 Posts
Awesome build I soon hope to jump into a 13bt swap in mine
