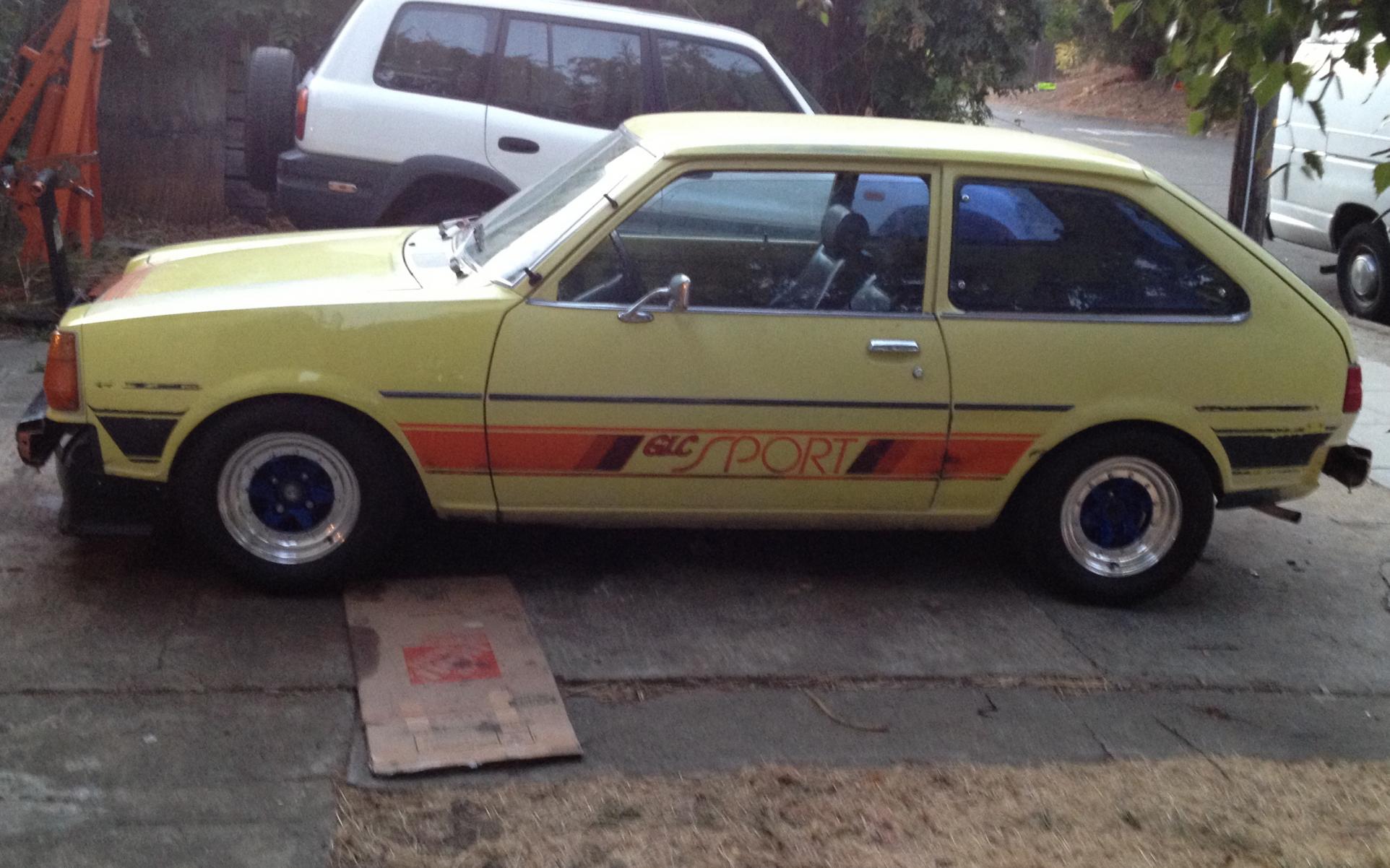

Well this is my 79 glc I have been building . Its 2 1/2 inch lowered front and rear with 83 rx7 front struts and rca's . The rear is an rx2 rear end I fabed in with an lsd and 2 calipers per side ( planning on doing some drifting with this car).The e brake works had some fun with that mod . Next is the 12a . One problem ,I would like to upload some pics on my apple laptop and i'm having some issues , any tips? Oh got it

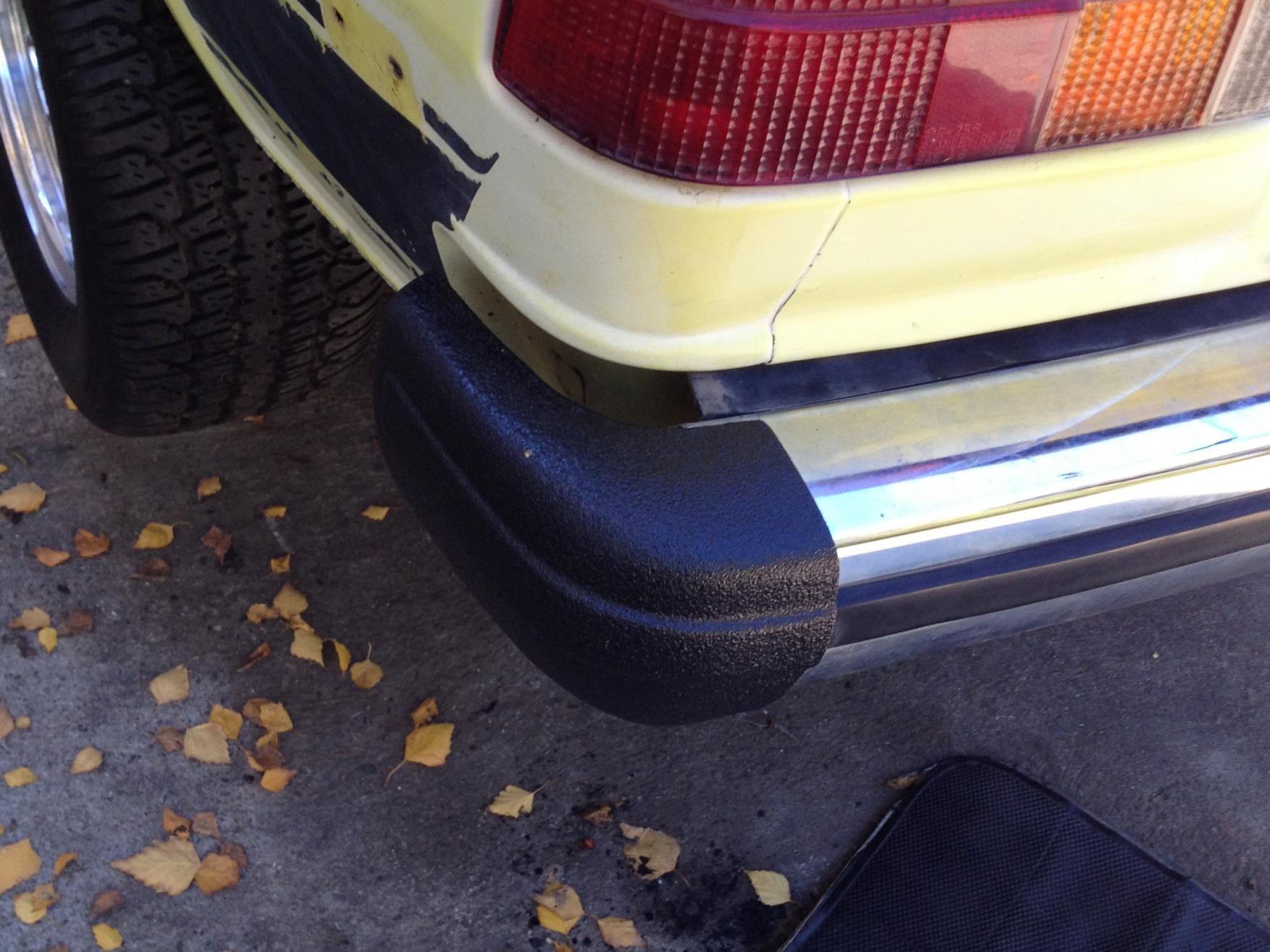

I made all my bumper ends out of fiber glass , the rubber was rotting . I had them line xed after I formed and fit them to the car .



Nice!! and good job on the bumper end's...



I would love to help you upload some more pic's, just send them to my email @
kellygreenidge@gmail.com

good luck



thanks Ill e mail you them



Hey man!! what I need to inst fb front susp on my glc??



all you really need is a fb suspension...it all bolts right up. There are some negatives however. You will end up with a bit of positive camber and the car will be a bit too low in the front. You can address the ride height isssue any way you want, but most opt for spacers on top of the strut mounts to space up the body. The conversion is worth it just for the brakes if nothing else!



I made some 2" spacers. It needed to go up slightly higher as there is still a bit of a rake, but it looks lkinda ok. Like 1/2" more. But I think I'd rather lower the rearend a little.

Then again it does have RB springs up front as well. They say these lower the car compared with stock. Maybe that's the reason for the 1/2".



so you did find a way to run the rb springs...



To correct the camber issue get some camber/caster plates , I put some ground control camber plates for an rx7(about 250.00) in mine , just drilled 4 new hole, it's not that critical if the holes are exactly perfect because the plate corrects it . Caster is also an issue ,and it's just as important as camber , the GLC doesn't have enough caster adjustment (shimming the sway bar) much like an rx2. If you want the car to handle these are changes that need to be done . I will take a pic of mine , good luck

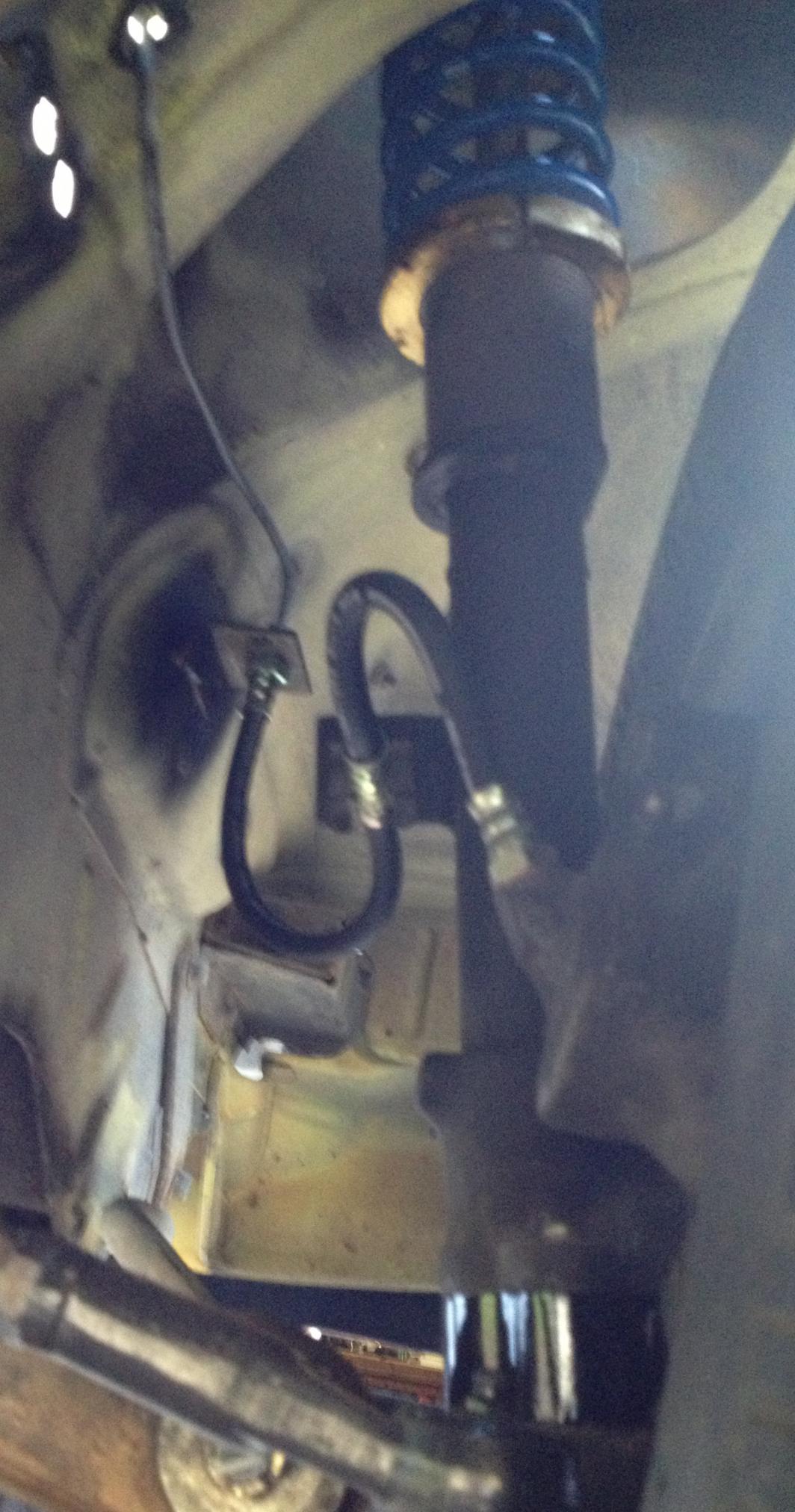

Here is a pic of my suspension ,re speed coil overs with techno toy tuners bump steer spacers (a must).I also relocated my hard brake line so i can properly secure the brake hose because the rx7 calipers are opposite of the glc .



Here we go.
Enjoy

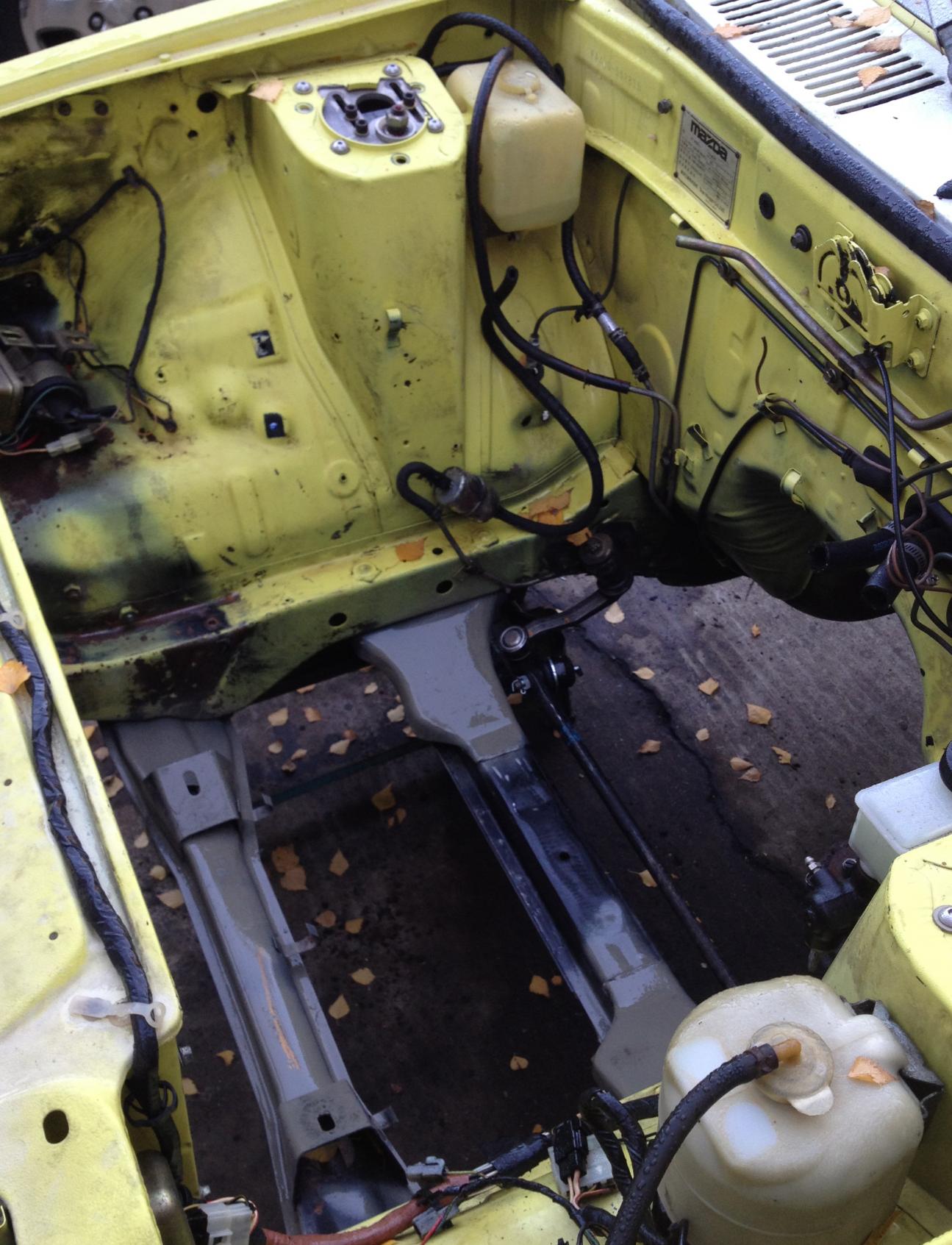

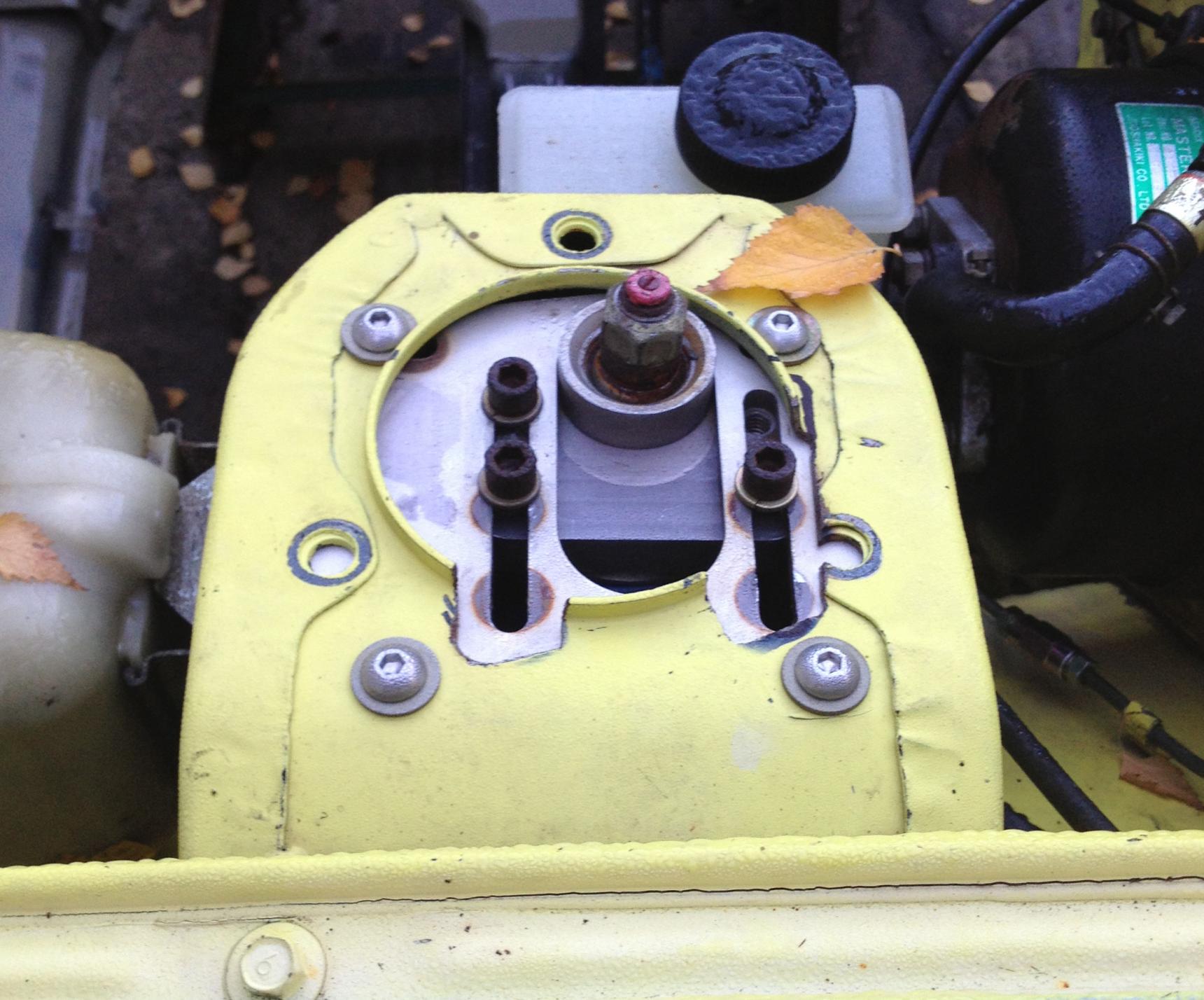

thank you zionfarm for uploading my pics , much appreciated . The cable and bracket I fabed were to make the e brake work , clevices from mc master carr (50.00 for both ) and elongating the stock glc brackets (2 1/4 on the passenger side and 4" on the driver side )really easy to do took about 2 hrs. And here is a pic of the camber/caster plates for an rx7 I popped in .Also a pic of the engine bay ready for the 12a and the dash on the above post was a cracked and destroyed sport dash that I fiber glass repaired , I plan on painting it wood grain ;pics to follow



Hey man That's the factory cross member it will clear the oil pan?? and did u fab the motor mount brace??? if u did, can u tell how??

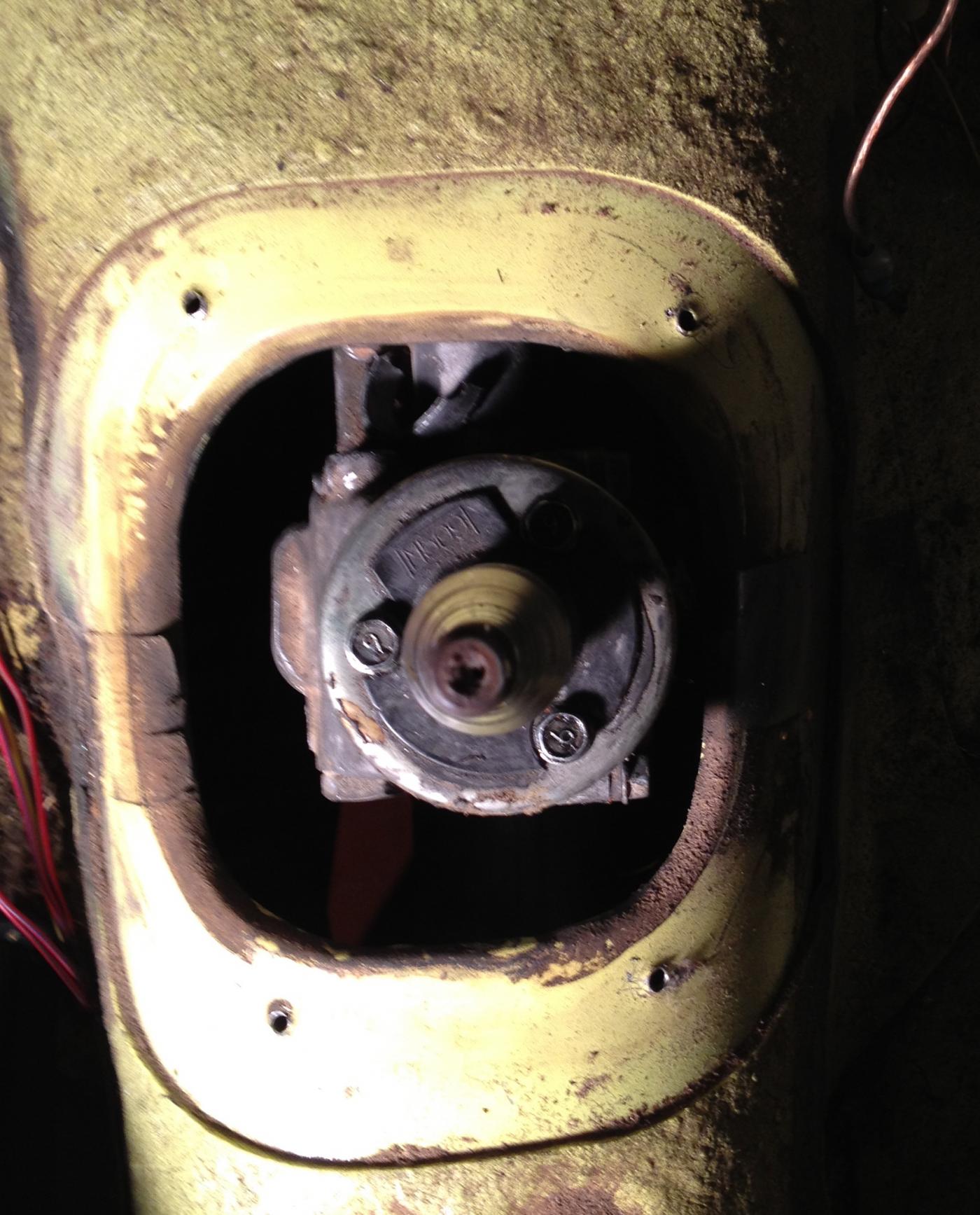

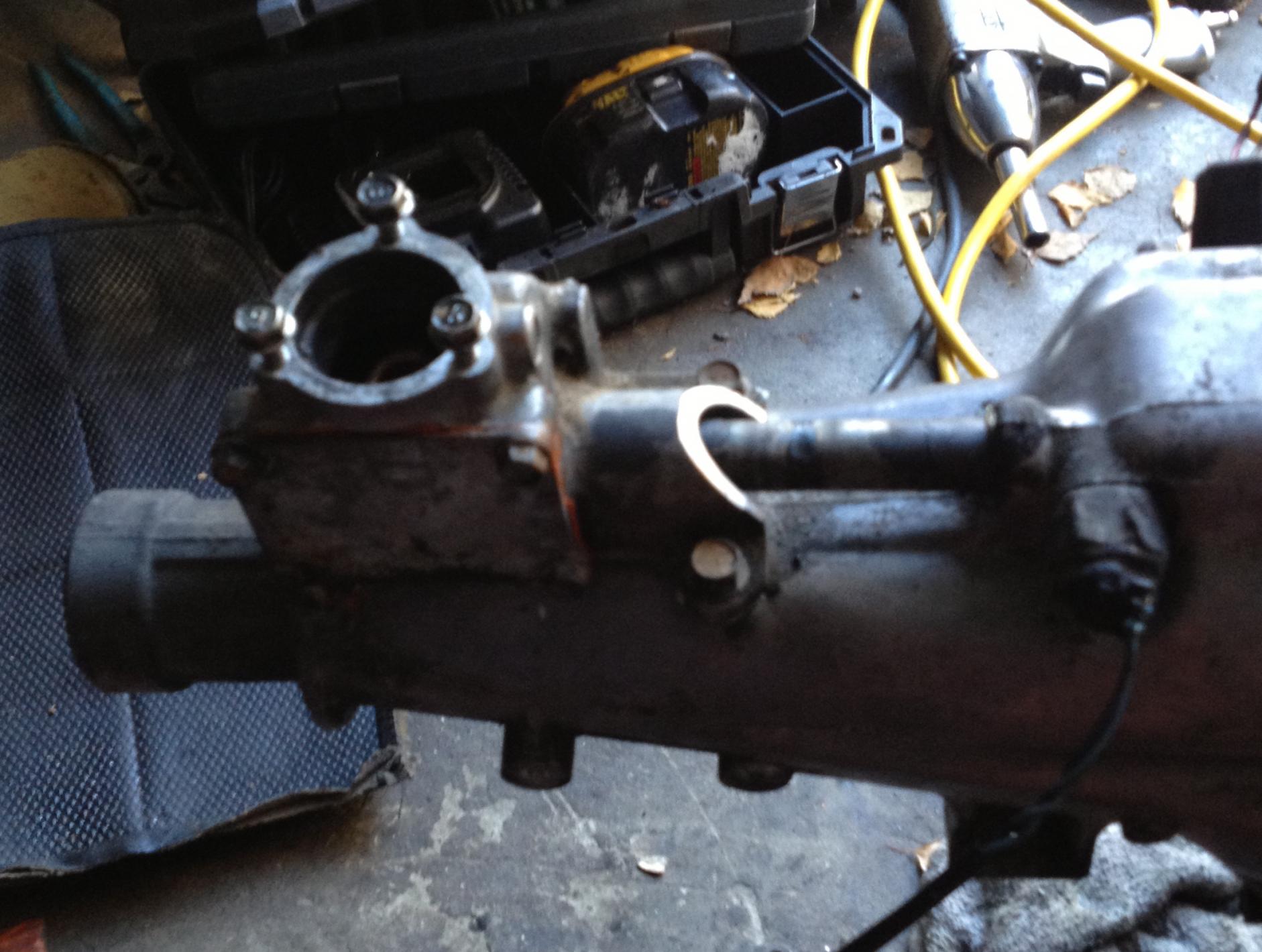

Gonna fit the motor tomorrow , that is the factory cross member with the motor mounts cut off . I have ben told it does clear ,we will see . and the motor mount is out of an rx3 ,bolts right in . I was gonna put the motor and trans in today but I had to shorten the shifter on my 83 rx7 trans . I'm not a big fan of 79/80 rx7 trans ,they are weak and I have had more than 1 fail in my life so I did the 103mm mod that pushes the shifter housing forward .I will also see how that fits in the trans tunnel tomorrow.

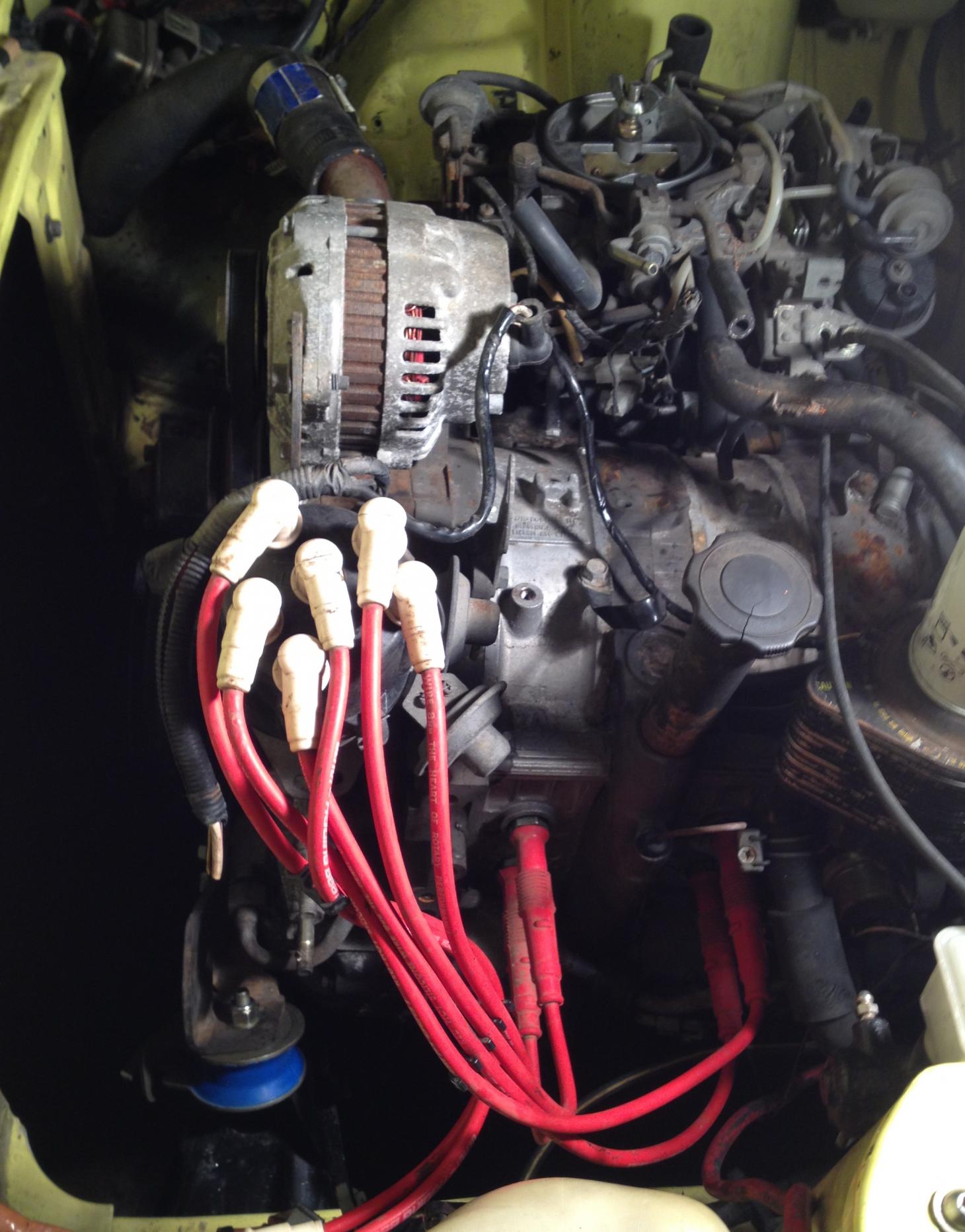

Motor and trans fits like a glove , the easiest swap ever . The shifter with the 103 mm mod can't fit better . A glc is like a spare parts eater .

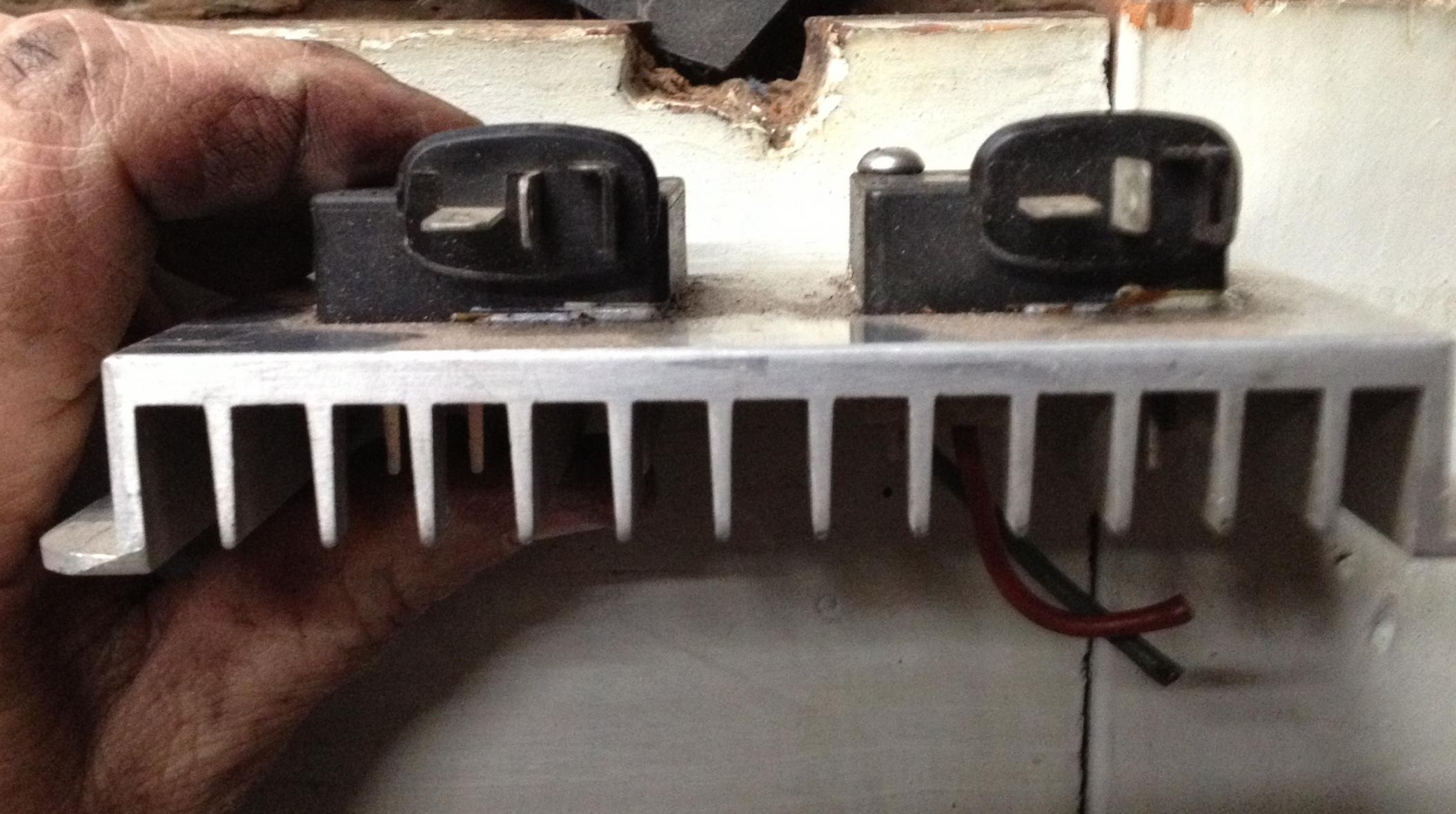

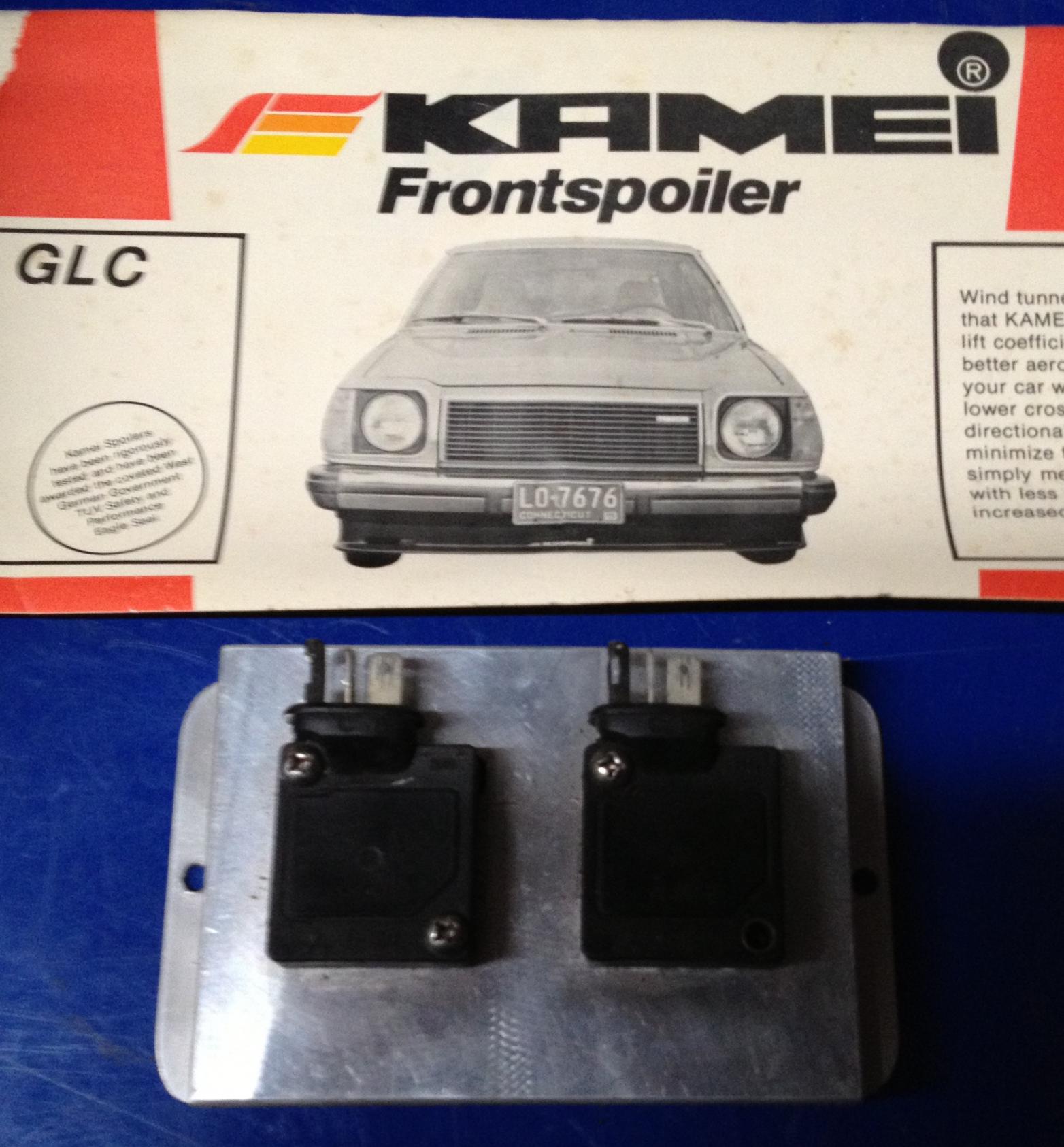

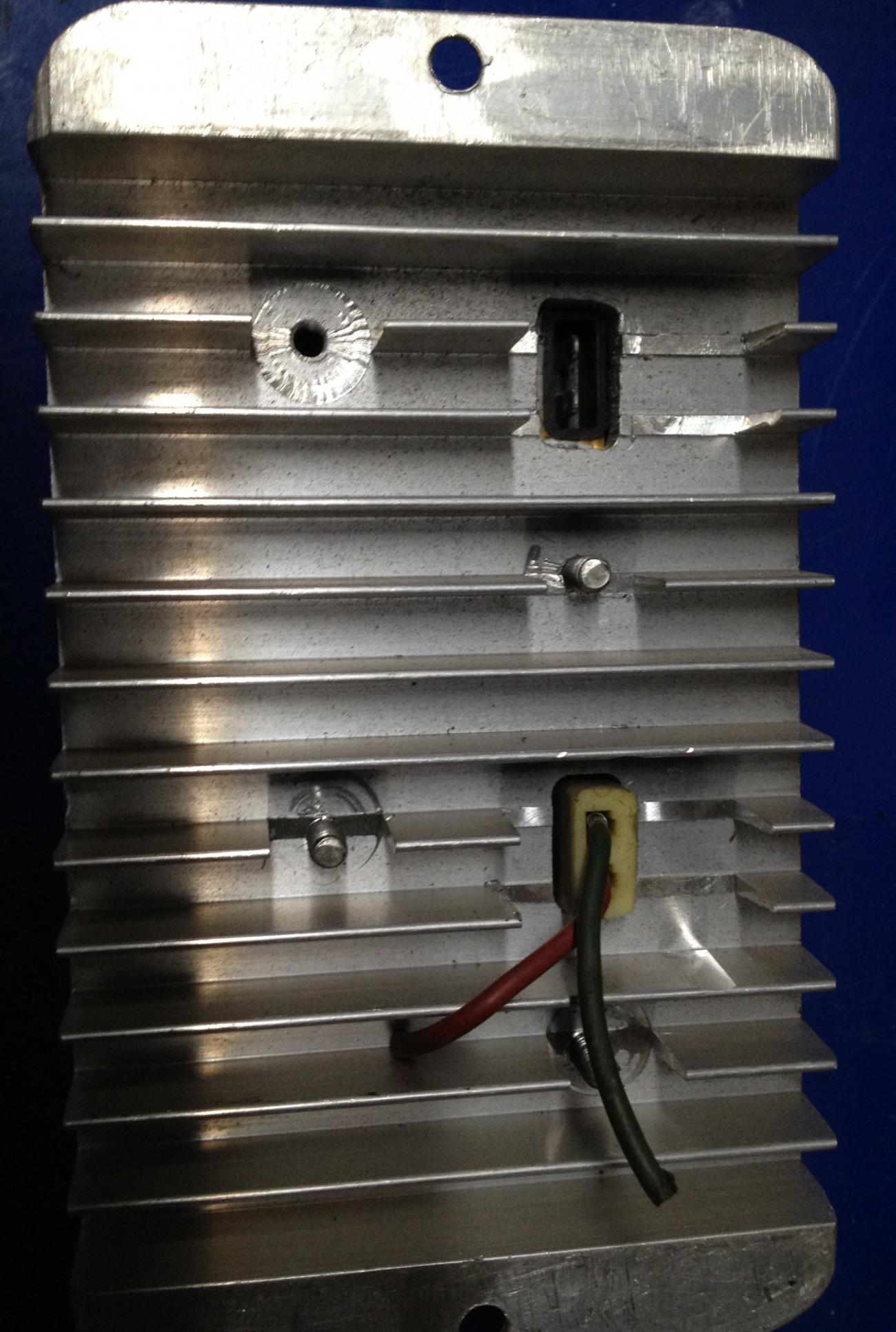

Gonna make the trans mount and fab a header tomorrow . I made a heat sink for the dlidfis mod 4 years ago and never used it on my repu , might use it on this car later . Wiring the 2 coils is a mystery to me any tricks to wiring this glc up ?



looks good!!!!!!! hey..do you have a extra motor mount cross member??



I need to finish this project quick , I have another project that needs my attention



rx3 or 12a mount ?



like the one that u use for the glc!!! i need on for my glc..?? 12a



I got my set up on ebay.com.aus

rx3 crossmember | eBay



did you buy upper and lower!!! or?? is almost 500 for the 2...wow



At the time when I bought mine they were offered together and I paid just over 270 for everything shipped. It was a bitter pill to swallow, but since used rx3 crossmembers do not come up very often and I desperately wanted to move my project along, I made the decision to press the trigger. I can say that the build quality is very good and no problems with the part 3 years later.



The motor mount is off of a 12a rx7 (pretty much free ) and the rx3 cross member I got from a friend for free. Search craigslist for people who are parting out rx3s . Before I scored mine I found a guy in L.A. who was selling them for 150.00.
