72 Mazda b1600 rotary swap

Old 10-29-14, 01:58 AM
  #1
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
72 Mazda b1600 rotary swap

Friend bought this cool little truck and wants me to do 13b swap in it..so let the fun begin!or should I say drama haha...

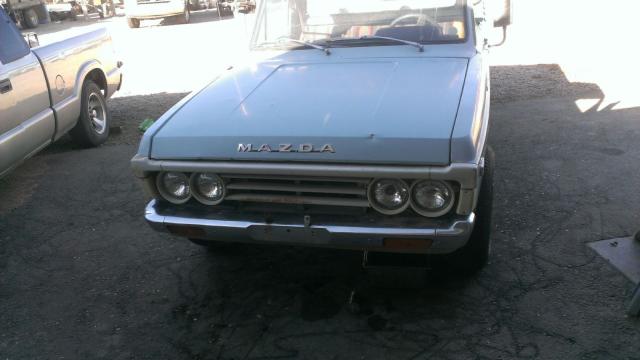

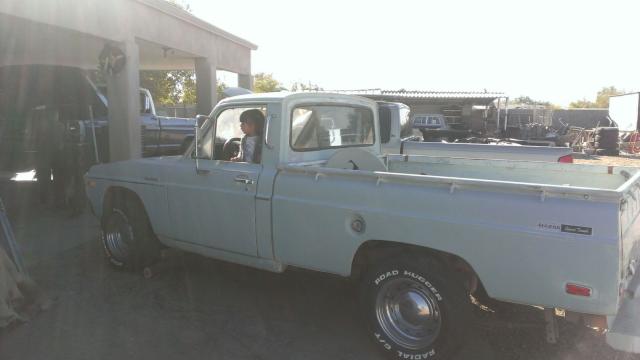

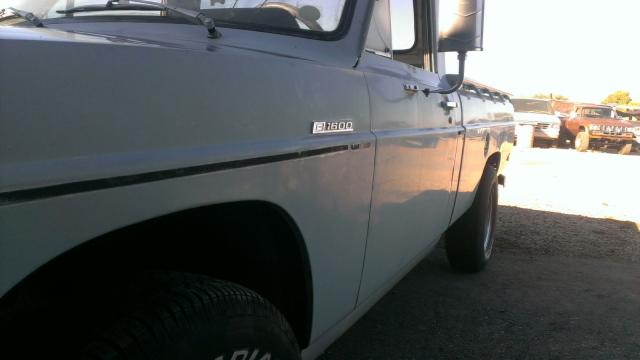

Truck pics when purchased from Arizona

Name:  C33A3547-8C55-4FE8-A0AE-554F61AD297A.jpg
Views: 1837
Size:  28.0 KB

Name:  13A88818-77E1-4948-B0ED-2B57A3B9FCB5.jpg
Views: 1187
Size:  21.1 KB

Name:  50874716-12EF-49E0-A70E-F4393AC4FB60.jpg
Views: 1263
Size:  21.7 KB

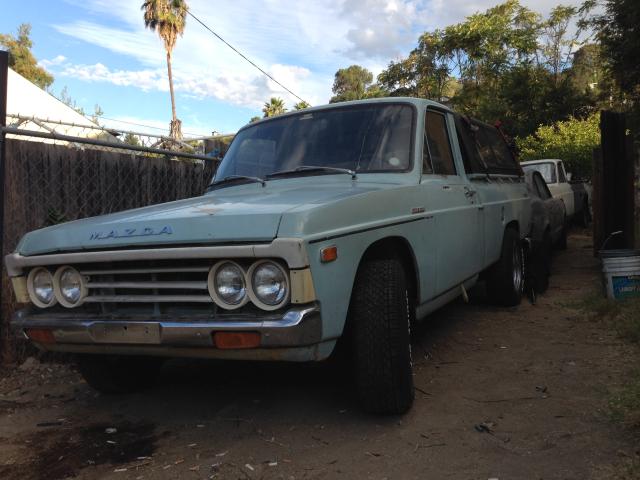

And here it is sitting in my yard ready for action

Name:  705FA303-FBA5-40C1-849B-127E5C311497.jpg
Views: 1294
Size:  44.9 KB
turbo_dave is offline
Old 10-29-14, 02:08 AM
  #2
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
Motor is already built.its a s4 turbo 4port block,streetport,s4 n/a rotating assembly with all new seals and springs.he wants to run it all motor but we did modify the front cover for a turbo oil return line in case he decides to go turbo in the future.going to use a fc rx7 stock Ecu.here some pics of the motor during the build.

Name:  EE1D0CEA-D476-4E8C-9D57-48EA84E51F85.jpg
Views: 982
Size:  46.8 KB

Clearancing and fitting side seals to .001

Name:  14126E08-5F1F-48FA-817A-8AD12C0543B5.jpg
Views: 965
Size:  53.2 KB

Name:  566C4506-C4CF-4BE2-B135-D9F75BA46526.jpg
Views: 971
Size:  36.9 KB

And random pics of measuring end play and pressure testing coolant seals

Name:  44386136-BC72-4E18-9AE9-68D2EBF27604.jpg
Views: 961
Size:  55.9 KB

Name:  D7F5CE45-AFB7-406C-B41B-9527857DF981.jpg
Views: 953
Size:  49.7 KB

Name:  837451B4-4565-4011-BC85-10E03BFBD8FA.jpg
Views: 956
Size:  63.8 KB

Name:  14E01AB7-D766-48A1-AD6A-6BF7E7575E28.jpg
Views: 937
Size:  55.2 KB
turbo_dave is offline
Old 10-29-14, 02:11 AM
  #3
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
Will be using a turbo II transmission.tomorrow going to shorten the shifter housing about 5".
I will post more pics as I go.
turbo_dave is offline
Old 10-29-14, 02:28 AM
  #4
500+hp club
5 Year Member
iTrader: (26)

silverfdturbo6port's Avatar

Join Date: Sep 2007
Location: Spokane Wa
Posts: 2,212
Thanks: 0
Thanked 0 Times in 0 Posts
Cool project!
silverfdturbo6port is offline
Old 10-29-14, 12:21 PM
  #5
Senior Member
10 Year Member
iTrader: (1)

mazda1200's Avatar

Join Date: Dec 2006
Location: fontana CA.
Posts: 609
Thanks: 0
Thanked 0 Times in 0 Posts
looking nice
mazda1200 is offline
Old 10-29-14, 03:28 PM
  #6
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts

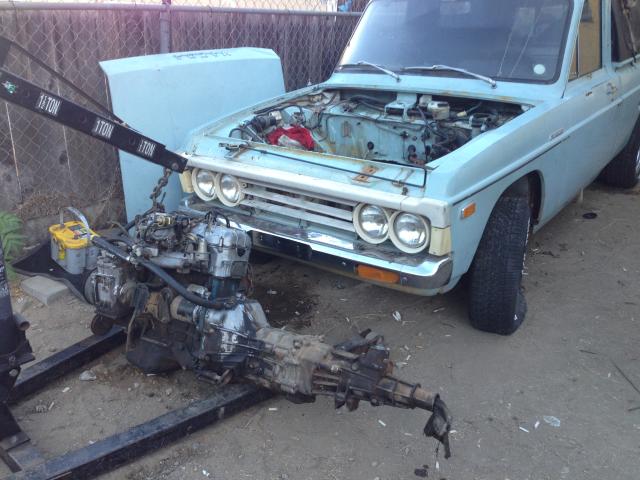

We pulled the motor out yesterday.gotta plasma cut the old piston mounts of that crossmember..

Name:  AB4AD948-3A60-432C-B74B-8E757BDF0908.jpg
Views: 1129
Size:  52.3 KB

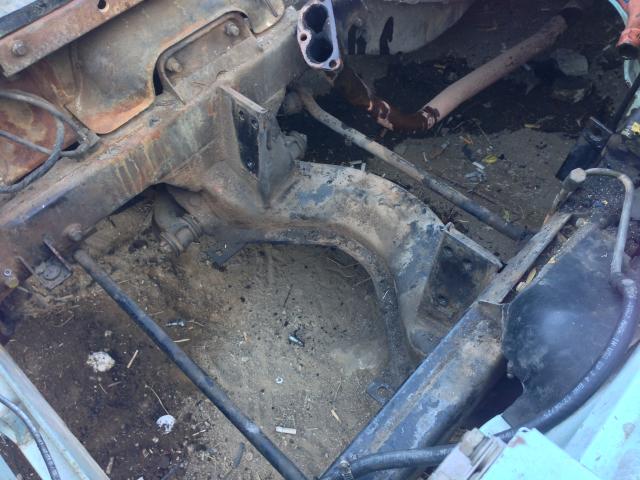

Name:  0A522C54-A8BF-4155-BF10-8F83C7312A70.jpg
Views: 1222
Size:  54.3 KB

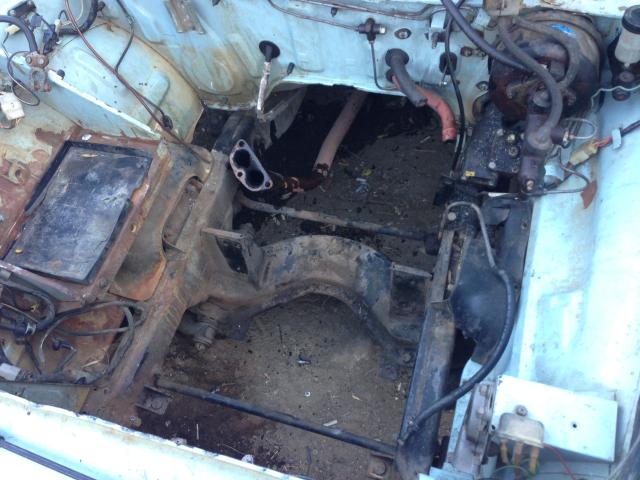

Looks more narrow than a repu and measured and confirmed it's actually right around 3" narrow.so probably need to fab up a header for it.

Name:  DDB26DC2-41D3-4602-8136-4ECA466DD65B.jpg
Views: 1036
Size:  52.7 KB
turbo_dave is offline
Old 10-29-14, 05:08 PM
  #7
Blood, Sweat and Rotors
iTrader: (1)

DriveFast7's Avatar

Join Date: Aug 2001
Location: California
Posts: 3,733
Thanked 0 Times in 0 Posts
Neat little truck, good color too. Nice work on the motor. Wouldn't a rotary bellhousing fit onto the B1600 ribcase?
DriveFast7 is offline
Old 10-30-14, 12:07 AM
  #8
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
^drivefast I was hoping it was a ribcase trans because I have seen you can swap out the bellhousing but it's not,it is a 4speed non removable bellhousing .we are trying to make this truck as much possible like a repu,we already installed repu front disk brakes on it and even the brake booster which I didn't take pictures of

I managed to plasma cut the piston mounts of today and will grind them down a bit another day.

Name:  CA9BE315-4D3F-4971-A881-1AC5F6A83167.jpg
Views: 951
Size:  67.0 KB
turbo_dave is offline
Old 10-30-14, 06:58 PM
  #9
Shell 93
iTrader: (4)

kevinbtz's Avatar

Join Date: Jun 2004
Location: Little Rock, Arkansas
Posts: 986
Thanked 0 Times in 0 Posts
Sweet project!
kevinbtz is offline
Old 10-31-14, 12:52 AM
  #10
Rotary Freak
iTrader: (15)

cfamilyfix's Avatar

Join Date: Aug 2010
Location: Brooklyn NY
Posts: 1,730
Thanks: 0
Thanked 1 Time in 1 Post
please don't scrap that piston engine...I think that is similar if not the same as the 1.6 that came in the very early 626's. Many parts on there I need
cfamilyfix is offline
Old 10-31-14, 03:01 AM
  #11
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
^ what you need?
The head was rebuilt and new timing chain and guides put on.but never ran right.so it's why we got the rotary transplant going on lol..
turbo_dave is offline
Old 10-31-14, 01:57 PM
  #12
Rotary Freak
iTrader: (15)

cfamilyfix's Avatar

Join Date: Aug 2010
Location: Brooklyn NY
Posts: 1,730
Thanks: 0
Thanked 1 Time in 1 Post
Intake and exhaust manifold as well as cylinder head and valve cover and carb. Let me know.
cfamilyfix is offline
Old 10-31-14, 03:26 PM
  #13
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
Alright let me hit up my friend and see what he wants to do.
turbo_dave is offline
Old 11-01-14, 01:00 PM
  #14
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts

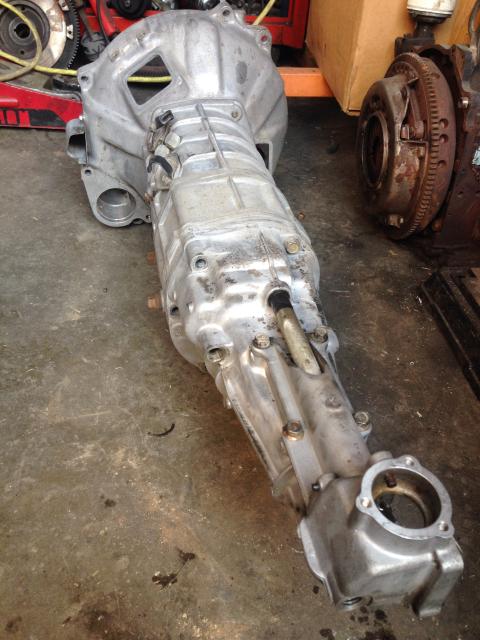

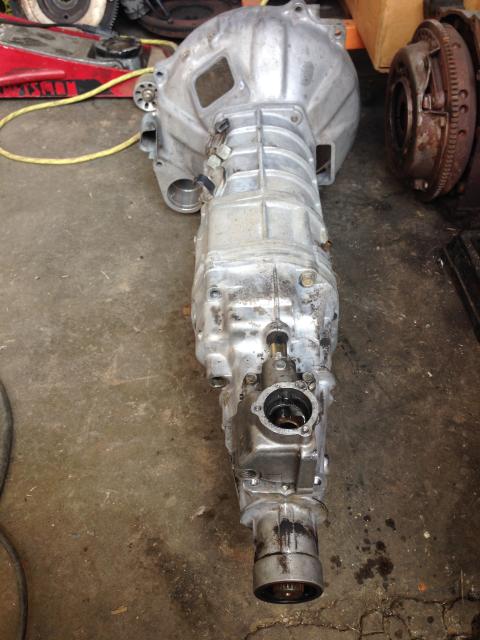

Shortened the transmission remote shifter by 5 1/4" here's before and after pics

Name:  51285234-33B0-4EAA-9871-1EB7C373D673.jpg
Views: 961
Size:  52.0 KB

Name:  66F620DE-0BCB-4E11-80C2-637726D6D8B5.jpg
Views: 1019
Size:  49.5 KB
turbo_dave is offline
Old 11-03-14, 07:07 AM
  #15
Gulf Coast Rotaries
iTrader: (3)

chino_rx3's Avatar

Join Date: Jun 2007
Location: Bradenton,Florida
Posts: 1,191
Thanks: 0
Thanked 0 Times in 0 Posts
wow looking real good , great job and I'm liking that pick up !
chino_rx3 is offline
Old 11-06-14, 02:03 PM
  #16
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
I assembled a engine together with no internals to use as a mock up while doing the engine and trans mounts

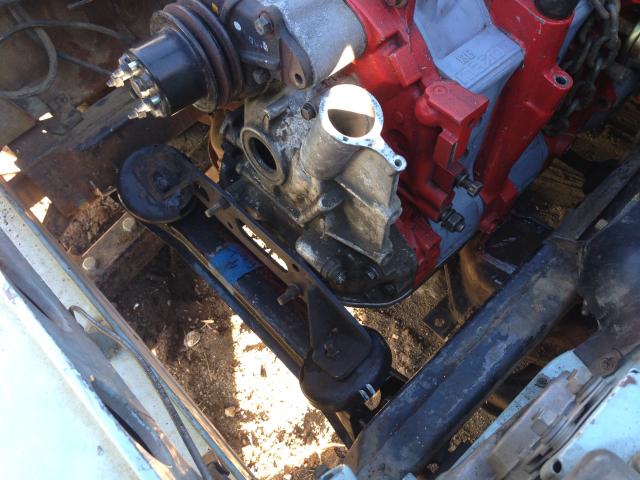

I got a hold of an rx3 crossmember and modified a bit so it fit the truck.worked out pretty good I think.

Name:  29DA88AC-80ED-451D-A644-401E98074859.jpg
Views: 1130
Size:  55.1 KB

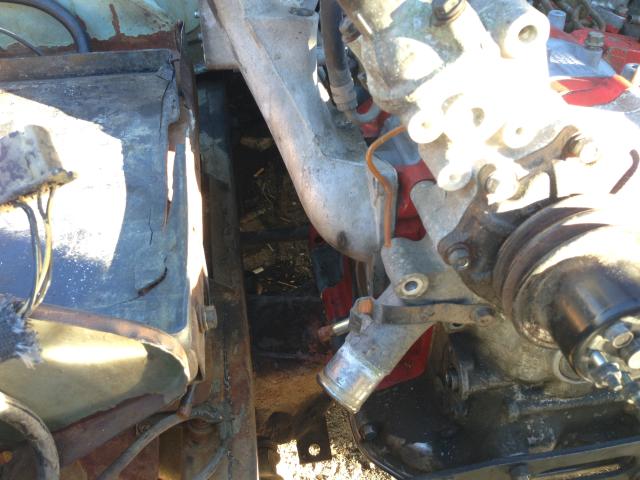

But damn it's going to be some tight space for the header.

Name:  78C3E4B0-02F9-4B03-B0F7-98C181ADEF75.jpg
Views: 966
Size:  49.1 KB
turbo_dave is offline
Old 11-15-14, 01:24 AM
  #17
talking head
5 Year Member

bumpstart's Avatar

Join Date: Apr 2008
Location: Perth, WA, OZ
Posts: 2,775
Thanks: 0
Thanked 1 Time in 1 Post
the usual trick with rx3/rx4 cross member in the oz cars
( when fitting a turbo manifold to clear steering )

is to take about 75 mm off one side of the rx4 crossmember , and weld it to the other end
then redrill the cut side and remount
( unsure if you welded that one in.. in the rx2,3,4 they mount to sway bar holes )

this will shift the motor over like the rx7 s1/2/3 does and provide room for the extractors
bumpstart is offline
Old 11-16-14, 02:27 PM
  #18
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
^yea we welded it to the frame rails.it is shifted over a bit more to drivers side so it gives me more room for the header.
turbo_dave is offline
Old 11-16-14, 02:34 PM
  #19
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts

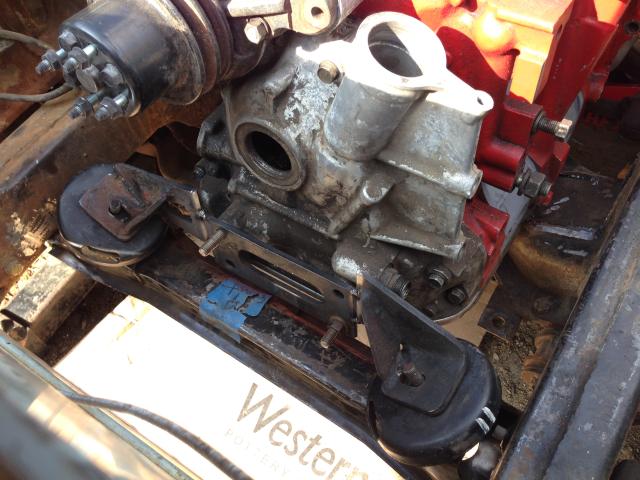

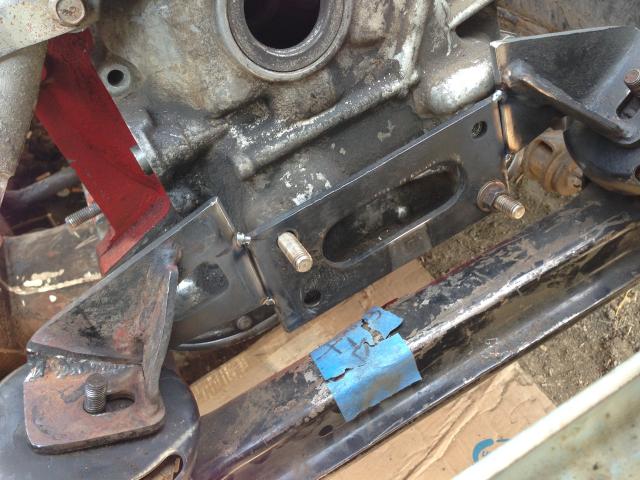

I was able to fab up the transmission mount but after doing that it turns out motor was sitting a little high up front so I cut the engine bracket and dropped it about an 1" and it sits level now with good clearance to trucks crossmember.

Name:  9769B428-CDAD-4423-A583-9B891D922DF2.jpg
Views: 1056
Size:  58.4 KB

Name:  9DAD1840-FA41-4668-B3CB-63DB7951636D.jpg
Views: 1449
Size:  54.3 KB

Just got to weld it up and reinforce it a bit.
turbo_dave is offline
Old 11-16-14, 05:54 PM
  #20
RX for fun
iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,912
Thanks: 0
Thanked 3 Times in 3 Posts
Thanks for ideas Dave and Bumpstart. Good topic.
Siraniko is offline
Old 11-16-14, 11:55 PM
  #21
Eats, Sleeps, Dreams Rotary
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Thanks: 0
Thanked 1 Time in 1 Post
That truck looks sweet- never knew they had a piston version. I know Ford had the Currier but never new Mazda had a piston version. I like the looks better than the Repu
ultimatejay is offline
Old 11-17-14, 12:05 AM
  #22
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
This is Mazda's version of the ford courier.almost everything is identical besides the front grill .this is the second truck like this I have seen in my whole life,might be more rare than the repu..maybe...
turbo_dave is offline
Old 11-17-14, 12:48 AM
  #23
talking head
5 Year Member

bumpstart's Avatar

Join Date: Apr 2008
Location: Perth, WA, OZ
Posts: 2,775
Thanks: 0
Thanked 1 Time in 1 Post
as a side note,, when i built one of these ( b2000 with turbo LPG RESI engine with tall port centreplate )

i used 2 x FC spark side metal engine brackets welded to the chassis where i needed them
( cut shut gearbox shifter position 103mm )
and dropped the s1/2/3 engine bracket onto s1 rx7 rubber mounts

an exact fit,, with inbuilt offset rx7 engine bracket
bumpstart is offline
Old 11-17-14, 12:57 AM
  #24
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
Bumpstart never really thought of that and might have worked also.were they welded to the frame?im guessing they would have to be upside down (compared to how they mount on the fc's iron)in order for that to work right?
turbo_dave is offline
Old 11-17-14, 01:01 AM
  #25
talking head
5 Year Member

bumpstart's Avatar

Join Date: Apr 2008
Location: Perth, WA, OZ
Posts: 2,775
Thanks: 0
Thanked 1 Time in 1 Post
yes welded , and upside down so the slots for rubber mount are turned up
bumpstart is offline
