1974 Mazda Rx4 Resto-mod project

Hello, I just picked up a 1974 RX4.

It is currently a good drivers car but I am planning on some improvements.

I drove it around today. It's an interesting little beast and being the first time I have every driven a carbed car, it was weird having to pull a choke out to get it started. It's kind of a time warp sitting in the thing, old tech is kinda neat.

It looks like a good base to make a nice car out of. The body and chassis will be stripped and painted and the interior re-upholstered.


I do have a few qualms with it though.
1) it is under powered, but not as bad as I thought. It has an RX7 trans, and S4 RX7 13B with Hitachi 4Barrel carb.
2) The brakes are atrocious.
3) rear open diff
4) suspension is a little soft


If I can address all of these issues with simple bolt on parts then I may not need to do anything too drastic. I am taking advice and looking for resources on all four fronts.

Otherwise I will be taking the swap route and going turbo II or FD drivetrain. I have a complete wrecked FD so that is on my mind.

I was looking at the Camden Supercharger. Anyone have any experiences with a carbed 13B?

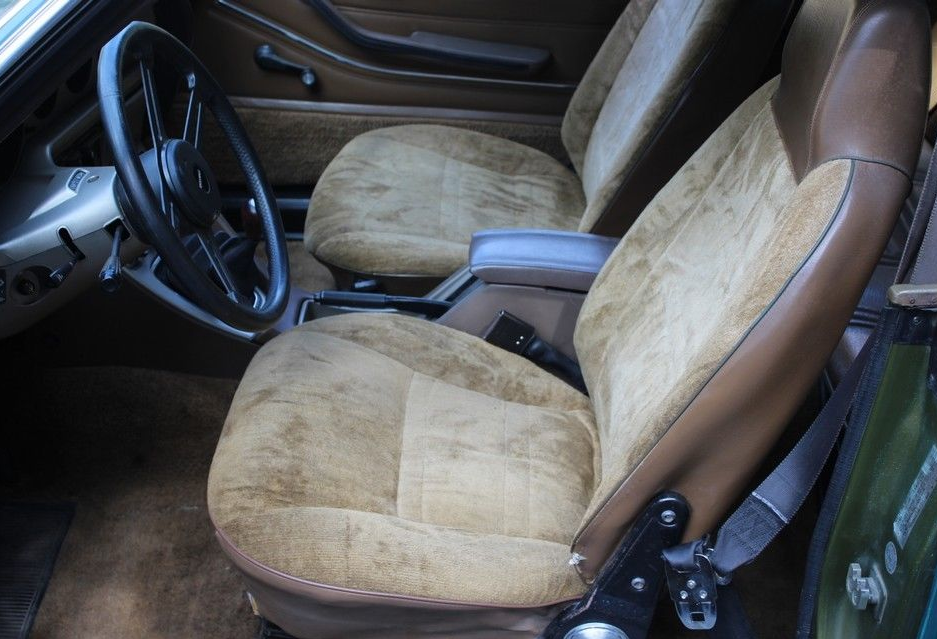

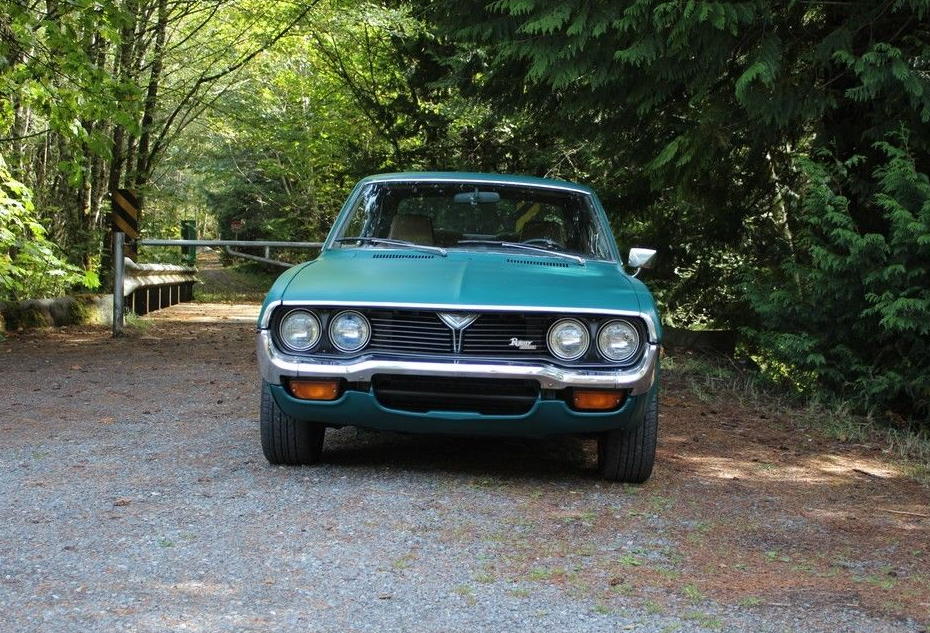

Name:  Screen%20Shot%202015-11-28%20at%202.16.10%20PM.png
Views: 2061
Size:  1.09 MB



Name:  Screen%20Shot%202015-11-28%20at%202.15.35%20PM.png
Views: 8618
Size:  1.03 MB

Name:  Screen%20Shot%202015-11-28%20at%202.16.50%20PM.png
Views: 1538
Size:  1.03 MB


Name:  Screen%20Shot%202015-11-28%20at%202.18.23%20PM.png
Views: 1389
Size:  829.3 KB

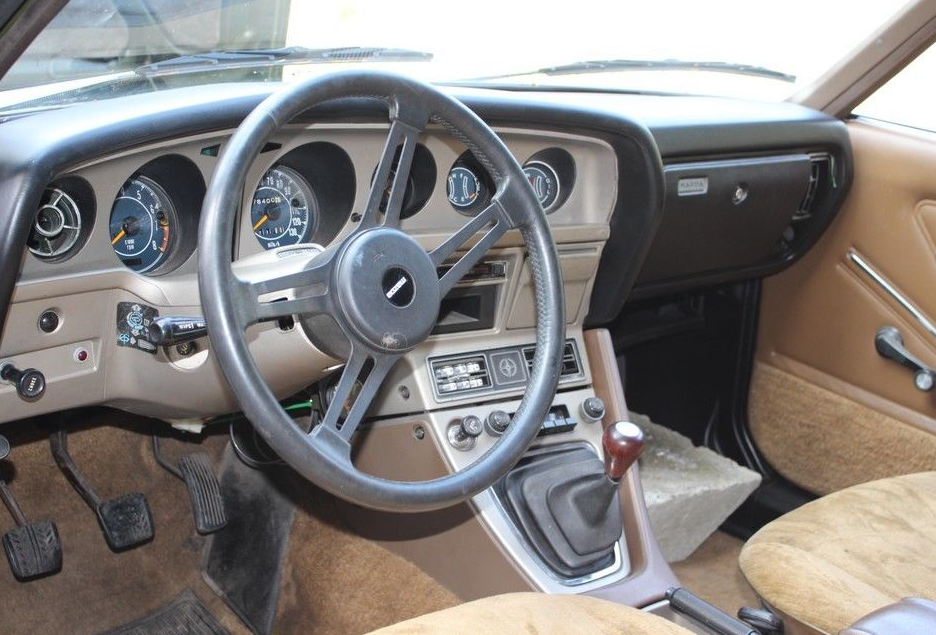

Name:  Screen%20Shot%202015-11-28%20at%202.18.11%20PM.png
Views: 2591
Size:  823.7 KB

Name:  Screen%20Shot%202015-11-28%20at%202.17.01%20PM.png
Views: 1462
Size:  1.13 MB

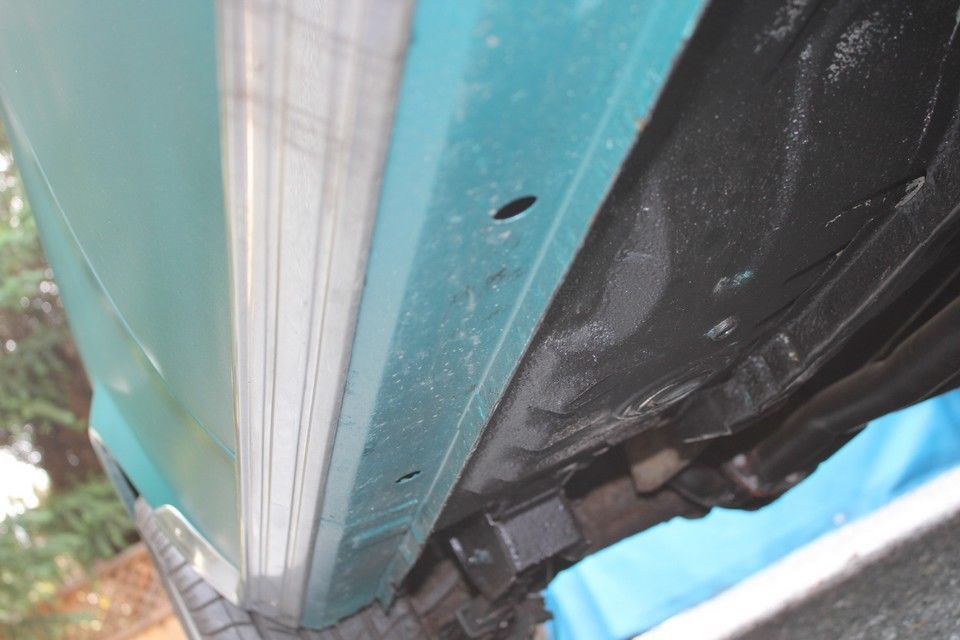

Name:  RX4%20sill2.jpg
Views: 1339
Size:  68.1 KB

Name:  RX4%20engine.jpg
Views: 1937
Size:  151.0 KB

Last edited by sip; 01-02-16 at 07:36 PM.
sip is offline
Old 01-03-16, 08:45 AM
  #2
Senior Member
iTrader: (7)

mattallac's Avatar

Join Date: Nov 2012
Location: crockett ca.
Posts: 273
Thanks: 0
Thanked 0 Times in 0 Posts
The car looks great , no rust and fairly untouched . The fd format sounds like a good idea .I know the approach I take : less is more and when it comes to safety i do whats needed ( front brake upgrade ) . I always like to do upgrades that can be reversed if possible .I would leave the interior it looks great. good luck
mattallac is offline
Old 01-03-16, 08:56 AM
  #3
6speed in an rx3????
iTrader: (35)

73rx313b's Avatar

Join Date: Mar 2006
Location: High Point NC
Posts: 1,574
Thanked 14 Times in 12 Posts
Very sweet looking car!!! I think it looks great just like it is!! like Matt said, do the needed upgrades to make it safe and enjoy that thing!! great find
73rx313b is offline
Old 01-06-16, 03:22 PM
  #4
RX3 Project
iTrader: (1)

riverseine's Avatar

Join Date: Feb 2012
Location: SF Bay
Posts: 210
Thanks: 0
Thanked 4 Times in 4 Posts
Very nice! Sorry I don't have input on your upgrades but she is beautiful.
riverseine is offline
Old 02-29-16, 01:39 PM
  #5
Rotary Freak
iTrader: (15)

cfamilyfix's Avatar

Join Date: Aug 2010
Location: Brooklyn NY
Posts: 1,731
Thanks: 0
Thanked 1 Time in 1 Post
Great looking car! Really nice shape.
cfamilyfix is offline
Old 03-05-16, 10:29 AM
  #6
GT3574R equipped
iTrader: (18)

HalifaxFD's Avatar

Join Date: Mar 2007
Location: Bedford, Nova Scotia
Posts: 1,112
Thanks: 0
Thanked 1 Time in 1 Post
Looks good sip, definitely worth bringing it cross country.
HalifaxFD is offline
Old 03-05-16, 05:31 PM
  #7
is tempted
iTrader: (10)

Templeton's Avatar

Join Date: May 2006
Location: New Hampshire
Posts: 846
Thanked 5 Times in 5 Posts
The car is gorgeous, care to say what it cost you?
Templeton is online now
Old 03-06-16, 10:37 PM
  #8
sip
RHD Track Whore
Thread Starter

Join Date: Mar 2008
Location: Moncton, N.B. Canada
Posts: 225
Thanks: 0
Thanked 0 Times in 0 Posts

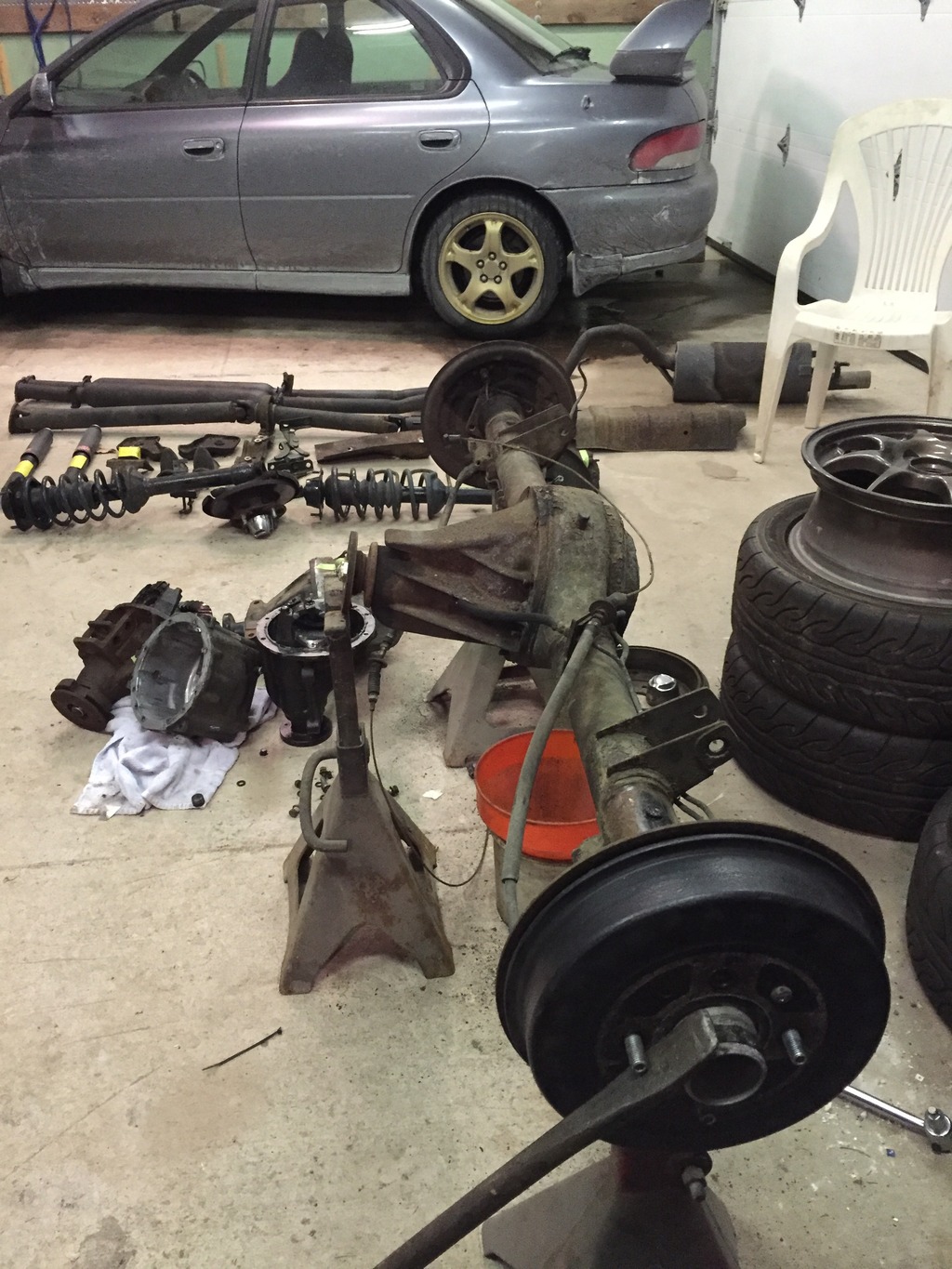

Disassembled the whole car.






Name:  image_14.jpeg
Views: 1107
Size:  371.1 KB
sip is offline
Old 03-07-16, 10:33 AM
  #9
sip
RHD Track Whore
Thread Starter

Join Date: Mar 2008
Location: Moncton, N.B. Canada
Posts: 225
Thanks: 0
Thanked 0 Times in 0 Posts

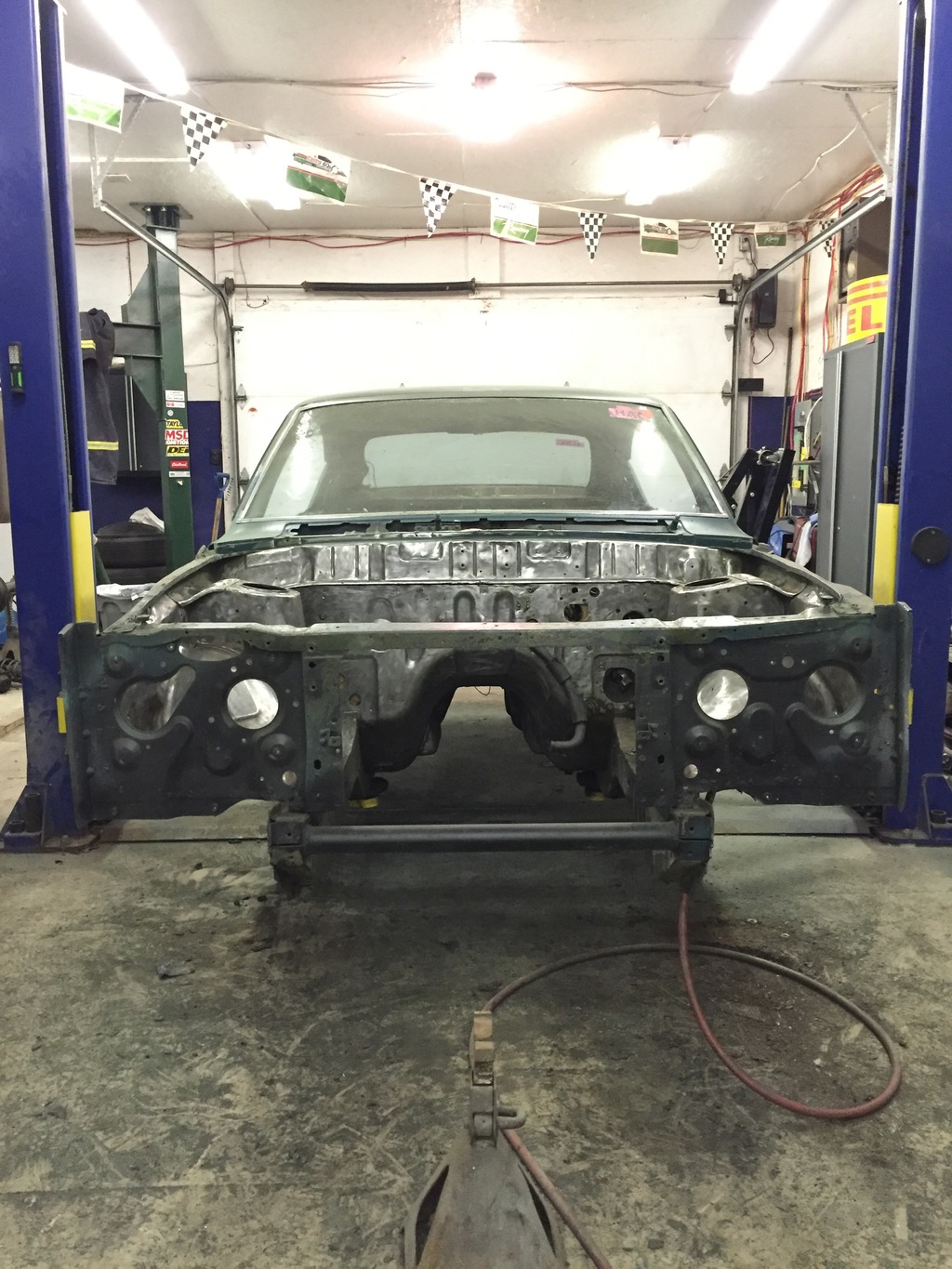

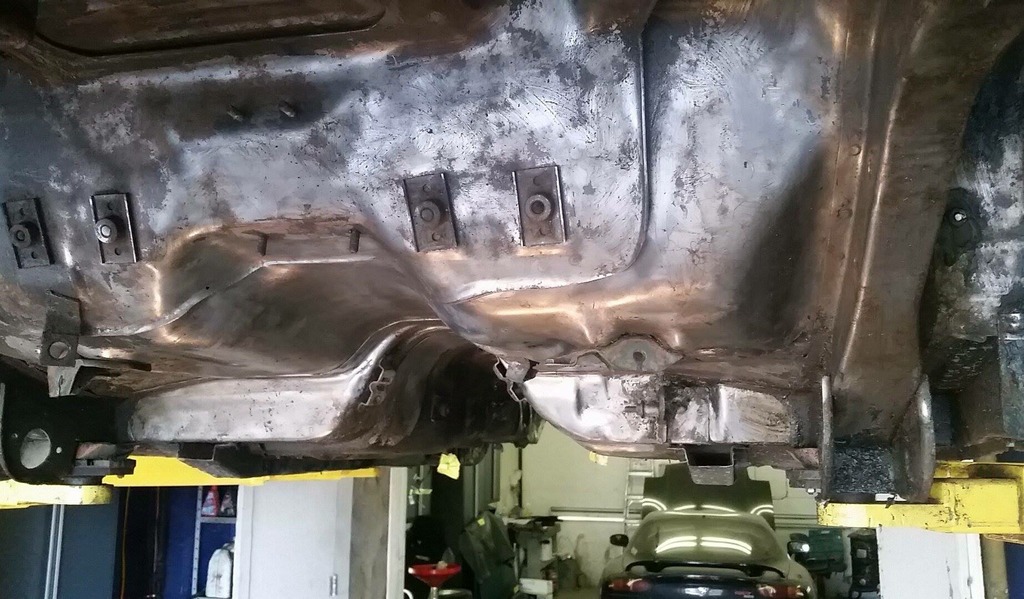

While most of the car looks like this:



Name:  image_22.jpeg
Views: 1068
Size:  202.6 KB


Name:  image_27.jpeg
Views: 1121
Size:  364.9 KB

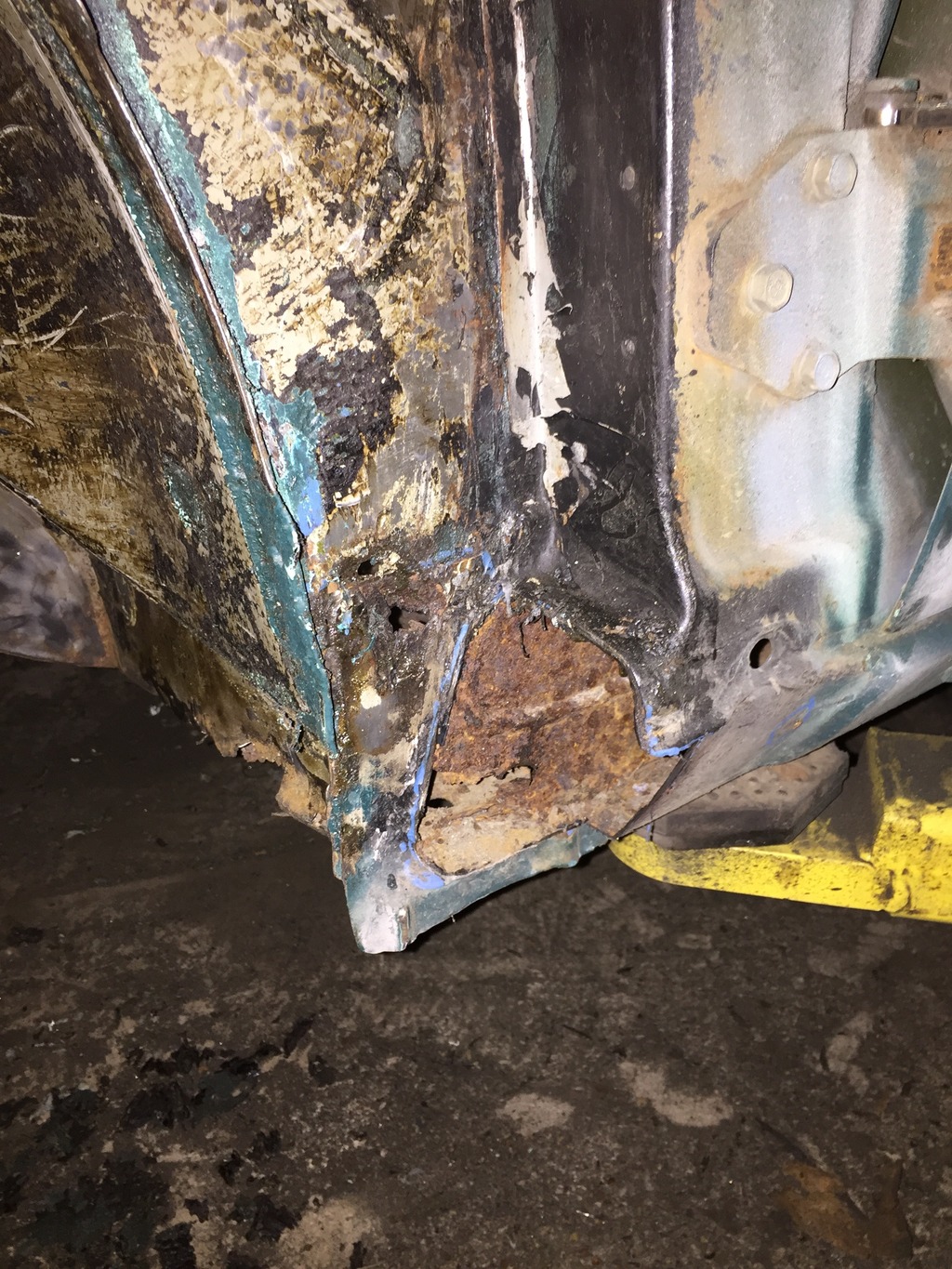

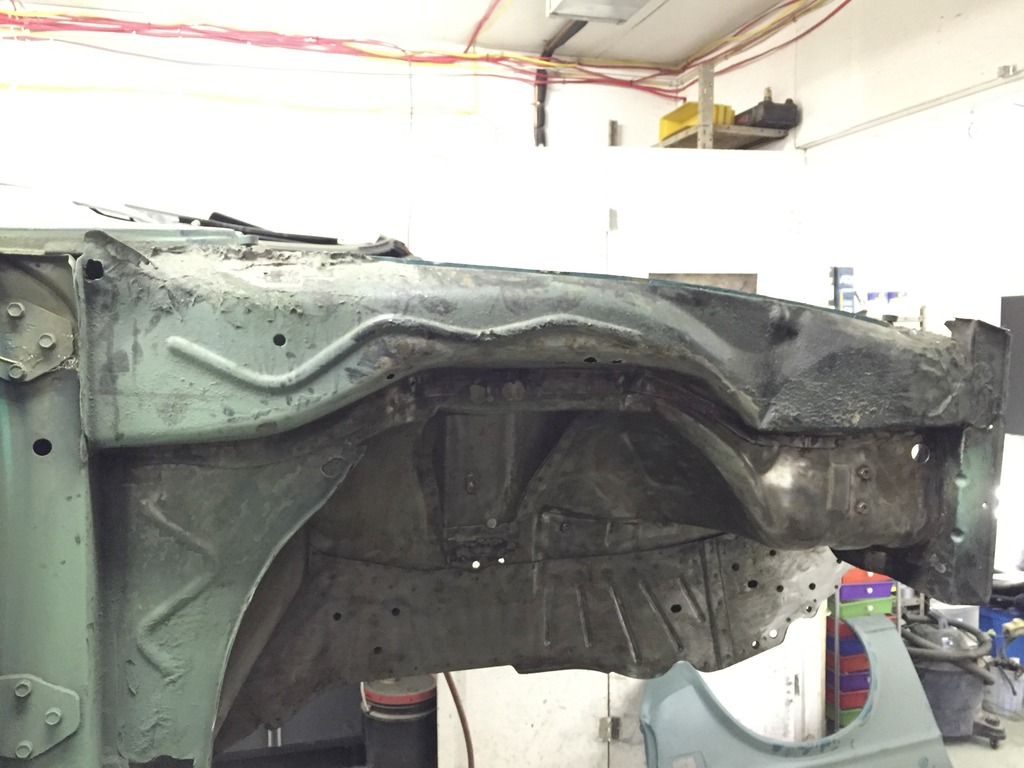

There are some nooks where debris and moisture get trapped and cause rust:


Name:  image_29.jpeg
Views: 1113
Size:  504.8 KB

Name:  image_26.jpeg
Views: 1078
Size:  159.4 KB

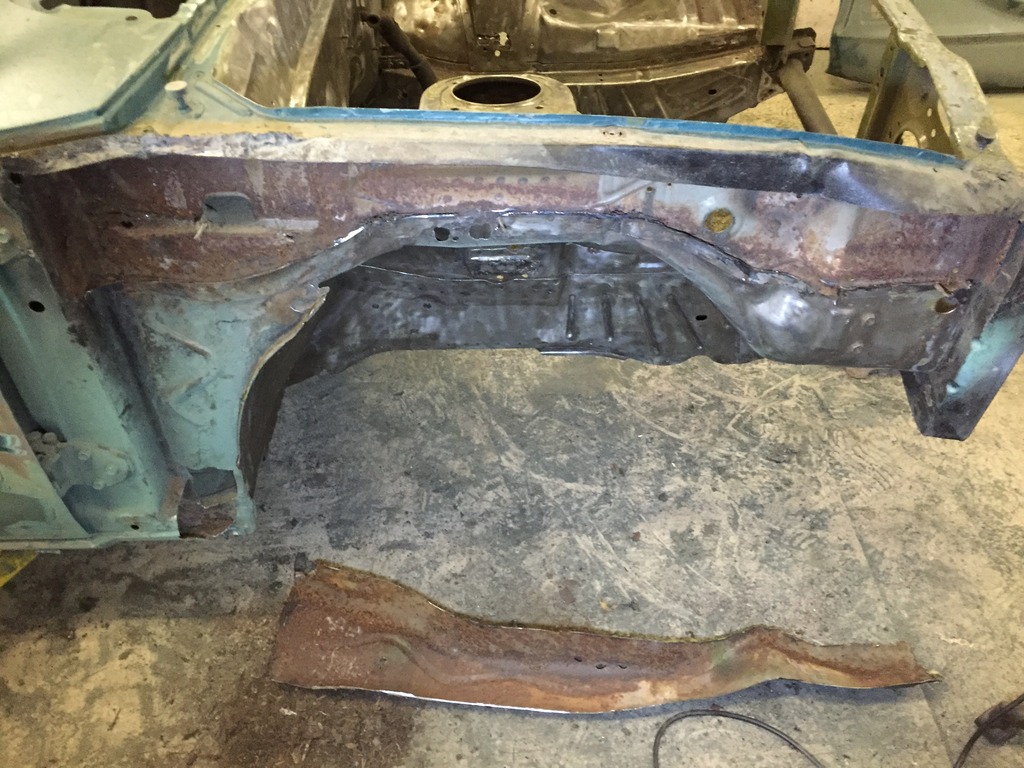

So I cut it out and will change the design to prevent rusting again and re-weld.


Name:  image_25.jpeg
Views: 1108
Size:  258.5 KB

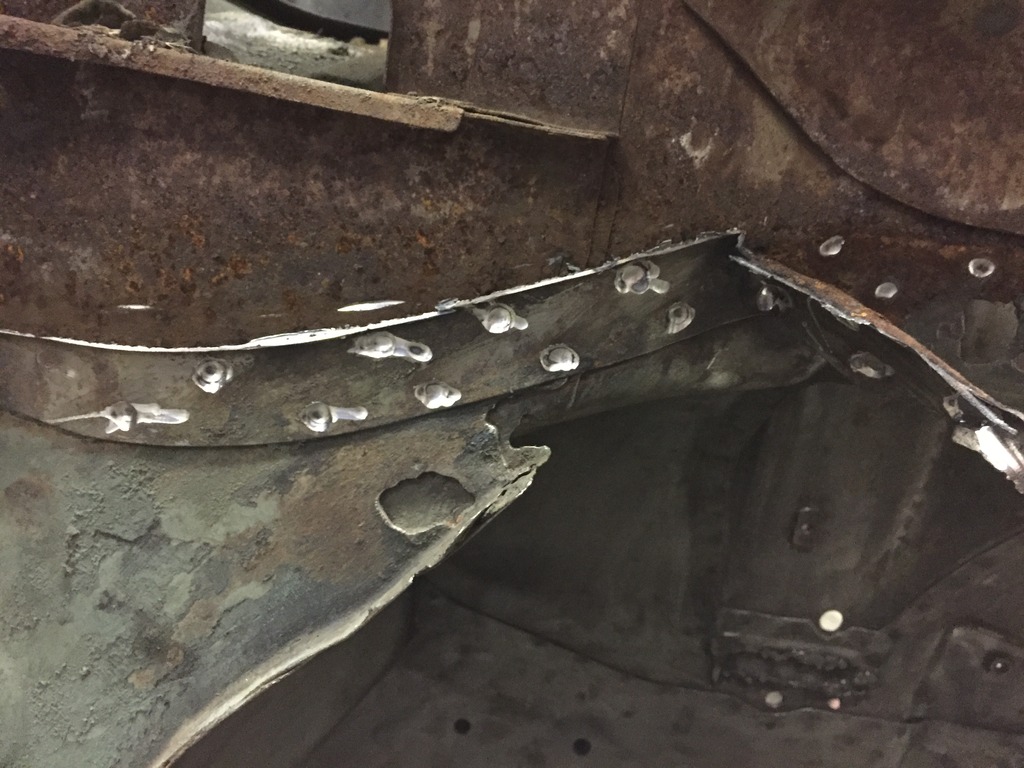

Removing all the spot welds to clean underneath:


Name:  image_24.jpeg
Views: 1087
Size:  202.5 KB
sip is offline
Old 03-17-16, 07:56 PM
  #10
sip
RHD Track Whore
Thread Starter

Join Date: Mar 2008
Location: Moncton, N.B. Canada
Posts: 225
Thanks: 0
Thanked 0 Times in 0 Posts

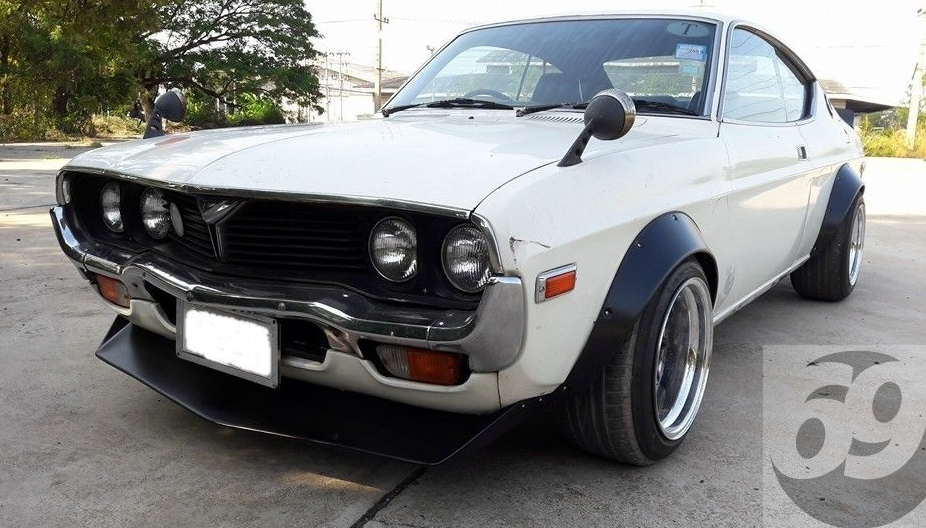

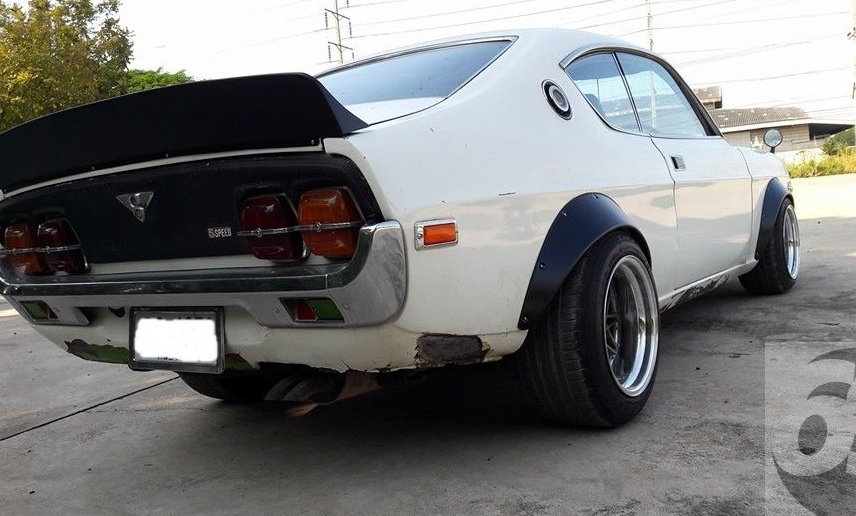

I just picked up a set of metal fender flares:
