1973 929/RX4 Coupe Project
#1
1973 929/RX4 Coupe Project
So far, I'm just getting ideas for the project, I purchased the car from a guy in Australia and will import it into New Zealand when I finish working offshore in a few months.
Between now and then gives me plenty of time to decide what I want to do...now that I've got the FC dialed in and running Im pretty keen just to keep this as a NA engine and to keep things as original as possible.
With 'Furb's build as some inspiration, it'll be nice to see progress of someone else's build until I get get started with mine.

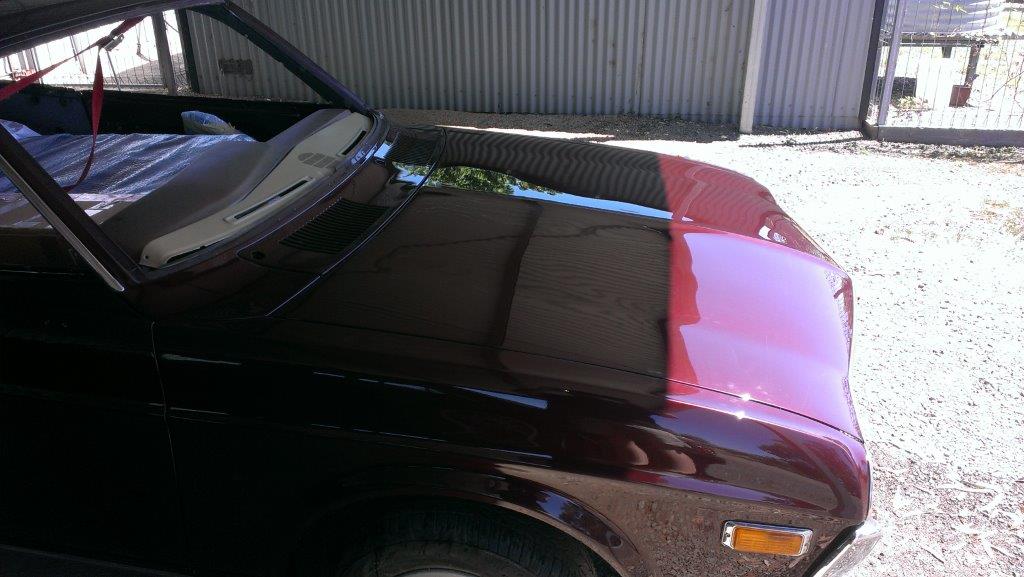

The car has had all the body work done, and all the chrome is there just needs a little polish...and of course, re-assembly.

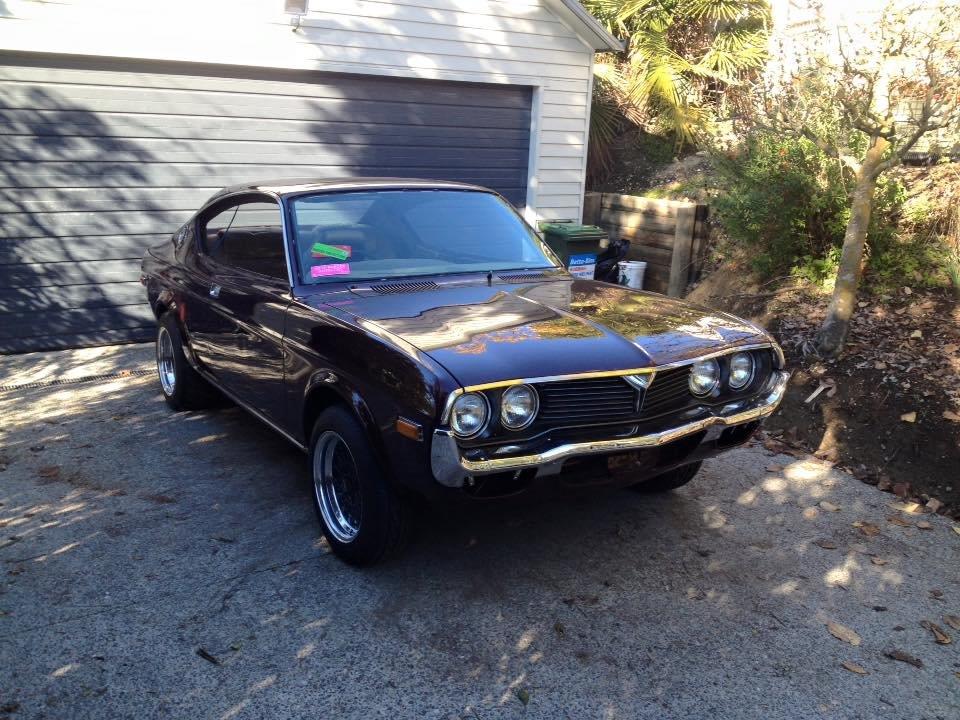

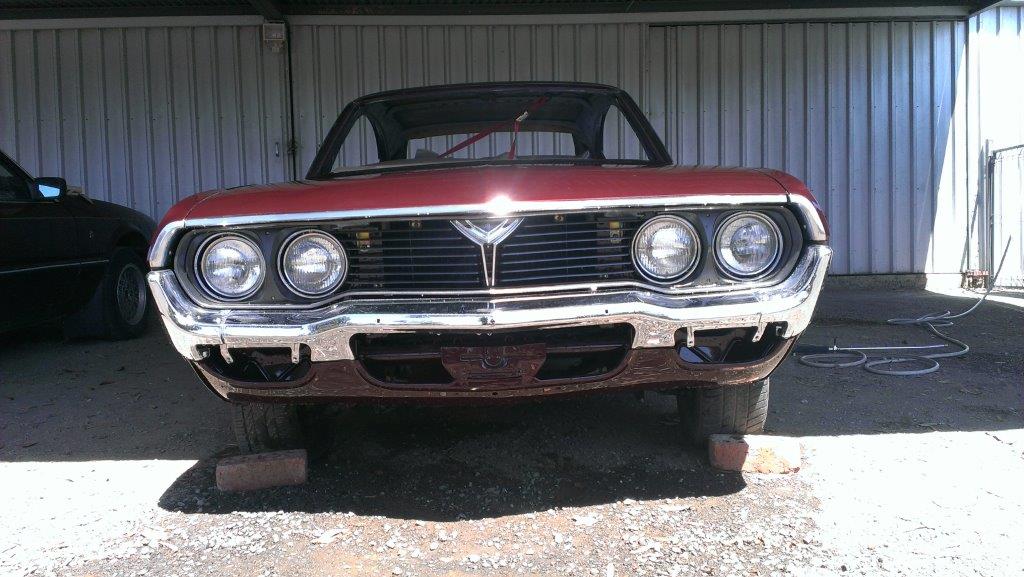

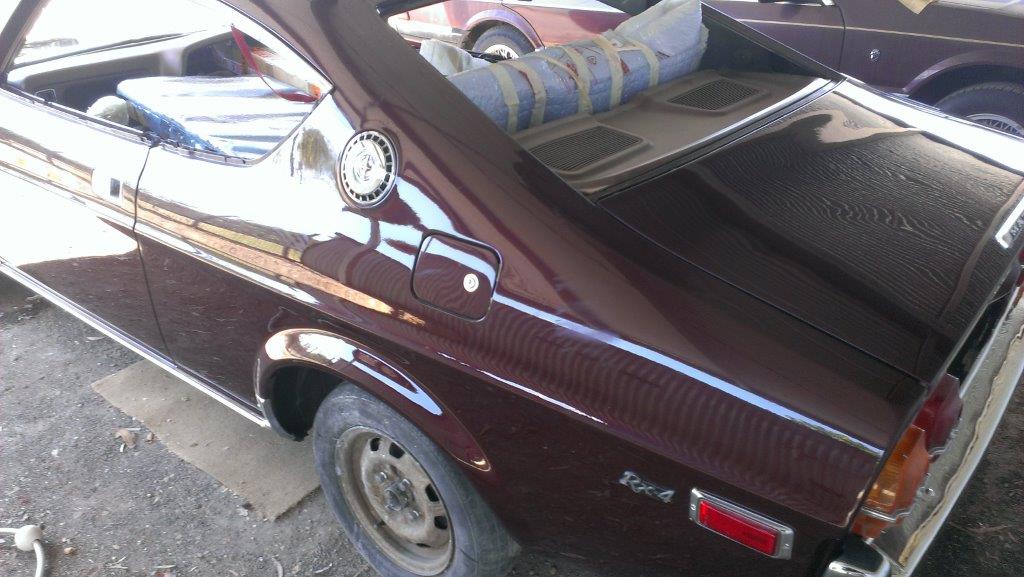

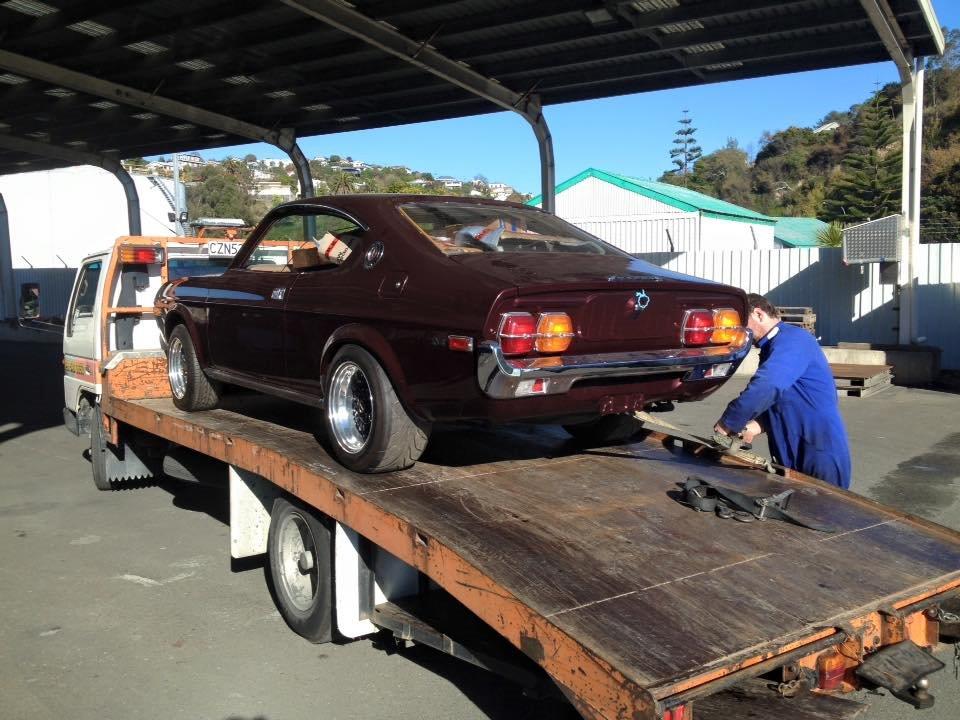

Here is a few pics of what she's like...
Between now and then gives me plenty of time to decide what I want to do...now that I've got the FC dialed in and running Im pretty keen just to keep this as a NA engine and to keep things as original as possible.
With 'Furb's build as some inspiration, it'll be nice to see progress of someone else's build until I get get started with mine.
The car has had all the body work done, and all the chrome is there just needs a little polish...and of course, re-assembly.
Here is a few pics of what she's like...
#2
Engine Package Options
First off the list is of decisions that need to be made is the engine package, at this stage of the game I want to keep the car reasonably close to original so with this, I would prefer to run an NA block.
At home I have a Cosmo REW 13b that I was thinking to use, I've got a couple of Mazda new housings stashed away and a pair of high comp FC rotors. As far as porting goes, I was thinking along the lines of just a mild extended port to keep things nice and smooth...as it is, this will be the family sunday car once it's up and running.
The other Option would be to source an FC block but finding decent irons for these is getting difficult and then I'd have to get some housings.
Anyway, what are your thoughts on the engine setup?
One of the things that is nagging me, is the sump setup and the best way to overcome this when running the REW block in the RX4?
At home I have a Cosmo REW 13b that I was thinking to use, I've got a couple of Mazda new housings stashed away and a pair of high comp FC rotors. As far as porting goes, I was thinking along the lines of just a mild extended port to keep things nice and smooth...as it is, this will be the family sunday car once it's up and running.
The other Option would be to source an FC block but finding decent irons for these is getting difficult and then I'd have to get some housings.
Anyway, what are your thoughts on the engine setup?
One of the things that is nagging me, is the sump setup and the best way to overcome this when running the REW block in the RX4?
#4
So far, the engine is looking like it should be pretty straight forward to mount, from what I understand I should be able to use an old school 13b sump on the REW block but will have to drill and tap a couple of new holes. Will use a 12a front cover and with luck the sump will be fine.

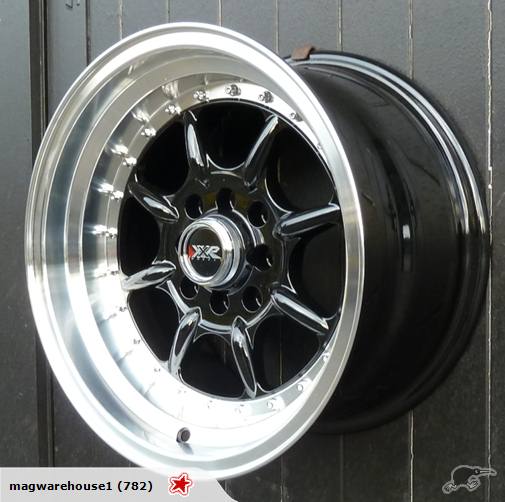

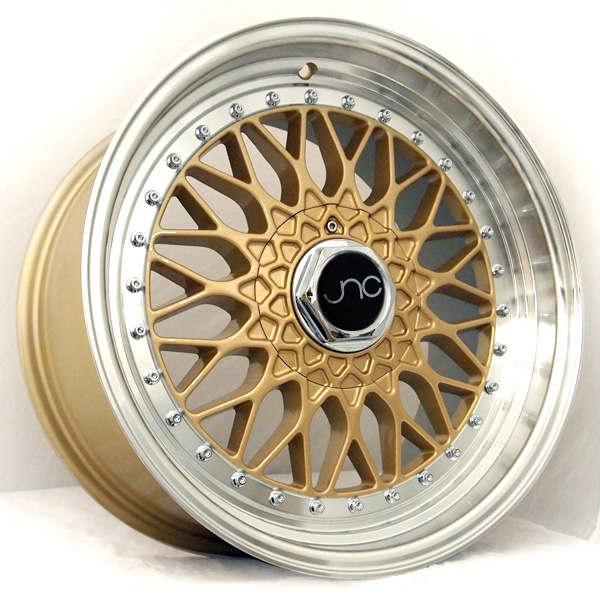

Seeing as it's only rolling on some steel rims, I got to thinking about wheels, after hours of searching, I've comeup with a couple of ideas...
Seeing as it's only rolling on some steel rims, I got to thinking about wheels, after hours of searching, I've comeup with a couple of ideas...
#6
Stud Pattern
Seeing as the 4x110 stud pattern sucks and the choice of wheels is very limited, I started looking into the options of redrilling discs or upgrading hubs.
From people I spoke to and things I have read, redrilling the RX4 discs is not an option, then somewhere I cam across a company call MSF Racing. Here is a link to what they can supply...
http://www.msfracingcomponents.com.a...arycomponents/

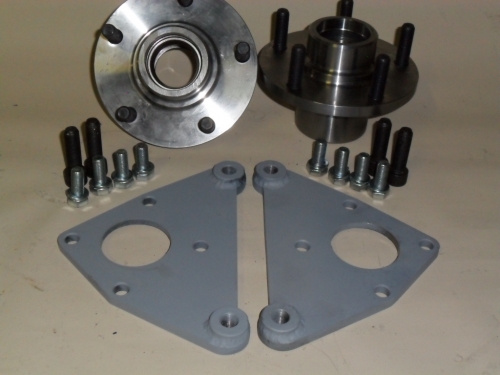

This seems to me, to be a very good option, would give me upgraded discs on both front and the ability to put discs on the rear.
From people I spoke to and things I have read, redrilling the RX4 discs is not an option, then somewhere I cam across a company call MSF Racing. Here is a link to what they can supply...
http://www.msfracingcomponents.com.a...arycomponents/
This seems to me, to be a very good option, would give me upgraded discs on both front and the ability to put discs on the rear.
#7
Full Member
That MSF site is pretty cool, I love guys that make shiz like that. Makes life so much easier and looks pretty reasonably priced as well. For engine choice what about a bridgeported NA rx8 motor with a side draft. Combine with a Long manifold or injection to give it plenty of low down torque, and am not aware of any BP MSP motors in NZ yet so would be driveable, unique, would look cool and make the right noise.
Trending Topics
#8
RX8 Block
I hadn't considered the RX8 block, I already have FC plates and a complete REW engine so will go with one of these. The RX8 blocks are getting cheaper now but not that keen on them when compared to the 7 blocks.
That MSF site is pretty cool, I love guys that make shiz like that. Makes life so much easier and looks pretty reasonably priced as well. For engine choice what about a bridgeported NA rx8 motor with a side draft. Combine with a Long manifold or injection to give it plenty of low down torque, and am not aware of any BP MSP motors in NZ yet so would be driveable, unique, would look cool and make the right noise.
#9
Rotary Enthusiast
iTrader: (2)
Join Date: May 2005
Location: E-L Netherlands
Posts: 1,165
Likes: 0
Received 0 Likes
on
0 Posts
you can use RX-7 FB running gear to upgrade to 4x114.3
Renesis is an option. someone i know is working one to find out what it takes to put one in any old Mazda. he is using a RacingBeat inlet adapter plate to bolt an FC Carb manifold to the Renesis. i believe the 12a front cover fits aswell, its been a while since we talked about it.
i am using a S5 TII lump
Renesis is an option. someone i know is working one to find out what it takes to put one in any old Mazda. he is using a RacingBeat inlet adapter plate to bolt an FC Carb manifold to the Renesis. i believe the 12a front cover fits aswell, its been a while since we talked about it.
i am using a S5 TII lump
#12
It seems that the only place I can find an IDA manifold for an FD block is from Racing Beat, maybe there is not enough of a market for others to produce them, I guess I'm lucky at least one company makes them!
Trying to find a DCOE manifold is another story altogether! You're probably thinking why would you want to use a sidedraft...I thought...why not!
I like the look of them for a start, I understand the IDA's have bigger fuel bowls for extended WOT but as I'm not going to be racing this car, I thought I would go with something a little different.
I was able to find the IDA and DCOE flanges on ebay so that leaves the fabrication to be done, I am assembling all the parts for this at the moment to send to a fabricators so they can make up the UIM for me, I'm keen to get this together and see how it sits.
Trying to find a DCOE manifold is another story altogether! You're probably thinking why would you want to use a sidedraft...I thought...why not!
I like the look of them for a start, I understand the IDA's have bigger fuel bowls for extended WOT but as I'm not going to be racing this car, I thought I would go with something a little different.
I was able to find the IDA and DCOE flanges on ebay so that leaves the fabrication to be done, I am assembling all the parts for this at the moment to send to a fabricators so they can make up the UIM for me, I'm keen to get this together and see how it sits.
#15
It seems the best route for fabricating the upper intake manifold for the DCO was to use solid works, have a mold printed and then cast...so, it's going to cost a bit more than expected but the flow characteristics should be about as good as I'll get...
#16
Eats, Sleeps, Dreams Rotary
iTrader: (19)
that is going to be one cool manifold....im not sure of the cost to make it but there is a company here in the states that makes one piece manifolds. they used to make them for the star mazda race series. i've had a couple and they are really nice pieces...if i remember correctly they are only $100 USD or so.........here is a pic
here is what it looks like installed
do you happen to know what mirrors are on the blue rx4 you have pictured?
here is what it looks like installed
do you happen to know what mirrors are on the blue rx4 you have pictured?
Last edited by papsmagu; 09-01-15 at 06:47 AM.
#17
Thats a nice looking manifold, Atkins produce a similar one but the problem I have is that finding one to suit an FD block is not easy! What is the name of the company that produced them?
Would be interested to find out if they make them for FD engines.
Will find out about the mirrors for you...
Would be interested to find out if they make them for FD engines.
Will find out about the mirrors for you...
#20
Eats, Sleeps, Dreams Rotary
iTrader: (19)
the manifold will not fit the FD engine....sorry i missed that. The manifold is made for a 6 port. engine mounts are from Banzai racing. they are for the FB but they fit our cars just fine. That engine pic is from my REPU but its the same thing on the 4
thanks for the falcon pic and mirror info......you are right.....we did not get them in the US
thanks for the falcon pic and mirror info......you are right.....we did not get them in the US
#23
The change of direction...
After talking to a friend of mine and discussing the tune-ability of the 50DCP/SP...I've decided to go with injection.

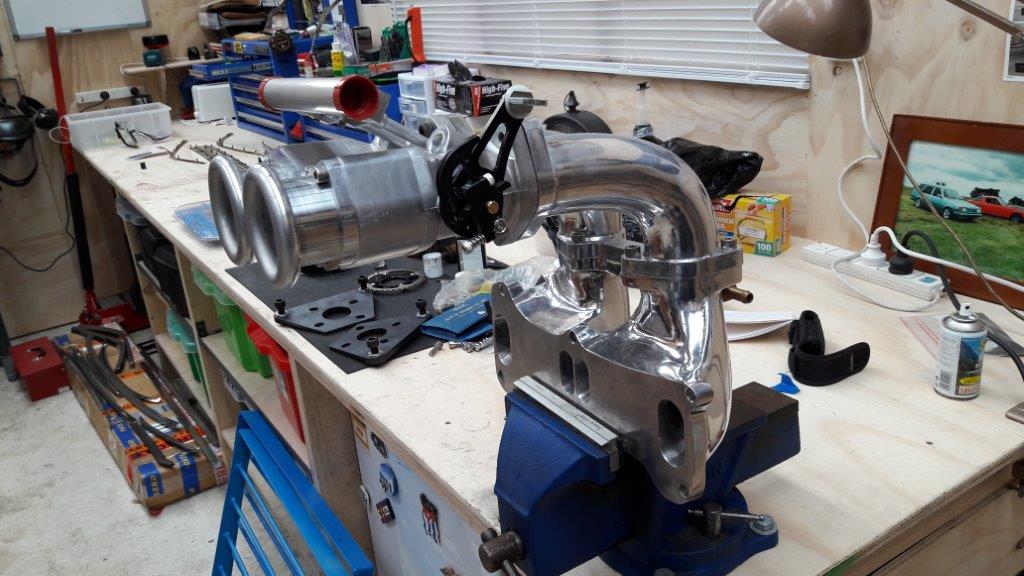

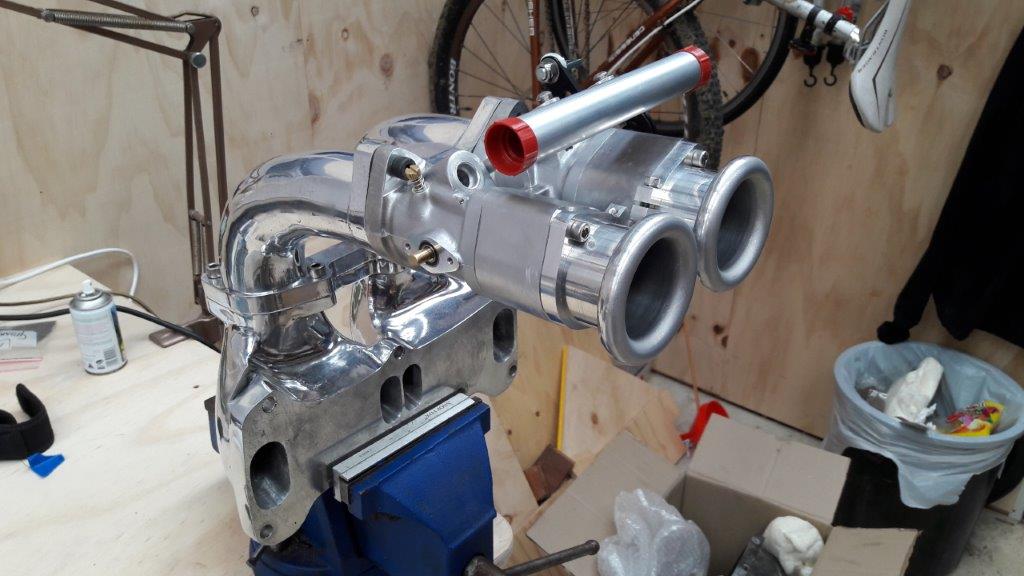

I'm still going to retain the DCOE but I'm now gone with an EFI Hardware DCOE throttle body.
This particular unit is 52mm inlet bore tapered down to 50mm to match my manifold, with luck the slight tapering will give me some added velocity, then agin when it hits my LIM...it should increase velocity again.
It only has 2 injector bungs so the plan is to run 2 x 1300CC ID Injectors...if this doesn't work so well, I'll use the 2 injector bungs in the centre iron.

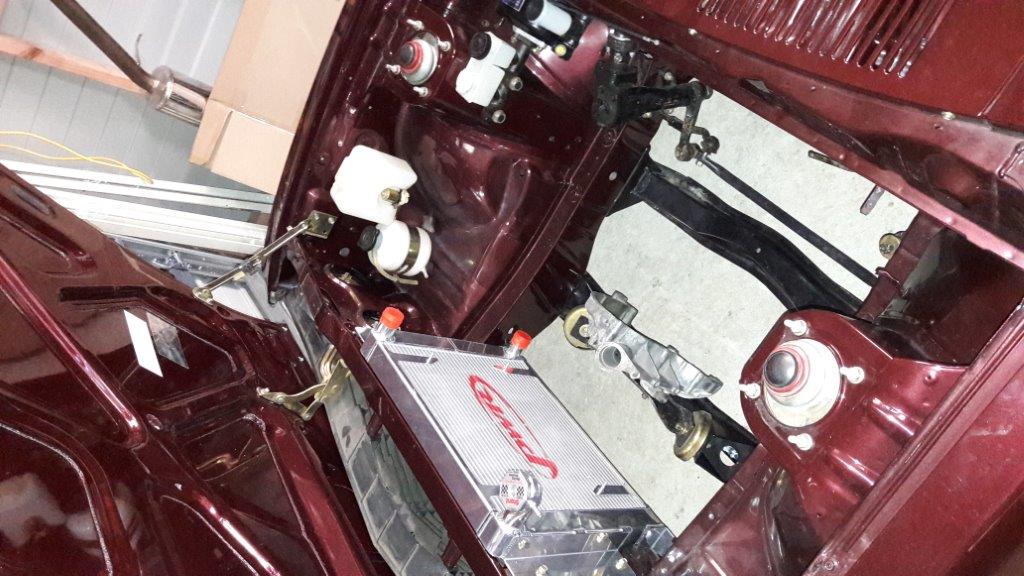

The last pic is of the engine bay so far, I've only fitted the radiator which will have to come out again shortly for the engine install.
I'm still going to retain the DCOE but I'm now gone with an EFI Hardware DCOE throttle body.
This particular unit is 52mm inlet bore tapered down to 50mm to match my manifold, with luck the slight tapering will give me some added velocity, then agin when it hits my LIM...it should increase velocity again.
It only has 2 injector bungs so the plan is to run 2 x 1300CC ID Injectors...if this doesn't work so well, I'll use the 2 injector bungs in the centre iron.
The last pic is of the engine bay so far, I've only fitted the radiator which will have to come out again shortly for the engine install.
#24
Engine internals
I've had the rotating assembly sent off to be balanced, but I'm now back at sea for a couple of months so until I get home I can't post any pics.

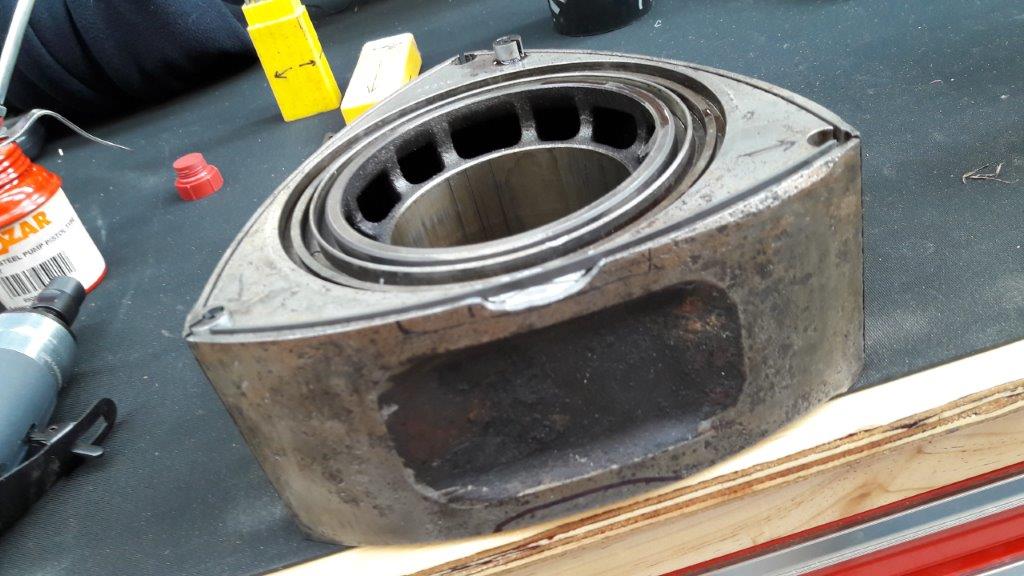

I have an RX8 e-shaft, RX8 rotors with the apex slot machined out to 10mm depp to run conventional seals. Will be using a 12lb flywheel with an ACT pressure plate/clutch setup.
The rotors have been match weighted to within 1 gram of each other...the balancer told me they were well out on weight and took alot of work to get them within 1 gram of each other.
This will be the first time I've used RX8 rotors, so the next thing for me, is to clearance the side seals and for this, I have started to make a jig.
I have an RX8 e-shaft, RX8 rotors with the apex slot machined out to 10mm depp to run conventional seals. Will be using a 12lb flywheel with an ACT pressure plate/clutch setup.
The rotors have been match weighted to within 1 gram of each other...the balancer told me they were well out on weight and took alot of work to get them within 1 gram of each other.
This will be the first time I've used RX8 rotors, so the next thing for me, is to clearance the side seals and for this, I have started to make a jig.
#25
Fueling...

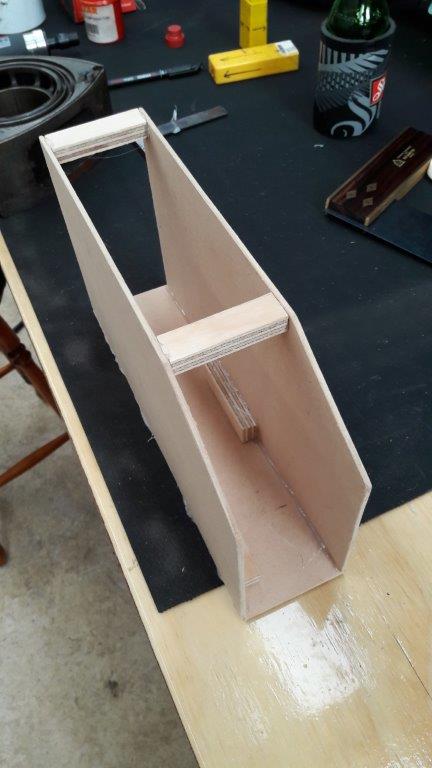

A quick little mock up of a surge tank I'll be running, this will have an enclosed Aeromotive Stealth pump.
This will be fitted to the inside of one of the rear wheel arch's.
A few other bits that are ready to go...

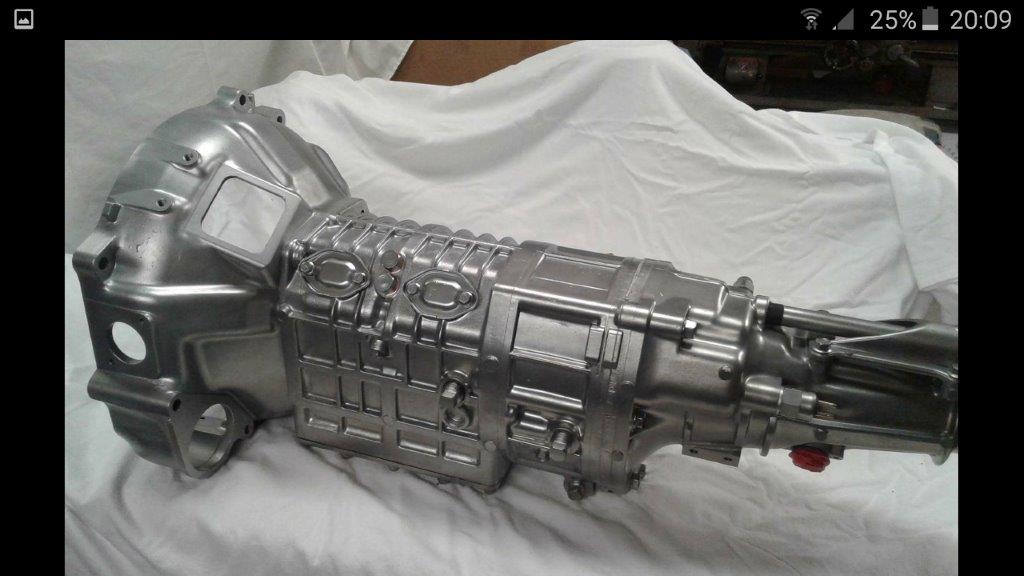

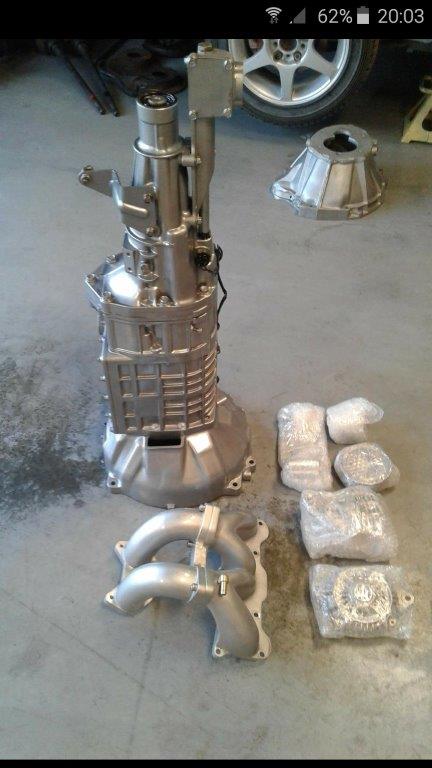

An FC gearbox that has been rebuilt and then I had it Vapourblasted, came up like new
Decided to get the manifolds, alternator housing, and a few other bits done as well.

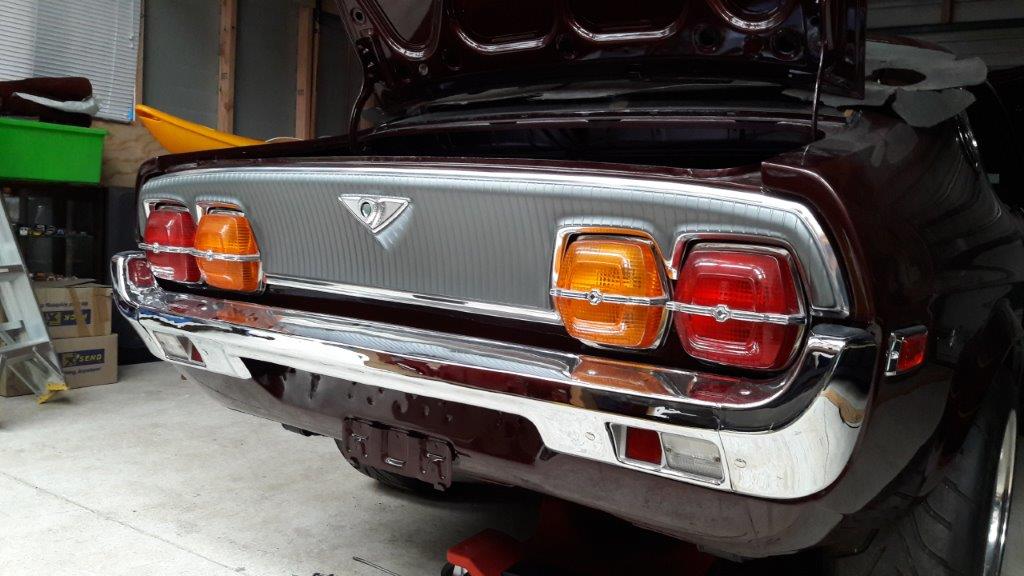

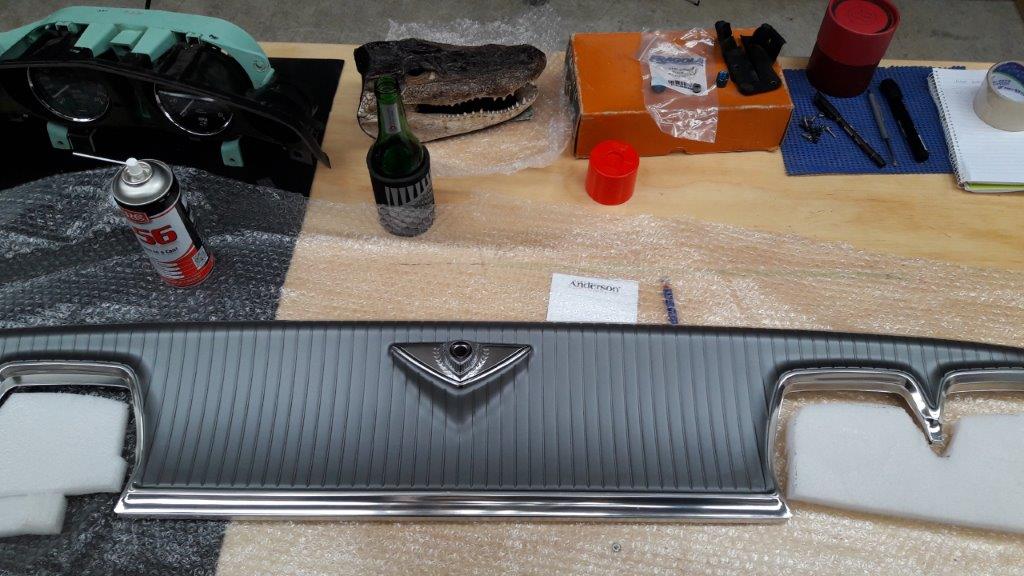

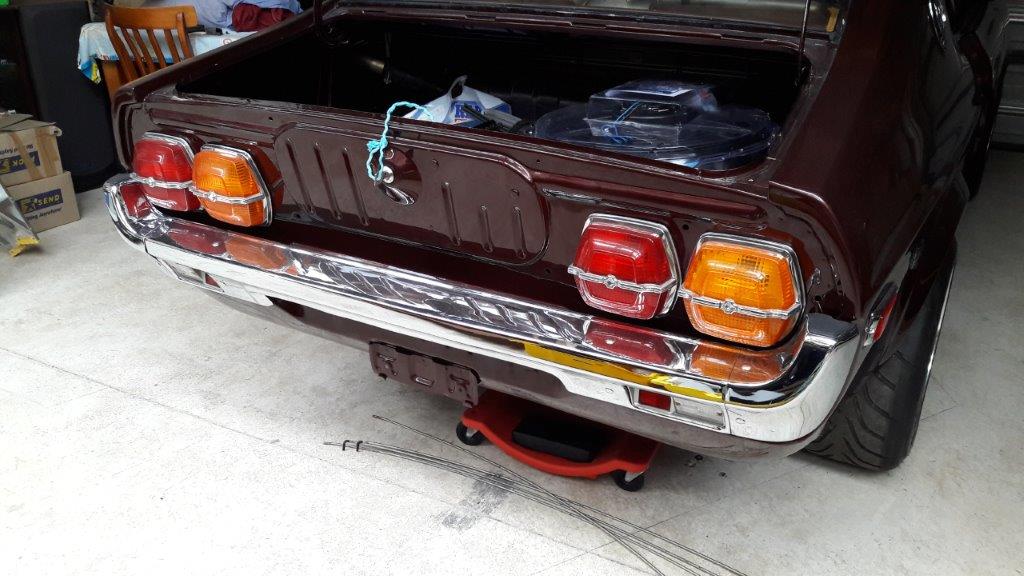

Rear Garnish, straight out of the box...and the nose cone pretty much complete.
This will be fitted to the inside of one of the rear wheel arch's.
A few other bits that are ready to go...
An FC gearbox that has been rebuilt and then I had it Vapourblasted, came up like new
Decided to get the manifolds, alternator housing, and a few other bits done as well.
Rear Garnish, straight out of the box...and the nose cone pretty much complete.
