13b rew intake/throttle body questions
Hi guys I have some questions about the parts on the 13brew intake and throttle body. I am looking at using it on a project that has no emmisions and no original turbos. I want to make sure I hook up what needs to be and plug what doesn't need to get used.
A - ?
B - My guess is choke
C - My Guess is coolant to activate choke but is this the in or out?
D - my guess vacuum pot to open secondaries.
E - ?

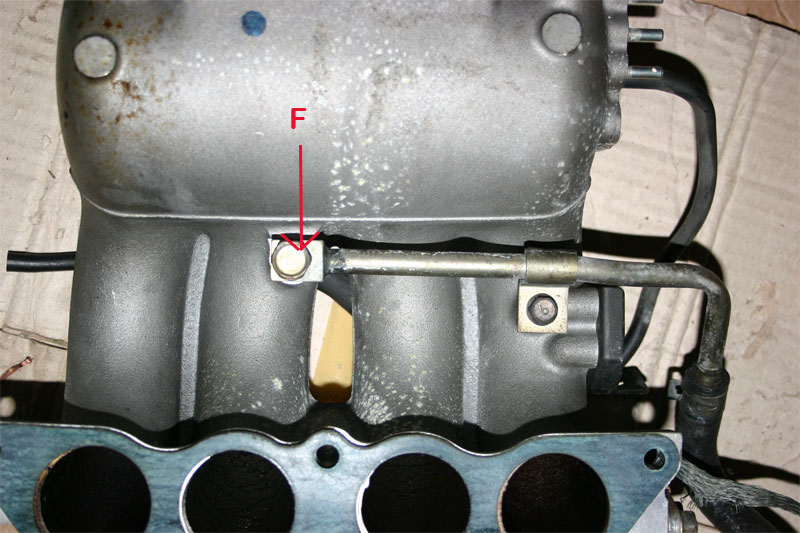

F - My guess large vacuum line

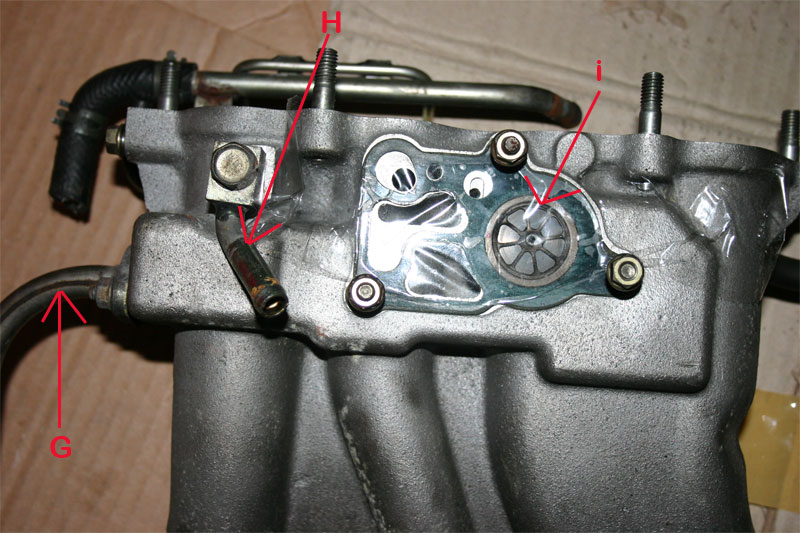

G - ?
H - Large Vacuum line
I - I have no Idea here can this are be covered and what the heck does it do?
Thanks for putting up with my questions guys.
A - ?
B - My guess is choke
C - My Guess is coolant to activate choke but is this the in or out?
D - my guess vacuum pot to open secondaries.
E - ?
F - My guess large vacuum line
G - ?
H - Large Vacuum line
I - I have no Idea here can this are be covered and what the heck does it do?
Thanks for putting up with my questions guys.
#2
Shell 93
iTrader: (4)
That does not look like a 13b-rew intake/TB. It might be a 13b-RE setup.
A. Is probably the idle air control valve
B. Is the TPS sensor
C. Is a water inlet for the cold start assist
D. Is most likely a dash pot
E. Is a Thermo wax rod.
F. Is a Vacume source for most likely the brake booster
G. Emissions
H. Vacume source
I. Emissions
A. Is probably the idle air control valve
B. Is the TPS sensor
C. Is a water inlet for the cold start assist
D. Is most likely a dash pot
E. Is a Thermo wax rod.
F. Is a Vacume source for most likely the brake booster
G. Emissions
H. Vacume source
I. Emissions
Last edited by kevinbtz; 06-02-07 at 07:02 PM.
