The project begins!
03-25-08, 02:10 AM
#1
The project begins!
Well, Ive started the first stage of my project, this last week. So far I've just been ordering some new parts and sourcing other misc parts. I'm doing this build in hopes that I can sort out any mechanical issues as well as gain some power with out drastically upsetting my nice power curve from my last dyno run. Of course I am focusing on overall balance and reliability, and with this in mind I started a fun mini project.
This is my base dyno run. I noticed that boost dropped down to 3 psi by about 5500 rpms.
I hope to have 260 whp by the end of my project.
Mini project: Experimental hood #1:
As I have a turbo'd sport model with a fairly hefty fmic setup, I've had a few battles with heat on several of my road trips to California. I've since upgraded to a Koyo radiator, new thermostat, and a nice electric fan. Combined with a nice duct and vented hood, I hope will never have any further heat issues on any future trips.
Mind you this is not my aluminum hood, but a spare steel hood I had laying around. The design isnt finalized yet, but its a start. When finished, I want it to look as though it could have been stock. I have yet to make a duct to direct some of the hot air from the radiator up through the vent. Enough typing.. here are some pics!
New Turbo:
My old turbo is missing 3 blades on the exhaust housing, and suffice to say I've taken my time to replace it. The new turbo is bring cleaned and the wastegate is being ported now. I will most likely send it off in a week or 2 to get serviced and inspected.
More to come later!
This is my base dyno run. I noticed that boost dropped down to 3 psi by about 5500 rpms.
I hope to have 260 whp by the end of my project.
Mini project: Experimental hood #1:
As I have a turbo'd sport model with a fairly hefty fmic setup, I've had a few battles with heat on several of my road trips to California. I've since upgraded to a Koyo radiator, new thermostat, and a nice electric fan. Combined with a nice duct and vented hood, I hope will never have any further heat issues on any future trips.
Mind you this is not my aluminum hood, but a spare steel hood I had laying around. The design isnt finalized yet, but its a start. When finished, I want it to look as though it could have been stock. I have yet to make a duct to direct some of the hot air from the radiator up through the vent. Enough typing.. here are some pics!
New Turbo:
My old turbo is missing 3 blades on the exhaust housing, and suffice to say I've taken my time to replace it. The new turbo is bring cleaned and the wastegate is being ported now. I will most likely send it off in a week or 2 to get serviced and inspected.
More to come later!
Looking good!
03-25-08, 10:52 PM
#6
The Outsider
iTrader: (1)
Join Date: Jul 2003
Location: Deep in 6th
Posts: 1,050
Likes: 0
Received 0 Likes
on
0 Posts
Sounds like your old turbo swallowed an apex seal or two in its past life. Make sure you keep it running so you can go AUOTCROSS on the weekends.
Personally I think the biggest bang for the buck is a lightweight flywheel, that has always been my favorite mod. Keep us updated.!!!
Personally I think the biggest bang for the buck is a lightweight flywheel, that has always been my favorite mod. Keep us updated.!!!
Trending Topics
03-26-08, 01:41 AM
#8
Yeah, the hood is an eyesore. I should be done with the duct tomorrow afternoon and start some experiments with airlow. At least I have my normal hood in the garage to put back on in a few days. I was going to try a drop vent style hood in which the hood vent drops down to the radiator, but I figured it would be a pain to match the radiator. I have Kevins old hood still, so I may try to make one as well...
Question- Will 2x550cc & 2x720cc injectors be enough for 260ish whp? I need to find out before I order some parts this week.
Question- Will 2x550cc & 2x720cc injectors be enough for 260ish whp? I need to find out before I order some parts this week.
03-26-08, 01:34 PM
#9
REW'd FB
Join Date: Dec 2004
Location: WA
Posts: 2,685
Likes: 0
Received 0 Likes
on
0 Posts
Play around with this:
http://rx7.com/cgi-local/2ndgencalc.cgi
I would think that you are pushing it. Any chance of running a set of 850's instead or 720's? Do you already have the 720's?
http://rx7.com/cgi-local/2ndgencalc.cgi
I would think that you are pushing it. Any chance of running a set of 850's instead or 720's? Do you already have the 720's?
03-26-08, 04:05 PM
#10
I have yet to find the injectors. I looked at the calculator but am unsure of % duty. I need to look at the rtek ecu and find the max duty cycle that it can run. Zack, do you mean 4x850cc injectors or just in the secondaries? I have to admit that the 720's are appealing as the rtek has a preset so that I don't have to tune the ecu to make the car driveable. More or less they are relatively plug and play.
Here's another question- Will I need to get a boost controller to make my power goals? My setup will be: 3" exhaust, large fmic, injectors, rtek ecu, stock turbo, and a street ported engine. I would ideally like to keep the boost levels as close to stock as possible as reliability is key. Any advice?
Here's another question- Will I need to get a boost controller to make my power goals? My setup will be: 3" exhaust, large fmic, injectors, rtek ecu, stock turbo, and a street ported engine. I would ideally like to keep the boost levels as close to stock as possible as reliability is key. Any advice?
03-26-08, 11:39 PM
#11
REW'd FB
Join Date: Dec 2004
Location: WA
Posts: 2,685
Likes: 0
Received 0 Likes
on
0 Posts
I personally would not have a duty cycle of over 80%. I know that some run higher than this but IMO it is not a good idea. You are just making your system work that much harder. Some will argue that it does no harm. Spend some time in the single turbo forum, there is tons of information there that will help. I think that with the setup that you mentioned you will be at the upper end of 80%.
I would make the primaries smaller if you have the ability. I love the fact that my car has 550cc primary's. If I stay out of boost I can get around 20mpg. Your car is a DD, right? With the way gas is going it will save you a pretty nice coin.
Do you think that you can make 260whp on 10psi? I don't know what the stock unit is capable of. A boost controller is alway s a good idea though IMO.
I would make the primaries smaller if you have the ability. I love the fact that my car has 550cc primary's. If I stay out of boost I can get around 20mpg. Your car is a DD, right? With the way gas is going it will save you a pretty nice coin.
Do you think that you can make 260whp on 10psi? I don't know what the stock unit is capable of. A boost controller is alway s a good idea though IMO.
03-27-08, 06:42 PM
#12
The Outsider
iTrader: (1)
Join Date: Jul 2003
Location: Deep in 6th
Posts: 1,050
Likes: 0
Received 0 Likes
on
0 Posts
Hey Clayton I believe the max duty cylcle on a stock ecu is 60%, RTEK will not change that only the injector pulse width. This is one of the primary reasons I had to go to standalone. I made 249 at 10 psi with a bnr stage 1 and an apexi fuel contoller. Steve Kan made 289 at 10 psi with a power fc on the same motor. That was the other reason I went standalone. Hope that helps a little. Dave and I can wire you up a power fc.
04-03-08, 02:22 PM
#13
Quick update:
Turbo!
Gaskets arrived the other day! I'm planning to install the new turbo this weekend, but am slightly unsure of how much porting I should do on the waste gate. I've already removed material where the waste gate door will hit, and radiused the edges where exhaust from the waste gate will merge to the downpipe. Oh yeah, this is another S5 turbo. I know it doesn’t need nearly as much porting as an S4 turbo, but I want to make sure I don’t have any boost creep. Any advice will be appreciated of course!
Taillights!
I received a pair of S5 tail lights the other day. They would have been free, but I couldn’t just take em, so I traded my spare rotor cup holder. The lights were in need of a through cleaning inside and out. I opened the assembly up and while there I've decided to remove the diffusers. Keep in mind that I still prefer the S4 light over these, but as they were next to free, so I couldn't refuse. Defiantly better than my cracked S4 lights.
Turbo!
Gaskets arrived the other day! I'm planning to install the new turbo this weekend, but am slightly unsure of how much porting I should do on the waste gate. I've already removed material where the waste gate door will hit, and radiused the edges where exhaust from the waste gate will merge to the downpipe. Oh yeah, this is another S5 turbo. I know it doesn’t need nearly as much porting as an S4 turbo, but I want to make sure I don’t have any boost creep. Any advice will be appreciated of course!
Taillights!
I received a pair of S5 tail lights the other day. They would have been free, but I couldn’t just take em, so I traded my spare rotor cup holder. The lights were in need of a through cleaning inside and out. I opened the assembly up and while there I've decided to remove the diffusers. Keep in mind that I still prefer the S4 light over these, but as they were next to free, so I couldn't refuse. Defiantly better than my cracked S4 lights.
04-06-08, 11:48 AM
#14
Turbo:

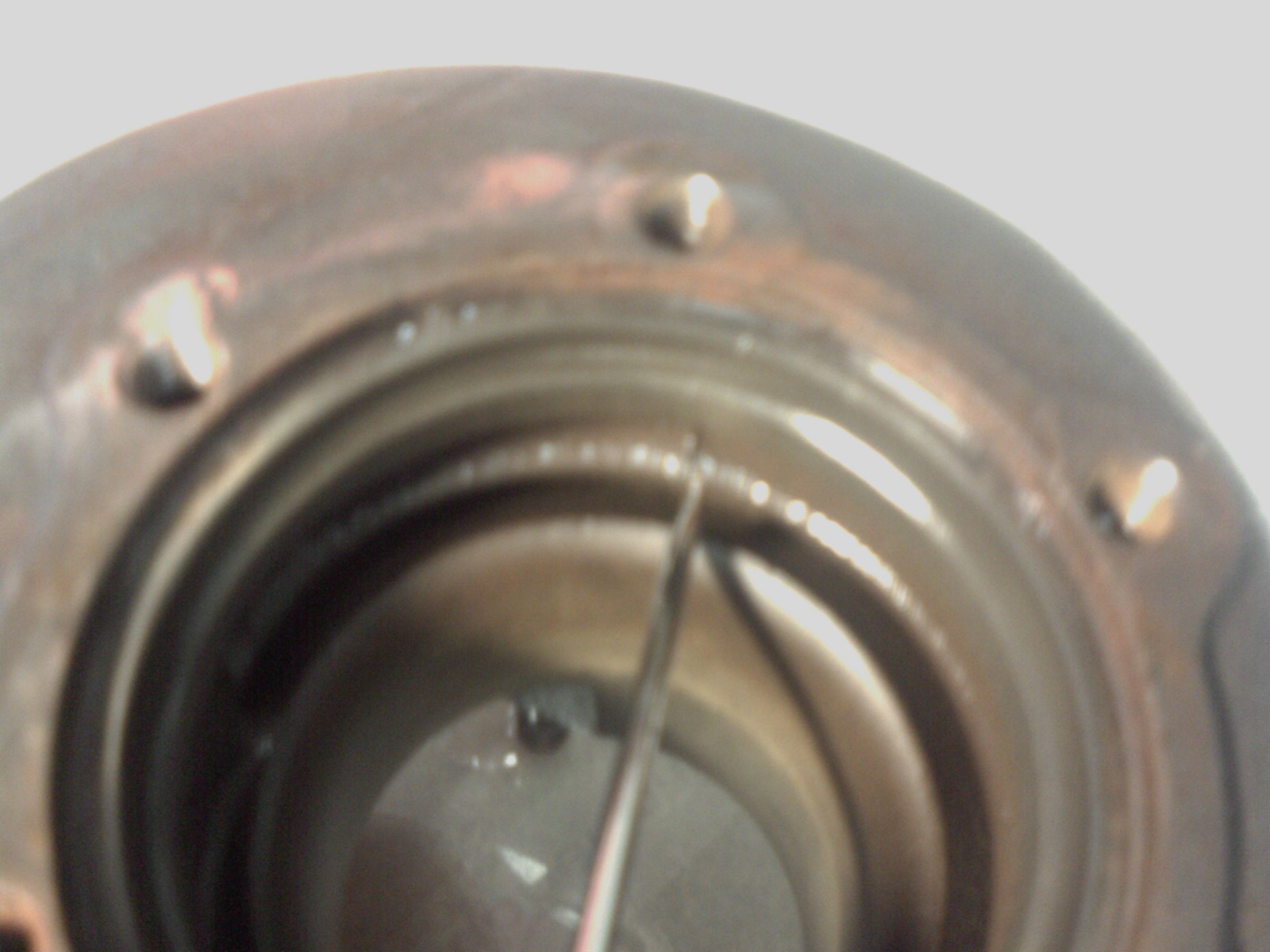

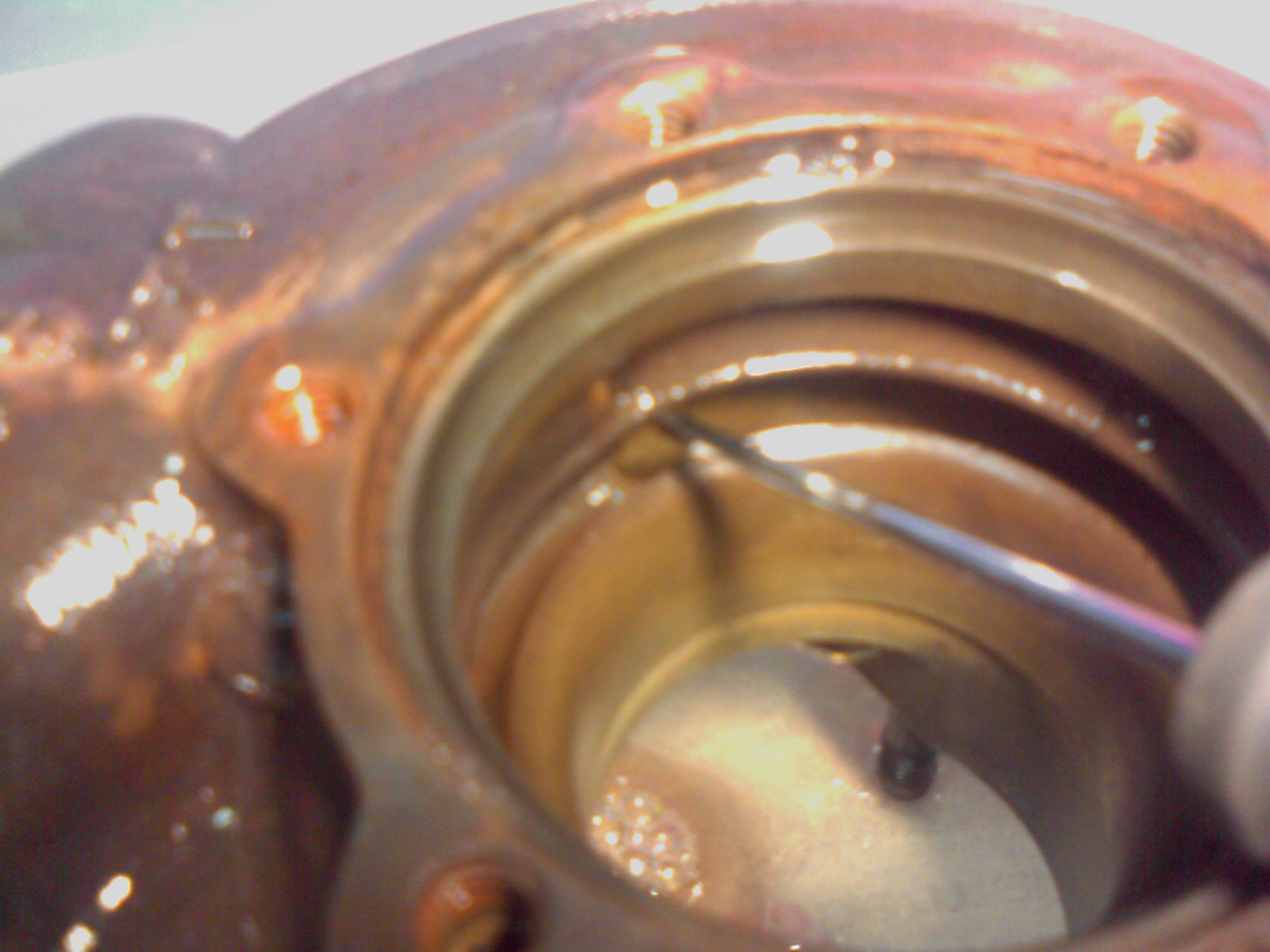

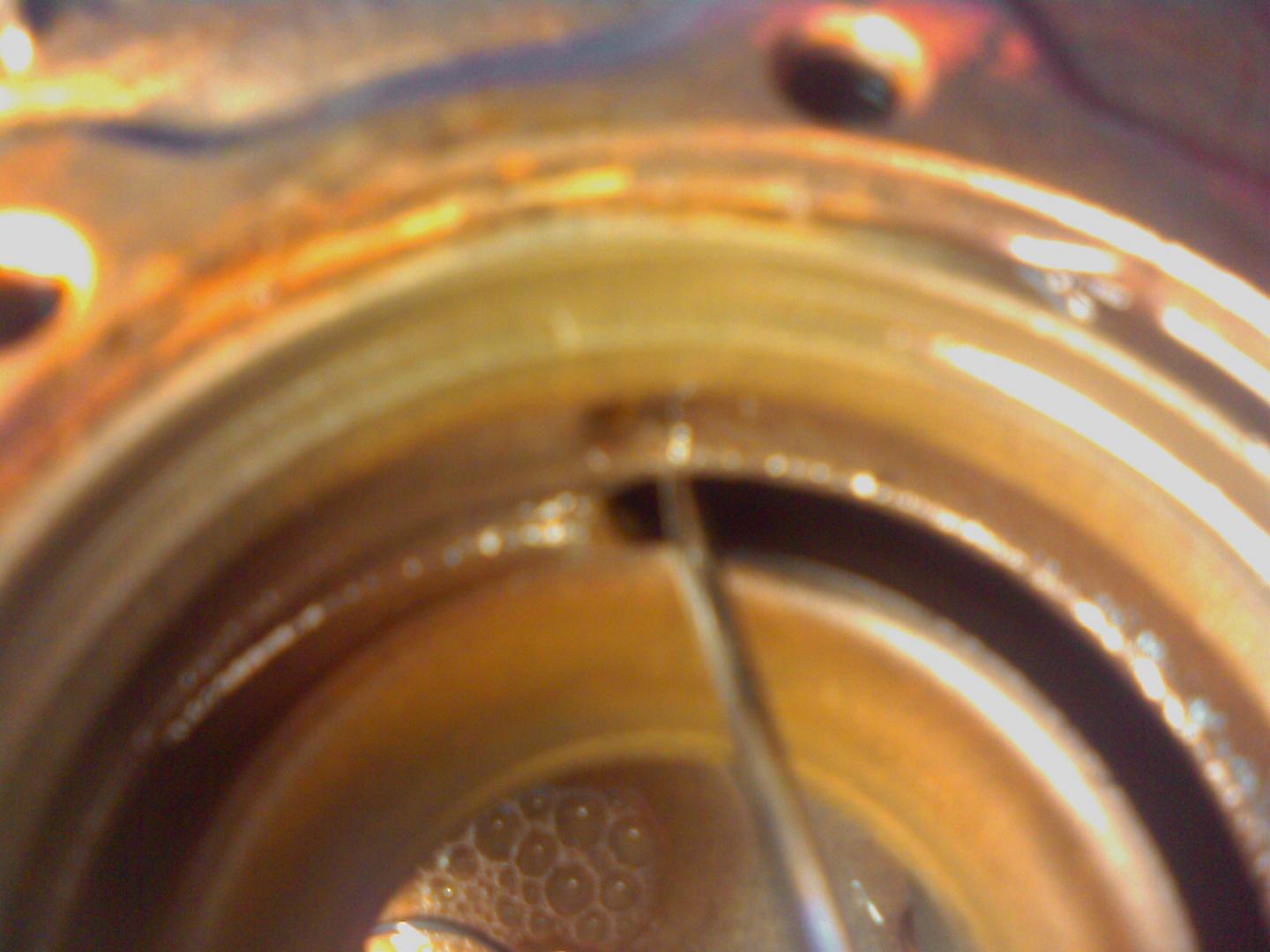

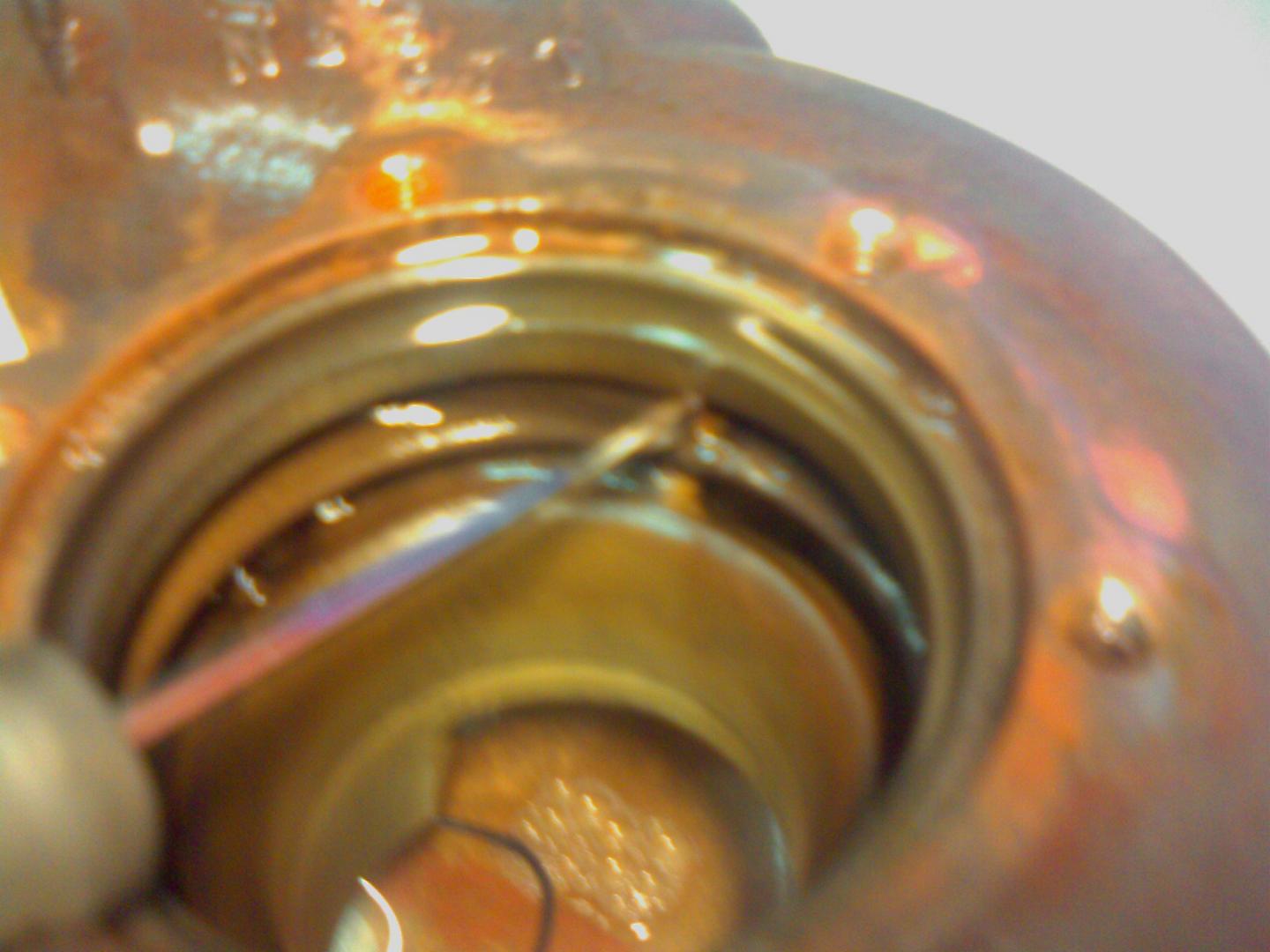

Well, I've since taken the hotside of the turbo apart only to discover it has a few cracks in it. I'm unsure of what is acceptable or not. Below are a few terrible pics from my cell phone, but at least you can see where they are. Should I just forget about the 2 cracks and port this one, or get another hotside?
Well, I've since taken the hotside of the turbo apart only to discover it has a few cracks in it. I'm unsure of what is acceptable or not. Below are a few terrible pics from my cell phone, but at least you can see where they are. Should I just forget about the 2 cracks and port this one, or get another hotside?
04-13-08, 03:49 PM
#15
Turbo replacement:
So over the weekend I've pulled the old turbo out and replaced it with another turbo. Everything went well so far, but I now have to track down a vacuum leak and a very small coolant leak. The coolant drips onto the turbo so I'm fairly confident that its the coolant inlet on the turbo. With the ported wastegate I now see a steady 5psi till redline. Something odd that I've noticed is the 2 extra holes on the exhaust ports. The exhaust housings are from an FD, but I never recalled these extra ports.
Pictures:
Preperations being made:

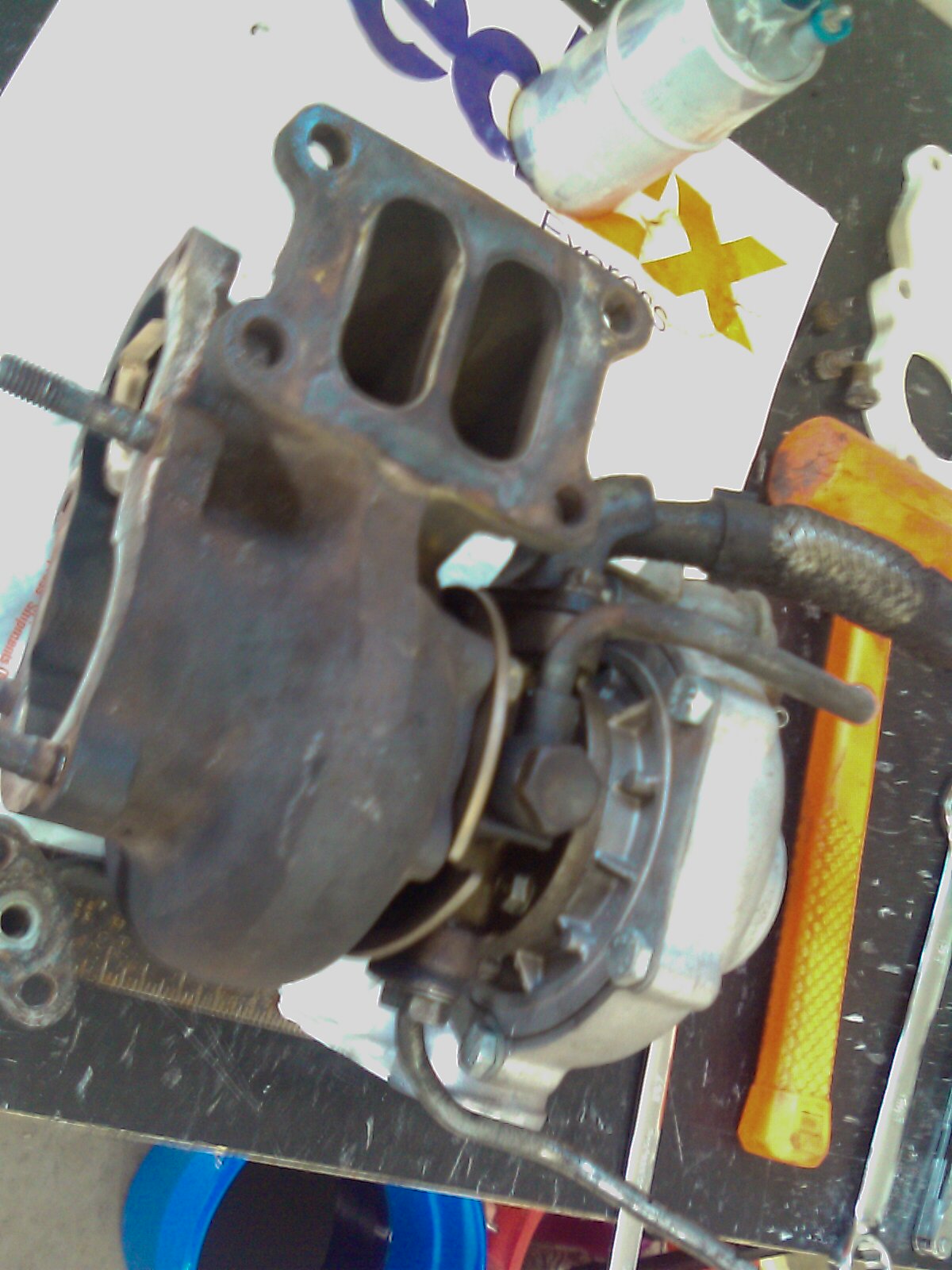

Old turbo is out. Interesting exhaust ports?
Everything is quite dirty...

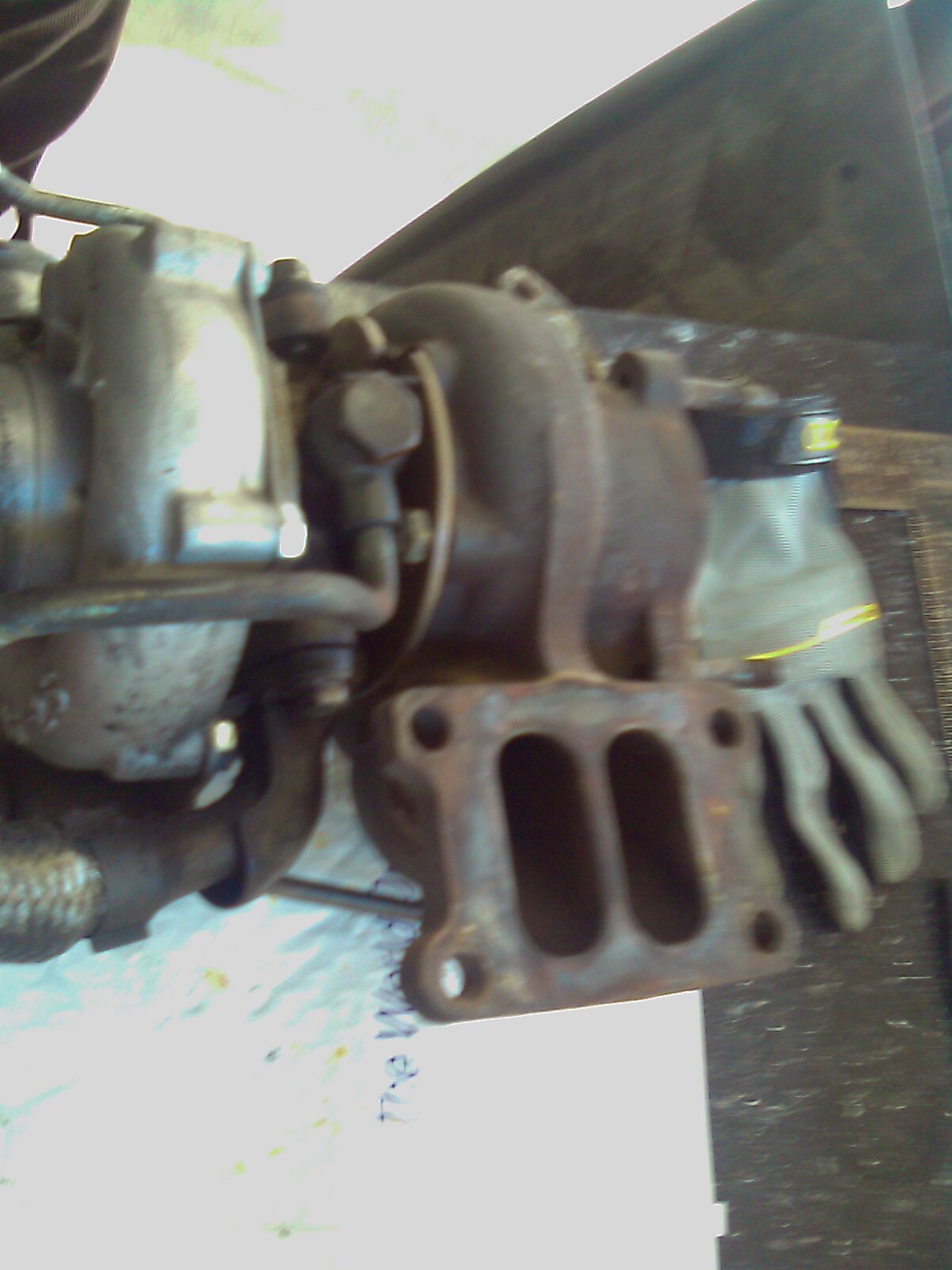

Old Turbo... While at Corksport 3 exhaust blades appeared to be missing, but alas, all are there. Not in the best of shape though...
