Passing WA Emissions?
#1
Junior Member
Thread Starter
Join Date: Apr 2005
Location: Seattle, WA
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Passing WA Emissions?
It is the end of August, and my tabs will expire tomorrow, I have taken my car through emissions twice, and failed both times.
1985 Mazda Rx7 GS
1.1L Carberated Rotary
Stock Exhaust
215420 Miles
The first time i took my car to emissions I passed everything but the IDLE Hydrocarbon. (Too Much Fuel)
The second time, i failed all my tests and the results are:
HC (PPM), CO (%), CO+CO2 (%), 02 (%)
Cruise Limit: 180, 1.3, 6, N/A
Cruise Emisssions: 283, 2.34, 15.04, 1.33
Idle Limit: 220, 1.2, 6, N/A
Idle Emissions: 414, 1.33, 10.83, 6.69
Odd thing while I was testing at cruise of 25mph, in second gear, my tach was reading 3500rpm, but their machine reported 1110rpm
And at idle, they couldn't get a proper reading it bounced from 950, to 1500+, my tach was reading 900-1000rpm
I know that my two pre-cats, are burnt away, and I have 50% left of my monolithic.
I have replaced my spark plugs, my secondary's had bad deposits on them, I have MSD Blaster Ignition Coils, and I am running a stock exhaust, that i am pretty sure is partially clogged, and causing excess restriction in my exhaust.
It sounds like my car is having misfiring, because i hear put put put from my exhaust, and it just might be because of the restriction in my exhaust. I adjusted the timing, and tried adjusting the fuel/air mixture screw, but I can't seem to find a good balance between lean, and rich.
I have enlarged the hole for the air supply that feeds the catylitic converter.
I am reaching out for help, any advice would be greatly appreciated, I would also like to possibly meet up with some experianced rotory heads, to get my car emissions worthy. As compensation for anyone who can help me with this in person, i'll treat you to some beer, and a BBQ.
Thanks you for your help, and your time,
Signed,
Anthony S. ***
P.S. I live in Northgate, Seattle.
1985 Mazda Rx7 GS
1.1L Carberated Rotary
Stock Exhaust
215420 Miles
The first time i took my car to emissions I passed everything but the IDLE Hydrocarbon. (Too Much Fuel)
The second time, i failed all my tests and the results are:
HC (PPM), CO (%), CO+CO2 (%), 02 (%)
Cruise Limit: 180, 1.3, 6, N/A
Cruise Emisssions: 283, 2.34, 15.04, 1.33
Idle Limit: 220, 1.2, 6, N/A
Idle Emissions: 414, 1.33, 10.83, 6.69
Odd thing while I was testing at cruise of 25mph, in second gear, my tach was reading 3500rpm, but their machine reported 1110rpm
And at idle, they couldn't get a proper reading it bounced from 950, to 1500+, my tach was reading 900-1000rpm
I know that my two pre-cats, are burnt away, and I have 50% left of my monolithic.
I have replaced my spark plugs, my secondary's had bad deposits on them, I have MSD Blaster Ignition Coils, and I am running a stock exhaust, that i am pretty sure is partially clogged, and causing excess restriction in my exhaust.
It sounds like my car is having misfiring, because i hear put put put from my exhaust, and it just might be because of the restriction in my exhaust. I adjusted the timing, and tried adjusting the fuel/air mixture screw, but I can't seem to find a good balance between lean, and rich.
I have enlarged the hole for the air supply that feeds the catylitic converter.
I am reaching out for help, any advice would be greatly appreciated, I would also like to possibly meet up with some experianced rotory heads, to get my car emissions worthy. As compensation for anyone who can help me with this in person, i'll treat you to some beer, and a BBQ.
Thanks you for your help, and your time,
Signed,
Anthony S. ***
P.S. I live in Northgate, Seattle.
#3
Junior Member
Thread Starter
Join Date: Apr 2005
Location: Seattle, WA
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by hammmy
Bad trailing ignition? That's what the erratic tach brings to mind.
#4
unregistered rex offender
Join Date: Oct 2003
Location: Spokane, Washington
Posts: 1,644
Likes: 0
Received 0 Likes
on
0 Posts
It's a great big vaccume leak on the back of your intake manifold. It's a big hose that comes off the intake, on the back, and goes to the back of the block, right above the exhaust manifold. It's probobly got a big crack in it from the heat.
#5
Senior Member
Join Date: Jun 2004
Location: Puyallup Washington
Posts: 485
Likes: 0
Received 0 Likes
on
0 Posts
just take it out to ENumclaw they dont give a **** about restrictions there no matter where you be from
if they ask jsut tell them your friend threw a huge bash and yuor tabs are expiring today so you thought you stop in on your way home and they will give them too you
its what i did anyway but i live a little closer thatn you do to Enumclaw
if they ask jsut tell them your friend threw a huge bash and yuor tabs are expiring today so you thought you stop in on your way home and they will give them too you
its what i did anyway but i live a little closer thatn you do to Enumclaw
#6
Junior Member
Thread Starter
Join Date: Apr 2005
Location: Seattle, WA
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by bstrange99
It's a great big vaccume leak on the back of your intake manifold. It's a big hose that comes off the intake, on the back, and goes to the back of the block, right above the exhaust manifold. It's probobly got a big crack in it from the heat.

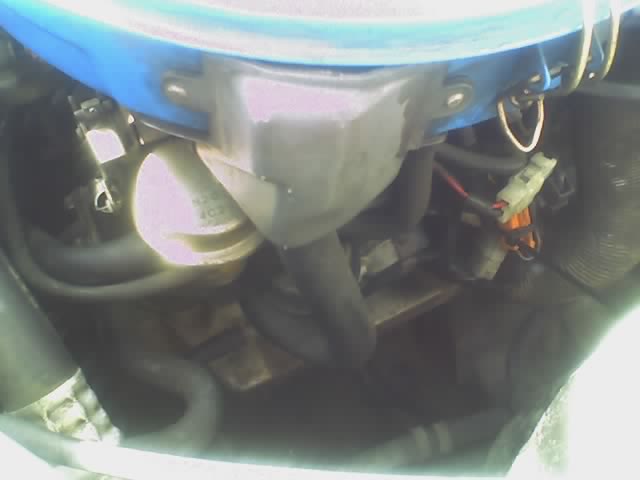

The only hose that seems to be loose at all is the one coming off the front of my air intake in picture 1. The other vacuum hoses seem to be intact!
Trending Topics
#10
unregistered rex offender
Join Date: Oct 2003
Location: Spokane, Washington
Posts: 1,644
Likes: 0
Received 0 Likes
on
0 Posts

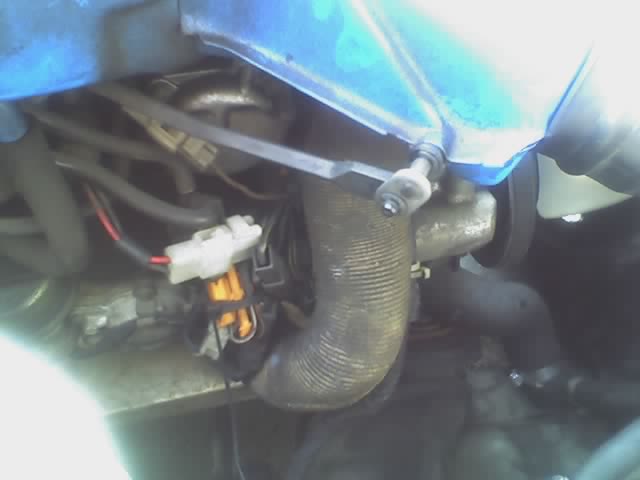

I'm talking about the hose I've outlined in red. Remove it, and check the elbow on the bottom side of it. If there is a crack in it, it will cause the car to act like you've described.
#11
Junior Member
Thread Starter
Join Date: Apr 2005
Location: Seattle, WA
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Alright, I yanked the vaccuum hose you outlined, and there is no crack in it.
Should i just completely bypass everything and hook my airpump directly into my catylitic converter, or should i just remove the pressed cardboard wafer thing, that comes off the back of the intake, while i do emissions? And if i hook my airpump directly into my cat, what should i do about intake inlet and outlet i've bypassed?
Should i just completely bypass everything and hook my airpump directly into my catylitic converter, or should i just remove the pressed cardboard wafer thing, that comes off the back of the intake, while i do emissions? And if i hook my airpump directly into my cat, what should i do about intake inlet and outlet i've bypassed?
#14
Full Member
Join Date: Jul 2004
Location: Washington
Posts: 139
Likes: 0
Received 0 Likes
on
0 Posts
spend the $35.00/ year for a po box outside the emissions testing area, and spend the money you were going to put toward a new smog pump/diagonosing the reason you were failing --into mods .
#15
Senior Member
Join Date: Jun 2004
Location: Puyallup Washington
Posts: 485
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by angelck022
spend the $35.00/ year for a po box outside the emissions testing area, and spend the money you were going to put toward a new smog pump/diagonosing the reason you were failing --into mods .
tehy have been cracking down on that
at least thats what i heard
