Humboldtrx7

I got my rx7 with no cat on it. Now I have the cat for it.... But theres like a valve that comes off of the cat that looks like it attaches to something... What that something is I dont know so that is my question??? Is it egr or something? I need it to pass smog or I wouldnt even put it back on. Any help is appriciated thanks guys. Im a noob.. Sorry lol.

83Limited

Need to know what year car it is to help ya out....sounds like the flanged tube that runs to the air pump....

Jeff5808

iTrader: (7)

Your profile says 88 rx7. I have a 3rd gen, and it has a pipe that comes off the cat and goes to the air pump. I dont know if the 2nd gen is the same, but if it is and you dont have an air pump you can cap it off/weld it closed.

fcs4manila

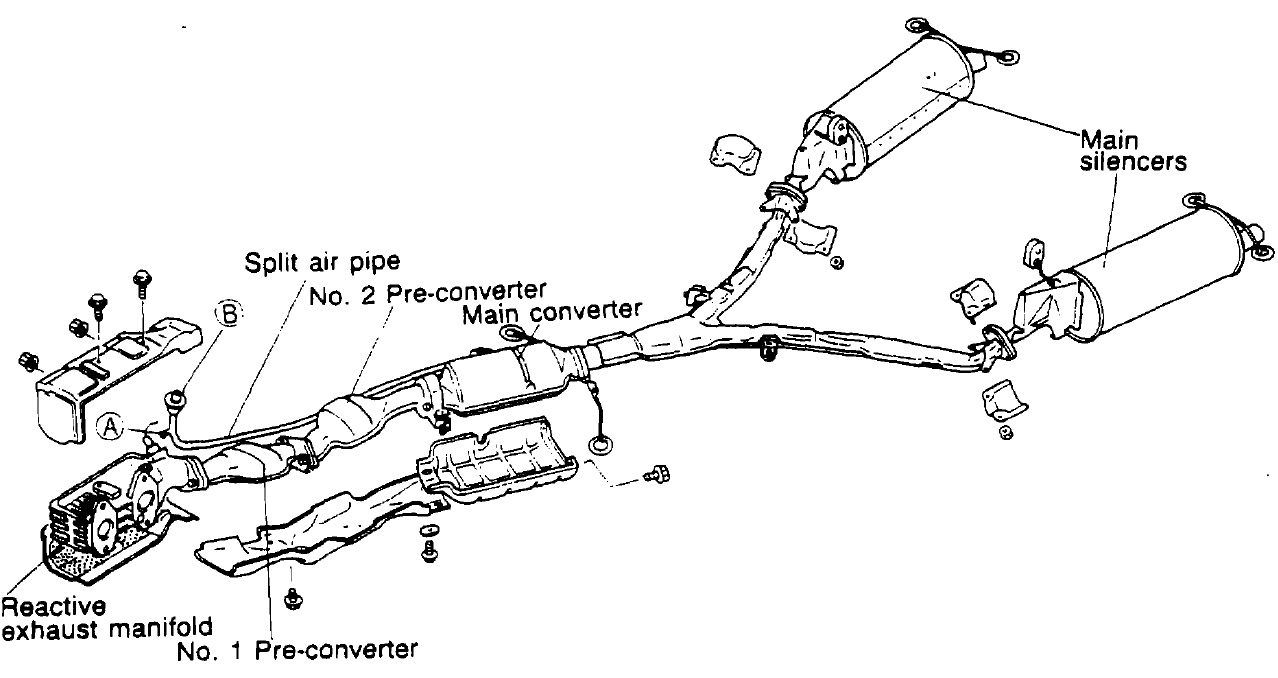

It's the split air pipe. It connects to the lower intake manifold. Air from the airpump goes to the cat to clean up the emissions a bit.

Humboldtrx7

Its an 88 gxl. Soo for it to pass smog in cali could I just block it or do I need to get a part? if so what is it? An where could I buy it at?

ace626

iTrader: (2)

You'll need that pipe to activate your 5/6 aux ports. You could probably pass the smog test since from my understanding the split air pipe only delivers extra air when you're in 5th gear. The port air from the air control valve supplies most of the air needed to clean up emissions. If the smog tech sees it missing you could fail the visual inspection.

RXSpeed16

iTrader: (41)

It could pass the sniffer test, but not a full visual. It's a metal tube tube that goes to a check valve connected to the lower intake manifold. The barb below the check valve feeds the auxiliary ports. Fabricating it is too much work, so just buy one off someone parting out a car or someone that doesn't live in california.

Humboldtrx7

They dont really do a visual. So if I dont have it on there I should b able to pass still? Numbers wise

Humboldtrx7

Like if I just block that off, can I still pass numbers wise?

amiralawi

Probably not. My FC tends to run a little rich, and without the extra air in the cat the extra gasoline won't get burned off.

Humboldtrx7

****. No idea what im gonna do then

RXSpeed16

iTrader: (41)

^I don't know how else to say it. It can pass. The blockoff on the manifold side will not be very visible, but a capped air feed tube on the cat is a big red flag.

amiralawi

If you can get it past the visual inspection, then you might try draining the fuel tank and filling it up with a gallon of E85. Once your smog test is over, race your car over to the nearest gas station and fill it up with real gasoline.

Humboldtrx7

Whats e85? And they dont even look at ur **** here they just hook it up and either u pass or dont

RXSpeed16

iTrader: (41)

E85 is an 85% ethanol, 15% gas blend. He is mentioning something similar to the denatured alcohol trick for passing the sniffer test. Take a look at the 2nd generation FAQ thread , there is a whole section about emissions. If you're not worried about the visual, just run it and see what happens.

Humboldtrx7

Where can I buy that at?
