Some help please.
10-04-16, 03:56 PM
#1
Junior Member
Thread Starter
Join Date: Jan 2007
Location: Calgary, Alberta, Canada
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Some help please.
So I'm doing a rebuild/upgrade on a low km JDM convertible. I purchased the throttle body from Rotary works and have installed it. Here is my issue, it requires the TPS but there is no way that I can see the one from the car fitting. On the rotary works website it appears to be a fd sensor. Thanks for the help.
10-04-16, 04:10 PM
#2
the tps pictured on the rw website isnt from an fd..... i can tell you that much. the fd tps plug is a little more round than the one pictured. whats the fitment issue youre having? can you post some pictures?
Last edited by cr-rex; 10-04-16 at 04:15 PM.
10-04-16, 06:01 PM
#3
Junior Member
Thread Starter
Join Date: Jan 2007
Location: Calgary, Alberta, Canada
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts

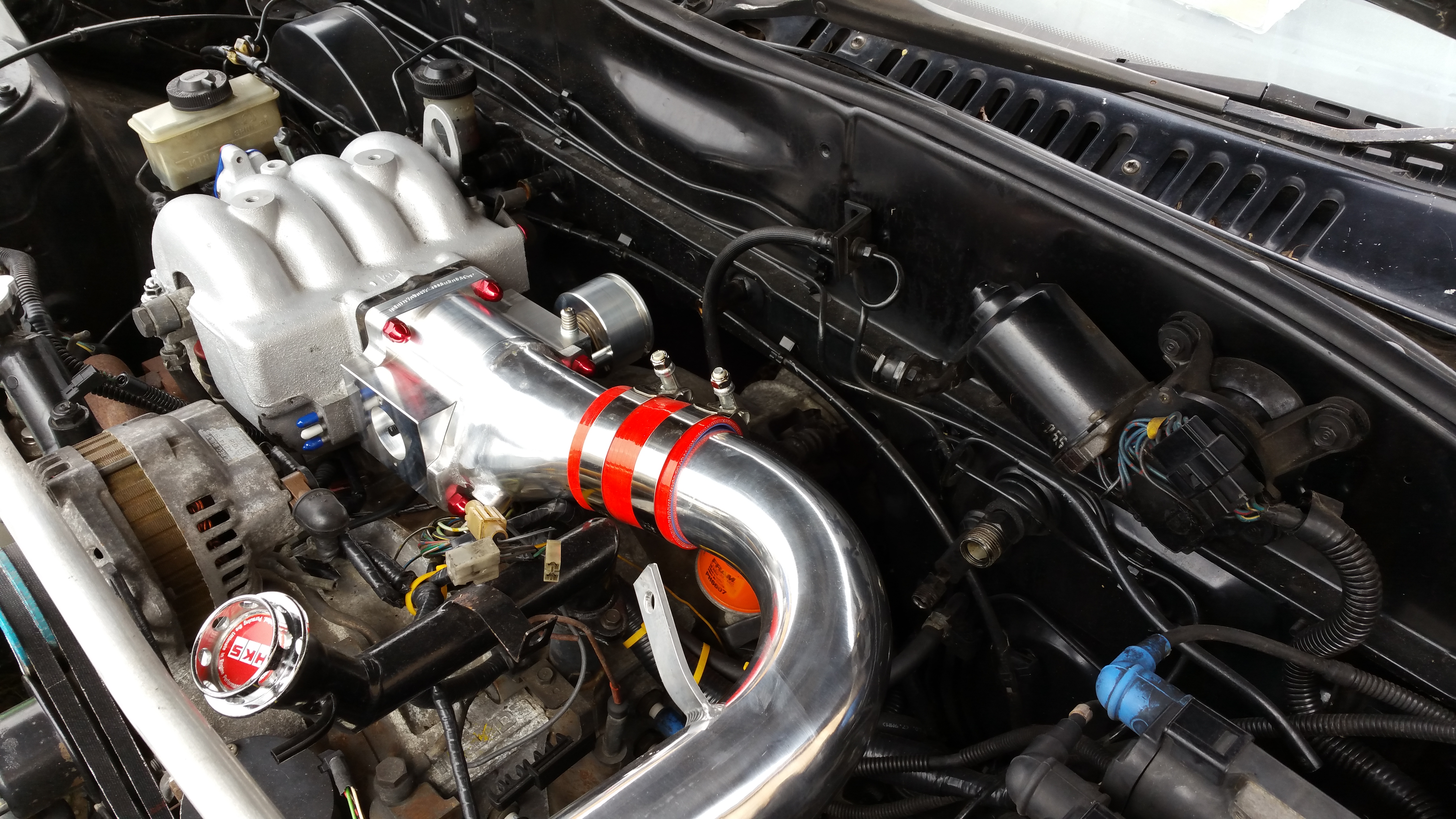

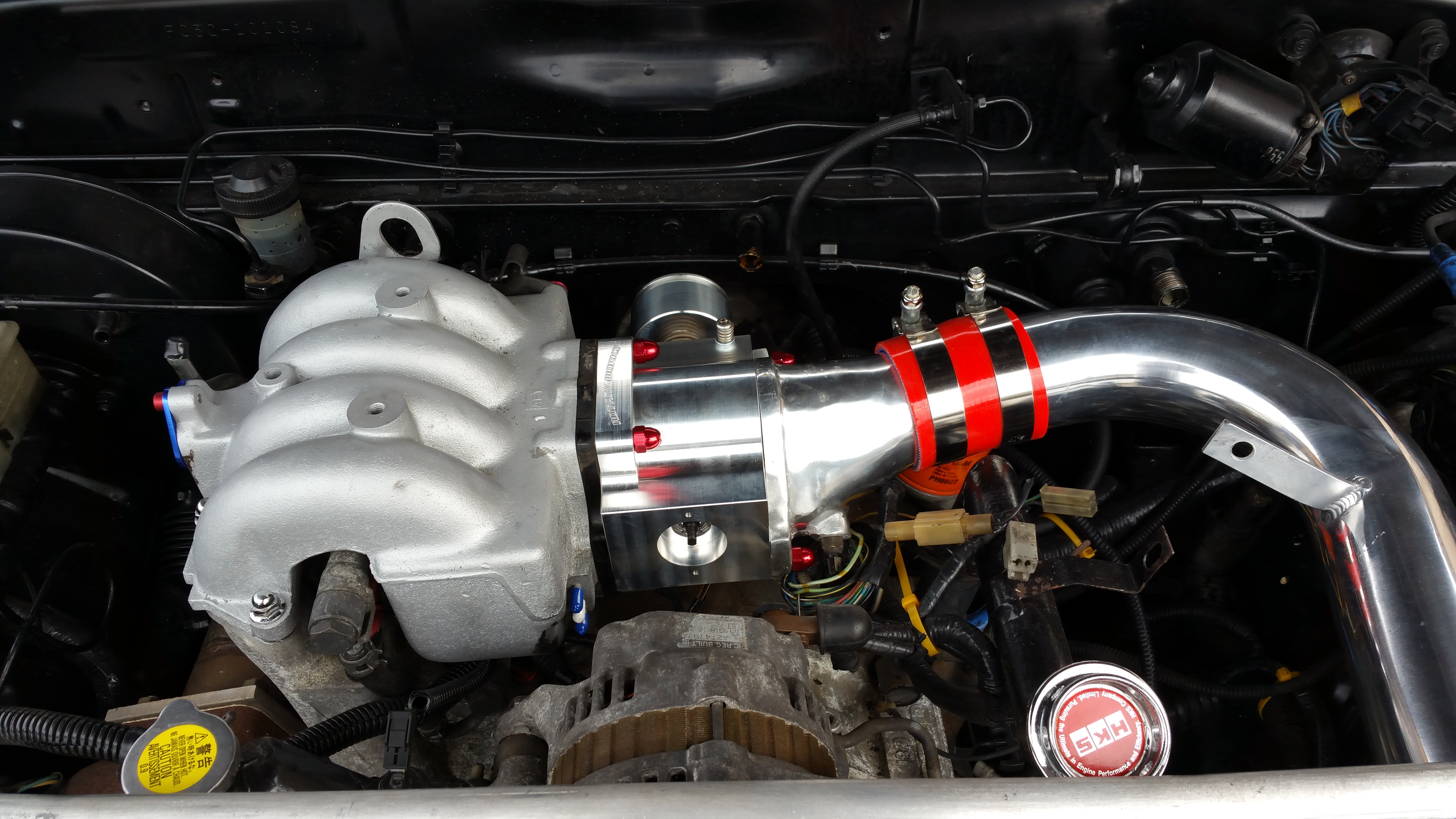

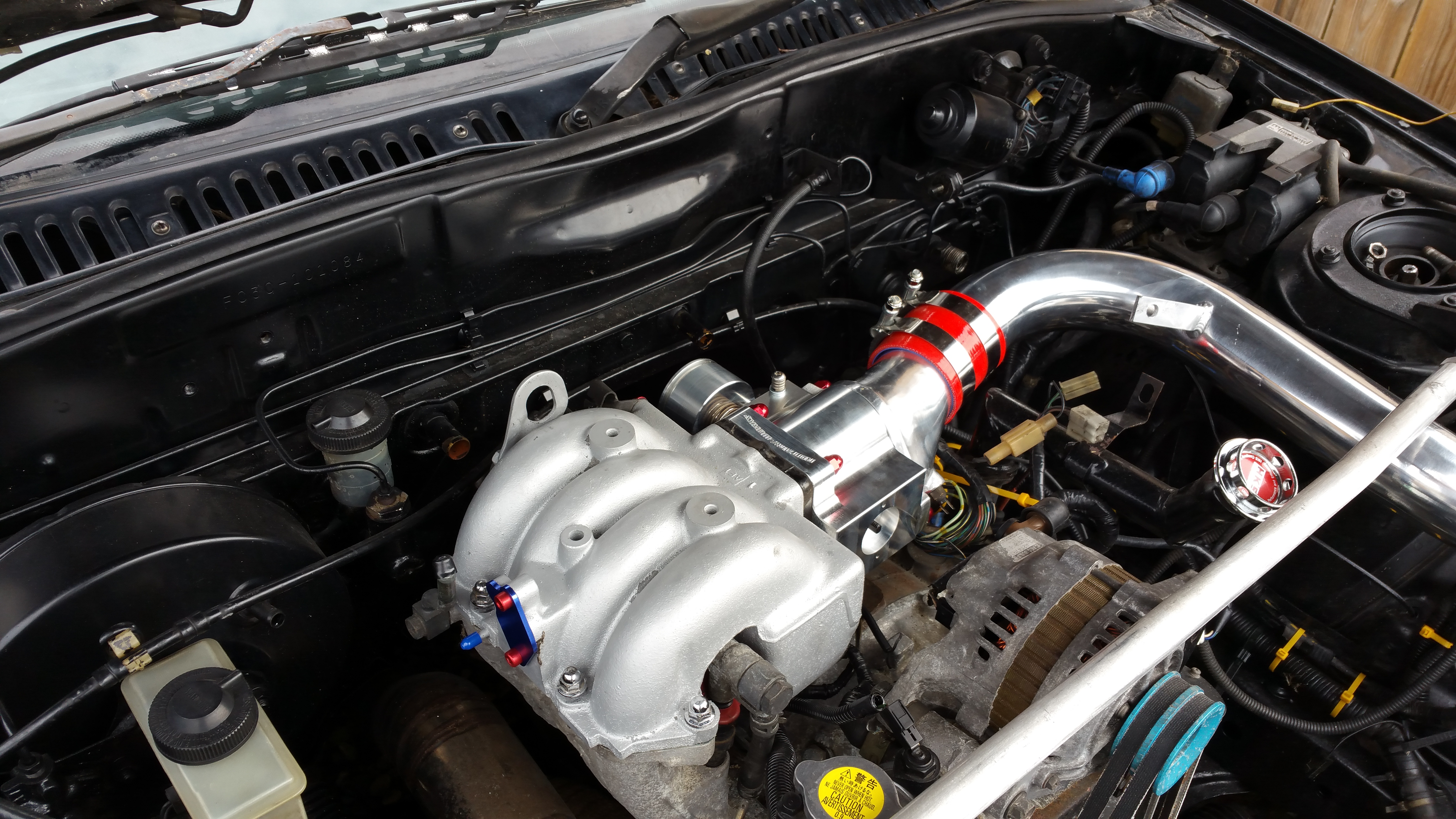

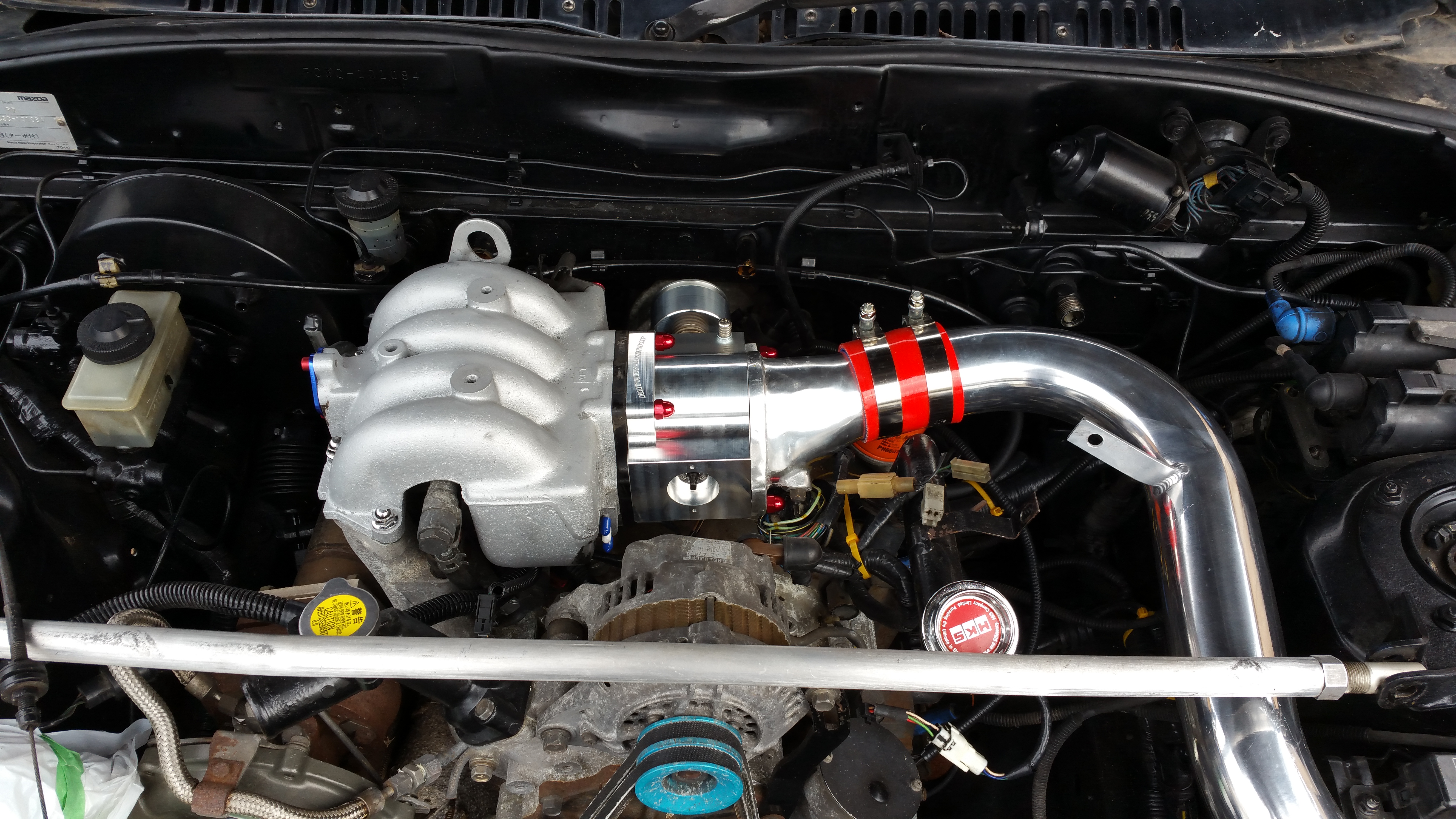

The throttle position sensor is totally different. As you can see from the old unit it's an external unit. The new throttle body has a short shafts.
10-04-16, 06:03 PM
#4
Junior Member
Thread Starter
Join Date: Jan 2007
Location: Calgary, Alberta, Canada
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
[QUOTE=88 REW;12112427]The throttle position sensor is totally different. As you can see from the old unit it's an external unit. The new throttle body has a short shafts.[/QUOT

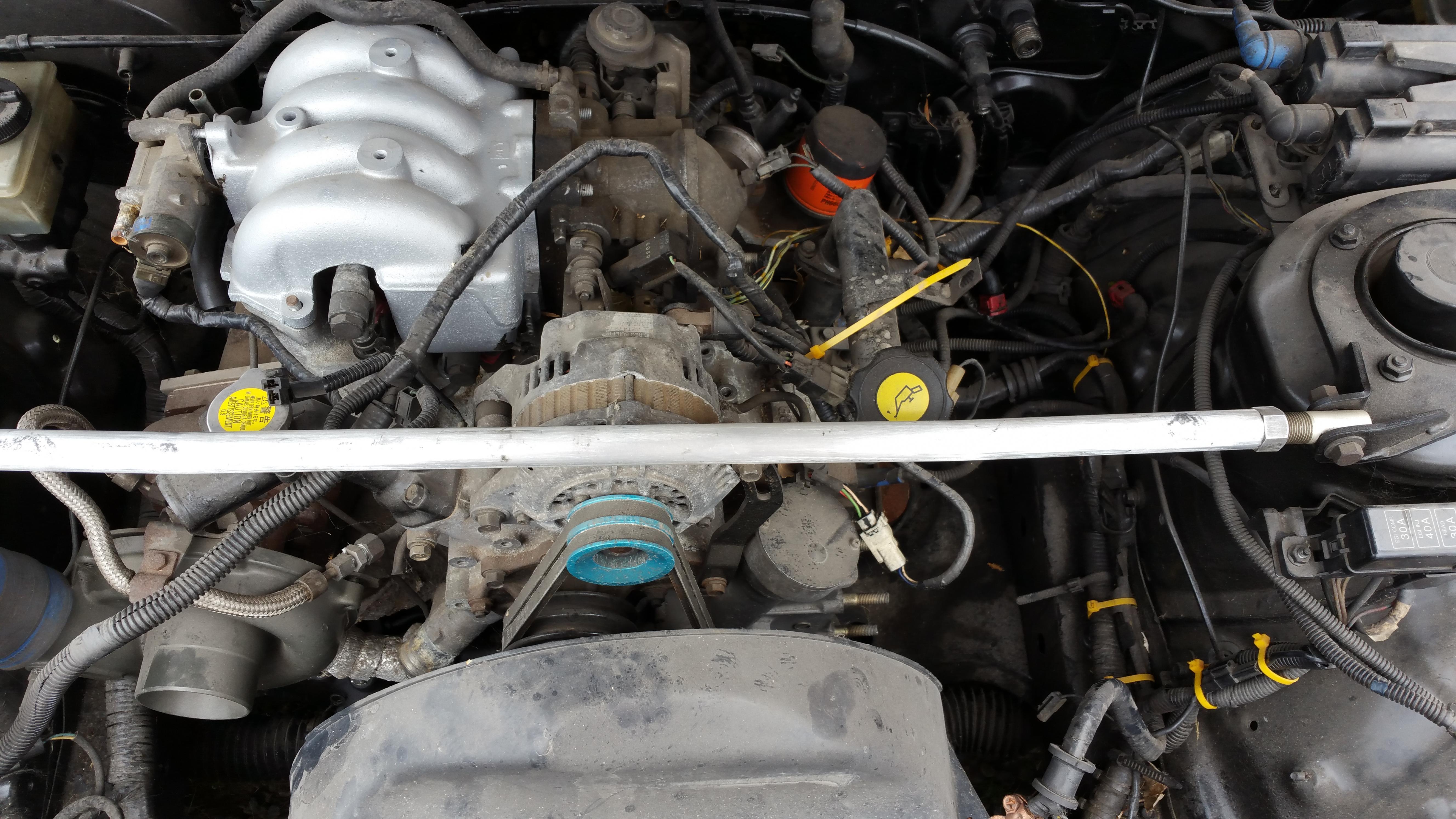

Old unit
Old unit
10-04-16, 06:14 PM
#5
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
That throttle body needs a butterfly that is on the end of an old FD throttle body.On the old FD TB shaft that hits the TPS.
Then you can put an FD TPS On the new RW throttle body.
Then you can put an FD TPS On the new RW throttle body.
10-06-16, 01:24 PM
#6
Junior Member
Thread Starter
Join Date: Jan 2007
Location: Calgary, Alberta, Canada
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
10-07-16, 01:17 AM
#7
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
..and another tip is that you can run the FD TPS on an S4 Harness if you change the wiring by creating a patch harness between the FD TPS and the S4 TPS connector on the Harness.
You can find the Pin out info of the FD TPS in the Haltech section and then look up the S4 TPS Pin out.
You can find the Pin out info of the FD TPS in the Haltech section and then look up the S4 TPS Pin out.
