sloppy shifter..

Thread Tools

Search this Thread

Old Jun 9, 2010 | 09:12 AM
  #1
rx421's Avatar
Thread Starter
Junior Member
iTrader: (1)

Joined: May 2010
Posts: 15
Likes: 0
From: McAllen,Tx
sloppy shifter..

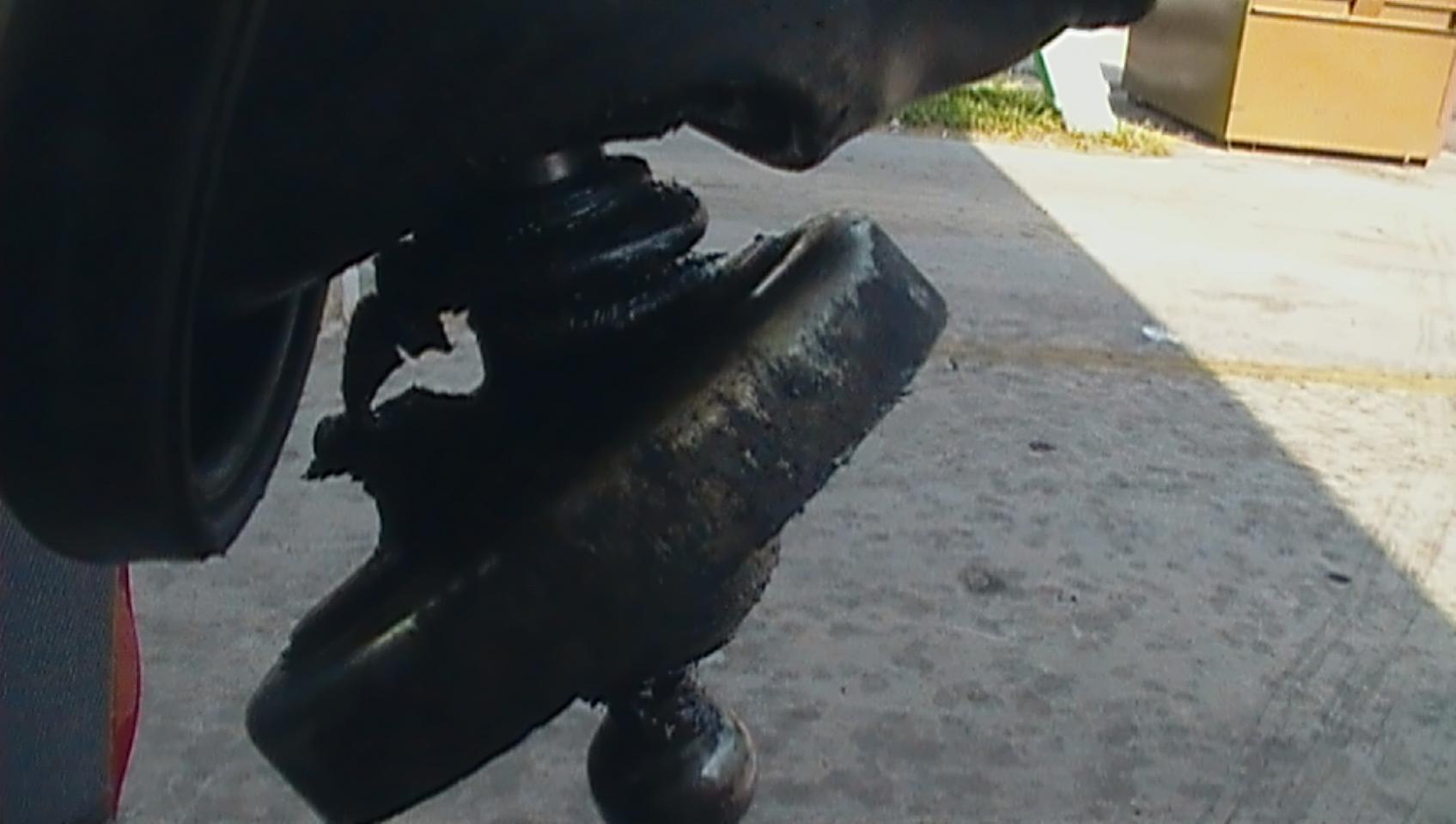

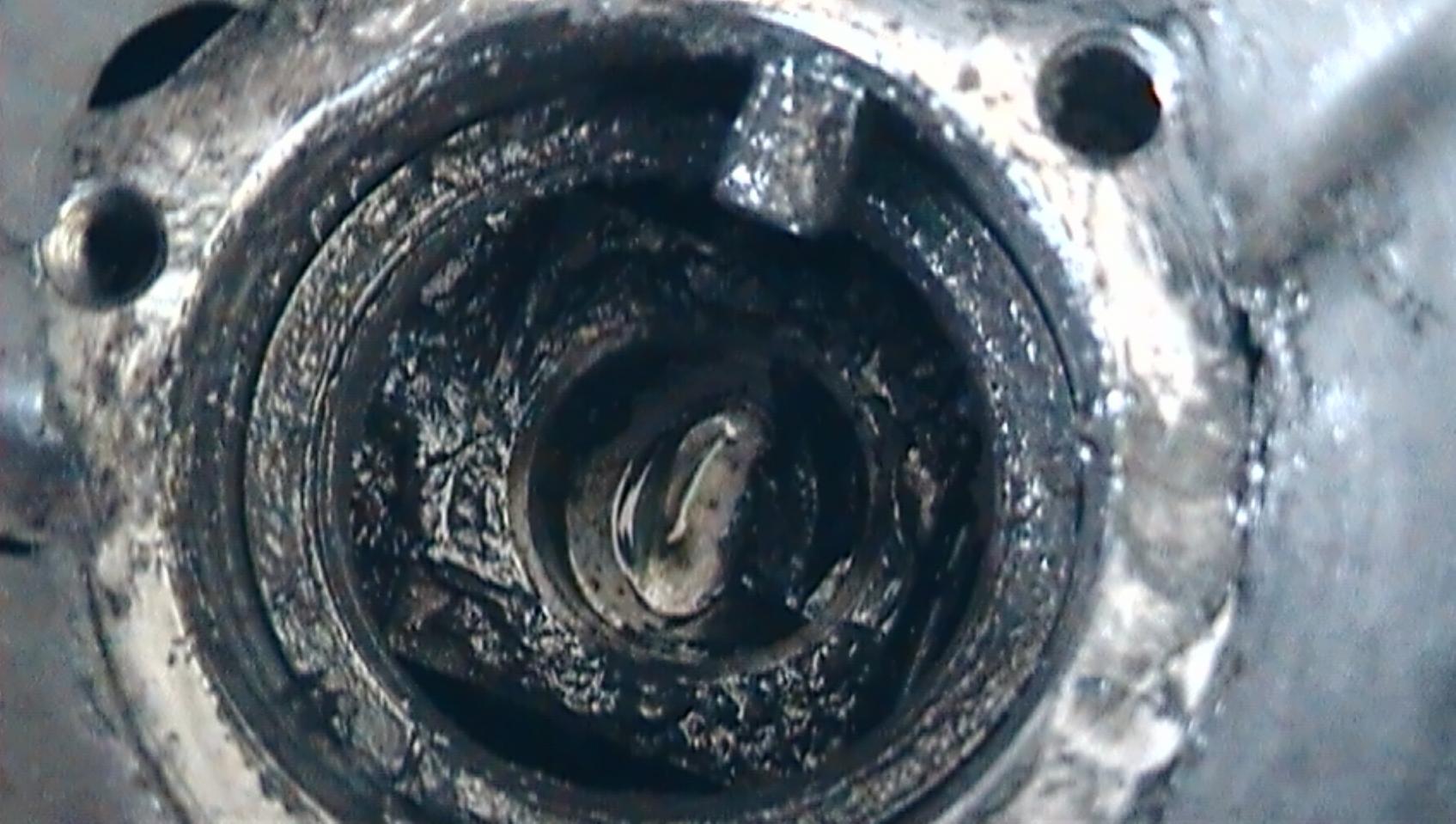

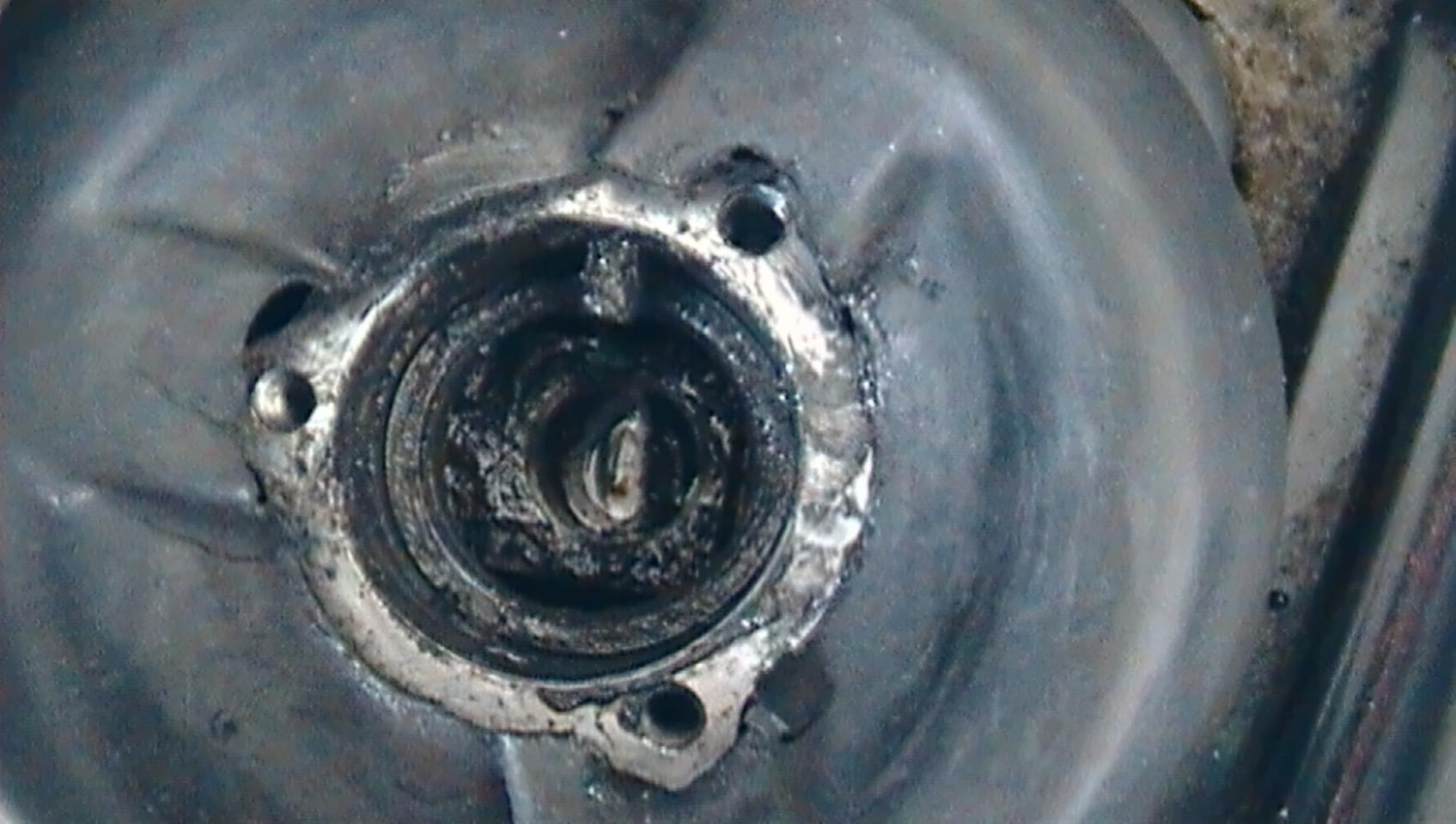

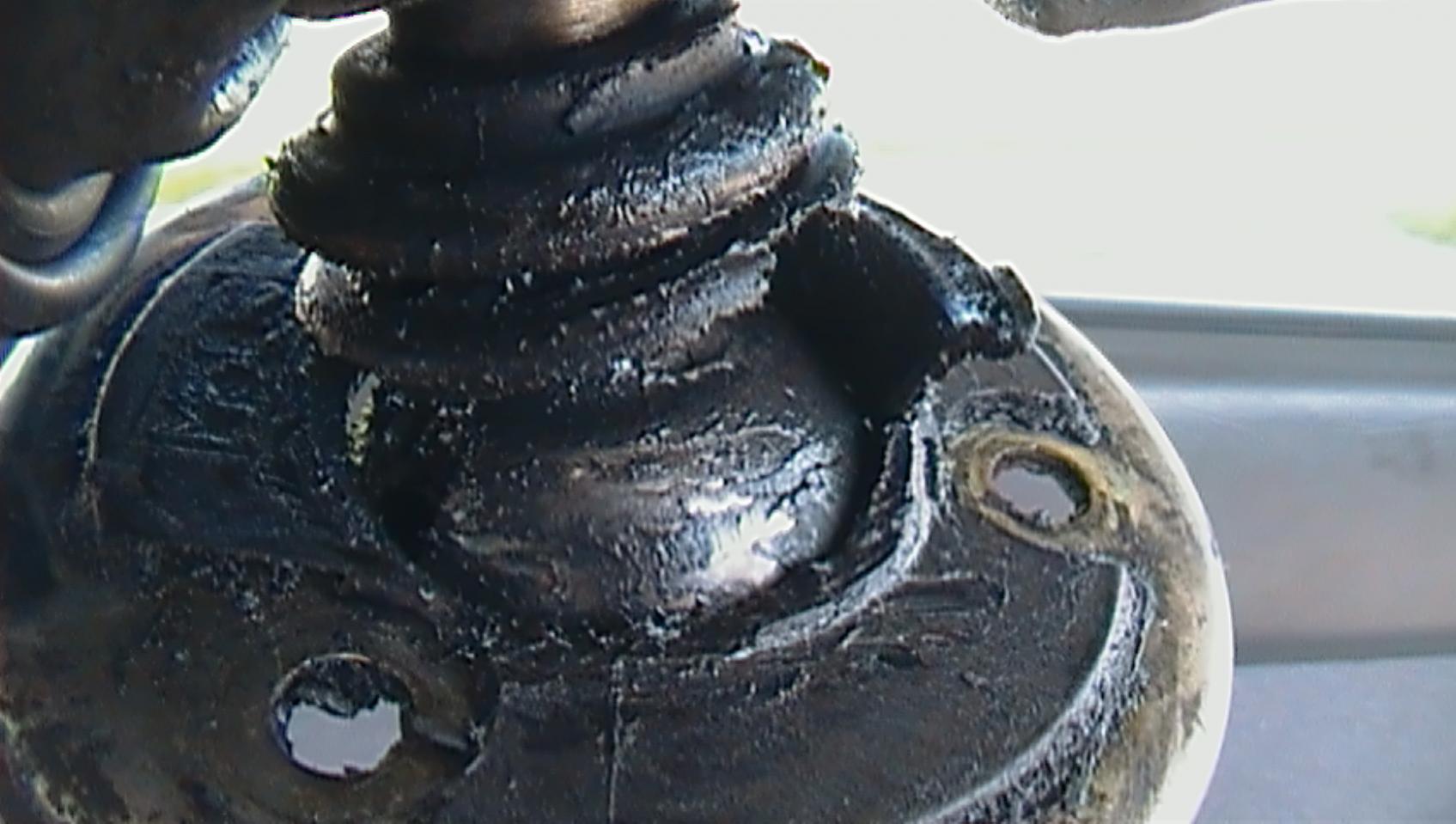

my shifter felt sloppy. I took out the shifter and there was a piece ripped. I just didnt know what part it is. So i dont know what to look for..My shifter was loose. i could move it up and down..
Attached Thumbnails sloppy shifter..-sam_0006.jpg   sloppy shifter..-sam_0007.jpg   sloppy shifter..-sam_0008.jpg   sloppy shifter..-sam_0009.jpg
Reply
Old Jun 9, 2010 | 01:58 PM
  #2
RotaryRocket88's Avatar
Top Down, Boost Up
Tenured Member 10 Years
iTrader: (7)

Joined: Mar 2008
Posts: 8,718
Likes: 6
From: San Diego, CA
The part that is ripped is the inner shifter boot. But it also looks like you're missing both the upper and lower bushings. The bushings cup the "ball" on the shifter, and have small flat springs that press against the underside of the inner boot & the socket in the transmission extension housing.

Mazdatrix carries all 3 of these: http://www.mazdatrix.com/g4.htm

Inner Boot: http://www.mazdatrix.com/getprice.as...m=17-480A-M513
Upper Bushing: http://www.mazdatrix.com/getprice.as...m=17-481A-M508
Lower Bushing: http://www.mazdatrix.com/getprice.as...m=17-4810-M501
Reply
Old Jun 9, 2010 | 02:05 PM
  #3
rx7421's Avatar
Can Post Only in New Member Section

Joined: Jun 2010
Posts: 2
Likes: 0
thats alot...i wasnt sure what i was looking at
Reply
Old Jun 9, 2010 | 02:08 PM
  #4
rx7421's Avatar
Can Post Only in New Member Section

Joined: Jun 2010
Posts: 2
Likes: 0
this wouldnt have anything to do with my clutch?
Reply
Old Jun 9, 2010 | 04:10 PM
  #5
Go48's Avatar
Rotary Freak
Tenured Member 15 Years
iTrader: (7)

Joined: Feb 2005
Posts: 1,608
Likes: 3
From: Mont Alto, PA
No.
Reply
Old Jun 9, 2010 | 07:49 PM
  #6
bostonspgs's Avatar
Boston Acoustics SPG555's
iTrader: (1)

Joined: Oct 2009
Posts: 477
Likes: 0
From: Florida
common wear and tear almost normal as mazdatrix puts it
when you replace all the boots and bushings make sure you drain all that gunk out through the side access plate. spray it clean with brakeleen and replace with 90w gear or rear end oil .you will notice how smooth it is if you do

Last edited by bostonspgs; Jun 9, 2010 at 07:52 PM.
Reply
Old Jun 9, 2010 | 08:02 PM
  #7
rx421's Avatar
Thread Starter
Junior Member
iTrader: (1)

Joined: May 2010
Posts: 15
Likes: 0
From: McAllen,Tx
alright will do!
