S5 Tail Light Gasket #?
01-12-09, 01:23 AM
#1
15U24
Thread Starter
Join Date: Jan 2008
Location: Diamond Head, Hawaii
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts
S5 Tail Light Gasket #?
Can anyone help me out?
I need to order new Tail light gaskets but i don't know the part numbers. I tried to look it up but couldn't find it at all. thanks
I need to order new Tail light gaskets but i don't know the part numbers. I tried to look it up but couldn't find it at all. thanks
01-12-09, 05:53 PM
#3
Former Moderator. RIP Icemark.
I am assuming you have a coupe, and not a convertible...
The Taillight gasket P/N for all FC's is FB01-51-156
The license plate light gasket P/N is FB01-51-157
You need two of each to replace the gaskets on all the rear coupe lights.
The Taillight gasket P/N for all FC's is FB01-51-156
The license plate light gasket P/N is FB01-51-157
You need two of each to replace the gaskets on all the rear coupe lights.
01-12-09, 06:00 PM
#4

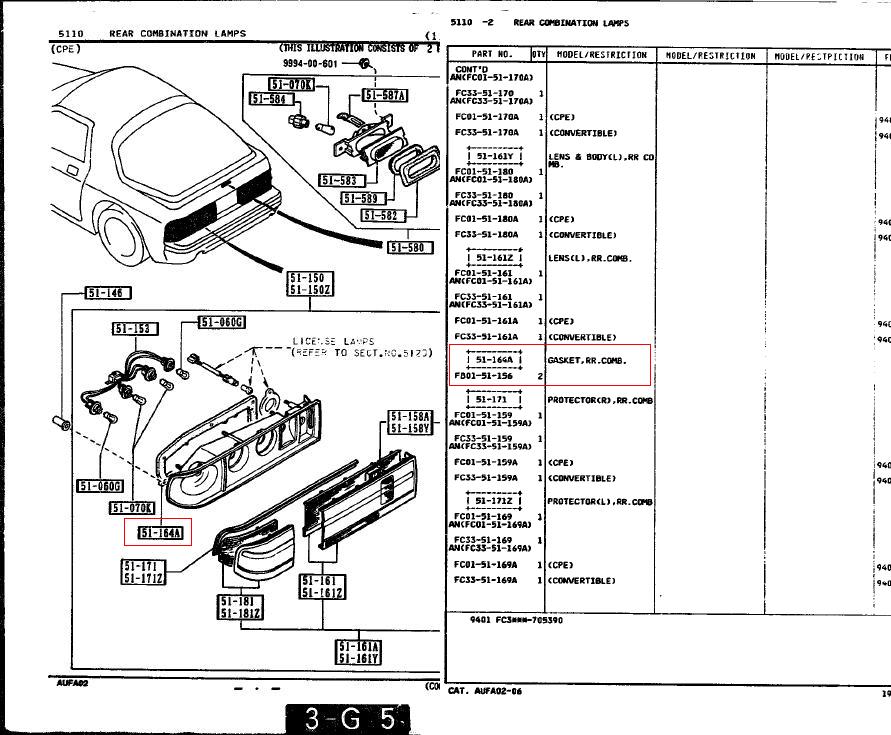

RX7 parts fiche: http://www.rotaryheads.com/PDF/2nd_gen/index.html
Picture is attached. It's in the "Body" section. (note: 2 pages overlapped)
Picture is attached. It's in the "Body" section. (note: 2 pages overlapped)
01-13-09, 08:08 PM
#5
15U24
Thread Starter
Join Date: Jan 2008
Location: Diamond Head, Hawaii
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts
awesome
thanks. i did look at the fiche's but i really couldn't figure it out. but thanks again!!
another question is.... do you know why the lenses separate? it looks like a common thing with the FC. how can i avoid that? im tired of water entering the housing through the separation.
thanks. i did look at the fiche's but i really couldn't figure it out. but thanks again!!another question is.... do you know why the lenses separate? it looks like a common thing with the FC. how can i avoid that? im tired of water entering the housing through the separation.
01-14-09, 03:47 PM
#6
The lens is held on w/ some epoxy. You can heat the whole tail light assembly in an oven (I think people use around 150-200 degrees?) or with a heat gun / hair dryer, then pry the lens off. While the epoxy is hot, move it around for a better seal, then press the lens back on. This should help reseal it so water stays out.
01-14-09, 06:24 PM
#7
Former Moderator. RIP Icemark.
The lens is held on w/ some epoxy. You can heat the whole tail light assembly in an oven (I think people use around 150-200 degrees?) or with a heat gun / hair dryer, then pry the lens off. While the epoxy is hot, move it around for a better seal, then press the lens back on. This should help reseal it so water stays out.
And if it is leaking, it has been taken apart and not put back together at the right temperature.
Trending Topics
06-17-09, 04:06 AM
#9
Full Member
Join Date: May 2005
Location: East Oregon
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
question, does that p/n apply to verts too?
Yes I realize IceMark (RX-7 Master/God) said all FCs, but he also specified coupe over convertible. So, just looking for clarification.
Yes I realize IceMark (RX-7 Master/God) said all FCs, but he also specified coupe over convertible. So, just looking for clarification.
06-17-09, 11:49 AM
#10
The parts fiche doesn't specify that the PN is for coupe or vert only, and that gasket covers a common area of the two types of lights. They only differ on the inner edge, where the vert lights stop and the coupe lights extend further. I would assume it's the same, but you can look through the fiche yourself too.
