S4 engine into S5?
10-20-12, 05:00 PM
#1
Junior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2012
Location: Sand
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
S4 engine into S5?
Well just bought an S5 RX-7 that was victim of engine fire. I got a spare S4 motor with it, and full harness too.
Question is, if I have the full harness and ecu, will this be plug and play?
I'm guessing not since maybe cluster and all that stuff use the S5 harness.
The S5 harness melted by the way.
Question is, if I have the full harness and ecu, will this be plug and play?
I'm guessing not since maybe cluster and all that stuff use the S5 harness.
The S5 harness melted by the way.
Last edited by misterstyx69; 10-20-12 at 10:36 PM.
10-21-12, 09:45 AM
#2
Harnesses are different so are all the electronics.
Many things are different and will need to be changed to adapt, but it is possible though not recommended..
The very best would be putting an s5 engine into an s4.
You'll be losing power by putting in the earlier engine since its not designed for the same ignition and fuel maps, s4 redline in na is 7000-8000rpm, s5 is 8000-8600rpm.
S4 has different intake manifolds (no variable dynamic intake), mechanical oil metering pump(rather than electronic), lower compression, heavier rotors, etc.
Many things are different and will need to be changed to adapt, but it is possible though not recommended..
The very best would be putting an s5 engine into an s4.
You'll be losing power by putting in the earlier engine since its not designed for the same ignition and fuel maps, s4 redline in na is 7000-8000rpm, s5 is 8000-8600rpm.
S4 has different intake manifolds (no variable dynamic intake), mechanical oil metering pump(rather than electronic), lower compression, heavier rotors, etc.
10-21-12, 10:37 AM
#3
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Basically what he said. Finding a new set of used S5 harnesses would be the easiest way to go.
If you do go to S4, then the best way to do this is to simplify the emissions harness to the point where it is totally standalone and requires only 12V and ground to operate. Sort of like if you were installing the engine into another car. But you'll need all S4 engine electronics and you'll need to add the missing parts of the harness to your new emissions harness (coil wiring, CAS, a few other bits). Not really too hard if you can follow the diagrams in the Haynes manual.
If you do go to S4, then the best way to do this is to simplify the emissions harness to the point where it is totally standalone and requires only 12V and ground to operate. Sort of like if you were installing the engine into another car. But you'll need all S4 engine electronics and you'll need to add the missing parts of the harness to your new emissions harness (coil wiring, CAS, a few other bits). Not really too hard if you can follow the diagrams in the Haynes manual.
10-21-12, 10:52 AM
#4
Junior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2012
Location: Sand
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Yes I thought of this overnight and thinking of just getting S5 harness. Will pull motor out and see what's salvageable. Previous owner said it had a streetport.
So I guess I will just sell the S4 engine, too bad because its really a complete motor!
So I guess I will just sell the S4 engine, too bad because its really a complete motor!
10-22-12, 08:14 PM
#5
S5 are a lot harder to find than s4 as well as more expensive(because they're more rare), you should be able to find one around the same price which usually is $400-700 if its running, make SURE the engine you have has been compression tested first. You'll want it to have 90+ psi at least on each face minimum.
10-23-12, 10:28 AM
#6
Junior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2012
Location: Sand
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
S5 are a lot harder to find than s4 as well as more expensive(because they're more rare), you should be able to find one around the same price which usually is $400-700 if its running, make SURE the engine you have has been compression tested first. You'll want it to have 90+ psi at least on each face minimum.
If not, I will just wait and get me t2 motor instead. Not really in a rush, so patience will pay off
Trending Topics
10-23-12, 03:29 PM
#11
Junior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2012
Location: Sand
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
At first I was thinking of rewiring it to an S4 but it will be too much. I will just source S5 parts that need to be replaced, besides the harness.
10-23-12, 03:44 PM
#12
just the front cover has to come off, the engine doesn't need to be disassembled further than that.
working on a series 5 vert with a s4 keg in it at the moment, which incidentally had a bad s4 engine swapped in so just redoing it all the way it was. yes, an s5 keg swap would be best but not always what you're going to find or end up working with.
he could have found a used s5 motor, paid to ship it, rolled the dice and wound up right at square one. sometimes you need to take the economical route that will work even if you take a slight hit to the performance. sometimes this involves working with just what you have and see what the outcome is.
working on a series 5 vert with a s4 keg in it at the moment, which incidentally had a bad s4 engine swapped in so just redoing it all the way it was. yes, an s5 keg swap would be best but not always what you're going to find or end up working with.
he could have found a used s5 motor, paid to ship it, rolled the dice and wound up right at square one. sometimes you need to take the economical route that will work even if you take a slight hit to the performance. sometimes this involves working with just what you have and see what the outcome is.
Last edited by RotaryEvolution; 10-23-12 at 03:48 PM.
10-23-12, 04:03 PM
#14

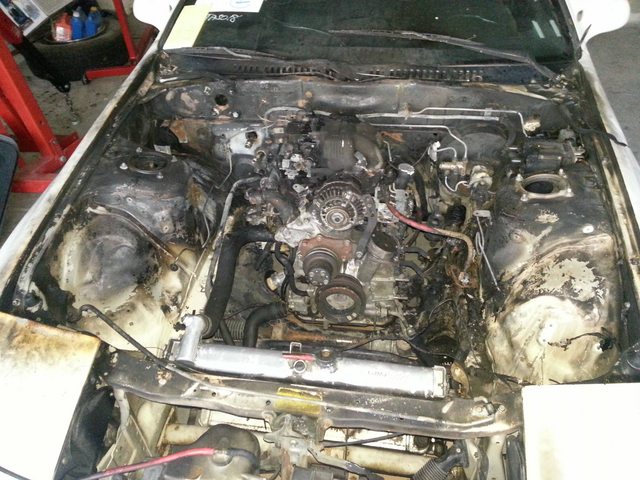

looking at that bay i am willing to bet the engine isn't worth even trying to turn over. it may be rebuildable but even that is questionable. the top of the engine likely saw temps as high as 400F, which will compromise most of the seals inside the engine.
10-23-12, 05:21 PM
#15
Junior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2012
Location: Sand
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Also, apparentely in order to transfer a title in AZ now, you have to have registration. So originally I wasn't planning on passing emissions, so now I have to take that into consideration.
Hopefully motor comes out this weekend and I can really see what I'll be doing
