RX7 FD lights
#1
Can Post Only in New Member Section
Thread Starter
RX7 FD lights
Hello!

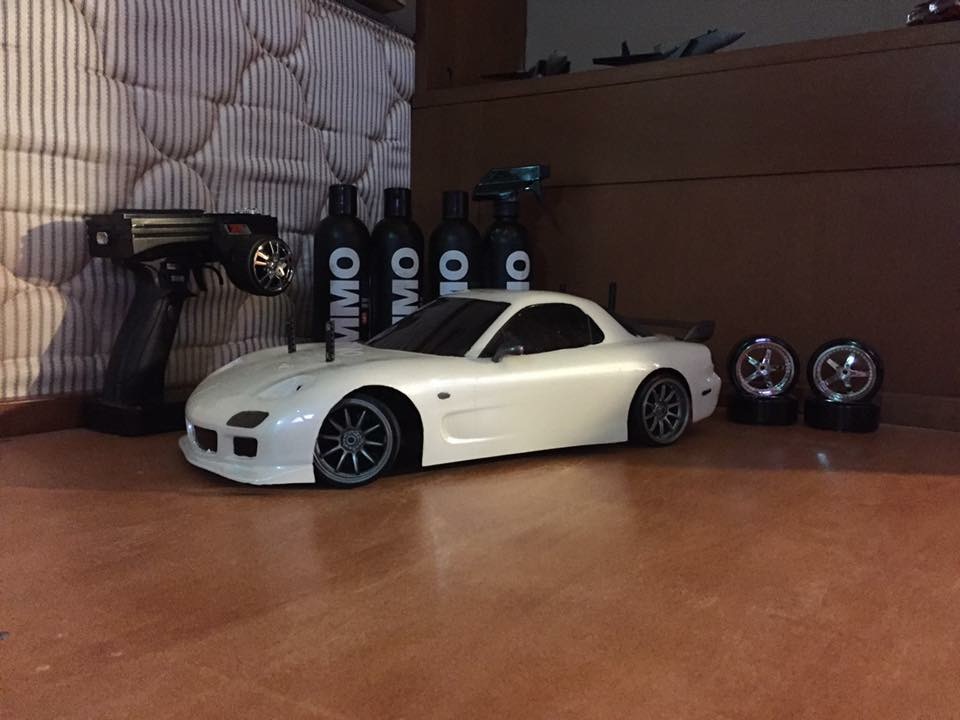

Sadly, I'm too young&poor for real RX7, so I am making an RC drift 1:10 RX7 FD '95 model and I am modding a body for it.I will make a fully functional lights and I wonder - which lights are which? It's kinda hard to find any info about it :\It would be super nice if somebody could attach an image with labels, like, these are high beam lights, these are fog lights, reverse is only one or two and so on.Thanks in advance!
Sadly, I'm too young&poor for real RX7, so I am making an RC drift 1:10 RX7 FD '95 model and I am modding a body for it.I will make a fully functional lights and I wonder - which lights are which? It's kinda hard to find any info about it :\It would be super nice if somebody could attach an image with labels, like, these are high beam lights, these are fog lights, reverse is only one or two and so on.Thanks in advance!
#2
Full Member
iTrader: (2)

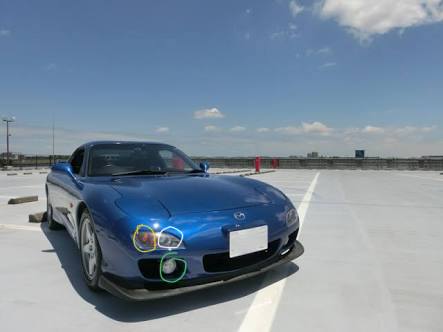

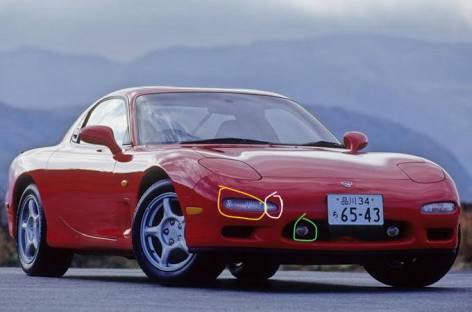

For the front: Green - Fog lights, White - parking lights, Yellow - indicators; headlights are popups hi-low are same bulb

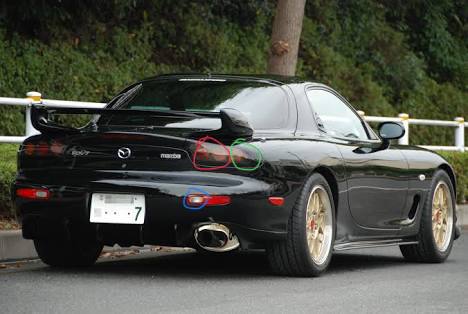

For the rear: Red - parking lights/brake lights (there is a third brake light in the center smokes area beneath the wing along the trunk lid), Green - indicator, Blue - reverse
All lights mirror. Kouki lights (3 circles) the two inner circles function same as the big box that is the zenki brake/parking lights. Side indicators should be self explanatory. The red beside the reverse lights is just reflector. In some markets, the side reflectors (orange on zenki front bumper, red on side of rear bumper) are also lights. Not indicators, just “on,” iirc. It’s not for JDM cars (as I have), so I’m not 100%.
Hope this helps. I still haven’t gotten around to wiring my headlights up for my 1:10 FD lol
For the rear: Red - parking lights/brake lights (there is a third brake light in the center smokes area beneath the wing along the trunk lid), Green - indicator, Blue - reverse
All lights mirror. Kouki lights (3 circles) the two inner circles function same as the big box that is the zenki brake/parking lights. Side indicators should be self explanatory. The red beside the reverse lights is just reflector. In some markets, the side reflectors (orange on zenki front bumper, red on side of rear bumper) are also lights. Not indicators, just “on,” iirc. It’s not for JDM cars (as I have), so I’m not 100%.
Hope this helps. I still haven’t gotten around to wiring my headlights up for my 1:10 FD lol
Last edited by JSpek92; 03-12-18 at 06:31 PM.
The following users liked this post:
arturnmk (03-13-18)
