WI question front plate comptabilty on a s4 turbo

I am sure this has been covered but i have been trying to find a definte answer for the past two hours reguarding the front plate, of most 13b in genreal, but more speficily is i possbile that i can use a 13b cosmo/ fd (i think they are simliar) front plate on my s4 turbo. I already am searching all over for an s5 with the later style fd down reinforments.
thank you for any replies.
Old 02-13-13, 08:13 PM
  #2
Top Down, Boost Up

iTrader: (7)

RotaryRocket88's Avatar

Join Date: Mar 2008
Location: San Diego, CA
Posts: 8,718
Likes: 0
Received 6 Likes on 4 Posts
No, the intake ports are different shapes and located at different heights (assuming you mean the front iron).
Old 02-13-13, 10:43 PM
  #3
Junior Member
Thread Starter

Rsuchi's Avatar

Join Date: Jan 2013
Location: wisconsin
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
i do mean front, and even with porting you are saying they wouldn't match up.
Old 02-14-13, 12:41 PM
  #4
Top Down, Boost Up

iTrader: (7)

RotaryRocket88's Avatar

Join Date: Mar 2008
Location: San Diego, CA
Posts: 8,718
Likes: 0
Received 6 Likes on 4 Posts
Not even close. The intake manifold wouldn't bolt up either. See attachment.

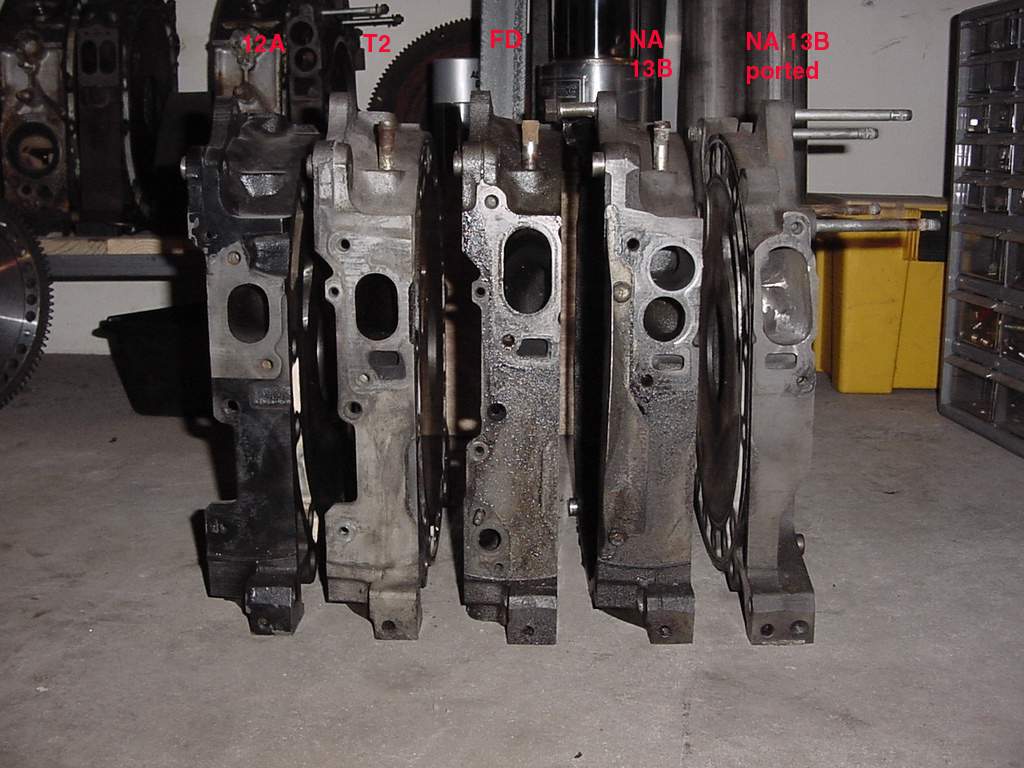

Attached Thumbnails question front plate comptabilty on a s4 turbo-rotary-endplate-comparison.jpg
Old 02-14-13, 07:26 PM
  #5
Junior Member
Thread Starter

Rsuchi's Avatar

Join Date: Jan 2013
Location: wisconsin
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
ok thank you very much, i am glad as that picture helps me a when i searching for new irons
