Need some help with wiring...
I´m going to make new engine wiring harness, but I don´t know what size of power supply wires should I use for ign coils, injectors, OMP and control solenoids (idle speed and boost).
I´m thinking about using 14 gauge wire for all of these. Will it work well?
I´m going to make new engine wiring harness, but I don´t know what size of power supply wires should I use for ign coils, injectors, OMP and control solenoids (idle speed and boost).
I´m thinking about using 14 gauge wire for all of these. Will it work well?
#3
Junior Member
Thread Starter
Join Date: Apr 2009
Location: Pardubice, Czech rep.
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
I thought I will supply each component with its own wire...

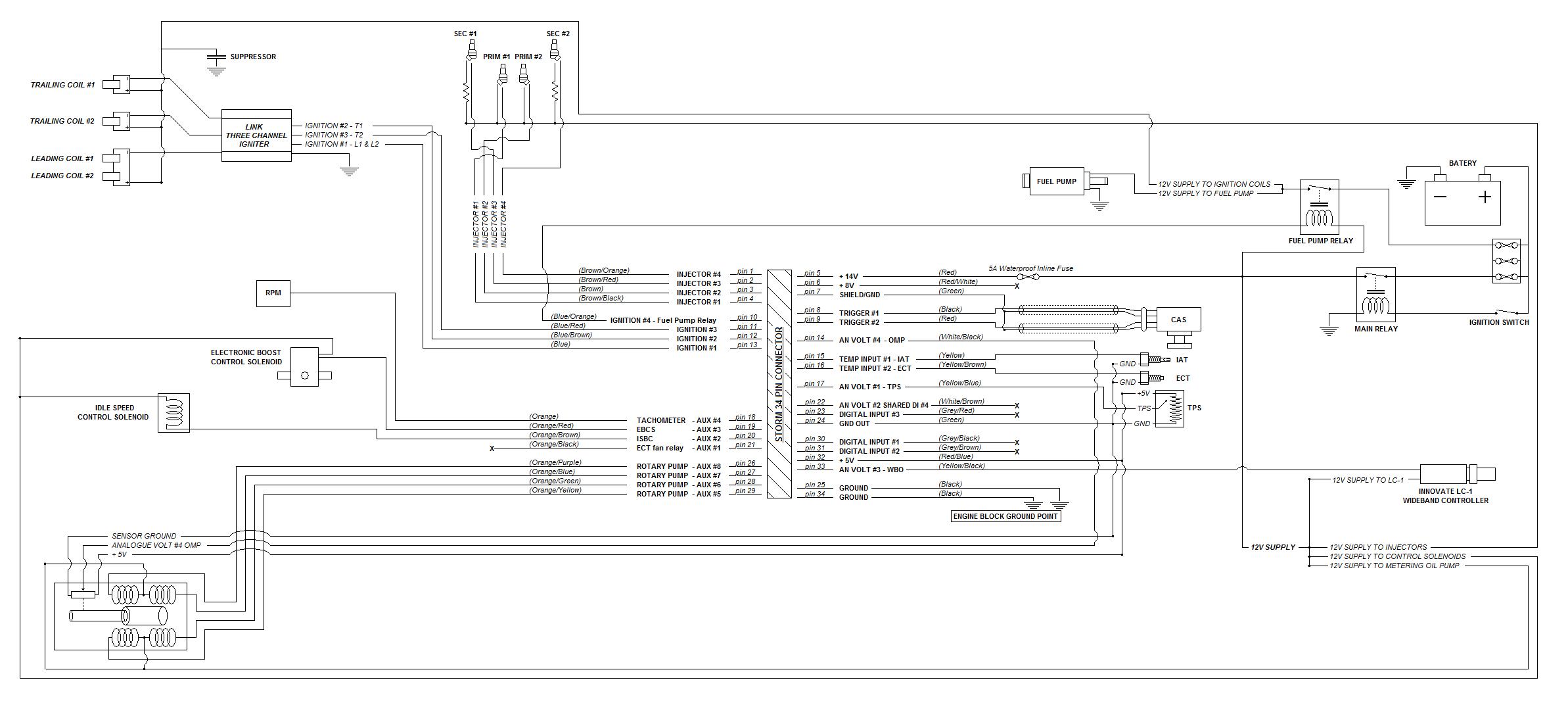

I have attached a wiring diagram, my conception is a 8 gauge wire into the main relay and 8 gauge wire into the fuel pump /ign coils relay. After the relays, each component has it´s own 14 gauge supply wire, each injector, each coil, OMP and control solenoids, except the fuel pump, which one will have a 12 gauge wire.
I have attached a wiring diagram, my conception is a 8 gauge wire into the main relay and 8 gauge wire into the fuel pump /ign coils relay. After the relays, each component has it´s own 14 gauge supply wire, each injector, each coil, OMP and control solenoids, except the fuel pump, which one will have a 12 gauge wire.
