Open vacuum inlet near charge control Acuator.
#1
Full Member
Thread Starter
Join Date: Oct 2013
Location: Houston, Texas
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts
Open vacuum inlet near charge control Acuator.
I was working on some misrouted vacuum lines that might be the cause of no boost past 4,500rpm, and I found an inlet that doesn't have a hose connected to it.

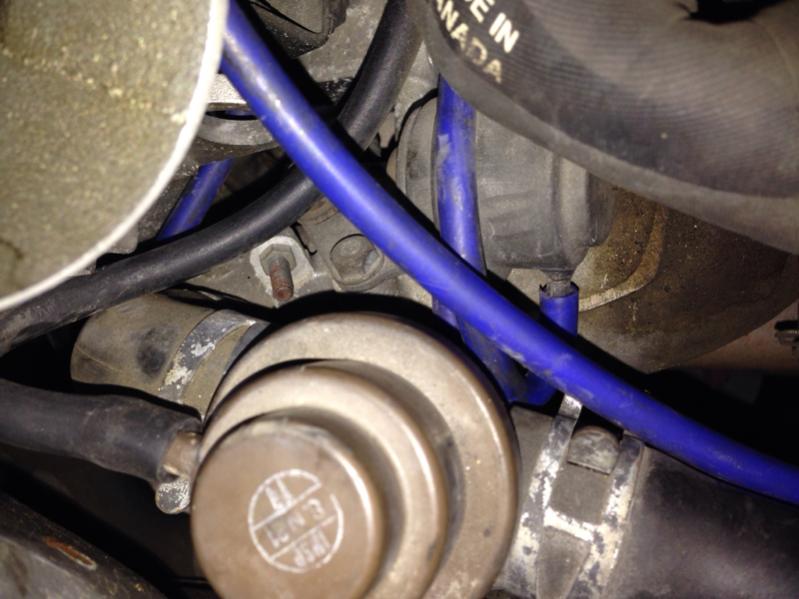

The big brown thing towards the bottom is the blow off valve for the primary turbo. Right below that, you can see a blue hose making a U turn to the Charge Control Actuator. To the left, you can see a threaded open nipple. I've tried looking at the diagrams online but can't figure out where that is supposed to be connected to.
Any ideas?
The big brown thing towards the bottom is the blow off valve for the primary turbo. Right below that, you can see a blue hose making a U turn to the Charge Control Actuator. To the left, you can see a threaded open nipple. I've tried looking at the diagrams online but can't figure out where that is supposed to be connected to.
Any ideas?
#4
Full Member
iTrader: (1)
Join Date: Sep 2012
Location: Lavagna (GE) Italy
Posts: 195
Likes: 0
Received 0 Likes
on
0 Posts
BTW in that position you have only the brown bypass valvle and
2 hoses then go to 2 solenoid out of the rat nest...one of these? (wastgate and turbo precontrol) (green and pink hose)
2 hoses then go to 2 solenoid out of the rat nest...one of these? (wastgate and turbo precontrol) (green and pink hose)
