Need help w/ missing wires!!!!
07-16-12, 08:36 PM
#1
Need help w/ missing wires!!!!
Hey, I just swapped in a TII 88 into an S4 NA. I'm almost done i just need to plug in a few more things. I believe i'm using an engine harness from an 87 or 88. Here are some pictures of the wires that i'm missing.
07-16-12, 08:40 PM
#2

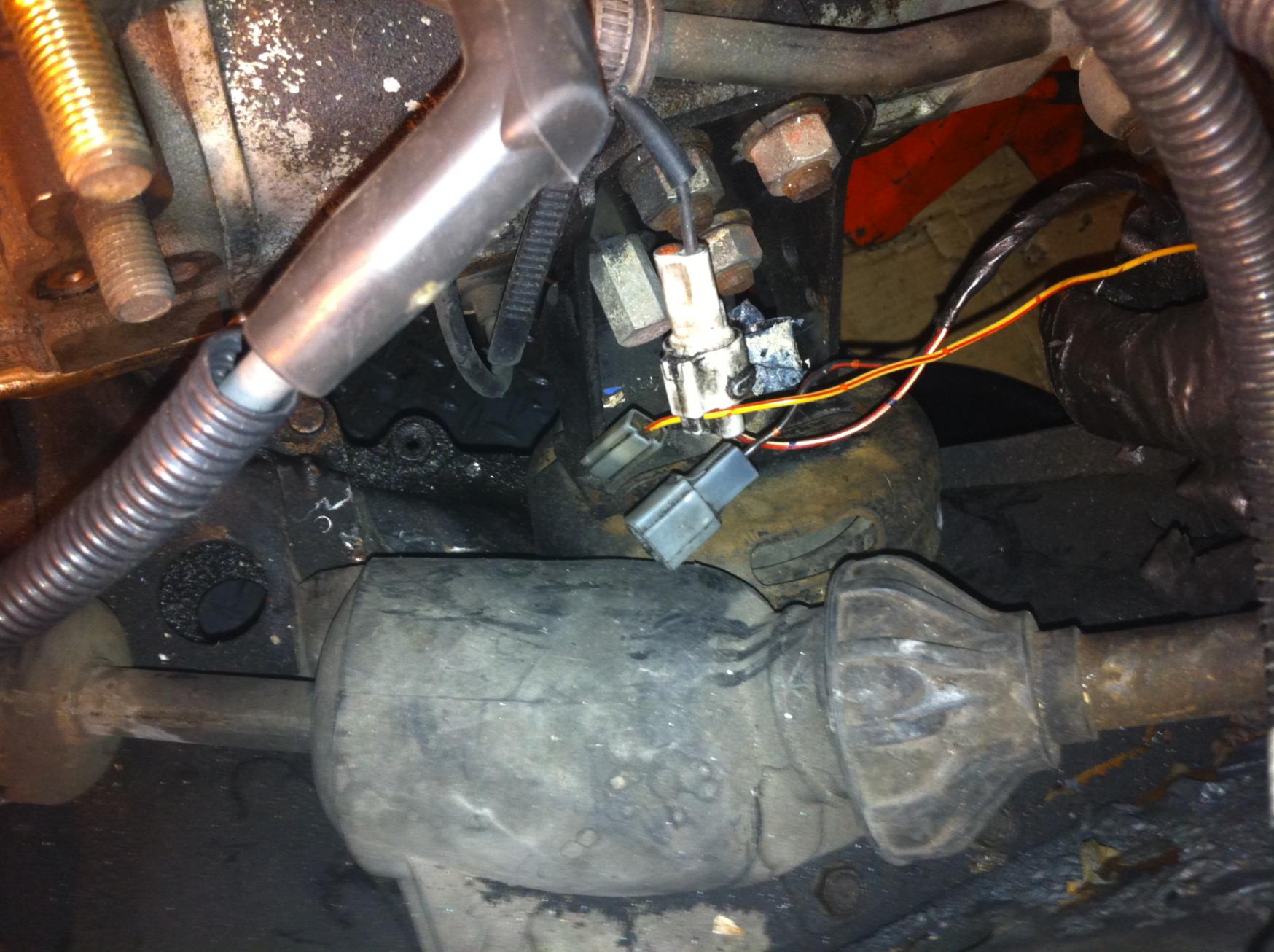

The first picture is from a cable by the throttle body.

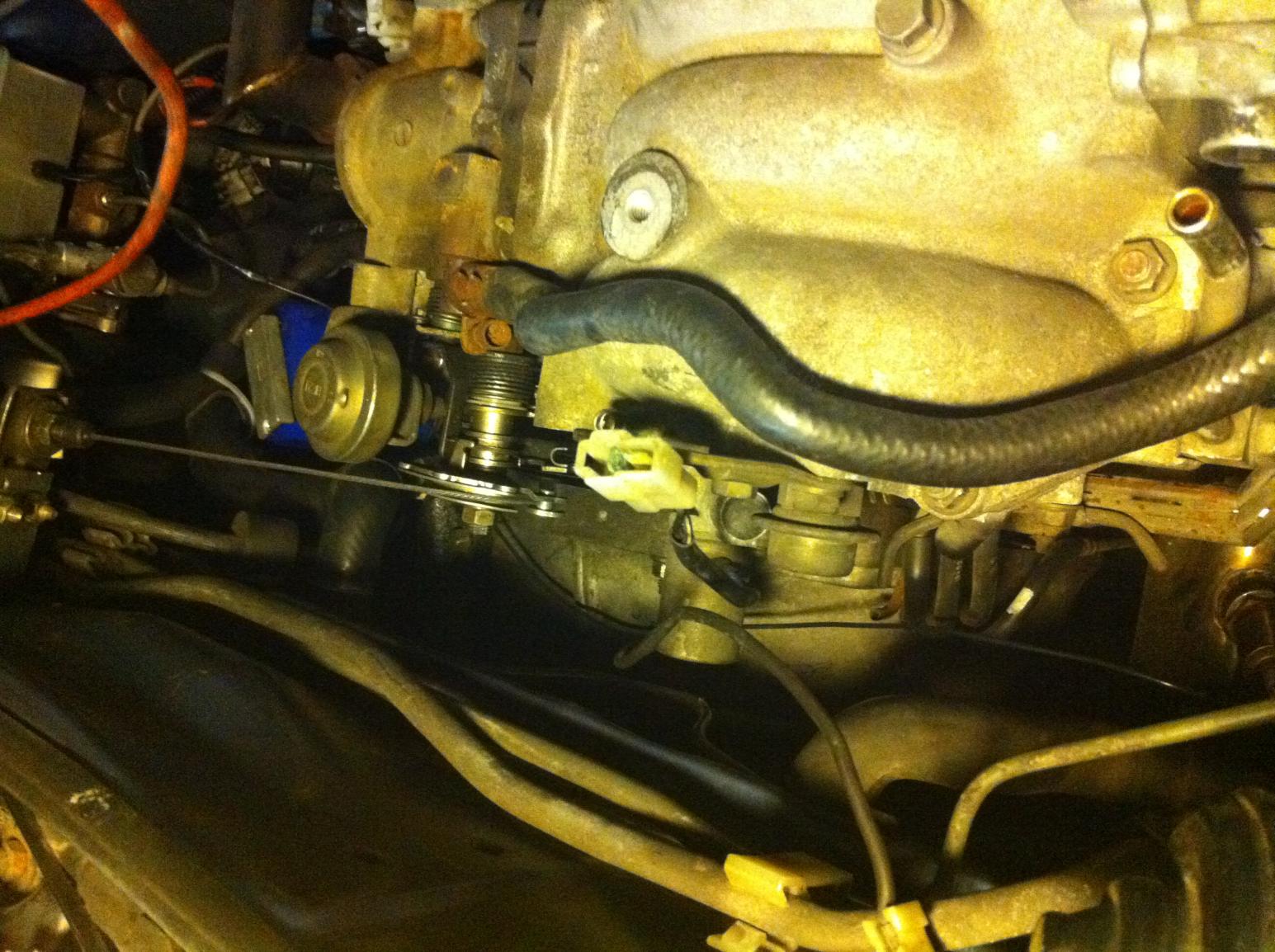

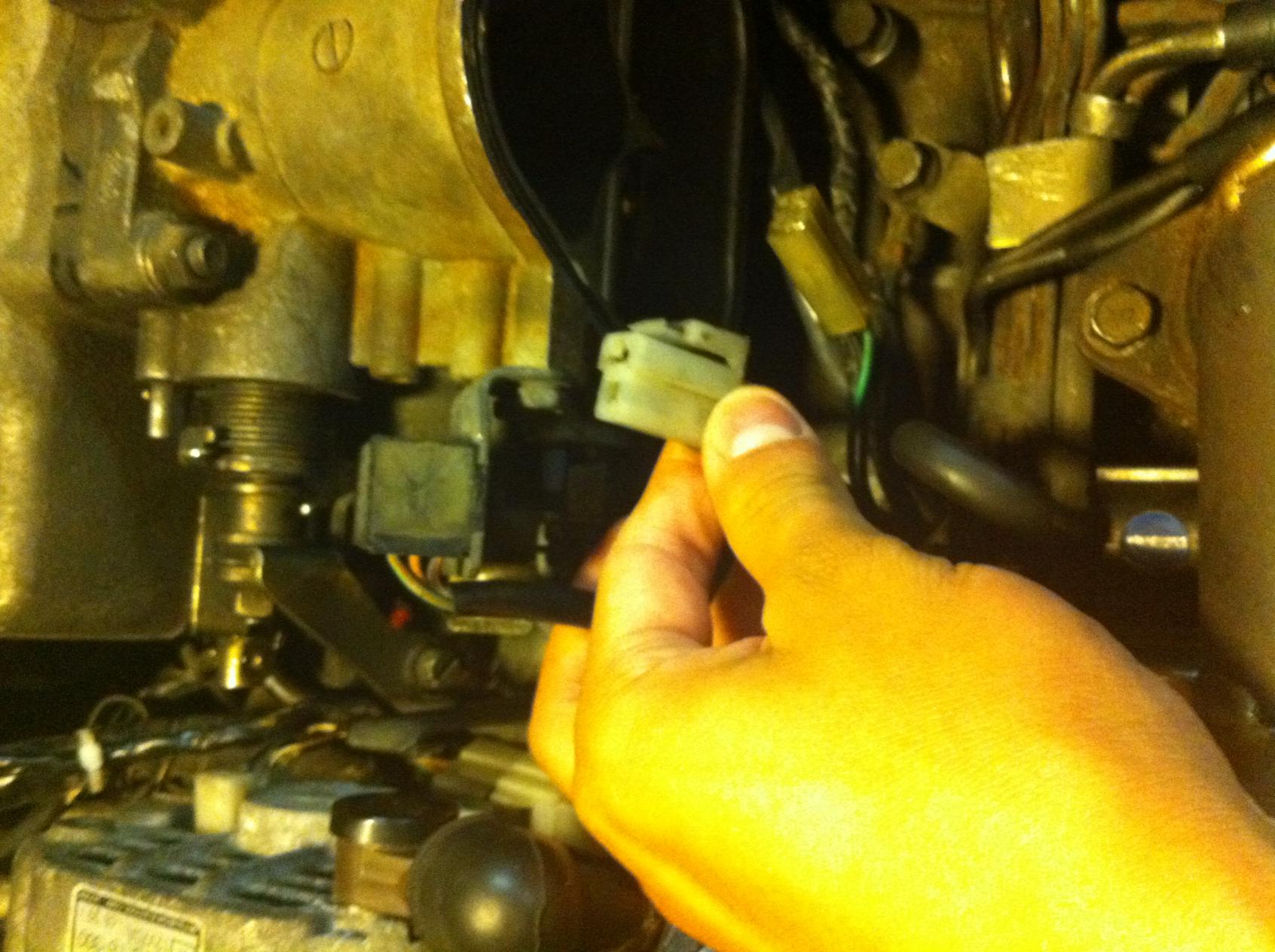

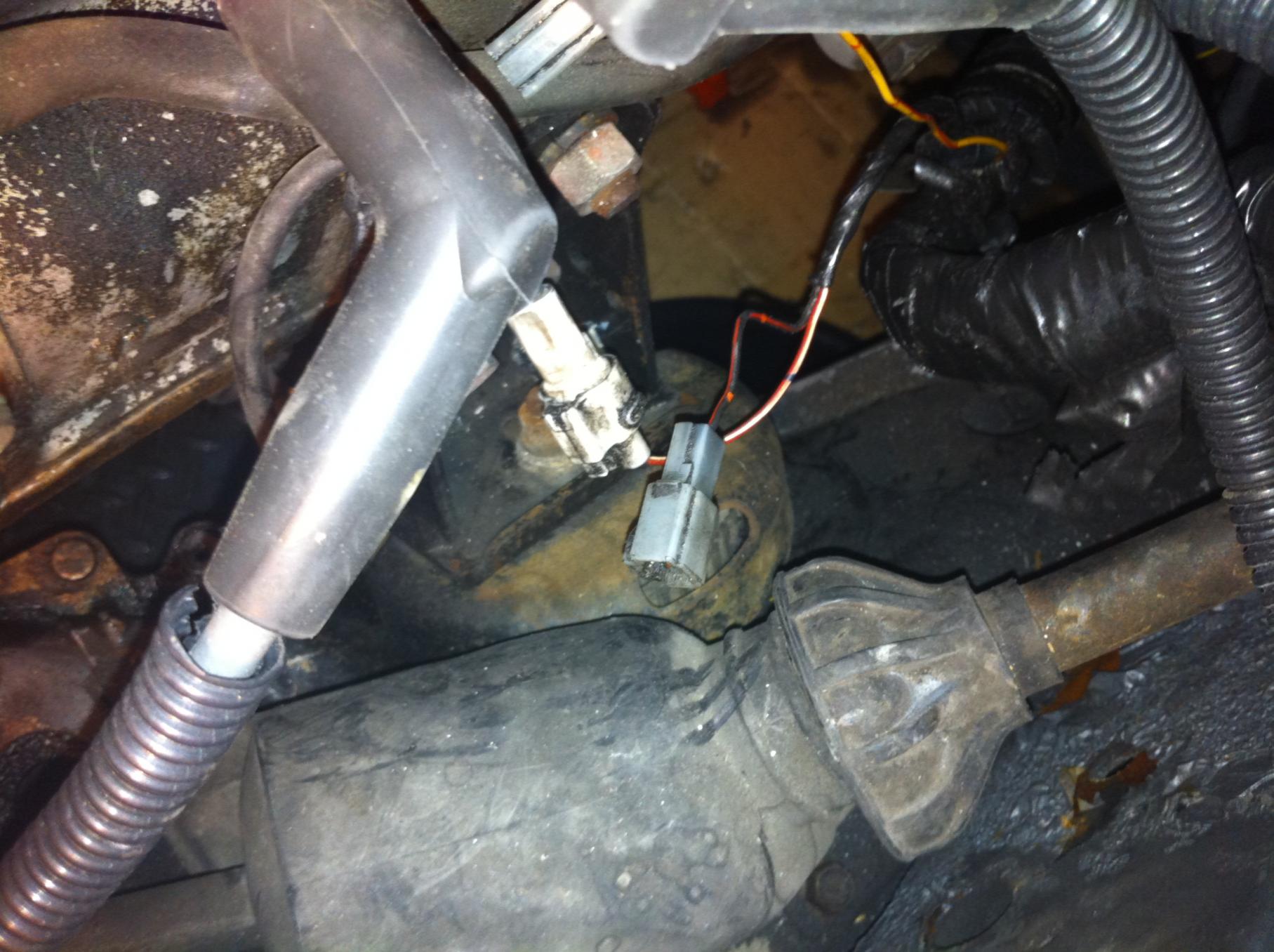

On the second picture, its the two orange looking colored wires that look like sensors, same as the third just a little clearer, same as the 5th picture

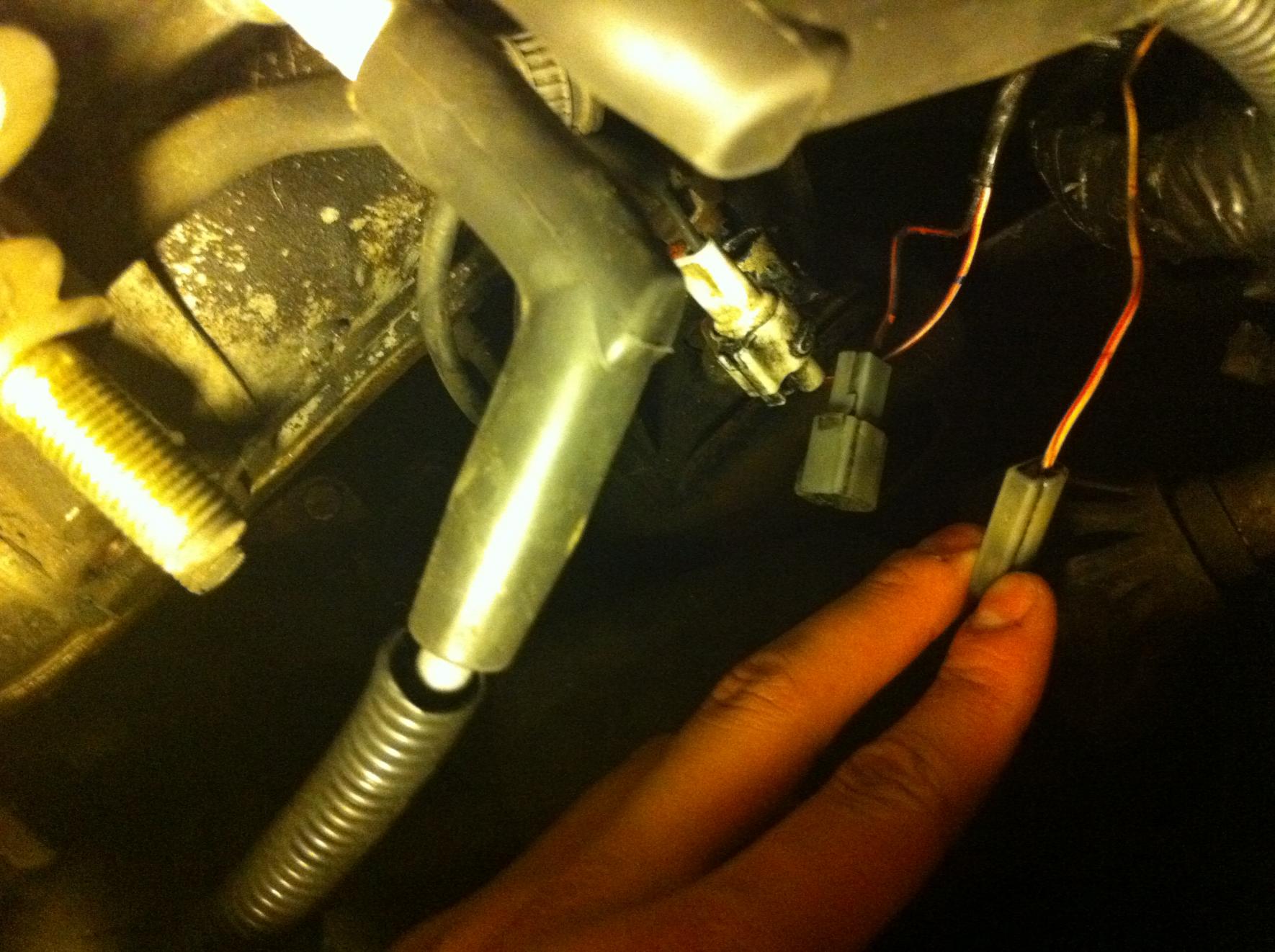

The fourth picture is by the UIM, on the side
Thanks
On the second picture, its the two orange looking colored wires that look like sensors, same as the third just a little clearer, same as the 5th picture
The fourth picture is by the UIM, on the side
Thanks
