Need Help! Lower Intake Manifold Removal
Hi I have an 1985 Rc7 Gsl Se All Stock except air filter. I’m trying to replace my lower intake manifold gasket but don’t know what all needs to be done to remove lower intake. I have already removed upper and Dynamic Chamber. I have no idea how many bolts actually hold the lower intake to the engine. How do I go about removing the oil lines from injectors? Does any of this need to be done from below? Any help is greatly appreciated
Upper Intake Off. How do I remove those two oil lines from injectors? Or do I remove whole injectors?
Picture one of suspected LIM mounting bolt.
Picture one of suspected LIM mounting bolt. How do I get to it??

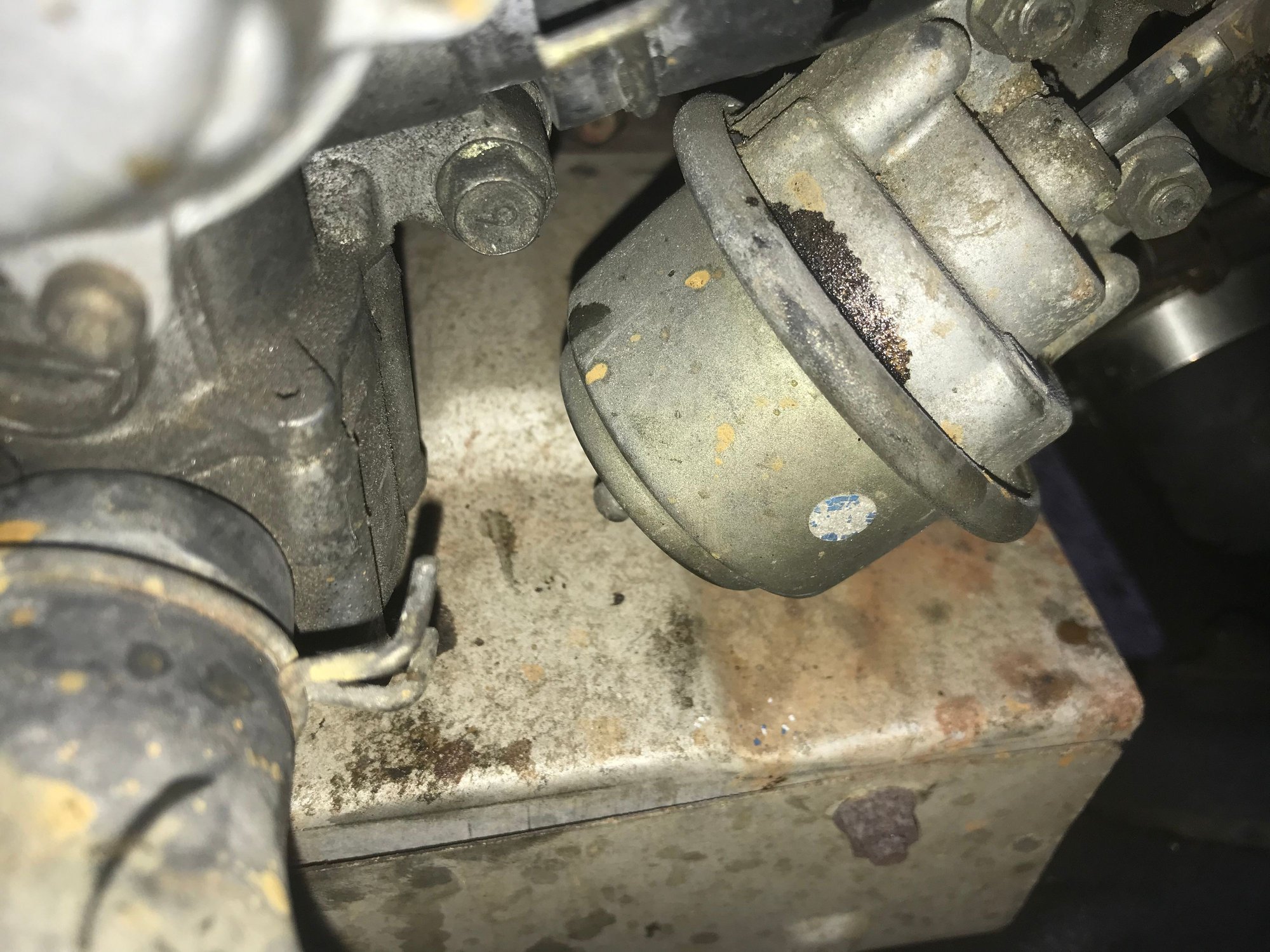

This seems to be in the way of sed suspected bolt
This seems to be in the way as well. Do I have to remove?
Upper Intake Off. How do I remove those two oil lines from injectors? Or do I remove whole injectors?
Picture one of suspected LIM mounting bolt.
Picture one of suspected LIM mounting bolt. How do I get to it??
This seems to be in the way of sed suspected bolt
This seems to be in the way as well. Do I have to remove?
#2
32psi+
iTrader: (42)
I haven't worked on a GSLSE, but it's similar to the rest of the 13B's so I'll take a jab at getting you started.
I think you've taken pictures of the exhaust manifold for some of the bolts (this is the exhaust manifold: https://cimg0.ibsrv.net/gimg/www.rx7...cda7c0798.jpeg). Don't take the exhaust manifold off, as it's not necessary.
This is the exhaust manifold heat shield: https://cimg3.ibsrv.net/gimg/www.rx7...3572b3ad9.jpeg.
Take the whole oil injector out, you cannot separate the oil line from the banjo fitting. The oil injector will separate from the oil line banjo fitting once it's removed. The oil injector will have crush washers, keep track of them or replace them.
Once the oil injectors are out, you'll need to remove (and delete if you want), the big ACV?/EGR? device that has the muffler on the intake pipe. (Lower portion of this picture: https://cimg7.ibsrv.net/gimg/www.rx7...e02b44a2c.jpeg) It should have 3 10mm bolts I believe.
You may need to remove the 5th and 6th intake port actuators as well (these things: https://cimg1.ibsrv.net/gimg/www.rx7...c3ad07a0f.jpeg)
This will give you more room to find the rest of the intake manifold bolts (All 12mm I believe). There are two on the rear iron, two on the front iron, one on each rotor housing (these are nuts) and then one more on the center iron (This may or may not be true for the GSLSE, I'm thinking T2 and FD but it's likely there as well.)
You will need a new intake manifold gasket set.
Good luck.
I think you've taken pictures of the exhaust manifold for some of the bolts (this is the exhaust manifold: https://cimg0.ibsrv.net/gimg/www.rx7...cda7c0798.jpeg). Don't take the exhaust manifold off, as it's not necessary.
This is the exhaust manifold heat shield: https://cimg3.ibsrv.net/gimg/www.rx7...3572b3ad9.jpeg.
Take the whole oil injector out, you cannot separate the oil line from the banjo fitting. The oil injector will separate from the oil line banjo fitting once it's removed. The oil injector will have crush washers, keep track of them or replace them.
Once the oil injectors are out, you'll need to remove (and delete if you want), the big ACV?/EGR? device that has the muffler on the intake pipe. (Lower portion of this picture: https://cimg7.ibsrv.net/gimg/www.rx7...e02b44a2c.jpeg) It should have 3 10mm bolts I believe.
You may need to remove the 5th and 6th intake port actuators as well (these things: https://cimg1.ibsrv.net/gimg/www.rx7...c3ad07a0f.jpeg)
This will give you more room to find the rest of the intake manifold bolts (All 12mm I believe). There are two on the rear iron, two on the front iron, one on each rotor housing (these are nuts) and then one more on the center iron (This may or may not be true for the GSLSE, I'm thinking T2 and FD but it's likely there as well.)
You will need a new intake manifold gasket set.
Good luck.
Last edited by Copeland; 07-29-19 at 08:46 AM.
#4
Moderator
iTrader: (3)
welcome to the board.
1. there are a total of six (6) bolts that hold the manifold on the engine. four of them will be fairly obvious (at the front and rear side housings) and the other two are hidden, but not overly complicated. they attach to the rotor housings and you should be able to get to them by putting the socket and extension directly in the little pocket/hole that is created by the auxiliary port actuators. all 6 bolts are 12 mm. if you can get your hand/finger in there and feel along the lower edge of the manifold you feel them right around where you can imagine a line around the center of the rotor housing. a mirror should work, too. at the end of the day, you really shouldn't need to remove the port actuators or mess with the exhaust manifold at all.
2. the easiest way to deal with the oil injectors is trace the lines to the MOP and remove them from there. there ail a two of four lines, but you should only need the two that attach to the manifold.
_____________
EDIT
just want to correct something and add something ...
Correction: it's actually 4 bolts and 2 nuts, but as i said, they are all 12 mm.
Addition: instead of imagining the line around the center of the rotor housing, the exhaust manifold nuts are centered, so if you locate them, then the nuts for the intake should be directly above them.
1. there are a total of six (6) bolts that hold the manifold on the engine. four of them will be fairly obvious (at the front and rear side housings) and the other two are hidden, but not overly complicated. they attach to the rotor housings and you should be able to get to them by putting the socket and extension directly in the little pocket/hole that is created by the auxiliary port actuators. all 6 bolts are 12 mm. if you can get your hand/finger in there and feel along the lower edge of the manifold you feel them right around where you can imagine a line around the center of the rotor housing. a mirror should work, too. at the end of the day, you really shouldn't need to remove the port actuators or mess with the exhaust manifold at all.
2. the easiest way to deal with the oil injectors is trace the lines to the MOP and remove them from there. there ail a two of four lines, but you should only need the two that attach to the manifold.
_____________
EDIT
just want to correct something and add something ...
Correction: it's actually 4 bolts and 2 nuts, but as i said, they are all 12 mm.
Addition: instead of imagining the line around the center of the rotor housing, the exhaust manifold nuts are centered, so if you locate them, then the nuts for the intake should be directly above them.
Last edited by diabolical1; 08-02-19 at 08:41 AM.
#5
Junior Member
Thread Starter
Join Date: Apr 2019
Location: California
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
You all are great i swear! You mutherfers rock! I got it all off an put back together. Cars running a lot better than before. Still hear slight hissing (vacuum leak) think its the spider i rigged up for oil injector vacuum. The whole process is fairly easy once you know what you are looking for. Hardest is two nuts on housings. Im actually thinking about a youtube channel for all my car shenanigans. Videos Rx7 repair is so rare.
#6
Penis Healthy
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 792 Likes
on
451 Posts
You all are great i swear! You mutherfers rock! I got it all off an put back together. Cars running a lot better than before. Still hear slight hissing (vacuum leak) think its the spider i rigged up for oil injector vacuum. The whole process is fairly easy once you know what you are looking for. Hardest is two nuts on housings. Im actually thinking about a youtube channel for all my car shenanigans. Videos Rx7 repair is so rare.
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Apr 2019
Location: California
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
Did the carb cleaner test an confirmed. Leak around pulsation damper/ oil injector vacuum lines area. I broke the wires away from this sensor in the dynamic chamber an cant identify it.
Does anyone have any idea what this is an if it’s something i can buy or do i have to have someone refurbish. It goes in the side of the dynamic chamber an has a two wire black harness that connects to one of the solenoids on driver side under BAC.
Does anyone have any idea what this is an if it’s something i can buy or do i have to have someone refurbish. It goes in the side of the dynamic chamber an has a two wire black harness that connects to one of the solenoids on driver side under BAC.
#9
Penis Healthy
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 792 Likes
on
451 Posts
Possibly the air temp sensor, but I thought it had 2 wires... Ca nyou snap a pic of where it went on the dynamic chamber?
Is it this one?
Is it this one?
Last edited by FührerTüner; 08-02-19 at 09:30 AM.
#10
Junior Member
Thread Starter
Join Date: Apr 2019
Location: California
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
It definitely had two wires to it. I tried to solder that orange one on lol. Heres a few pics
This is it inside the Dynamic Chamber.
This is the connector it was plugged into. I have other half of connector in my pocket.
This is it inside the Dynamic Chamber.
This is the connector it was plugged into. I have other half of connector in my pocket.
#12
Junior Member
Thread Starter
Join Date: Apr 2019
Location: California
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
Another question . How do i get the lower intake manifold gasket to seal properly? Or should i say any tips. Its leaking again. Thank heavens i know how to take it all off relatively easy and i have spare gaskets. Just wondering if I should use gasket maker. Permatex or whatever its called. Thats the vacuum leak im still hearing. Sprayed the lower manifold with carb cleaner an car died
#13
Penis Healthy
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 792 Likes
on
451 Posts
Another question . How do i get the lower intake manifold gasket to seal properly? Or should i say any tips. Its leaking again. Thank heavens i know how to take it all off relatively easy and i have spare gaskets. Just wondering if I should use gasket maker. Permatex or whatever its called. Thats the vacuum leak im still hearing. Sprayed the lower manifold with carb cleaner an car died
#14
Junior Member
Thread Starter
Join Date: Apr 2019
Location: California
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
Will do. Going to change the gasket again this weekend. Going to use some sort if sealant as well just to be sure.
#18
Moderator
iTrader: (3)
you have to make sure the manifold is sitting square against the engine before you start tightening the bolts or you can cause yourself tremendous problems. worst case scenario is the manifold cracks and you're unaware of it.
Thread
Thread Starter
Forum
Replies
Last Post
rxmiles
New Member RX-7 Technical
1
11-01-11 10:57 PM
