low spark?
02-17-12, 11:17 AM
#1
low spark?
So I've been working on this car for months on end I broke down and put a rebuilt motor in it and now I'm a very weak spark from my coil packs. This making my car not start timing is good spark plugs and plugs wire are good brand new I sanded down where the coil packs go for a better ground still nothing anyone got any ideas?
02-29-12, 09:02 AM
#2
We got this...
iTrader: (1)
Join Date: Nov 2001
Location: North Augusta, SC
Posts: 215
Likes: 0
Received 0 Likes
on
0 Posts
The coil packs don't ground through the mounting bracket. You need to make sure your ecu grounds are good. The main ground is bolted directly to the engine below the intake. Also check for battery voltage on the B/Y wire on the leading coil pack when the ignition switch is on. Are you sure it's getting fuel?
02-29-12, 11:40 AM
#3
The engine harness bolts to the engine for your ground that's correct but your chassis harness is the one that runs your coils and it has a bad ground somewhere hopefully not under the dash
Bump grounds are good checked them yesterday the CAS and coils have continuity to the ecu but still have low spark I have the spin the CAS 3 times in order to get 1 spark has anyone else had this problem?
Bump grounds are good checked them yesterday the CAS and coils have continuity to the ecu but still have low spark I have the spin the CAS 3 times in order to get 1 spark has anyone else had this problem?
Last edited by Aaron Cake; 03-04-12 at 10:11 AM. Reason: Merge two posts
03-01-12, 08:25 AM
#4
Junior Member
Join Date: Oct 2010
Location: kansas
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
im woundering if the ecu could be in limp mode, im not sure exactly but the problems your describing have happend to me before and i re-did all of my grounds. got rid of hesitations but i still had my flooding issue.
anyone have a pic of a 87 NA engine wiring harness. i dont know if ive looked hard enough but i cant seem to find it..
thanks
anyone have a pic of a 87 NA engine wiring harness. i dont know if ive looked hard enough but i cant seem to find it..
thanks
03-03-12, 07:45 PM
#5
Desperate bump no mods or any wiring gurus ever had this problem? 1 spark for every turn of the crank angle sensor? I'm desperate I need my car up and running for deals gap any help would he greatly appreciated
Every 3 turns of the CAS 1 spark
Every 3 turns of the CAS 1 spark
Last edited by Aaron Cake; 03-04-12 at 10:13 AM. Reason: Merge two posts
03-04-12, 10:14 AM
#6
Trending Topics
03-04-12, 11:28 AM
#8
I've tried several CAS and same thing is happening also swapped out the leading coils twice same thing also changed out the plug on the to the CAS and no difference the wiring is all stock no mods or cuts in it and I've tried 3 different ecu's and the same thing is happening
No one on this forum has ever had this problem? What are the odds it happens to me
No one on this forum has ever had this problem? What are the odds it happens to me
Last edited by Aaron Cake; 03-07-12 at 09:16 AM. Reason: Merge two posts
03-07-12, 09:40 AM
#12
Because I took out the plug and turned the key and its not sparking like it should then turned the key to the on position and took out the CAS and spun it manually I get 1 spark for every 3 full rotations of the cas Idk if you would call it weak spark but definitely irregular
03-07-12, 10:04 AM
#13
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
In what condition is the wiring from the CAS to the ECU? The CAS wiring meets up with the front harness near the starter. Plugs clean, wires in good shape?
The CAS runs at half engine speed.
The CAS runs at half engine speed.
03-07-12, 10:39 AM
#14
Lives on the Forum
It sounds like you've tried replacing everything but the coil pack itself. Since the ignitor is also in the coil pack, and they are available used for around 20 bucks, might be worth a shot.
.
.
03-07-12, 04:51 PM
#16
Dragons' Breath
Join Date: Sep 2010
Location: Pump Handle, SK. Canada
Posts: 1,129
Likes: 0
Received 2 Likes
on
2 Posts
Well you have tried pretty much everything but were the parts being swapped in ever checked to make sure they are good ? I still think you have a poor ground or poor connection in the ignition system . maybe a broken wire inside the insulation check them for continuity with a meter .
I might get a blast for this but does the cas have or did it have a condenser screwed to the side and is it or was it hooked up or not to a live with ignition on wire . ( there should be a connector at the cas for it if it has one )
When I built my direct fire ignition iI found the hard way that if the pickup wires in the cas are reversed it will make a very weak and off timed spark . Just a thought
I might get a blast for this but does the cas have or did it have a condenser screwed to the side and is it or was it hooked up or not to a live with ignition on wire . ( there should be a connector at the cas for it if it has one )
When I built my direct fire ignition iI found the hard way that if the pickup wires in the cas are reversed it will make a very weak and off timed spark . Just a thought
03-07-12, 08:16 PM
#18
Dragons' Breath
Join Date: Sep 2010
Location: Pump Handle, SK. Canada
Posts: 1,129
Likes: 0
Received 2 Likes
on
2 Posts
Ok forget what I said about condensers it doesn't apply and wouldn't stop it from running anyway ..

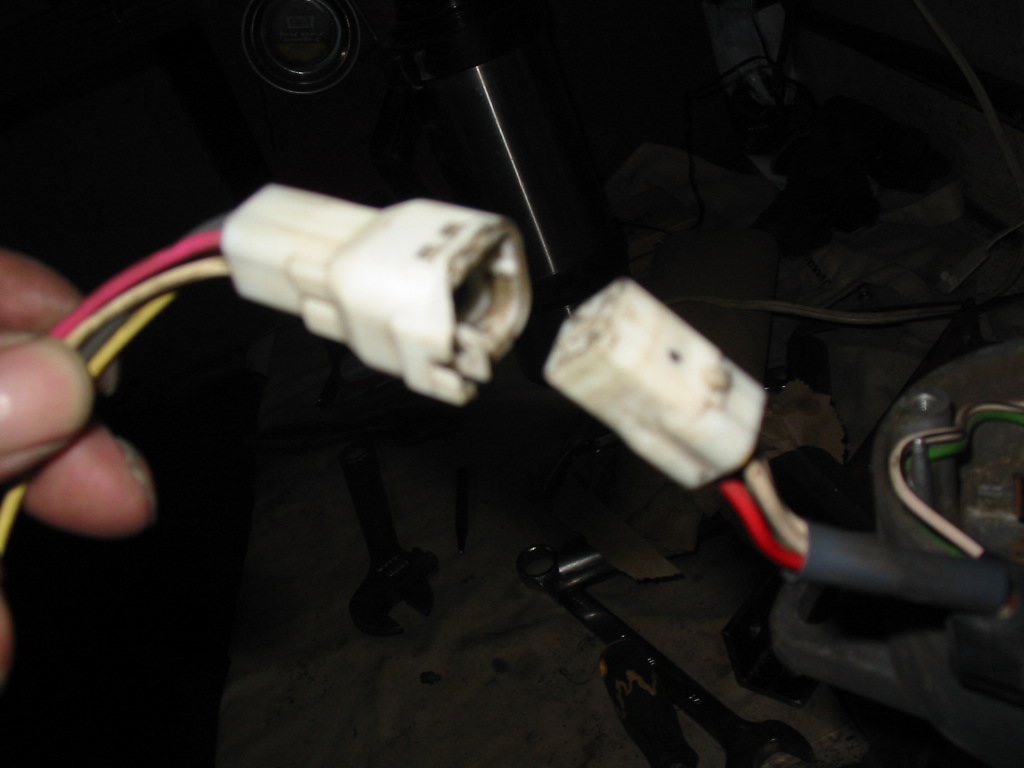

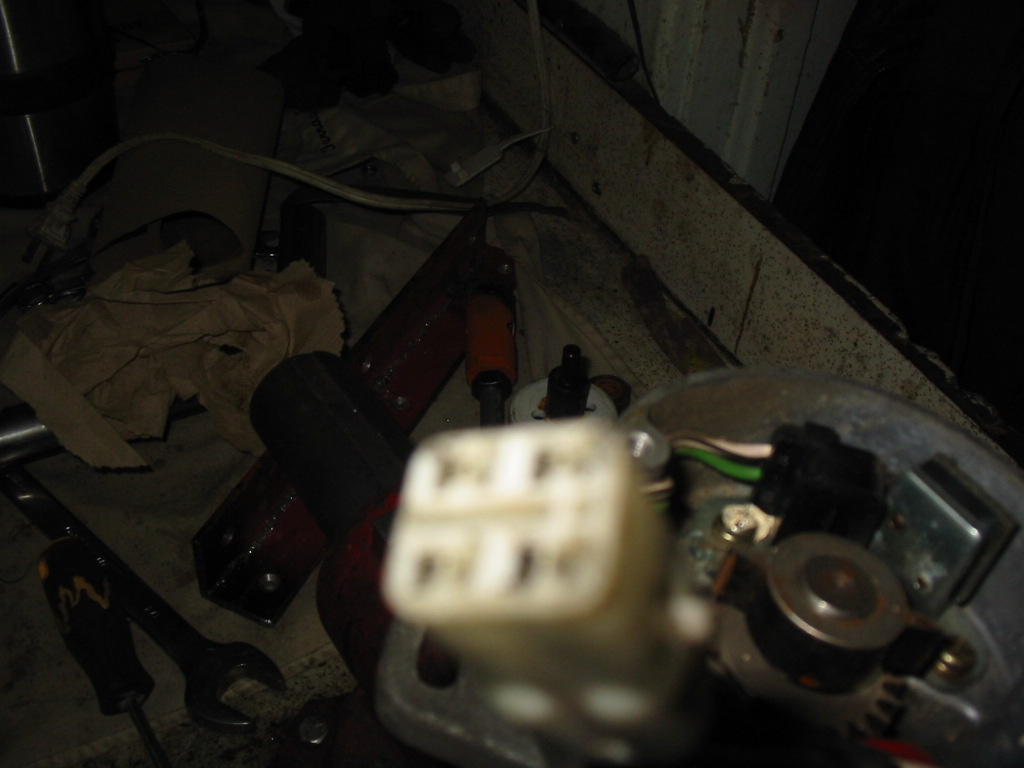

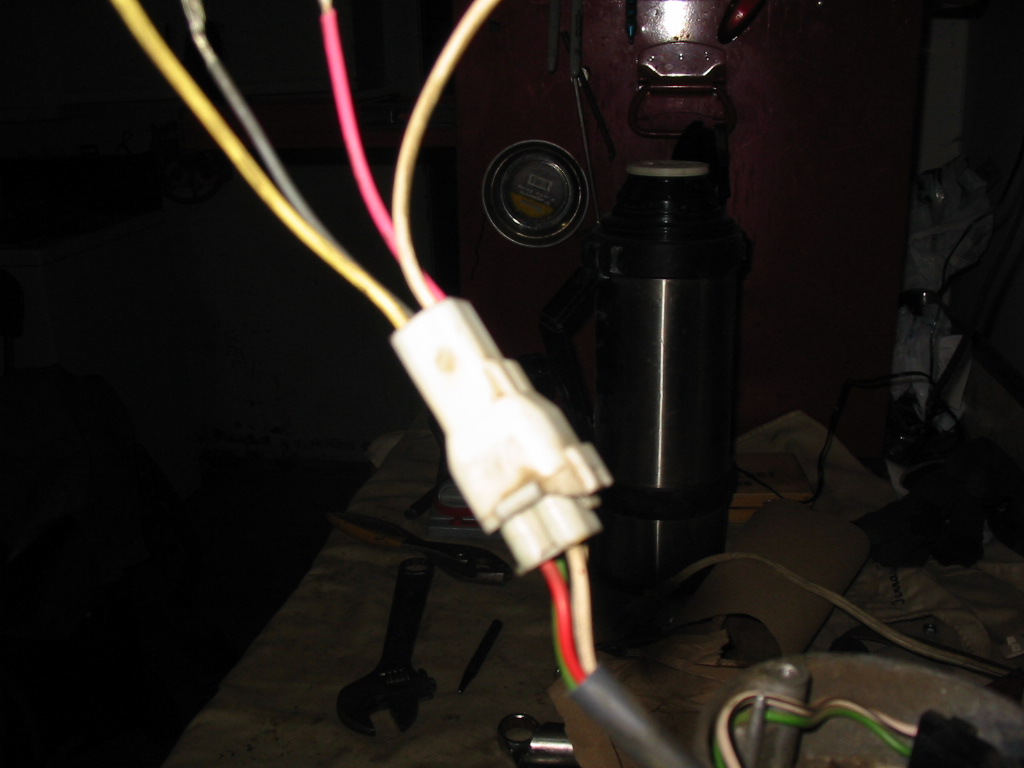

You said you changed the cas and the plug if you changed the plug you either changed the harness or you removed the wires from one plug and plug into another . the cas plug and the harness plug have a different color code I was just thinking maybe you mixed them hooking them up . I'm surprised you can hold the cas in your hand and make it work I thought they needed to be grounded .
You said you changed the cas and the plug if you changed the plug you either changed the harness or you removed the wires from one plug and plug into another . the cas plug and the harness plug have a different color code I was just thinking maybe you mixed them hooking them up . I'm surprised you can hold the cas in your hand and make it work I thought they needed to be grounded .
