Fuel filter screens?
#1
Junior Member
Thread Starter
Fuel filter screens?
Hi All,

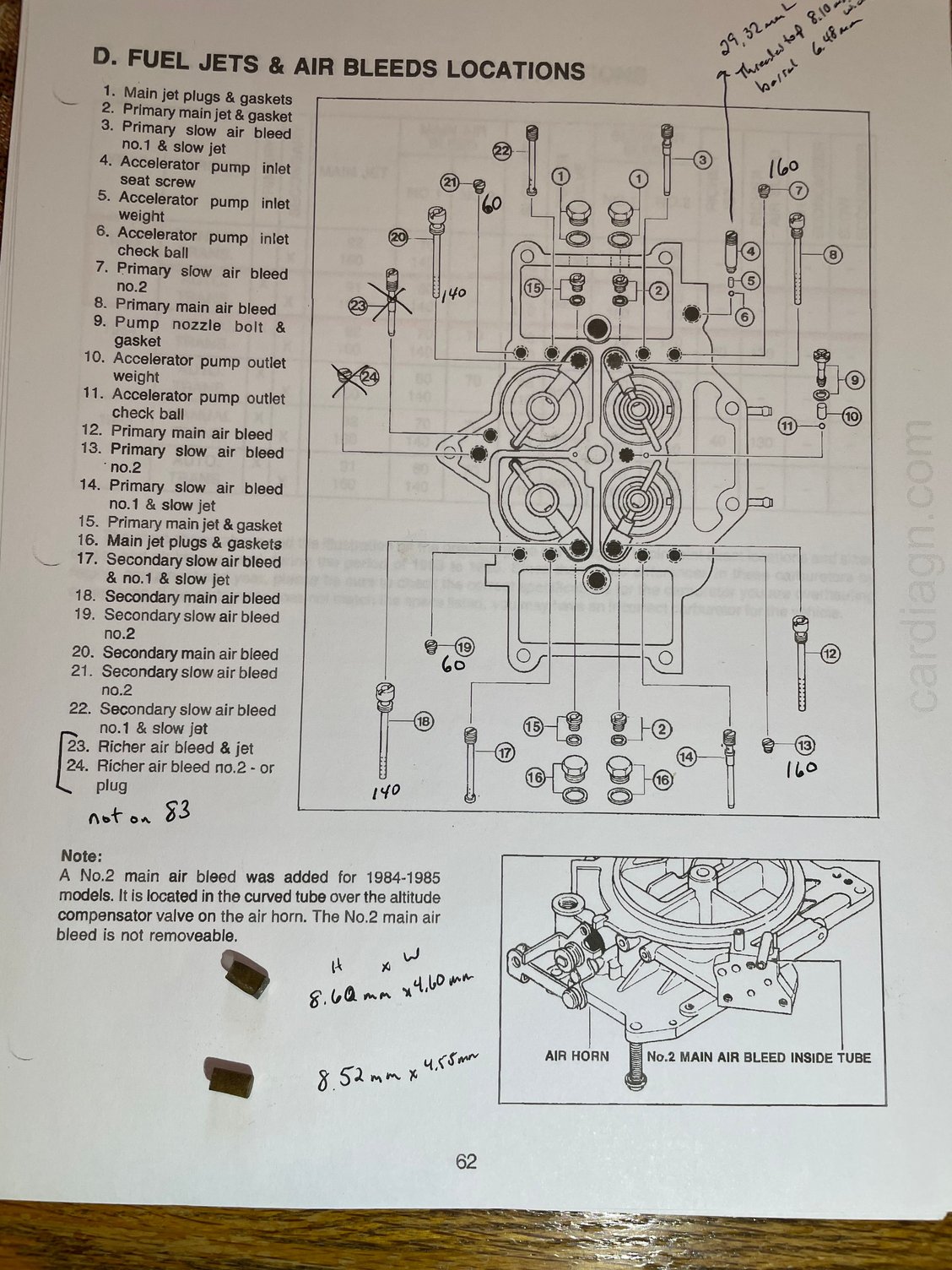

Rebuilding the Nikki on my son’s 83 rx7 12a fb.
Can’t find where these filter screens belong. Any suggestions?
Also, parts 5 & 10 are weights. Found a thread with dimensions of 1.98mm x 7.37mm for 5 and 4.5mm x 5.02mm for 10. weight 5 appears very small given the hole is about 8mm wide. Thoughts?
Thanks!
Rebuilding the Nikki on my son’s 83 rx7 12a fb.
Can’t find where these filter screens belong. Any suggestions?
Also, parts 5 & 10 are weights. Found a thread with dimensions of 1.98mm x 7.37mm for 5 and 4.5mm x 5.02mm for 10. weight 5 appears very small given the hole is about 8mm wide. Thoughts?
Thanks!
#2
Full Member
Weight 5 is very small and skinny, but that is correct. I did not have filter screens like that on my carb. Stock has filter screens on the banjo bolts for the fuel rail, but they do not look like that.
