FC Oil Pressure Sender Location???

Thread Tools

Search this Thread

Old 08-30-17, 09:19 PM
  #1
Junior Member
Thread Starter

Klutch7's Avatar

Join Date: Jul 2017
Location: Calgary
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
FC Oil Pressure Sender Location???
I can't seem to locate the Oil Pressure sensor or sending unit.....where is it hiding? My oil pressure gauge doesn't move when I start the car
Klutch7 is offline
Reply Like
Old 08-30-17, 09:23 PM
  #2
Rotary Freak

WondrousBread's Avatar

Join Date: Jul 2016
Location: Beeton, Ontario
Posts: 1,645
Received 477 Likes on 330 Posts
It's the large round thing to the right of and below the dipstick (if looking at the engine from the drivers fender). Single spade connector.
WondrousBread is offline
Reply Like
Old 08-30-17, 09:42 PM
  #3
Junior Member
Thread Starter

Klutch7's Avatar

Join Date: Jul 2017
Location: Calgary
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts

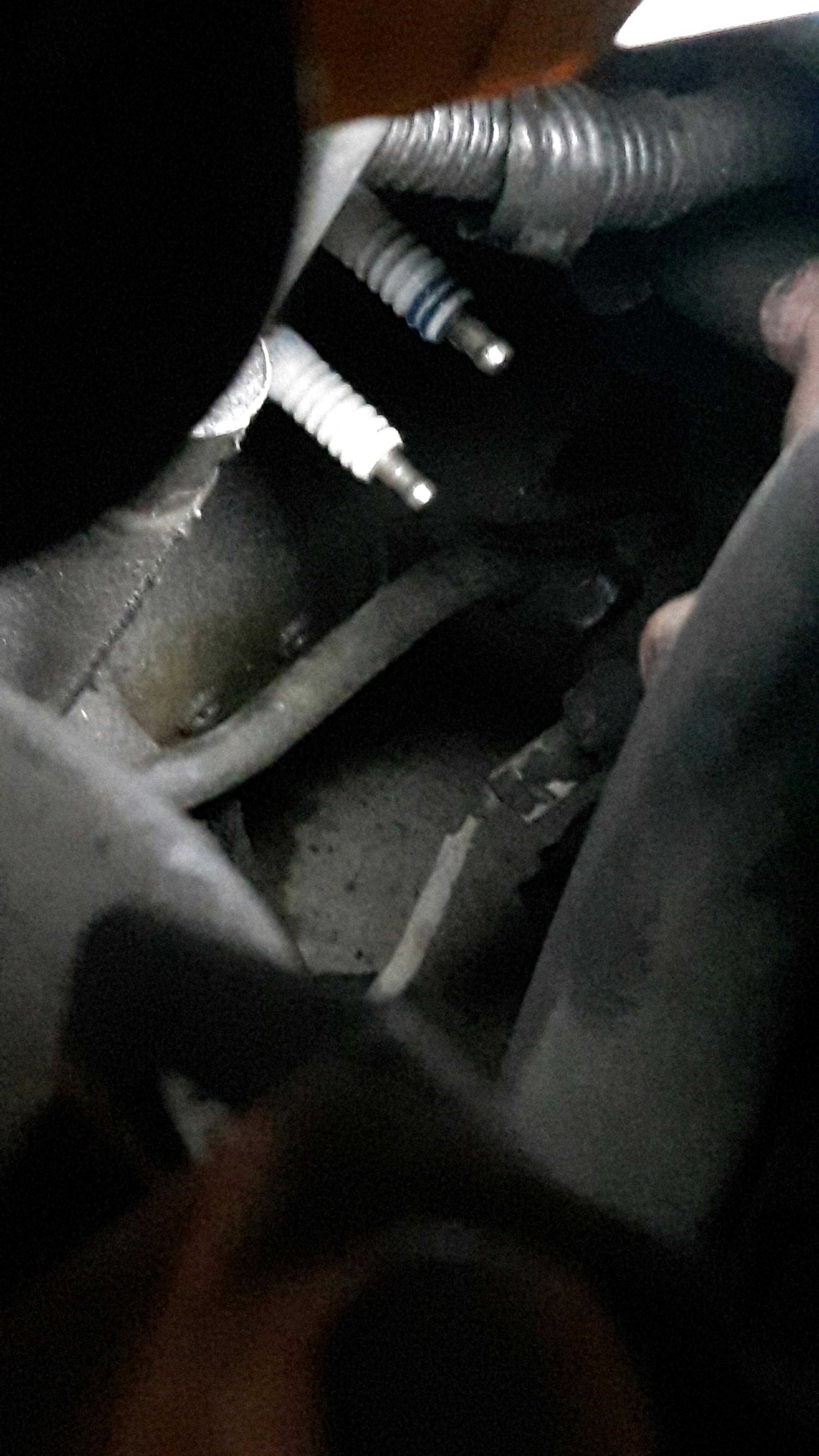

That guy?
Attached Thumbnails FC Oil Pressure Sender Location???-20170830_203917.jpg
Klutch7 is offline
Reply Like
Old 08-30-17, 09:42 PM
  #4
Junior Member
Thread Starter

Klutch7's Avatar

Join Date: Jul 2017
Location: Calgary
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by WondrousBread
It's the large round thing to the right of and below the dipstick (if looking at the engine from the drivers fender). Single spade connector.
That guy?
Attached Thumbnails FC Oil Pressure Sender Location???-20170830_203917.jpg
Klutch7 is offline
Reply Like
Old 08-30-17, 11:47 PM
  #5
Rotary Freak

WondrousBread's Avatar

Join Date: Jul 2016
Location: Beeton, Ontario
Posts: 1,645
Received 477 Likes on 330 Posts
Hard to tell from that picture what you are referring to (no offense). Here are two I took:

Wide shot, sender highlighted


Close up:


Forgive the poor lighting, it's almost 1:00 AM here and it's raining heavily.
WondrousBread is offline
Reply Like
Old 08-31-17, 10:59 AM
  #6
roTAR needz fundZ

iTrader: (1)

Join Date: Aug 2002
Location: Freeland, MI
Posts: 2,614
Likes: 0
Received 31 Likes on 31 Posts
Just put your hand on your oil filter and follow it down, you eventually feel whats about the size of a tennis ball, thats your sender

Honestly it looks like a small metallic boob with the nipple being where the wire hooks up
lduley is offline
Reply Like
Old 08-31-17, 07:56 PM
  #7
Junior Member
Thread Starter

Klutch7's Avatar

Join Date: Jul 2017
Location: Calgary
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by lduley
Just put your hand on your oil filter and follow it down, you eventually feel whats about the size of a tennis ball, thats your sender

Honestly it looks like a small metallic boob with the nipple being where the wire hooks up
Originally Posted by WondrousBread
Hard to tell from that picture what you are referring to (no offense). Here are two I took:

Wide shot, sender highlighted


Close up:


Forgive the poor lighting, it's almost 1:00 AM here and it's raining heavily.
I found it. Got the gauge connected and I do in fact have oil pressure. What's ideal pressure for the FC? At operating temperature I'm sitting around 40psi. And thanks for the help
Klutch7 is offline
Reply Like

Trending Topics

Old 08-31-17, 07:57 PM
  #8
Junior Member
Thread Starter

Klutch7's Avatar

Join Date: Jul 2017
Location: Calgary
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
Scratch that. At 800Rpm I'm sitting at 20psi
Klutch7 is offline
Reply Like
Old 09-01-17, 09:09 AM
  #9
Senior Member


littlebit421's Avatar

Join Date: Jul 2010
Location: Carolinas
Posts: 467
Received 11 Likes on 11 Posts
20 at idle and up to 80 full throttle is ok.
littlebit421 is offline
Reply Like
Old 09-09-17, 12:08 PM
  #10
Moderator

iTrader: (2)

rxtasy3's Avatar

Join Date: Jun 2002
Location: Spartanburg, SC
Posts: 9,311
Likes: 0
Received 256 Likes on 237 Posts
check the FSM, can be found at foxed.ca. oil pressure is measured around 3k+ rpm. i think stock pressure is around 60 psi @ 3k.
rxtasy3 is offline
Reply Like
