Question Do i need this attached?

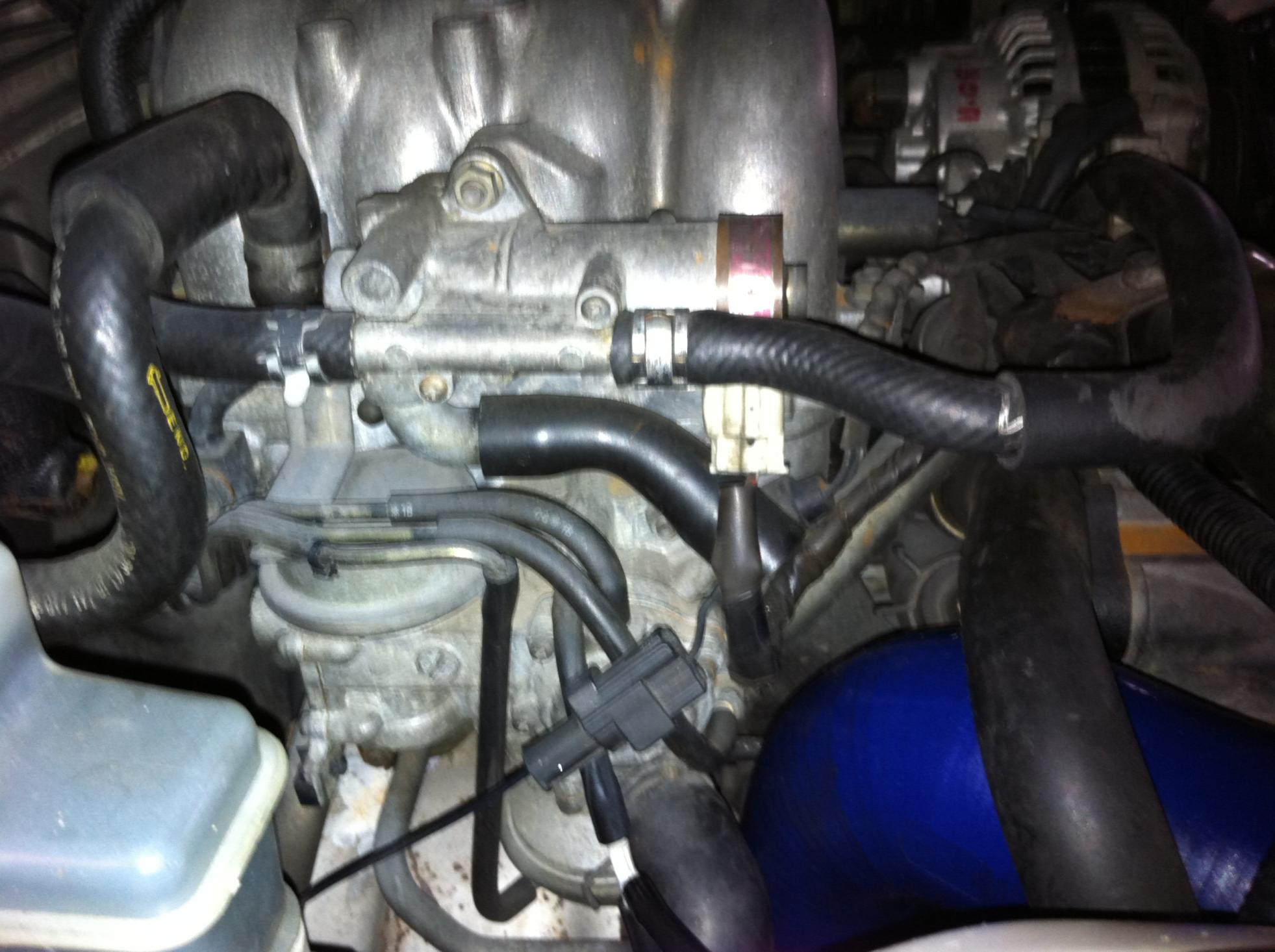

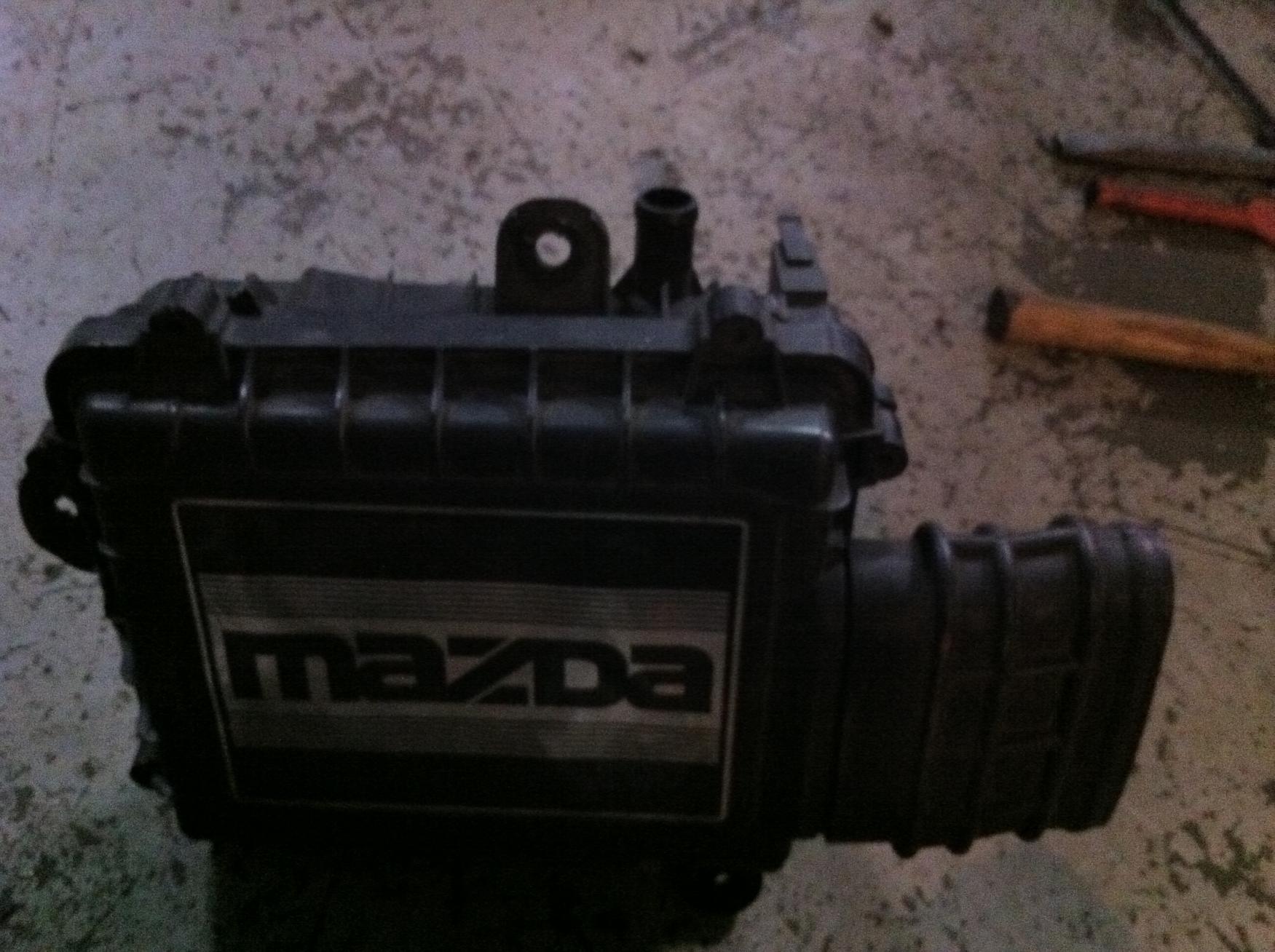

I've removed the heat soaker stock intercooler and installed a FMIC still running stock computer and AFM with a pod,there was a big hose that connected from the intake manifold to the stock air box but now i have no where to run it into... help
when the car is turned on i've noticed that the hose sucks in air so is it ok to just leave it disconnected or do i have to somehow connect it to the pod or can i just put a mini filter on it? any suggestions would be a big help because i use the car everyday thanks.
Attached Thumbnails Do i need this attached?-img_0175.jpg   Do i need this attached?-img_0170.jpg
Old 04-28-11, 08:16 PM
  #2
Top Down, Boost Up

iTrader: (7)

RotaryRocket88's Avatar

Join Date: Mar 2008
Location: San Diego, CA
Posts: 8,718
Likes: 0
Received 6 Likes on 4 Posts
I take it you mean the BAC inlet? You need to route that back into the intercooler piping. The ECU will not be happy with all that unmetered air, and it will probably result in idle problems. You're also sucking unfiltered air into the engine right now.
Old 04-29-11, 12:39 AM
  #3
Series 5
Thread Starter

Buzza's Avatar

Join Date: May 2010
Location: Sydney
Posts: 39
Likes: 0
Received 0 Likes on 0 Posts
yes i have been getting some idle problems do i have to run it back into the piping before the AFM or after that?

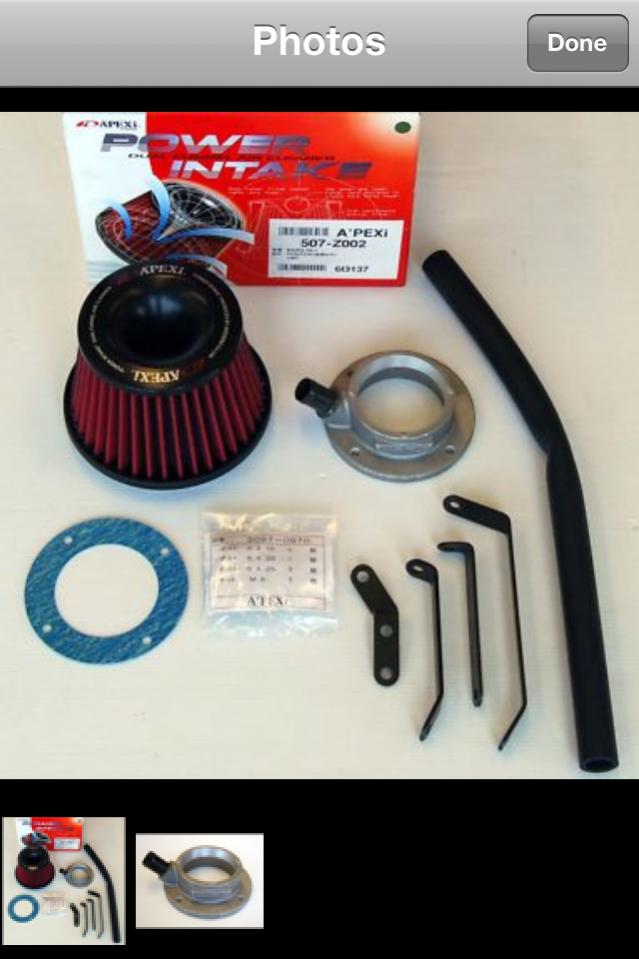

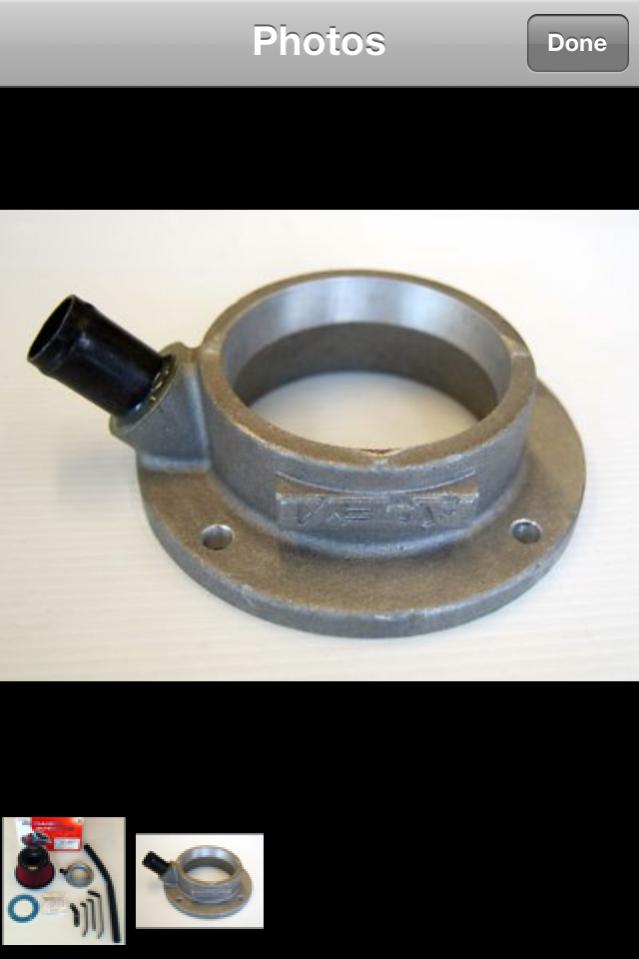

I've purchased an apexi filter with an attachment to it when i get it ill attach it to that but for the mean time can i just put a mini filter on it?I'm guessing it will be better than just sucking unmetered air?
Is it ok to drive or am i going to have some problems,what can go wrong?
Attached Thumbnails Do i need this attached?-img_0178.jpg   Do i need this attached?-img_0179.jpg
Old 04-29-11, 06:58 PM
  #4
Top Down, Boost Up

iTrader: (7)

RotaryRocket88's Avatar

Join Date: Mar 2008
Location: San Diego, CA
Posts: 8,718
Likes: 0
Received 6 Likes on 4 Posts
Unmetered air means air pulled in after the AFM, so the ECU doesn't know about it. I think you mean better than unfiltered air.

You need to route the BAC inlet after the AFM. Look at how it was connected in stock form.
Old 04-30-11, 06:05 AM
  #5
Series 5
Thread Starter

Buzza's Avatar

Join Date: May 2010
Location: Sydney
Posts: 39
Likes: 0
Received 0 Likes on 0 Posts
thanks,i understand that i was just asking what would go wrong and if its bad for the engine to run it without it being connected etc. can you explain why its bad?
I've put a mini filter on the end of it and when i get the new proper one thats in the picture i'll connect it to that one.
Old 04-30-11, 10:22 AM
  #6
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
Air is entering the system which has not been metered with the AFM. That will throw A/F ratios all out of whack.

ANY air entering the system (BAC, BOV, etc.) needs to be connected AFTER the AFM.
Old 04-30-11, 08:36 PM
  #7
Series 5
Thread Starter

Buzza's Avatar

Join Date: May 2010
Location: Sydney
Posts: 39
Likes: 0
Received 0 Likes on 0 Posts
Thats only if your using the afm and stock ecu correct?
If your running an aftermarket ecu then you dont need to run the afm?
Old 05-01-11, 10:55 AM
  #8
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
Correct. The stock ECU needs the AFM, but most standalones do not require an AFM.
Old 05-01-11, 06:15 PM
  #9
Series 5
Thread Starter

Buzza's Avatar

Join Date: May 2010
Location: Sydney
Posts: 39
Likes: 0
Received 0 Likes on 0 Posts
In the future when the standalone comes will I have to block that bacv off or will I still need to connect it to the piping?
