New Member RX-7 Technical Post your first technical questions here, in an easy flame free environment, before jumping into the main technical sections.

94 or 95 dash into 91-93 cars?

Thread Tools

Search this Thread

Old Jun 11, 2018 | 12:35 AM
  #1
user 1582978's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Jun 2018
Posts: 6
Likes: 0
94 or 95 dash into 91-93 cars?

Is it possible to swap the entire dash and passenger airbag cover to the newer version? I just prefer the look of the newer ones.
Reply
Old Jun 11, 2018 | 01:12 AM
  #2
Zepticon's Avatar
OEM+
Tenured Member: 10 Years
iTrader: (2)

Joined: Jul 2012
Posts: 1,012
Likes: 675
From: Norway
I dont see why not. The chassis is identical, so the dash mounts should be.
Reply
Old Jun 11, 2018 | 01:16 AM
  #3
user 1582978's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Jun 2018
Posts: 6
Likes: 0
That would be great. I wasn't sure cause sorry for being a newbie but I thought it would be a little different since they had so many upgrades or changes for the 94&95 FD
Reply
Old Jun 23, 2018 | 05:25 PM
  #4
Mpls24's Avatar
Junior Member

Joined: Apr 2017
Posts: 12
Likes: 0
From: South Wales, UK
All the same wiring etc too so can't see an issue.
Reply
Old Jun 23, 2018 | 10:10 PM
  #5
Brekyrself's Avatar
Rotary Freak
Community Builder
Liked
Loved
Community Favorite
iTrader: (38)

Joined: Aug 2004
Posts: 2,283
Likes: 89
From: Chicago
Originally Posted by Mpls24
All the same wiring etc too so can't see an issue.
Wiring is different from 93 to 94+ because of the passenger side airbag. Wiring is even different for auto vs manual, glass sunroof vs regular etc... Lot's of variables here.

You can swap a 94+ dash into a 93 car however there will be some obstacles. The 94+ metal rebar is different and it may be easier to swap a complete 94+ assembly in rather then try to use the 94+ dash cover on an older 93 rebar. You will need a 94 glove box. I believe the glove box light is also different thus you would need to splice a 94 bulb connector onto your 93 harness. I do not recall if the vents & ducts are any different and or any of the climate control connectors etc... You may need to mix and match parts.

They are similar enough so you can make this work, just be prepared for small issues like I mentioned above.
Reply
Old Jul 28, 2018 | 01:15 PM
  #6
McFridgeGuy's Avatar
Full Member

Joined: Jan 2018
Posts: 55
Likes: 3
From: Ontario
Any ideas on where to get either dash?
I’m looking for an entire dash for my FD chassis.
Reply
Old Jul 28, 2018 | 02:17 PM
  #7
Brekyrself's Avatar
Rotary Freak
Community Builder
Liked
Loved
Community Favorite
iTrader: (38)

Joined: Aug 2004
Posts: 2,283
Likes: 89
From: Chicago
The classified section on this forum is your best bet, put a want to buy ad.
Reply
Old Jul 28, 2018 | 03:39 PM
  #8
McFridgeGuy's Avatar
Full Member

Joined: Jan 2018
Posts: 55
Likes: 3
From: Ontario
Will do.
thanks.
Reply
Old Jul 29, 2018 | 06:25 AM
  #9
McFridgeGuy's Avatar
Full Member

Joined: Jan 2018
Posts: 55
Likes: 3
From: Ontario
Originally Posted by Brekyrself
Wiring is different from 93 to 94+ because of the passenger side airbag. Wiring is even different for auto vs manual, glass sunroof vs regular etc... Lot's of variables here.

You can swap a 94+ dash into a 93 car however there will be some obstacles. The 94+ metal rebar is different and it may be easier to swap a complete 94+ assembly in rather then try to use the 94+ dash cover on an older 93 rebar. You will need a 94 glove box. I believe the glove box light is also different thus you would need to splice a 94 bulb connector onto your 93 harness. I do not recall if the vents & ducts are any different and or any of the climate control connectors etc... You may need to mix and match parts.

They are similar enough so you can make this work, just be prepared for small issues like I mentioned above.

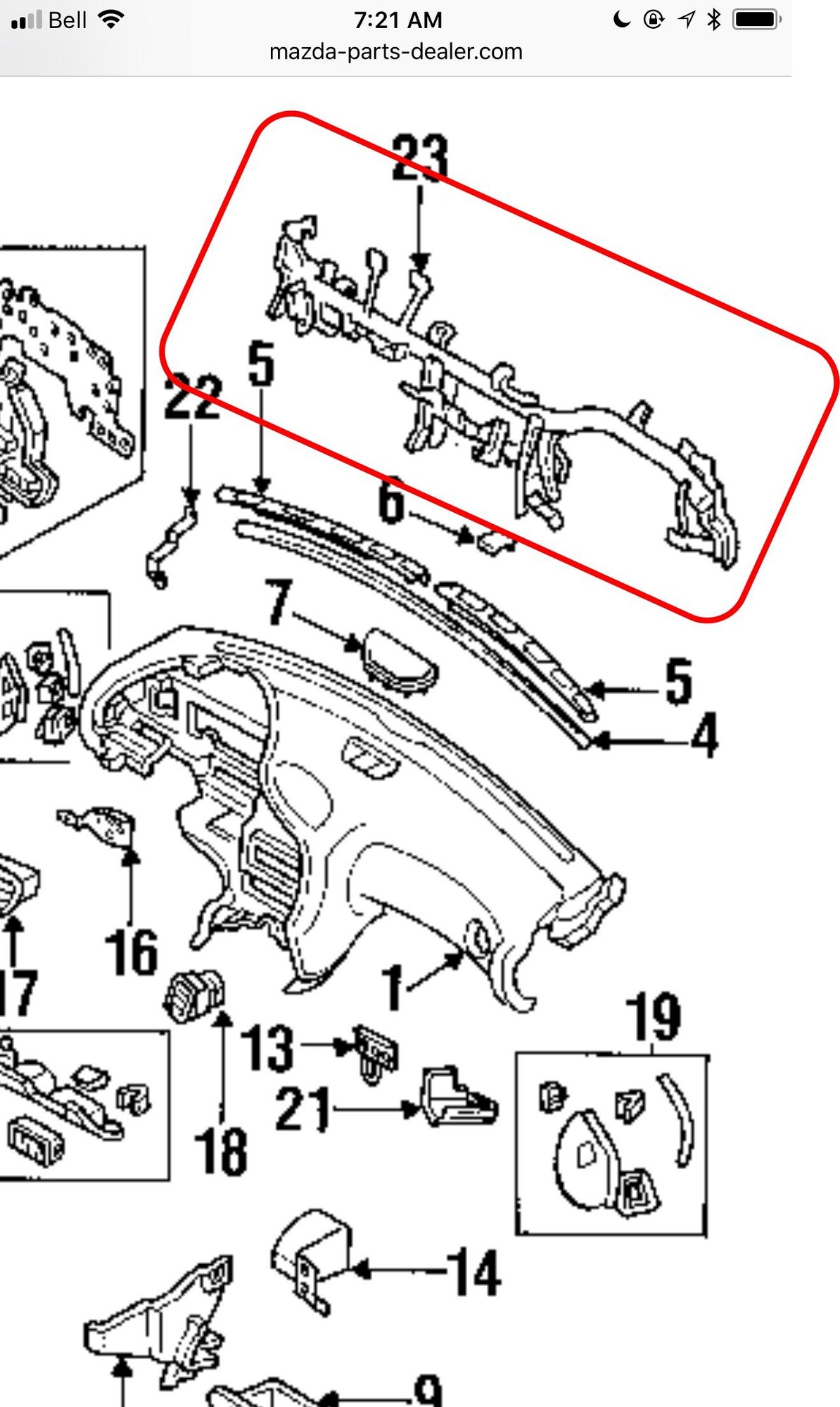

by the metal rebar, are you referring to this?.. I’ve been looking for interior pieces for my car for a while. I never even thought about looking for the parts from a newer car. And they also seem available!

Reply
Old Jul 29, 2018 | 07:23 PM
  #10
Brekyrself's Avatar
Rotary Freak
Community Builder
Liked
Loved
Community Favorite
iTrader: (38)

Joined: Aug 2004
Posts: 2,283
Likes: 89
From: Chicago
That is the metal rebar I am referring to. The 93 are different from 94/95.
Reply
Old Aug 15, 2018 | 09:56 AM
  #11
and.punker's Avatar
Junior Member

Joined: Jun 2018
Posts: 21
Likes: 1
From: Thessaloniki, temporarily
Wouldn't the airbag need to be hooked up somehow to a control system for it?
Reply
Old Mar 6, 2019 | 04:44 AM
  #12
Andreas Avgeris's Avatar
Full Member

Joined: Nov 2017
Posts: 72
Likes: 7
From: Athens
Yes, how would one go about making that passenger airbag work in case it is needed to?
Probably need the 94 airbag module too?
Reply
Old Mar 6, 2019 | 06:21 AM
  #13
Molotovman's Avatar
Ban Peak
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (50)

Joined: Jul 2002
Posts: 4,250
Likes: 550
From: Northern Virginia
This swap isn't going to be cheap. You'll need a complete dash assembly with the wiring harness at a minimum and the '94+ airbag module too.
Reply
