imitek

im just trying to clean the wiring up a bit and move the aux outputs around
my connections are
pin 33,34,35, aux 1, aux 2, aux 3,
pin 33 is connected to leading coil
pin 34 is connected to trailing front coil ( brown wire )
pin 35 is connected to trailing rear coil (brown/black)

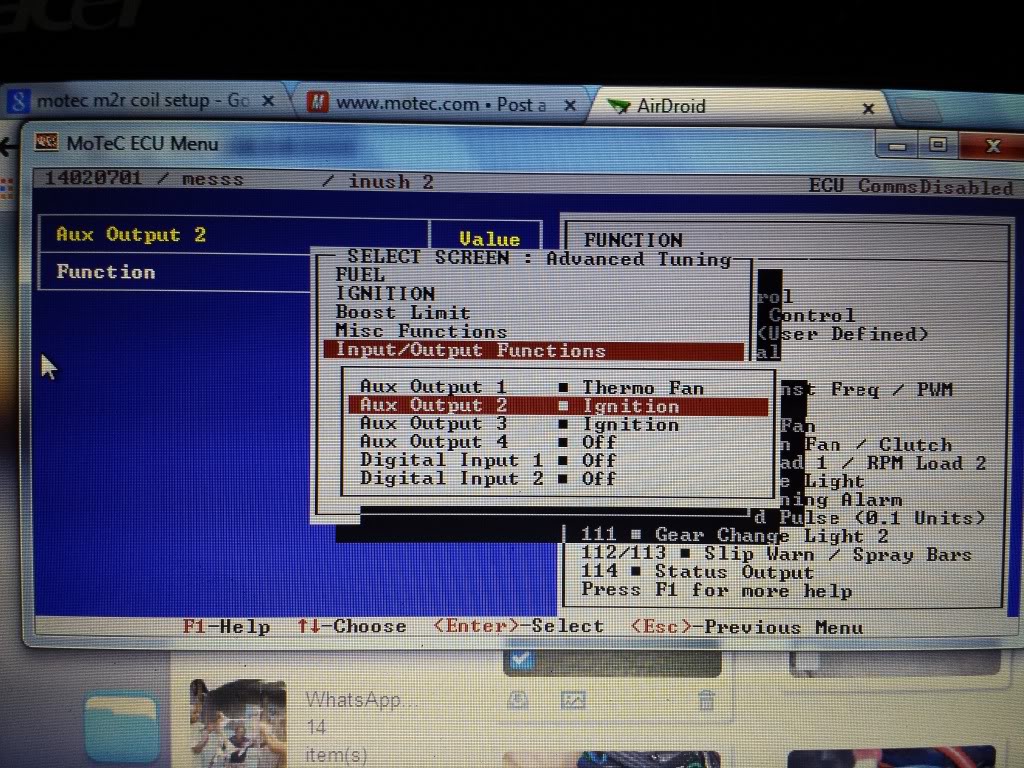

my problem is on the setup its showing me aux1 e.g. pin 33 is thermo fan ?

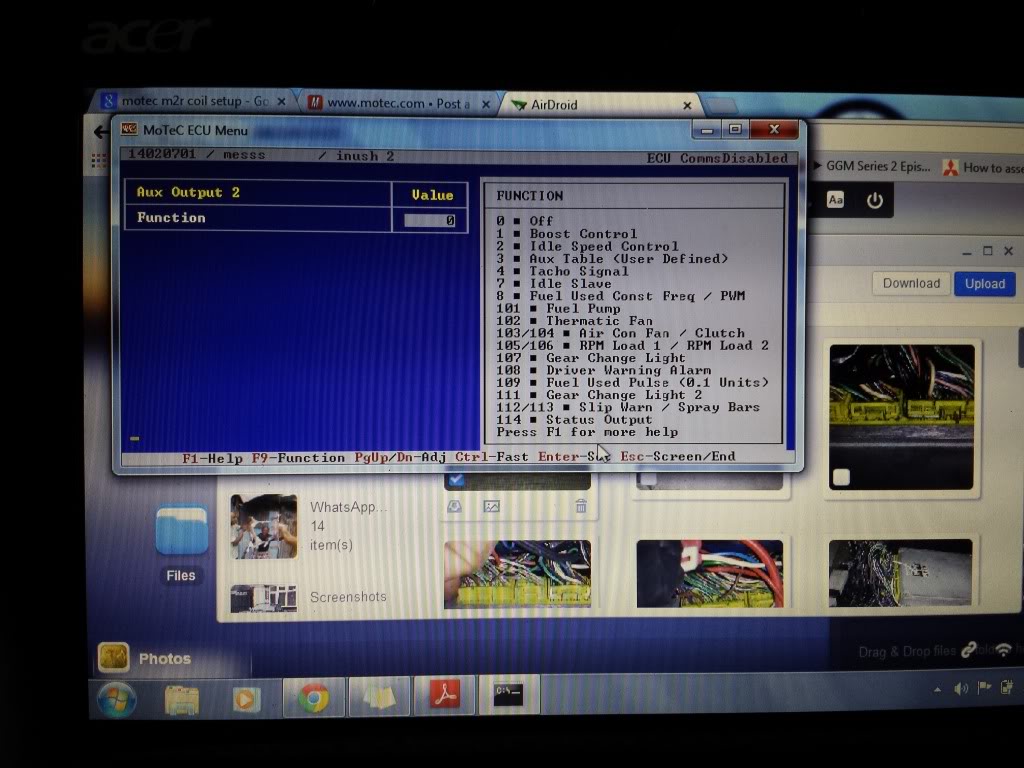

i did mess with it a few years ago i may have changed it from coil but i cant seem to find coil on the selection
also aux 2 and aux 3 is showing ignition
by the way car is running but bit rough when revved car wont be moved till this is sorted thanks for your help all

freddyrx3

iTrader: (14)

Write a PM or email to Beefcake on this forum. He runs the same M2R for years now

imitek

Thanks m8 will do right away

dguy

iTrader: (8)

33 isn't Aux1. 13 is Aux1. 33, 34, 35 on an M2R are dedicated to ignition so you shouldn't have to futz with it.

imitek

I just got this message lol yea i posted on motec site also
Yea thanks for that
But im having new problem with setup but opend a new thred because its new problem

imitek

While im here is ign 1 dedicated to leading coil ?
And ign 2 for trailing front
And ign 3 for trailing rear ?
