Microtech need map so i can get this thing tuned!!!help!!!

Microtech Area is for discussing Microtech systems

Microtech need map so i can get this thing tuned!!!help!!!

Old 03-18-11, 01:16 PM
  #1
Fortune Cookie
5 Year Member
Thread Starter
iTrader: (6)

pokemonpimp55's Avatar

Join Date: Feb 2008
Location: SoCal
Posts: 268
Likes: 0
Received 0 Likes on 0 Posts
need map so i can get this thing tuned!!!help!!!

Hey guys I was trying to see if you have a similar build that way I can limp this thing to los angelas to get it properly tune, the car kind of starts but not in the best sounding way.lol...any ways the setup im running is a t4 T68 turbo with presilencer and 3" pipe, greedy fmic, s4 monster street port block, s5 manifolds w/ emission removal, stock coils, walbro fuel pump, 550cc primaries and 1200cc secondary ...the engine has 0 miles on it as well as the turbo, if some one can help me out you would be very much appreciated ...thanks

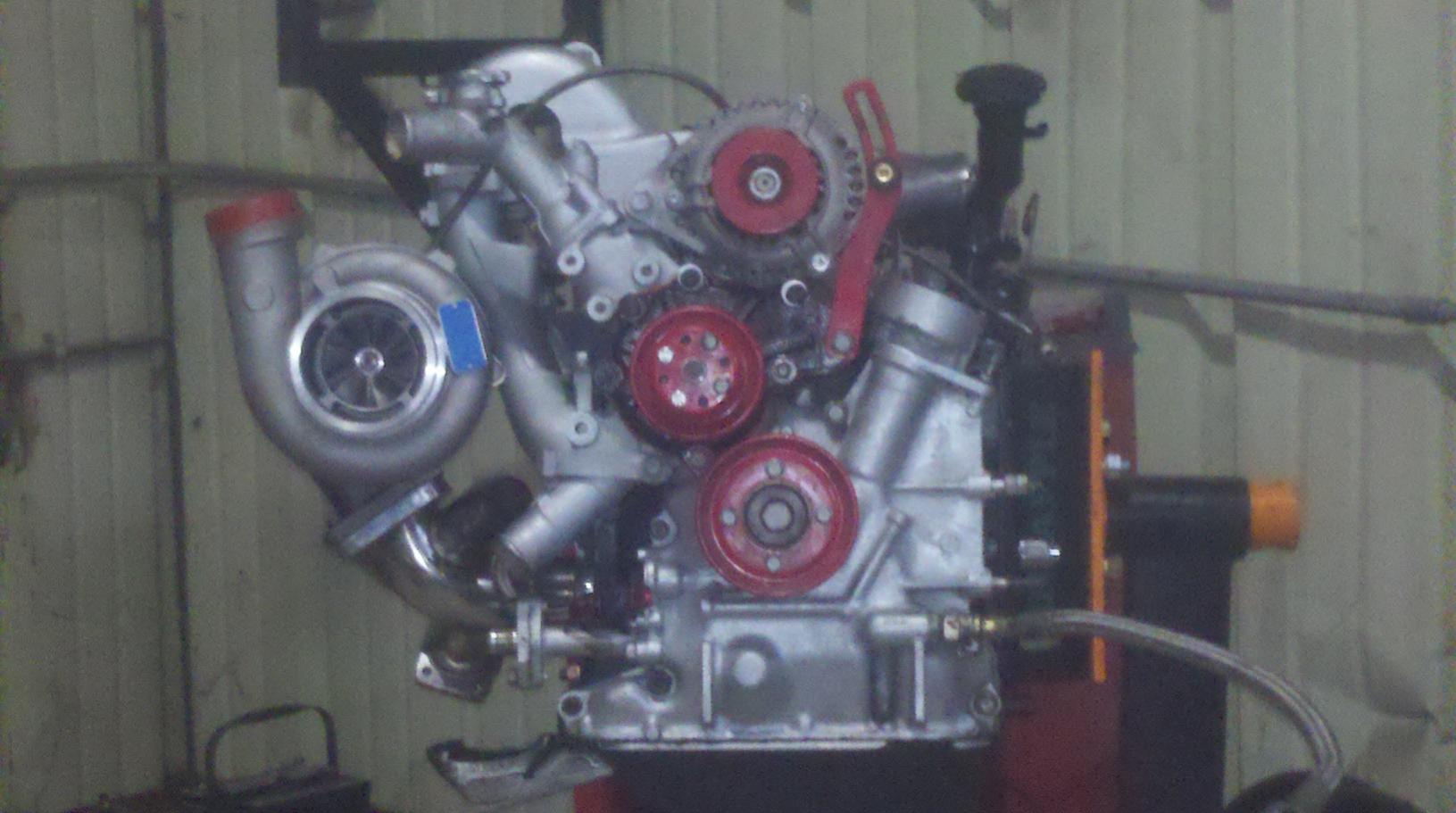

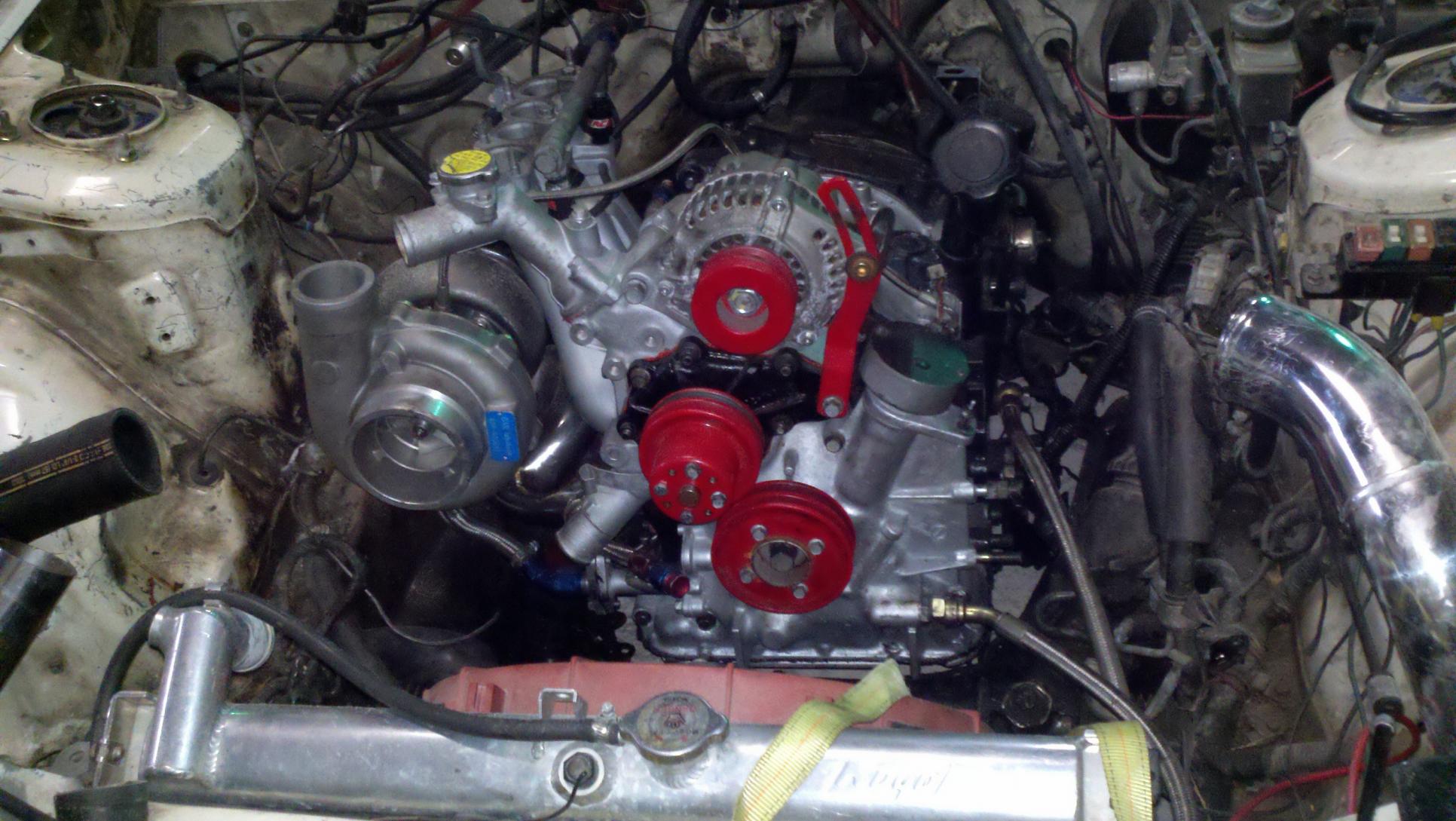

Attached Thumbnails need map so i can get this thing tuned!!!help!!!-2011-03-03_19-59-38_698.jpg   need map so i can get this thing tuned!!!help!!!-2011-03-05_21-57-23_817.jpg
pokemonpimp55 is offline
Old 04-03-11, 05:28 PM
  #2
Junior Member

Join Date: Nov 2010
Location: new york
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Prog #1 13Bt 1.0

Config +01 Cyl/R
Firing SEQUENTIAL
LOAD = MAP Sensor
DWELL = duty cycle
Input Trig +POS
Spark Trig +MAZ
Timing check OFF


Load
20 psi 10
18 psi 10
16 psi 9.56
14 psi 8.82
10 psi 8.38
8 psi 7.75
6 psi 6.5
4 psi 6
2 psi 5.5
00"hg 4.88
05"hg 3.88
10"hg 3
15"hg 1.82
20"hg 0.88
25"hg 1.5
30"hg 1.75


AUX
20 psi 15.95
18 psi 15.12
16 psi 15.68
14 psi 15.95
10 psi 15.95
8 psi 14.68
6 psi 12.56
4 psi 15.88
2 psi 15.88
IDLE
00"hg 4.88
05"hg 3.82
10"hg 2.25
15"hg 1.32
20"hg 1.56
25"hg 1.5
30"hg 1.56


RPMwot
500 +3%
1000 +4%
1500 +5%
2000 +5%
2500 +6%
3000 +5%
3500 +5%
4000 +3%
4500 +1%
5000 -3%
5500 -6%
6000 -5%
6500 -5%
7000 -5%
7500 -5%
8000 -4%


RPMcrs
500 -1%
1000 -2%
1500 00%
2000 1%
2500 +3%
3000 +6%
3500 +15%
4000 +15%
4500 +15%
5000 00%
5500 00%
6000 00%
6500 00%
7000 00%
7500 00%
8000 00%


T.P.S. prog mode +5%
IDLE jet +5%
off IDLE +5%
MIDrange +5%
MAIN jet +5%
limp home +5%
limp home2 +5%


Pump1 Amt +3%
Pump1pulse +6%
Pump1Trig +16
Pump1Stop 2psi
Pump2Start 2000
Pump2Amt +15%
Pump2Time +10
Pump2Trig +16
Pump2Stop 00"Hg
Pump1ADV +5
Pump2ADV +00
Pump Dwell +20
Pump Spare +00
Pump Timers NO
Pump1 Sync NO
Pump Spare +00


Water
124 C 00%
99 C 00%
82 C 00%
68 C +5%
60 C +10%
46 C +14%
38 C +21%
31 C +19%
24 C +33%
18 C +39%
11 C +45%
5 C +49%
-1 C +70%
-9 C +80%
-17 C +96%
-25 C 00%


Air_t
124 C +2%
99 C +2%
82 C +2%
68 C +2%
60 C +2%
46 C +2%
38 C +2%
31 C +2%
24 C +2%
18 C +2%
11 C -2%
5 C -2%
-1 C 00%
-9 C 00%
-17 C 00%
-25 C 00%


Crank
124 C 00%
99 C +7%
82 C -2%
68 C +5%
60 C +15%
46 C +19%
38 C +30%
31 C +40%
24 C +50%
18 C +60%
11 C +60%
5 C +70%
-1 C +75%
-9 C +80%
-17 C +96%
-25 C 00%


t rpm
500 +9
1000 +15
1500 +12
2000 +17
2500 +18
3000 +21
3500 +21
4000 +18
4500 +19
5000 +20
5500 +23
6000 +23
6500 +23
7000 +23
7500 +22
8000 +22


t map
20 psi +00
18 psi +1
16 psi +1
14 psi +6
10 psi +6
8 psi +6
6 psi +8
4 psi +10
2 psi +13
00"hg +15
05"hg +22
10"hg +15
15"hg +5
20"hg +5
25"hg +5
30"hg +5


t wat
124 C +00
99 C +1
82 C -2
68 C +00
60 C +00
46 C -1
38 C +00
31 C +00
24 C +00
18 C +00
11 C +00
5 C +00
-1 C +00
-9 C +00
-17 C +00
-25 C +00


t air
124 C +00
99 C +00
82 C +00
68 C +00
60 C +00
46 C +00
38 C +00
31 C +00
24 C +00
18 C +3
11 C -4
5 C +00
-1 C +00
-9 C +00
-17 C +00
-25 C +00


Opt MIXtrm +2%
Opt TPScal +33%
Opt TIMtrm +00
Opt Static +00
Opt RPMwot 05"Hg
Opt RPMcrs 15"Hg
Opt AF_ste +15%
Opt REVlim OFF
Opt REVcut 8000
Opt BstCUT 14psi
Opt IDLmap OFF
Opt REVstg 3000
Opt MAPstg 05"Hg
Opt %stg +50%
Opt Decel 20"Hg
Opt Dwell +20%


Aux out RPM 15820
Aux out MAP OFF
Aux out INV NO
Aux Fan ON OFF
Aux POPoff OFF
Aux Trim1 00%
Aux Trim2 00%
Aux Pwm1LO 00%
Aux Pwm1HI 00%
Aux Pwm#2 00%
Aux Pwm ON OFF
Aux Pwmrti sLOW
Log RPM LO OFF
Log HI RPM 15950
Log Load LO OFF
Log HILoad OFF
im running 550cc injectors with 16oo secondarys this is someone elses map but it worked well enough for me to get my car started
exploadary is offline
Old 04-04-11, 01:08 AM
  #3
Fortune Cookie
5 Year Member
Thread Starter
iTrader: (6)

pokemonpimp55's Avatar

Join Date: Feb 2008
Location: SoCal
Posts: 268
Likes: 0
Received 0 Likes on 0 Posts
Thanks exploadary, ill give it a shot hopefully tomorrow,
pokemonpimp55 is offline
Old 04-04-11, 01:33 PM
  #4
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Received 16 Likes on 15 Posts
that's a goofy *** map, sorry but i have 720 primaries and car not at the shop.

gotta ask, who tuned that thing? hopefully it's not a final tune. looks like someone with ADHD went through it.

if it works, i would baby the **** out of it.

maybe sometime by the year 2200 microtech will actually be able to log and save maps.... however i am still skeptical that they care that much. hell, even the megasquirt is ahead of them in technology now.

Last edited by RotaryEvolution; 04-04-11 at 01:41 PM.
RotaryEvolution is offline
Old 04-04-11, 04:21 PM
  #5
Fortune Cookie
5 Year Member
Thread Starter
iTrader: (6)

pokemonpimp55's Avatar

Join Date: Feb 2008
Location: SoCal
Posts: 268
Likes: 0
Received 0 Likes on 0 Posts
Yeah tell me about it, microtech has been promising updates since 2008...nothing has changed in the last 3 years lol...I went ahead and threw some 720 primaries back in, and used himni's map that rolo tuned for him, car starts but still some hick ups, ill let you know on the final results when I take it to rms, she should be close to 450hp on my boost goal!!!!
