Microtech LT8s: How to go from 2-bar to 3-bar map sensor?

Microtech Area is for discussing Microtech systems

Microtech LT8s: How to go from 2-bar to 3-bar map sensor?

Old 11-07-06, 06:15 PM
  #1
Nearing Completion...
Thread Starter
iTrader: (473)

str8ryd's Avatar

Join Date: Aug 2006
Location: Chicago
Posts: 4,720
Likes: 0
Received 0 Likes on 0 Posts
LT8s: How to go from 2-bar to 3-bar map sensor?

Hi,

I'm having a difficult time figuring this out. How can I upgrade from a 2-bar map sensor to a 3-bar map sensor??? I'll probably be running methanol injection sometime in the near future so I will definitely need an upgrade. I just want to know if their's an upgrade I can buy or will I have to ship my ECU back to Microtech??? PLEASE let me know.

Thanks in advance,

Rizwan
str8ryd is offline
Old 11-07-06, 06:20 PM
  #2
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Received 16 Likes on 15 Posts
the map sensor is integral to the ECU, i'm sure you know what that means.
RotaryEvolution is offline
Old 11-07-06, 06:46 PM
  #3
Nearing Completion...
Thread Starter
iTrader: (473)

str8ryd's Avatar

Join Date: Aug 2006
Location: Chicago
Posts: 4,720
Likes: 0
Received 0 Likes on 0 Posts
****! That's what I figured. I guess I'll be emailing Microtech to see what I can do about an upgrade. Anyone done this before??? Thanks again.
str8ryd is offline
Old 11-07-06, 07:04 PM
  #4
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Received 16 Likes on 15 Posts
the 2 bar firmware only supports 20PSI as i'm sure you already noticed in the maps. you can't change the firmware, only microtech can.
RotaryEvolution is offline
Old 11-12-06, 10:44 AM
  #5
Senior Member
5 Year Member

Join Date: Feb 2002
Location: sav GA
Posts: 258
Likes: 0
Received 0 Likes on 0 Posts

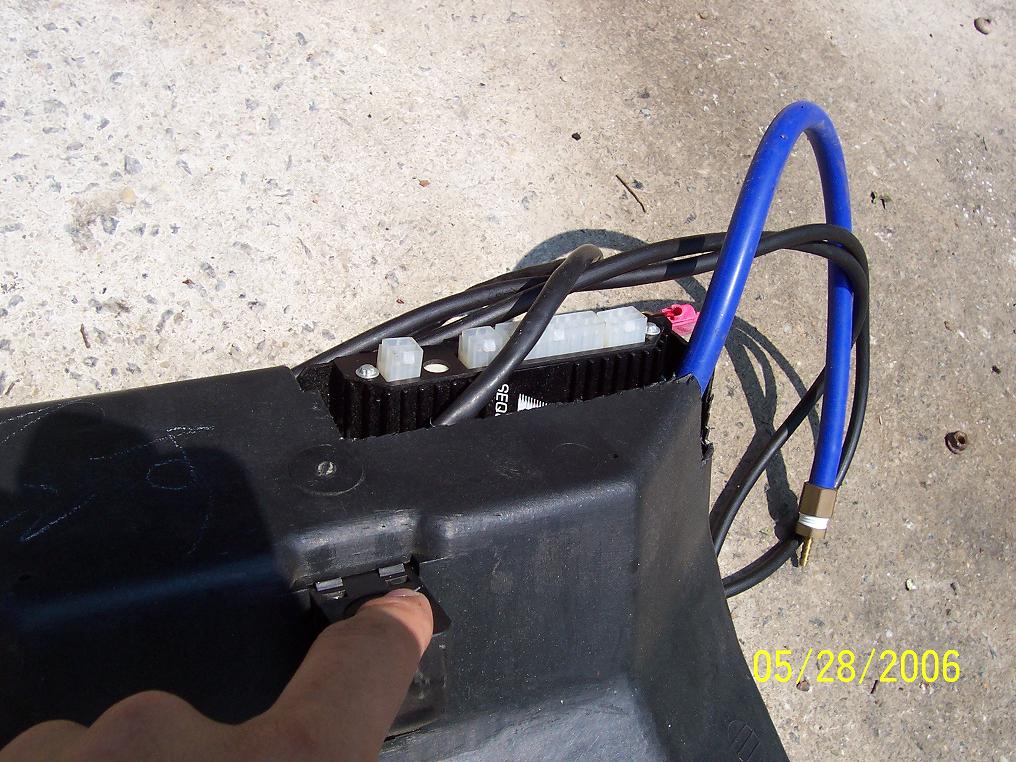

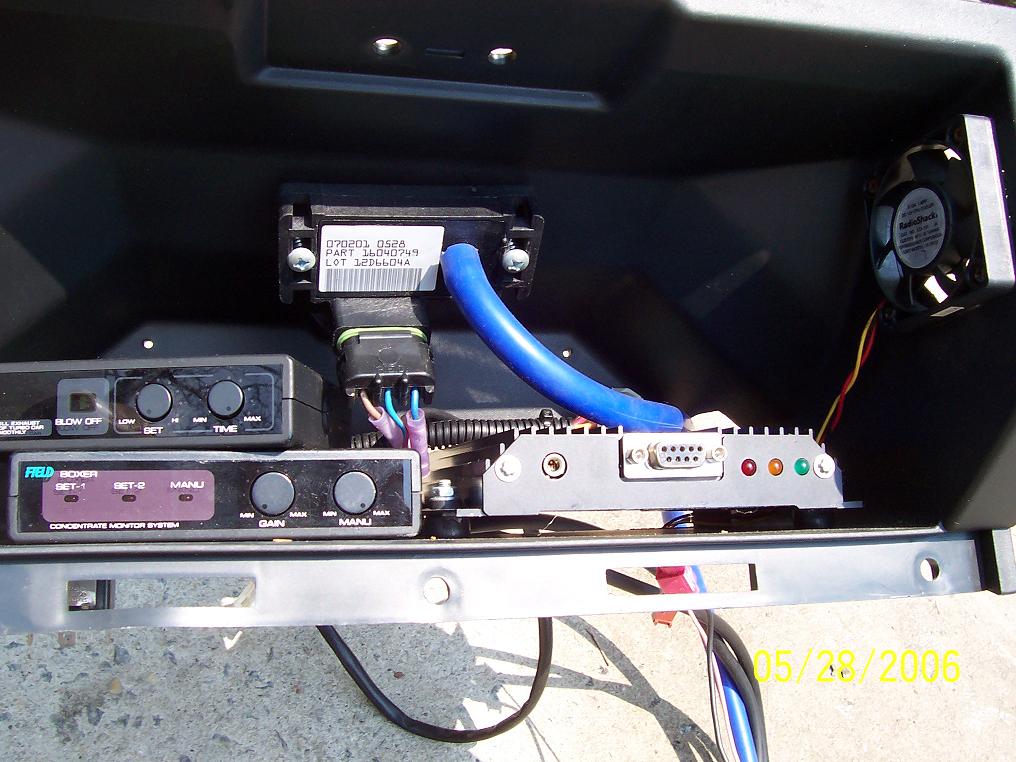

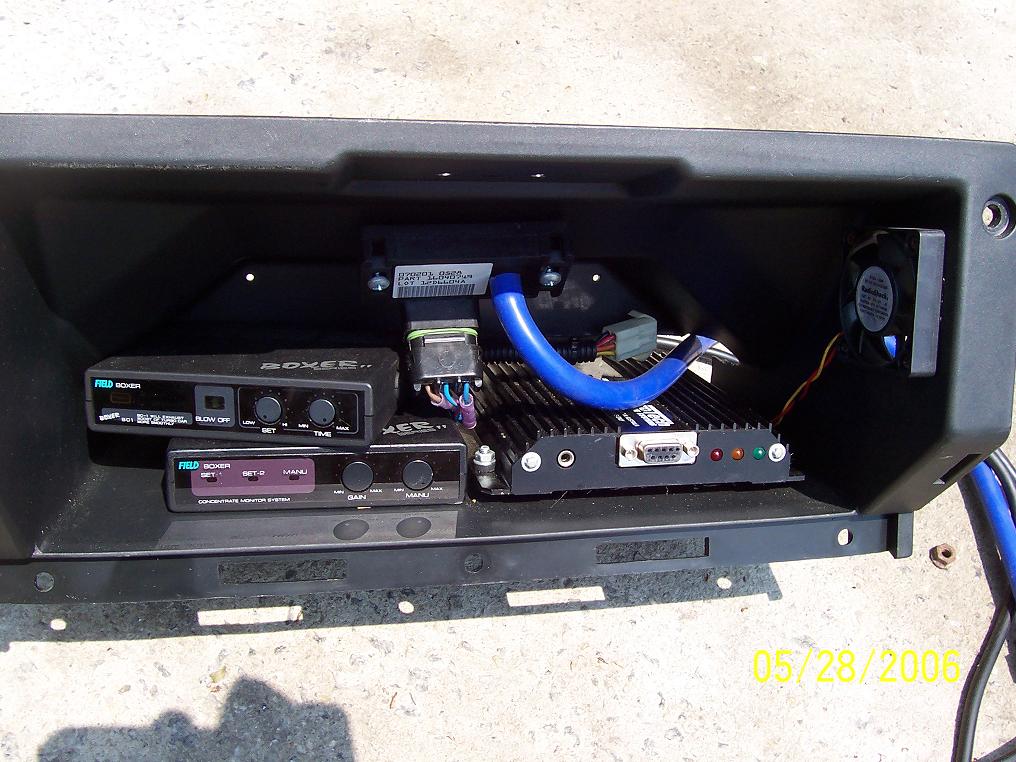

you'll need to run external map sensor setup like mine.
you'll have to sent it back to microtech for upgrade, tell them you want to run GM 3bar map sensor and you'll buy/have the sensor already. it was cheaper that way for me then buy map sensor from microtech.
Attached Thumbnails LT8s: How to go from 2-bar to 3-bar map sensor?-1.jpg   LT8s: How to go from 2-bar to 3-bar map sensor?-2.jpg   LT8s: How to go from 2-bar to 3-bar map sensor?-3.jpg   LT8s: How to go from 2-bar to 3-bar map sensor?-4.jpg

Last edited by tri_tam; 11-12-06 at 10:47 AM.
tri_tam is offline
Old 11-16-06, 04:07 PM
  #6
silver ghost
iTrader: (11)

G's 3rd Gen's Avatar

Join Date: Sep 2003
Location: Home of the Rolex 24
Posts: 3,050
Likes: 0
Received 1 Like on 1 Post
Originally Posted by tri_tam
you'll need to run external map sensor setup like mine.
you'll have to sent it back to microtech for upgrade, tell them you want to run GM 3bar map sensor and you'll buy/have the sensor already. it was cheaper that way for me then buy map sensor from microtech.
yup. Or get thwe ecu reflashed. G
G's 3rd Gen is offline
