Megasquirt Warmup wizard question
#1
Warmup wizard question
I've got my car almost to the point where it will warm itself up properly, but the 'warmup wizard' doesn't get the motor quite to the point where the temp is high enough to idle on its own.
Basically, it will run fine (with AFRs in the mid-high 12s) as it goes through all the values from cold up to the top value of 160 F, but once it passes 160, the motor almost immediately stalls out. If I keep my foot on the throttle a bit as the motor heats from 160 to 180 or so, it will continue to run fine.
I think if i could add an additional value at 180, or shift the 160 value up to 180, it would be perfect, but I cant find anywhere to do that. Is it even possible?
Otherwise, are there any other options?

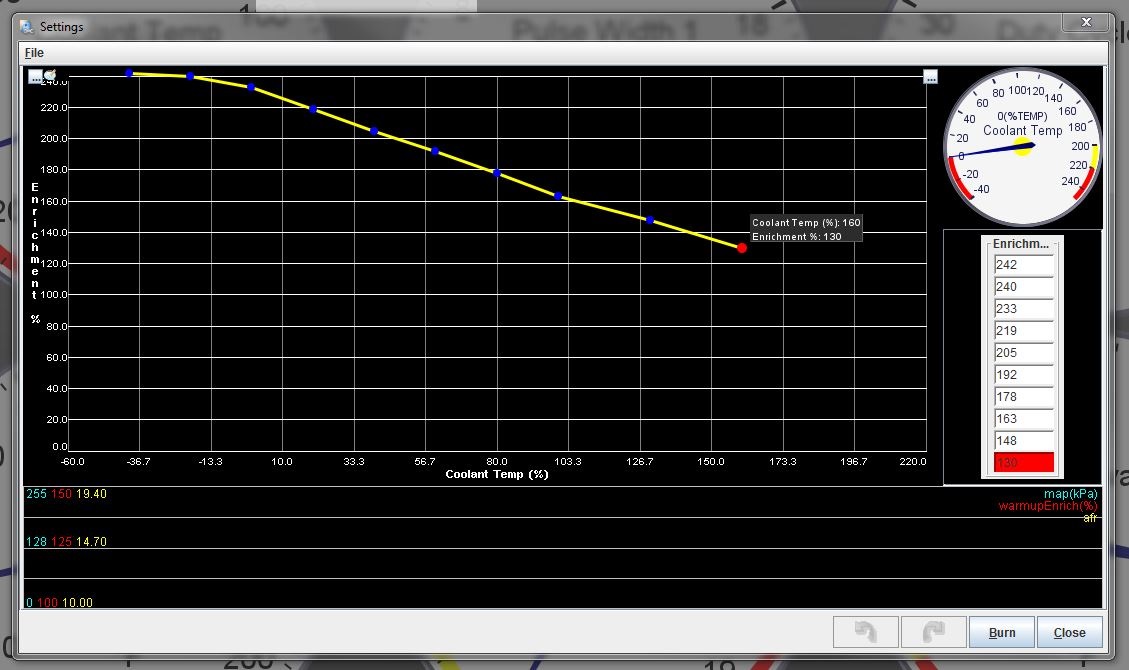

Pic attached of the current settings
Thanks
-Joel
Basically, it will run fine (with AFRs in the mid-high 12s) as it goes through all the values from cold up to the top value of 160 F, but once it passes 160, the motor almost immediately stalls out. If I keep my foot on the throttle a bit as the motor heats from 160 to 180 or so, it will continue to run fine.
I think if i could add an additional value at 180, or shift the 160 value up to 180, it would be perfect, but I cant find anywhere to do that. Is it even possible?
Otherwise, are there any other options?
Pic attached of the current settings
Thanks
-Joel
#2
-
Hello, i have the same problem, but i donīt have idle valve, so i try to compensate it with the wide-band trying to put the AFR on the correct place, also i have the idle advance timing, but
i think that is messing up with the rest of the table.
Running down hill with throttle close also sometimes lower the temp to the same level, as if the engine was starting to warmup, on this case once is low than 160
the warmup wizard start to add fuel again.
To pass this situation only if the software have a internal clock for 10 minutes for example, and after that time the warmup wizard canīt come alive again.
If you have wideband correction try it, it may help to get it more stable.
Regards.
-
Hello, i have the same problem, but i donīt have idle valve, so i try to compensate it with the wide-band trying to put the AFR on the correct place, also i have the idle advance timing, but
i think that is messing up with the rest of the table.
Running down hill with throttle close also sometimes lower the temp to the same level, as if the engine was starting to warmup, on this case once is low than 160
the warmup wizard start to add fuel again.
To pass this situation only if the software have a internal clock for 10 minutes for example, and after that time the warmup wizard canīt come alive again.
If you have wideband correction try it, it may help to get it more stable.
Regards.
-
#10
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Nope, not on the MS1.
Though I've never had this issue with an MS1. You may have to make the idle a bit more rich, or increase the fuel in the 160 bin.
Do you have an idle valve?
Though I've never had this issue with an MS1. You may have to make the idle a bit more rich, or increase the fuel in the 160 bin.
Do you have an idle valve?
#12
yeah i have an idle valve
i actually might have solved this, the last couple warmups have gone smoothly
i've made a few changes but i think what solved the warmup was setting the idle control back to warmup only, then making the warmup very 'wide' by setting the low temp very low but with it's DC very high, then the high temp set right at full operating temp. so now the warmup idle covers a larger range and starts at a higher RPM and drops slower.
i think with this idle control i can actually lower the warmup enrichment values, since AFRs were in the 11s during warmup now
i actually might have solved this, the last couple warmups have gone smoothly
i've made a few changes but i think what solved the warmup was setting the idle control back to warmup only, then making the warmup very 'wide' by setting the low temp very low but with it's DC very high, then the high temp set right at full operating temp. so now the warmup idle covers a larger range and starts at a higher RPM and drops slower.
i think with this idle control i can actually lower the warmup enrichment values, since AFRs were in the 11s during warmup now
#13
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Closed loop idle should handle it if set correctly. It sounds like you may have some lean bins in your VE table. The idle should be a little valley with more VE surrounding it so that if it starts to wander, a little more fuel will be added to catch it. Same with timing. That's how I've always set up MS1.
#14
Closed loop idle should handle it if set correctly. It sounds like you may have some lean bins in your VE table. The idle should be a little valley with more VE surrounding it so that if it starts to wander, a little more fuel will be added to catch it. Same with timing. That's how I've always set up MS1.
im not sure i've quite wrapped my head around the closed loop idle settings yet to be honest, it behaves really erratically when i try to use it
