camman

I am having a huge spike in fuel when my staged injection turns on. I have my car pretty well tuned. It drives great and has good power, but when my staged inj. turns on my afr's drop to between 9 and 10.5 for a plit second and then they return to a normal range. I have tried to adjust the settings for a smooth transition. I have raised the rpm from about 3500 to 3800 and the the transition ign events from 70 to 250, and taken my primary reduction delay to 0.

Am I missing something or have I shot myself in the foot with my settings. I have stock primary inj. and 720cc secondaries.

Thanks for all your help. With out this forum I would still not have a running car.

Aaron Cake

iTrader: (1)

Sounds like you have an MS1?

Do you have your scaling factor set correctly to your injector sizes?

camman

I'm running ms2 w/3.0 board. Yes my injectors are entered correctly. I didn't notice the drop in afr until I got my tune closer to ideal. I am running low z secondaries with 10 ohm resisters. could that be my issue?

Aaron Cake

iTrader: (1)

What's your firmware level? I think the new firmware on the MS2 supports duty based staging which may help you. Honestly I'm a bit out of touch with the MS2 firmware as I don't have one handy...

muythaibxr

We support duty-based staging and table-based staging in the latest firmware revisions. I would recommend using table-based.

Ken

camman

I think I am running 3.1.0. time to upgrade firmware again.

muythaibxr

I believe 3.1.0 already has table-based. I'll have to double check.

Ken

camman

figured out how to use the table. I'll play with it and see if I can fix my issue. Does anyone who is using the table want to send me their settings as something to go off of?

camman

does anyone want to share their table based staging settings?

Eagle7

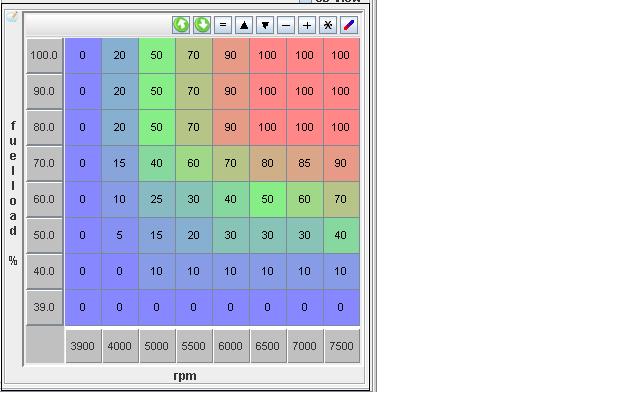

Here ya go.

muythaibxr

That's more or less similar to my NA staging settings.

Ken

camman

thanks Ken. I really appreciate it.
