Some Very helpfull information.
These will help anyone that doesnt want to dig through the fsm to look for the ecu pinouts. you can also look in the FAQ in the sticky if your confused about polarities.

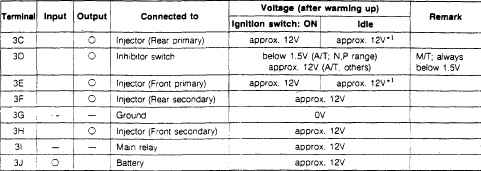

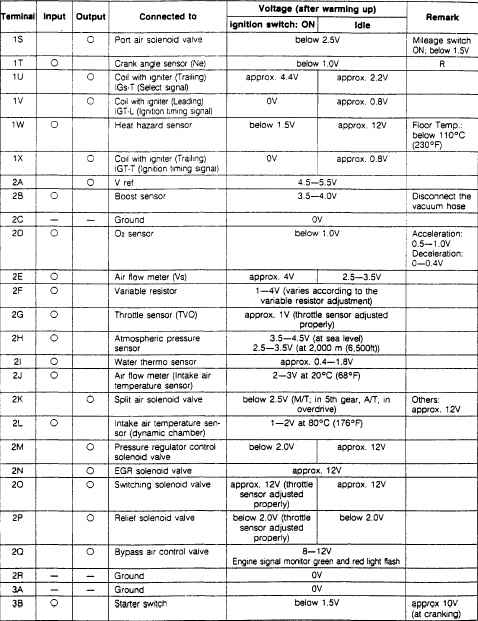

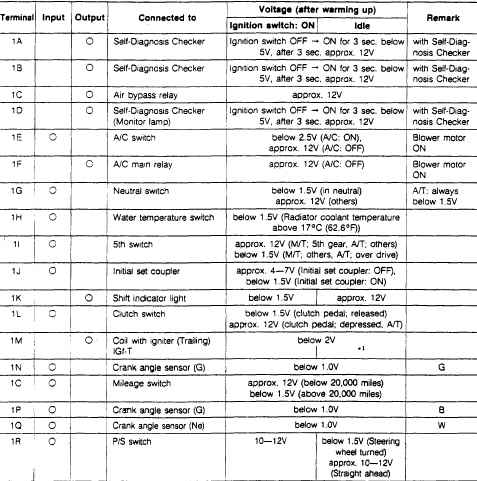

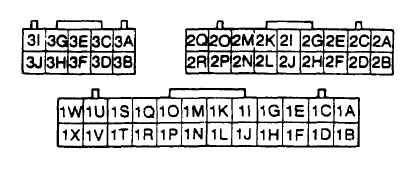

Attached Thumbnails Some Very helpfull information.-faqdiagnosing1.jpg   Some Very helpfull information.-faqdiagnosing2a.jpg   Some Very helpfull information.-faqdiagnosing2b.jpg   Some Very helpfull information.-faqdiagnosing2c.jpg
Reply
0
Old Mar 10, 2006 | 01:10 PM
Share
  #2
The Griffin's Avatar
The Griffin
Burning up Time
Tenured Member 10 Years

Joined: Sep 2004
Posts: 805
Likes: 2
From: Earth
You may want to include what year ecu this applies to.Looks like a S4 pinout ,correct?
Reply
0
Old Mar 10, 2006 | 01:13 PM
Share
  #3
muythaibxr's Avatar
muythaibxr
MegaSquirt Mod
Tenured Member 15 Years

Joined: Sep 2004
Posts: 4,721
Likes: 1
From: Maryland
this is straight out of the S4 FSM...
Reply
0
Old Mar 10, 2006 | 10:17 PM
Share
  #4
SirCygnus's Avatar
SirCygnus
Thread Starter
whats going on?
Tenured Member 20 Years
iTrader: (1)

Joined: Mar 2004
Posts: 4,930
Likes: 8
From: atlanta ga
Originally Posted by muythaibxr
this is straight out of the S4 FSM...
like i said, this is for people that dont want to dig through it. it took me forever to find it, and i couldnt really find it in the fsm, so i went on a man hunt and found that.

also thats for an s4.
Reply
