Please Help

The directions say I have finished after installing the led's and the 4.7 k pull up resistors. But I still have a lot of places on my board that aren't used and alot of parts left. I don't understand I followed the directions completley. Any one else have this problem?
Old 02-07-06, 08:22 AM
  #2
MegaSquirt Mod


muythaibxr's Avatar

Join Date: Sep 2004
Location: Maryland
Posts: 4,721
Likes: 0
Received 1 Like on 1 Post
Depending on what circuits you built and stuff, you will have a lot of spare parts...

Take a pic of your board that's fairly close up, and post it... Then we can tell you if you missed anything important. You DID buy a stimulator didn't you? You could test your board with that as well.
Old 02-07-06, 09:34 AM
  #3
whats going on?

iTrader: (1)

SirCygnus's Avatar

Join Date: Mar 2004
Location: atlanta ga
Posts: 4,929
Received 8 Likes on 7 Posts
um... its pretty simple. if you finished, then your finished. who cares if you have extra stuff. its like a lego set. your given a buncha extra **** justr incase you **** up somewheres.
Old 02-07-06, 10:31 AM
  #4
MegaSquirt Mod


muythaibxr's Avatar

Join Date: Sep 2004
Location: Maryland
Posts: 4,721
Likes: 0
Received 1 Like on 1 Post
Actually, if you buy a kit, you're not given any extra stuff... you're given just what is needed to build every circuit on the board, no more, no less..

You can end up with extra parts if you decide not to install certain circuits... I never install the Hall sensor/coil negative tach circuit for example...

There are a lot of options when building this board, which is why I asked for a pic. I can tell you from looking if you'll be able to run the engine with it.
Old 02-07-06, 04:26 PM
  #5
Slo Low

Thread Starter
iTrader: (8)

lowkee33's Avatar

Join Date: Feb 2003
Location: Dayton/Ohio
Posts: 797
Likes: 0
Received 0 Likes on 0 Posts

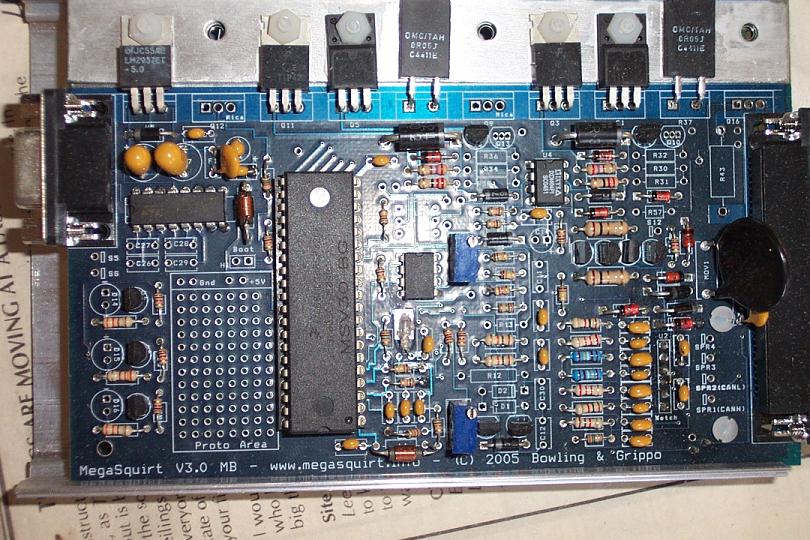

Ok here is the pic I appreciate the help.
Attached Thumbnails Please Help-dcp_1135.jpg
Old 02-07-06, 09:56 PM
  #6
MegaSquirt Mod


muythaibxr's Avatar

Join Date: Sep 2004
Location: Maryland
Posts: 4,721
Likes: 0
Received 1 Like on 1 Post
It looks like you missed all the capacitors in the serial port circuit, you should put those in...

It also looks like you didn't install some of the PWM flyback components or the coil negative tach circuit... which is fine if you didn't want them... You definitely need to install c26,c27,c28, and c29 though.
Old 02-08-06, 05:24 AM
  #7
Senior Member


Eagle7's Avatar

Join Date: Sep 2002
Location: Wandering the USA in my Winnebago
Posts: 286
Likes: 0
Received 0 Likes on 0 Posts
And the LEDs.
Old 02-08-06, 12:45 PM
  #8
Slo Low

Thread Starter
iTrader: (8)

lowkee33's Avatar

Join Date: Feb 2003
Location: Dayton/Ohio
Posts: 797
Likes: 0
Received 0 Likes on 0 Posts
which one is the serial port circuit. Sorry in advance if this is a stupid question!
Old 02-08-06, 01:04 PM
  #9
Rotary Enthusiast


jayroc's Avatar

Join Date: Jun 2002
Location: Yokosuka
Posts: 1,058
Likes: 0
Received 0 Likes on 0 Posts
Did you go through all the testing steps as you built it? Never built a v3, but I am sure they go though testing the supply and serial circuits... No stim, I guess?
Old 02-08-06, 02:00 PM
  #10
MegaSquirt Mod


muythaibxr's Avatar

Join Date: Sep 2004
Location: Maryland
Posts: 4,721
Likes: 0
Received 1 Like on 1 Post
the capacitors I listed are part of the serial port circuit.
Old 02-08-06, 04:48 PM
  #11
Slo Low

Thread Starter
iTrader: (8)

lowkee33's Avatar

Join Date: Feb 2003
Location: Dayton/Ohio
Posts: 797
Likes: 0
Received 0 Likes on 0 Posts
Got ya I put those in, and I ordered my stimulator. I know I should have got it before so hopefully I did everything correctly.
