Im in need to find what settings people are running for there 13bt with a FFE Mag Trigger kit with the 36-2-2-2 wheel, im having issues with getting it started/running looking to see what settings everyone is using, everything im finding isnt working or contradicting each other.. so any help is wonderful! can post MSQ/ ignition settings if u like.



Which MS version? Far as I know that trigger tooth arrangement is only support in MS3.



Ms3x

It starts some times gets to 600-900 rpm and dies and then doesnt start again..

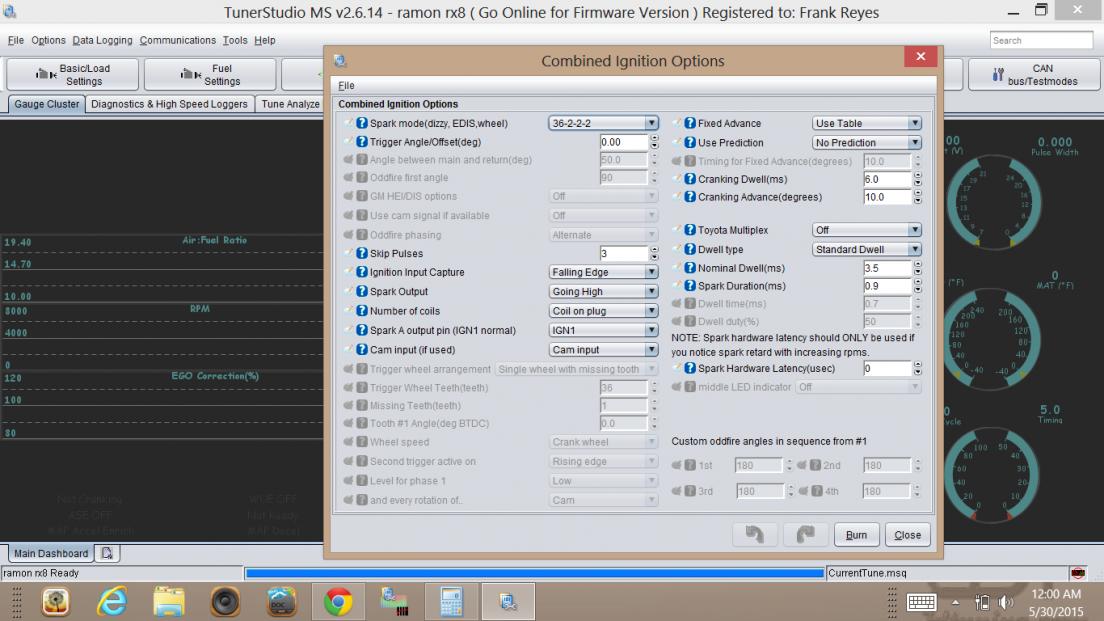

I use that trigger with microsquirt ecu and works perfect, but the microsquirt have the max9926 chip that make more easy to use vr sensors here is my setup


this seller have a board that have that chip MS Input Modules - SymTech Laboratories: Design, consulting, prototyping, and manufacturing



Can you crank the car without the spark plugs (disable the coils) and see a steady RPM on the 'Squirt?



Yes 200-300rpm



Did you use shielded wire for the VR wiring, ground one end of the shield, and run the wiring away from the coils?



Yes sir!! We got it to start some diff spark plugs made a big change but it still is missing pretty bad, ordered a 36-1 wheel from ffe. To simplify things we hope



Yeah it dosn't work unless you have the rx8 front cover with the original cas sensor mounting. Unfortunately after my countless messages to DIY, and getting either-no reply, or yes we'll do it, or no we won't do it. Very upset about this and they keep saying to change the wheel which is something I'm not willing to do.



Yea we bit the bullet and bought a 32-1 wheel... 80usd later and it runs
