20b Carbon

Hello everyone just wanting to reach out to everyone and introduce our selves. Currently we are working on our third build. Our first was rebuilding a 93 rx7 OME with a few upgrades. Our second was 93 rx7 13b true twin turbo, and our current is 93 rx7 20b full carbon fiber. We will post pics and photos of the first two, and as the third is being done we shall do the same. Best to all on their projects.

Here is the parts list and info on the 93 13b TT.
I will add additional photos of the completed car later this week.

The Car:
1993 Mazda Rx-7 true twin turbo in a pearlescent white paint.

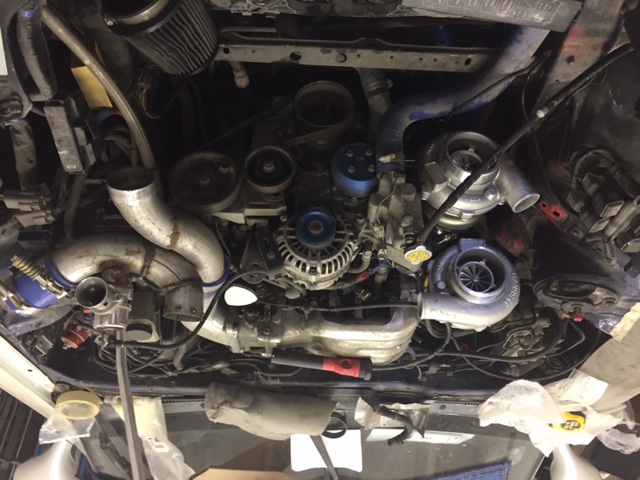

Engine Bay:
Completely rebuild 13b, balanced, blueprinted, painted and street ported by Rx7.com

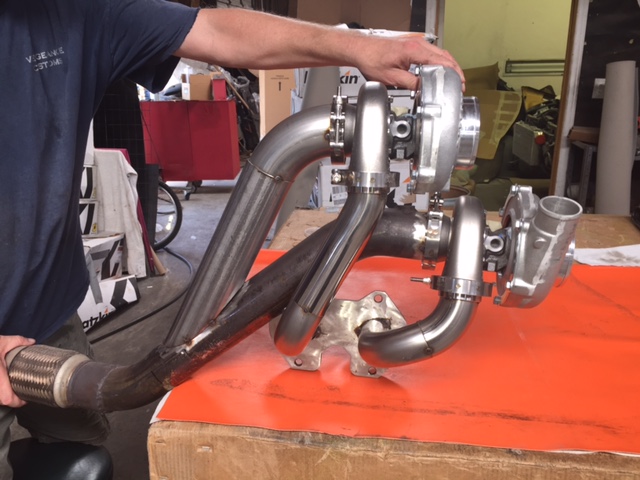

Custom twin turbo manifold, downpipes and 3"air intake plumbing by Vengeance Customs
Adaptronic s6 ecu
Garrett GTX 3071r turbo w/ Tial sports VB30
Garrett GTX 3076r turbo w/ Tial sports VB30
Tial sports (2) MV-R 44
Custom wastegate protection plate by Vengeance Customs
HKS Super SSQV (2)
Koyo radiato R-series

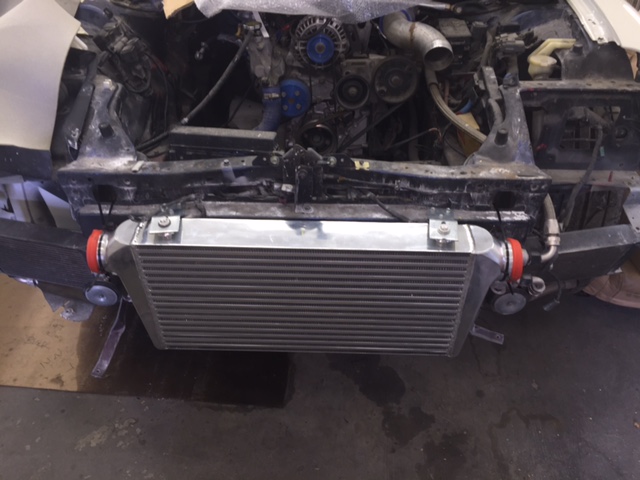

Front mount high volume intercooler
Setrab 19row Dual oil cooler system
KG Parts competition primary and secondary fuel rails
Aeromotive fuel regulator
Summit Racing fuel pressure gauge
Five O Black ops 1000s primary and 2000s secondary injectors
Snow Performance Stage 2 water/methanol duel stage injection system with VC-50 controller mounted in steering pod
All braided line for Oil, Fuel and Coolant by Texas Auto Tops
Rotary Works throttle body
Upper intake port and polished by Texas Auto Tops
KTS radiator breather
Evens HP radiator Coolant
Idemitsu 20W-50 Rotary Racing oil
Glowshift oil pancake
Allstar Performance oil catch breather can
Garrett pulley set
Act 6 puck clutch and light weight flywheel


Tuning:
Ari of Rx7.com and Steve of PRT Performance
465hp on pump 91 octane but ran into ignition and back pressure problems and will address in the future our goal will be 550-600 once changes are made.

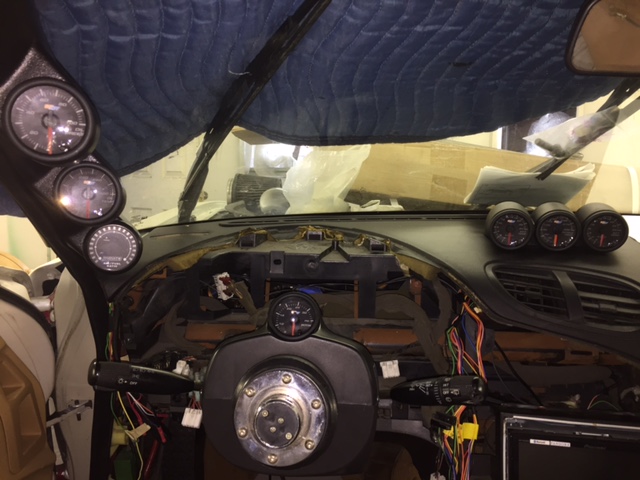

Interior Equipment:
Innovate Motorsports Digital MTX Series Air/Fuel Ratio Gauge in a-piller
Glowshift oil pressure gauge in a-piller
Glowshift oil temp gauge
Glowshift 3 pod a-pillar for 93 Rx-7
FRSport 3 pod center dash
Glowshift dual air intake temp gauge
Glowshift (2) high temp exhaust temp gauges

Interior:
Completely restored and modified by Texas Auto Tops

Exterior:
Restored by Texas Auto Tops
Sleek Headlights by Evo-R

Suspension:
Drag and Drift professional coil overs
Banzai Racing Differential Brace

Rims:
Enkie RPF1

20b Carbon

Here are two videos of the car.

https://drive.google.com/open?id=0B4...TFUaUVyTG9Wdms

https://drive.google.com/open?id=0B4...25WbWRCN1E0Z1U

LS7FD3S

Great looking car. Good luck on your build!

20b Carbon

Thank you, we learned so much on this build, it was a lot of fun and we dropped a lot of the F bombs in the process. Hopefully the 20b Carbon goes a little smoother but we shall see. LOL. We are showing the build of it on here if you are interested click the link below.
https://www.rx7club.com/20b-forum-95...arbon-1115443/

20b Carbon

We are working hard to get her ready for the show. We will post pics once we get back.


Heatwave 2016
