I never got to do this on my old R1 so I decided to do it now. This has been done to death on this forum and every other forum in existence. Just sharing my go around and maybe the pics will help someone else out....Some thoughts:
1. Mod is good for at least 5 hp...comparable to mazdaspeed sticker
2. I like rice. Many of you think this is rice. I don't care, I still like it.
3. I did it in about 2 hours....more out of boredom than anything else.
4. Completely reversible and I retain key function if I get bored of the button.
Ok, the pics and process.
Pretty much THE diagram to go by. NOTE: I did not cut the Black with blue stripe wire. I tapped mine to retain key function

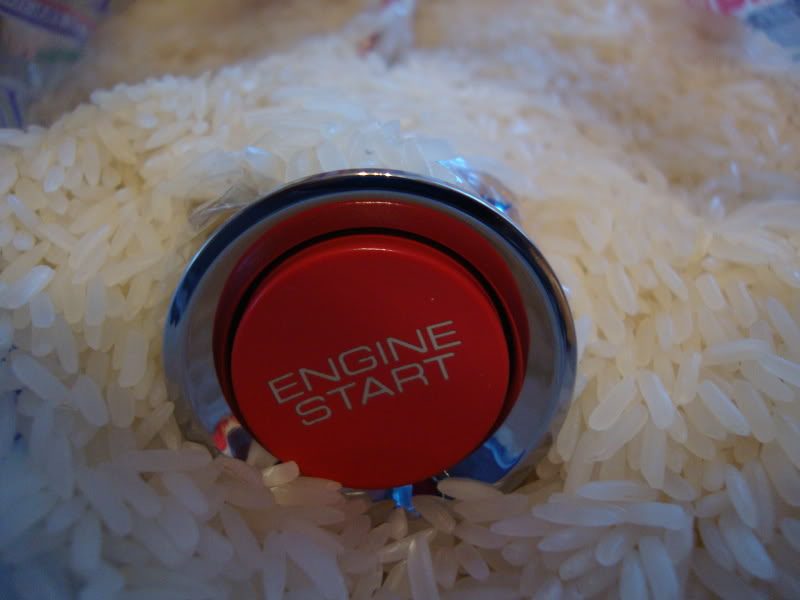

Here is the official OEM switch...found it...you guessed it..in my bag of rice.

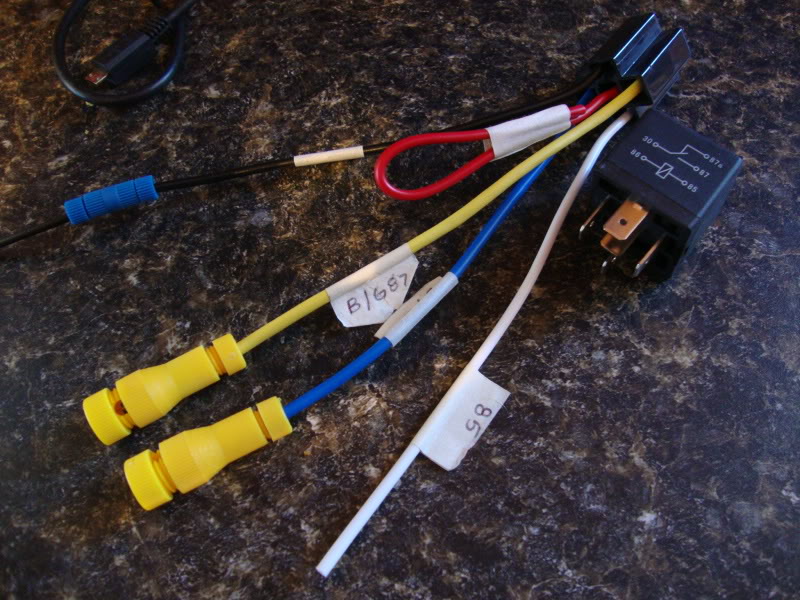

I used a 40 amp Tyco relay wired:
85 to yellow wire on S2K button
86 to ground, tapped cruise control Black wire
87 tapped Black with Green stripe wire off ignition
30 tapped (I did NOT CUT) Black with Blue stripe wire off ignition
I used posi-connects and posi-taps for the wiring. Made it quick and easy (easily reversible). Some like these, some don't. They have never failed me but use whatever you feel most comfortable with connecting wires.

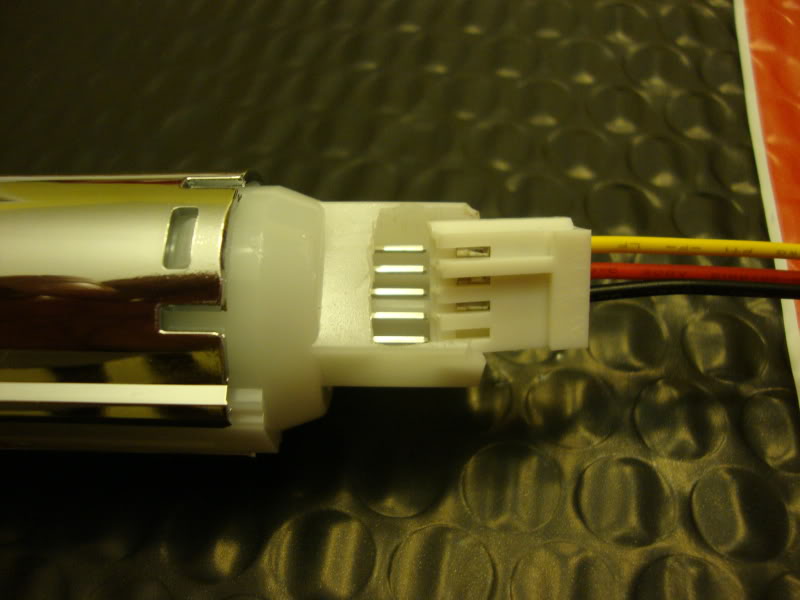

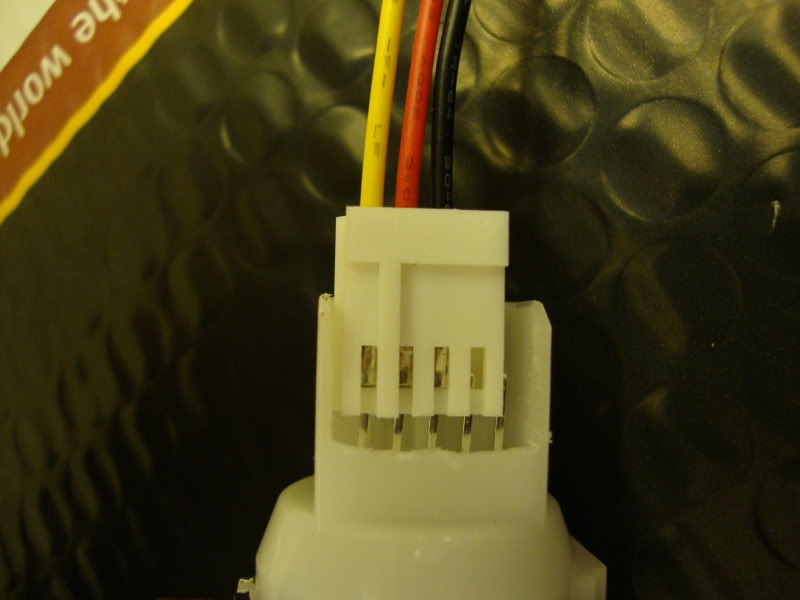

Here is the harness to the button. Note that I cut off the top plastic piece of the S2K button to expose the prongs. Easier to get the harness in. Harness was Part#03165 from Cables To Go. Its a Y-adapter for the old 3.5” floppy drive. S2K button has 5 prongs, you use three...1,2,3 from left looking from top. I depinned the 4th wire on the harness to get it out of the way.
Yellow wire goes to 85 on the relay
Red goes to 12v ignition on (tapped Black with Yellow stripe wire off cruise control harness)
Black is Ground (tapped Black wire off cruise control harness)

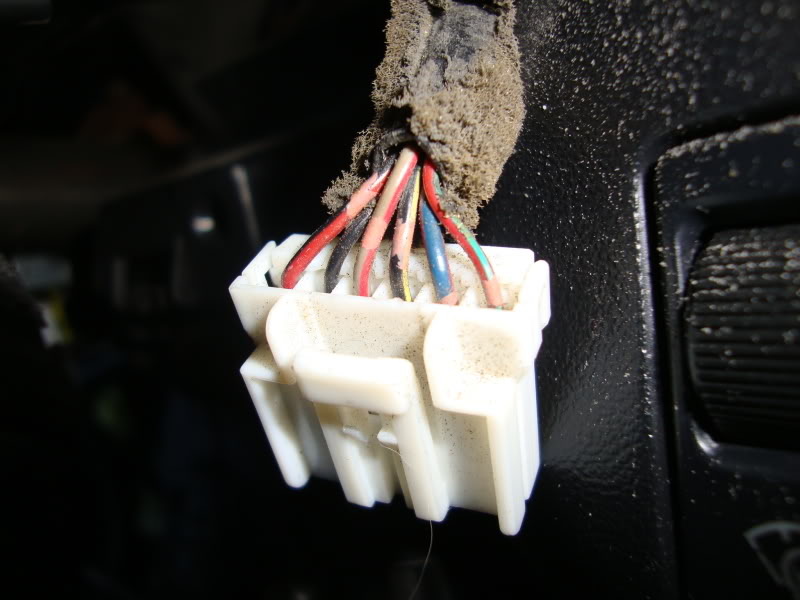

Cruise Control Harness: Black/yellow is 4th from left (12v ignition on) Black is 2nd from left (Ground)

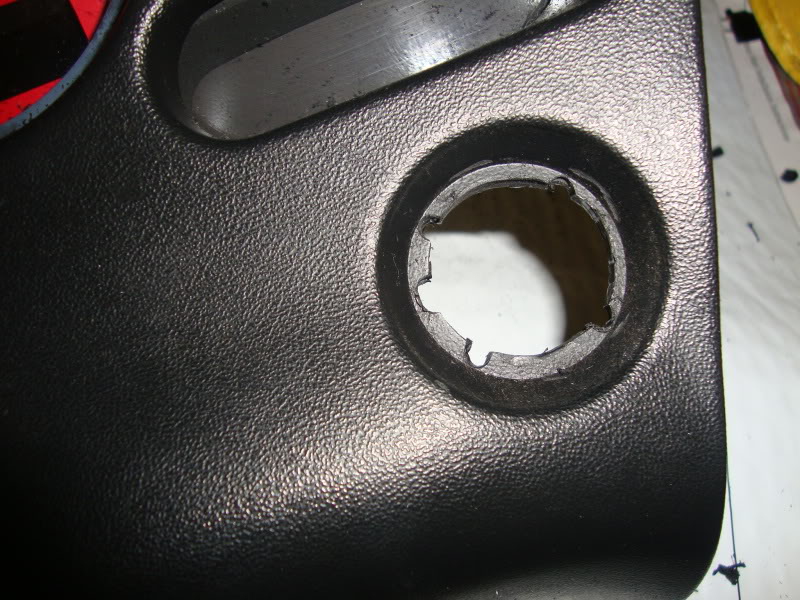

You need to enlarge the cig lighter hole to fit the button. I notched my hole to match tabs on the button. This serves to make the button snug and prevents it from turning around. Takes about 5 min with a dremel.

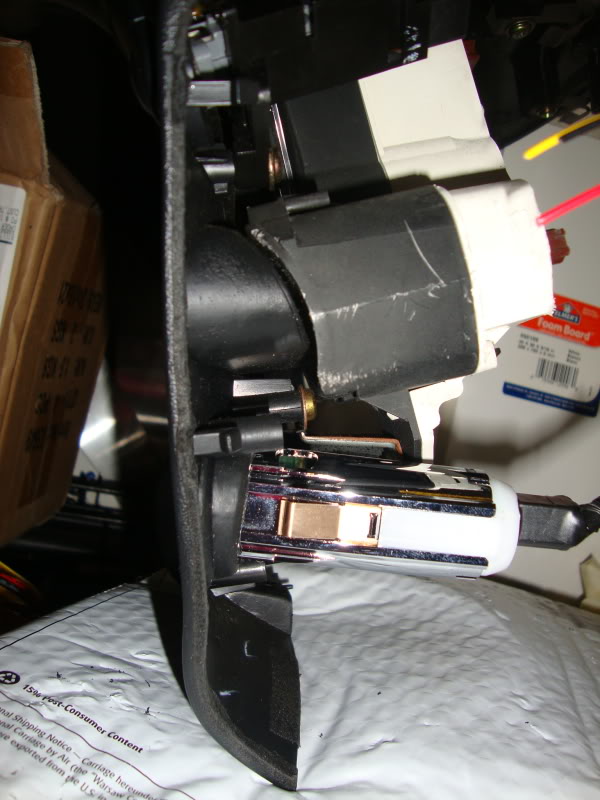

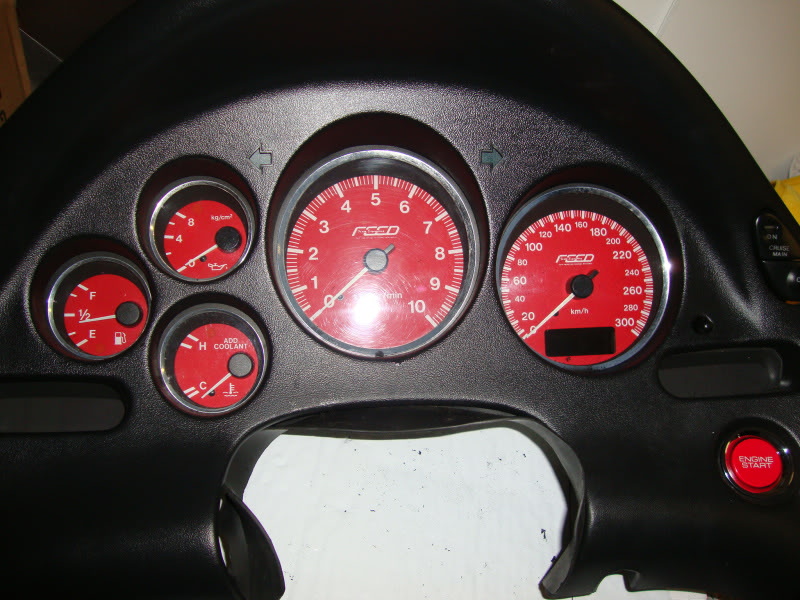

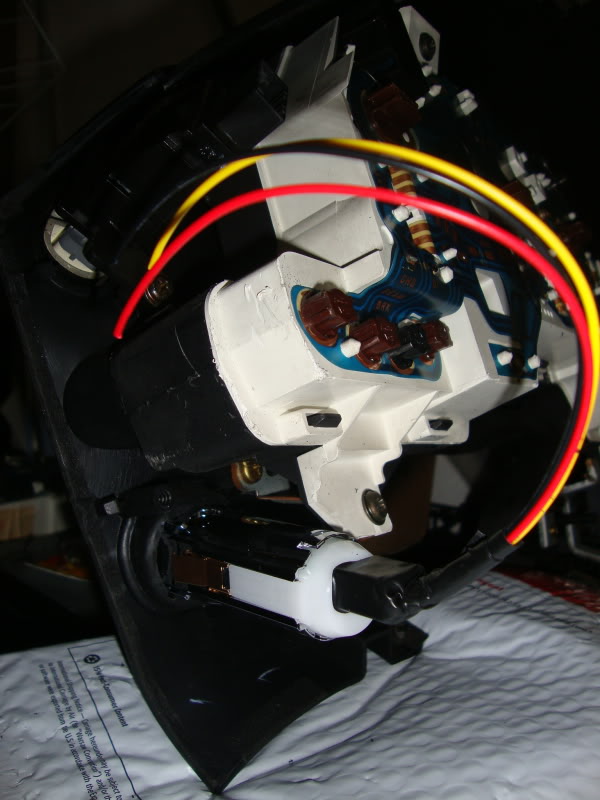

Some pics to show how the button sits inside:
That's it!! Turn key, push button, and off you go!!
1. Mod is good for at least 5 hp...comparable to mazdaspeed sticker
2. I like rice. Many of you think this is rice. I don't care, I still like it.
3. I did it in about 2 hours....more out of boredom than anything else.
4. Completely reversible and I retain key function if I get bored of the button.
Ok, the pics and process.
Pretty much THE diagram to go by. NOTE: I did not cut the Black with blue stripe wire. I tapped mine to retain key function
Here is the official OEM switch...found it...you guessed it..in my bag of rice.
I used a 40 amp Tyco relay wired:
85 to yellow wire on S2K button
86 to ground, tapped cruise control Black wire
87 tapped Black with Green stripe wire off ignition
30 tapped (I did NOT CUT) Black with Blue stripe wire off ignition
I used posi-connects and posi-taps for the wiring. Made it quick and easy (easily reversible). Some like these, some don't. They have never failed me but use whatever you feel most comfortable with connecting wires.
Here is the harness to the button. Note that I cut off the top plastic piece of the S2K button to expose the prongs. Easier to get the harness in. Harness was Part#03165 from Cables To Go. Its a Y-adapter for the old 3.5” floppy drive. S2K button has 5 prongs, you use three...1,2,3 from left looking from top. I depinned the 4th wire on the harness to get it out of the way.
Yellow wire goes to 85 on the relay
Red goes to 12v ignition on (tapped Black with Yellow stripe wire off cruise control harness)
Black is Ground (tapped Black wire off cruise control harness)
Cruise Control Harness: Black/yellow is 4th from left (12v ignition on) Black is 2nd from left (Ground)
You need to enlarge the cig lighter hole to fit the button. I notched my hole to match tabs on the button. This serves to make the button snug and prevents it from turning around. Takes about 5 min with a dremel.
Some pics to show how the button sits inside:
That's it!! Turn key, push button, and off you go!!
12-09-10, 01:21 PM
#5
Nice, Im doing this as well. I had an S2000, and did enjoy the push start button. WHen you get a chance, post some pics of the feed cluster illuminated at night if you wouldnt mind. I like the red but am afraid it may look "cheap". What are your impressions?
12-09-10, 01:34 PM
#6

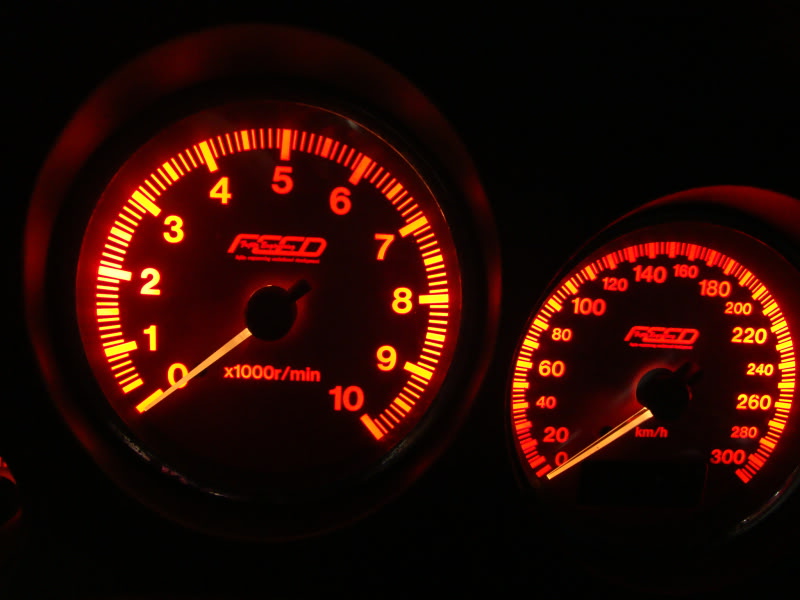

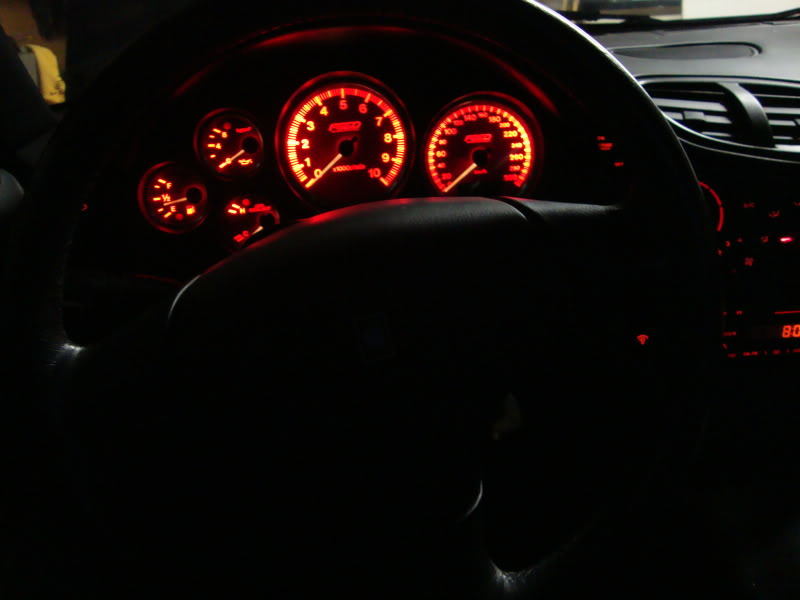

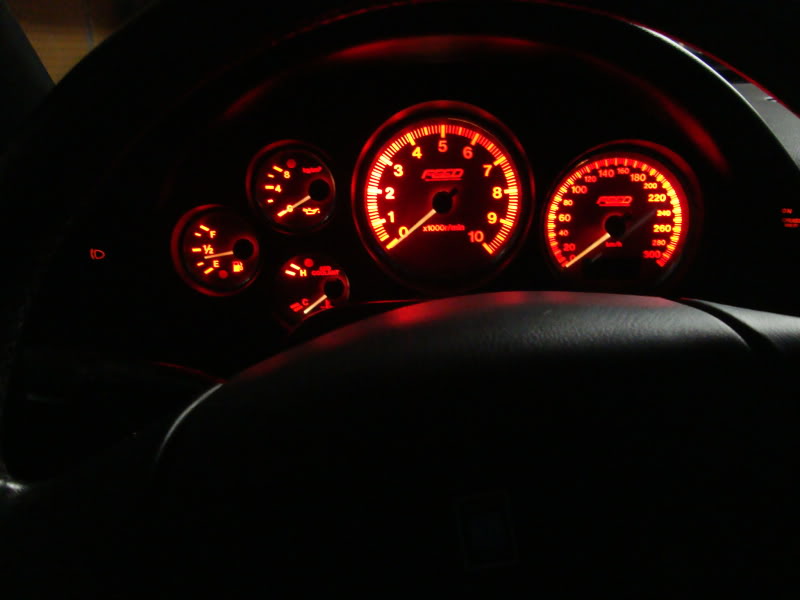

I'll try and get some pics for you tonight. I personally love the FEED red as it sets it apart from every other cluster out there. The red illumination is brighter than stock and the illumination on the button is the same hue, but not the same brightness. I'll post pics tonight.
