Lets see some pics of the FD Pettit Rear fender flares!
09-27-04, 08:26 PM
#26
Full Member
Join Date: Jul 2001
Location: The boonies of TX
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts

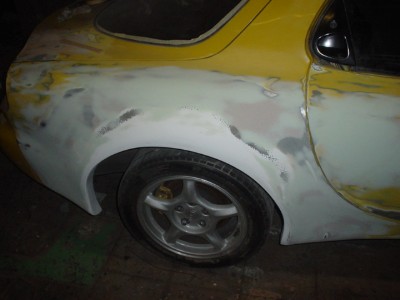

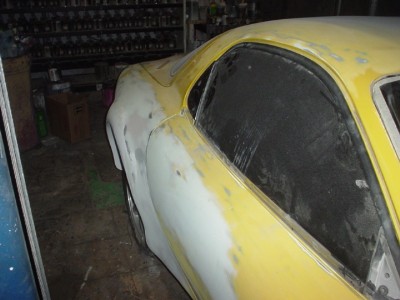

Here are a couple pics of my CYM getting some Pettit Fender Flares molded on. Definitely not cheap going this route, but looks very clean. Make sure a qualified body shop does the molding -- using quality fiberglass, bondo, body filler, etc. You also have to decide on whether to have the cutout for the gas cap or relocate the gas refueling assembly. I had the rear side markers and gas cap shaved (welded the holes for the side markers and gas cap). The welding tends to warp the thin rear quarter panel. So to properly blend the fender flares is extremely time consuming. Good luck with whatever route you decide to take. Nothing attracts attention like 335s in the rear
.
.
09-27-04, 09:11 PM
#27
2355lbs...
Thread Starter
iTrader: (2)
Join Date: Jan 2003
Location: Santa Clara CA
Posts: 1,420
Likes: 0
Received 0 Likes
on
0 Posts
Not a big fan of the blended pettit flares. Your MB FD looks great with the flares just screwed on. I'l be usiing 335/35/17's for my tire size, should work well on the street and on the course.
09-29-04, 10:50 AM
#29
Rotary Enthusiast
Join Date: Dec 2003
Location: salt lake city area
Posts: 1,047
Likes: 0
Received 0 Likes
on
0 Posts
polyfiber is the best. it is a mix of urethane and fiberlgass. awesome stuff. like cement to sand but amazing. look for fiberol. comes in a bag u squeeze it out.
09-29-04, 11:30 AM
#31
Originally Posted by Single7
Hi Black Magic,
I am currently running some Michelin Pilot Sports (335/30/ZR18) on the rear of my blue car. The rear fenders have to be cut (approximately 1 to 2 inches) and the Pettit Fender Flares have to be shaved to fit 335s, otherwise the tires will rub. The fender flares are held on by screws on the blue car.
Here are a couple pictures of the Pettit Fender Flares not molded on.
I am currently running some Michelin Pilot Sports (335/30/ZR18) on the rear of my blue car. The rear fenders have to be cut (approximately 1 to 2 inches) and the Pettit Fender Flares have to be shaved to fit 335s, otherwise the tires will rub. The fender flares are held on by screws on the blue car.
Here are a couple pictures of the Pettit Fender Flares not molded on.
Don't be a **** teaser. Show us the rest of your ride!
09-29-04, 02:04 PM
#33
Bridgeport Anyone??
You could just make sheetmetal copies of the pettit ones if you are worried about the edges cracking. It would be difficult and time consuming but worth it in my opinion. And you do have to cut the stock fender, just make it clean and then paint the edge so they don't rust. Take it easy man. I will have 335's on mine by winter time.
Mike
Mike
09-29-04, 05:54 PM
#35
2355lbs...
Thread Starter
iTrader: (2)
Join Date: Jan 2003
Location: Santa Clara CA
Posts: 1,420
Likes: 0
Received 0 Likes
on
0 Posts
"how do they gas up? in the rear? the gas cover is "covered" from the flares..."
Im running a ten gallon fuel cell, so no more stock tank for me
"btw, is anyone else having trouble getting to the petite site?"
Spell pettit correctly next time :-p
Im running a ten gallon fuel cell, so no more stock tank for me
"btw, is anyone else having trouble getting to the petite site?"
Spell pettit correctly next time :-p
10-07-04, 08:37 AM
#36
Full Member
Join Date: Jul 2001
Location: The boonies of TX
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
Hey Apex_Sideways,
Yes that's my car... with a couple minor changes now but pretty much looks very similiar.
Hey Black Magic,
Most cars that use the fender flares without the option for the fuel tank door usually have a fuel cell in the rear of the vehicle. On my blue care, I have to open the rear hatch and open a fuel cell (26 gallons) to fill up gas. I'm not sure how I want to do the CYM yet - I don't want to have to use a Sparco/Audi type gas cap door since there are not many flat body panels on the rear quart panel to put one. I've already shaved the gas cap door since I don't like the look of the fender flare with the gas cap cut out.

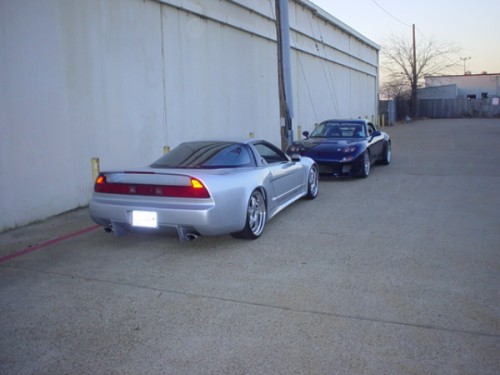

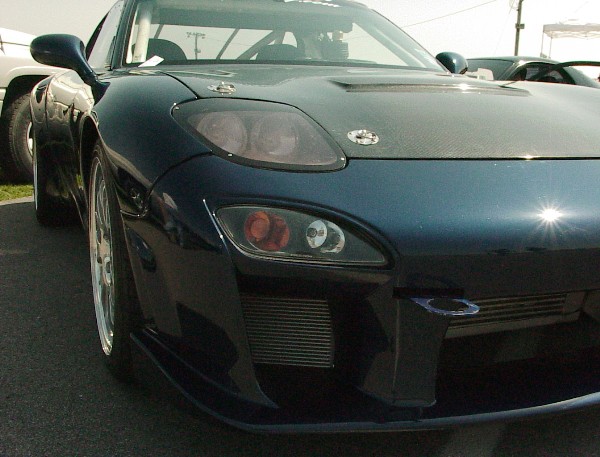

Here are two pics of my blue car. One with my friend's Comptech widebody NSX.
Yes that's my car... with a couple minor changes now but pretty much looks very similiar.
Hey Black Magic,
Most cars that use the fender flares without the option for the fuel tank door usually have a fuel cell in the rear of the vehicle. On my blue care, I have to open the rear hatch and open a fuel cell (26 gallons) to fill up gas. I'm not sure how I want to do the CYM yet - I don't want to have to use a Sparco/Audi type gas cap door since there are not many flat body panels on the rear quart panel to put one. I've already shaved the gas cap door since I don't like the look of the fender flare with the gas cap cut out.
Here are two pics of my blue car. One with my friend's Comptech widebody NSX.
10-07-04, 11:16 AM
#37
FOR SALE
Join Date: Jun 2002
Location: Central Florida
Posts: 738
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Black Magic
well, i just ordered those wheels/tires. The rims are 17x10.5 the rear tires are 315/35/17 with a 52 offset, he is including hubcentric spacers just incase. I am unsure how they will fit my FD with the pettit flares, but il make it work. Found a place that sells extended wheel studs, so with spacers, i can make it happen.
-Ben
10-07-04, 12:55 PM
#38
2355lbs...
Thread Starter
iTrader: (2)
Join Date: Jan 2003
Location: Santa Clara CA
Posts: 1,420
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by ijneb
I thought the pettit fenders were good for 12" tires? I've got 10 inches on stock fenders with no problems, why not get wider?
-Ben
-Ben
10-10-04, 11:37 AM
#40
Senior Member
Join Date: Jul 2001
Location: Columbus, Ohio
Posts: 596
Likes: 0
Received 0 Likes
on
0 Posts
i have 335's on an 18x13" and i have rubbing problems like crazy...we have cut the fender well back about 2in...it doesn't rub as bad, but still will smoke the tires in full boost...i guess the next step is a semi-tub
10-10-04, 05:58 PM
#41
Originally Posted by Single7
Hey Apex_Sideways,
Yes that's my car... with a couple minor changes now but pretty much looks very similiar.
Hey Black Magic,
Most cars that use the fender flares without the option for the fuel tank door usually have a fuel cell in the rear of the vehicle. On my blue care, I have to open the rear hatch and open a fuel cell (26 gallons) to fill up gas. I'm not sure how I want to do the CYM yet - I don't want to have to use a Sparco/Audi type gas cap door since there are not many flat body panels on the rear quart panel to put one. I've already shaved the gas cap door since I don't like the look of the fender flare with the gas cap cut out.
Here are two pics of my blue car. One with my friend's Comptech widebody NSX.
Yes that's my car... with a couple minor changes now but pretty much looks very similiar.
Hey Black Magic,
Most cars that use the fender flares without the option for the fuel tank door usually have a fuel cell in the rear of the vehicle. On my blue care, I have to open the rear hatch and open a fuel cell (26 gallons) to fill up gas. I'm not sure how I want to do the CYM yet - I don't want to have to use a Sparco/Audi type gas cap door since there are not many flat body panels on the rear quart panel to put one. I've already shaved the gas cap door since I don't like the look of the fender flare with the gas cap cut out.
Here are two pics of my blue car. One with my friend's Comptech widebody NSX.
11-01-04, 03:12 PM
#42
Not to hi-jack this thread but I have a pair of 335/30/18 series tires for sale for you wide body freaks.
https://www.rx7club.com/showthread.php?t=362703
https://www.rx7club.com/showthread.php?t=362703
11-02-04, 09:37 AM
#43
I'm having the Pettit flares installed as we speak. Should be able to pick up the car in the next few days and I'll post pics for you. As for the gas door, Pettit now makes a set of flares that has the gas door location cut out. In other words, you can install the flares and still use the stock gas door location. 335s will fit but everything has to be shaved correctly.
FYI - I went with 18 X 12.5" on the recommendation of Pettit.
FYI - I went with 18 X 12.5" on the recommendation of Pettit.
Last edited by David Hayes; 11-02-04 at 09:43 AM.
11-02-04, 11:18 PM
#44
Full Member
Join Date: May 2004
Location: FL
Posts: 122
Likes: 0
Received 0 Likes
on
0 Posts
Hey,thats me facing the camera in that pic.God ,I miss that car.I put alot of blood,sweat and tears in that car from a bare shell.
I want it back.hehe!
I have something coming soon that should challenge my old car.
I want it back.hehe!
I have something coming soon that should challenge my old car.
Last edited by LSeven; 11-02-04 at 11:21 PM.
11-04-04, 05:11 PM
#46
FYI - I'm going to have a metal worker copy my Pettit flares in sheet metal and then weld these to the car. The downside that I know of regarding the Pettit flares is that the chip over time from rocks. If you don't mold them in then it's pretty easy to unbolt them and have them repainted.
I prefer the molded look however, so my solution is to have metal flares made.
I prefer the molded look however, so my solution is to have metal flares made.
