Narfle

iTrader: (16)

The SuperNova SMT 5x does not fit in the front running lights.

The 5 LED SMT Tower works very well.
http://superlumination.com/

the_glass_man

iTrader: (2)

Forgive me, but which ones am I supposed to use for my (194) tag lights and (194) 99 spec running light? Their parts description, numbers and website in general leave a lot to be desired.

Narfle

iTrader: (16)

For the tag lights: In your cart they are listed as SMT Tower, it's the first bulb on top of the 194 page. FYI it apparently matters which way the bulbs are oriented in the socket. If you find they don't light at first then turn them around. The service from this site was top notch, and you can pay with paypal.

I am unaware about the 99 spec runners, I'm s6 4 lyfe, yo.

David Hayes

iTrader: (6)

99 spec running lights are the same as the 94-96 lights. The turn signals are different. Here is a list:

Front Turn Signal (for 99 spec bumpers)(www.ledlight.com)
Product ID: 86845
Product Name: T20 Wedge 48 Ultra Bright LED Light
Attributes: Color - Yellow Base - 7440 Single Circuit
Price: $27.43
Quantity: 2

Front Parking Lights (for both 93-95 and 99 spec bumpers)
Quantity: 2
Product: WLED-xHP5 Wedge Base Bulb $ 5.95 (each)
Options: White WLED-WHP5

Narfle

iTrader: (16)

I just fitted these 921 Matrix bulbs in my center tail light. They twist in properly. They are well retained. They are bright.

http://autolumination.com/906.htm
^^Third bulb down on this page^^

Take a box cutter and clip the corners of the retaining tabs to increase clearance for the square bulb, as shown.
Make sure to have someone verify that all bulbs are turning on before you bolt the light assembly back down. You have to fiddle with the leads until they establish a circuit.

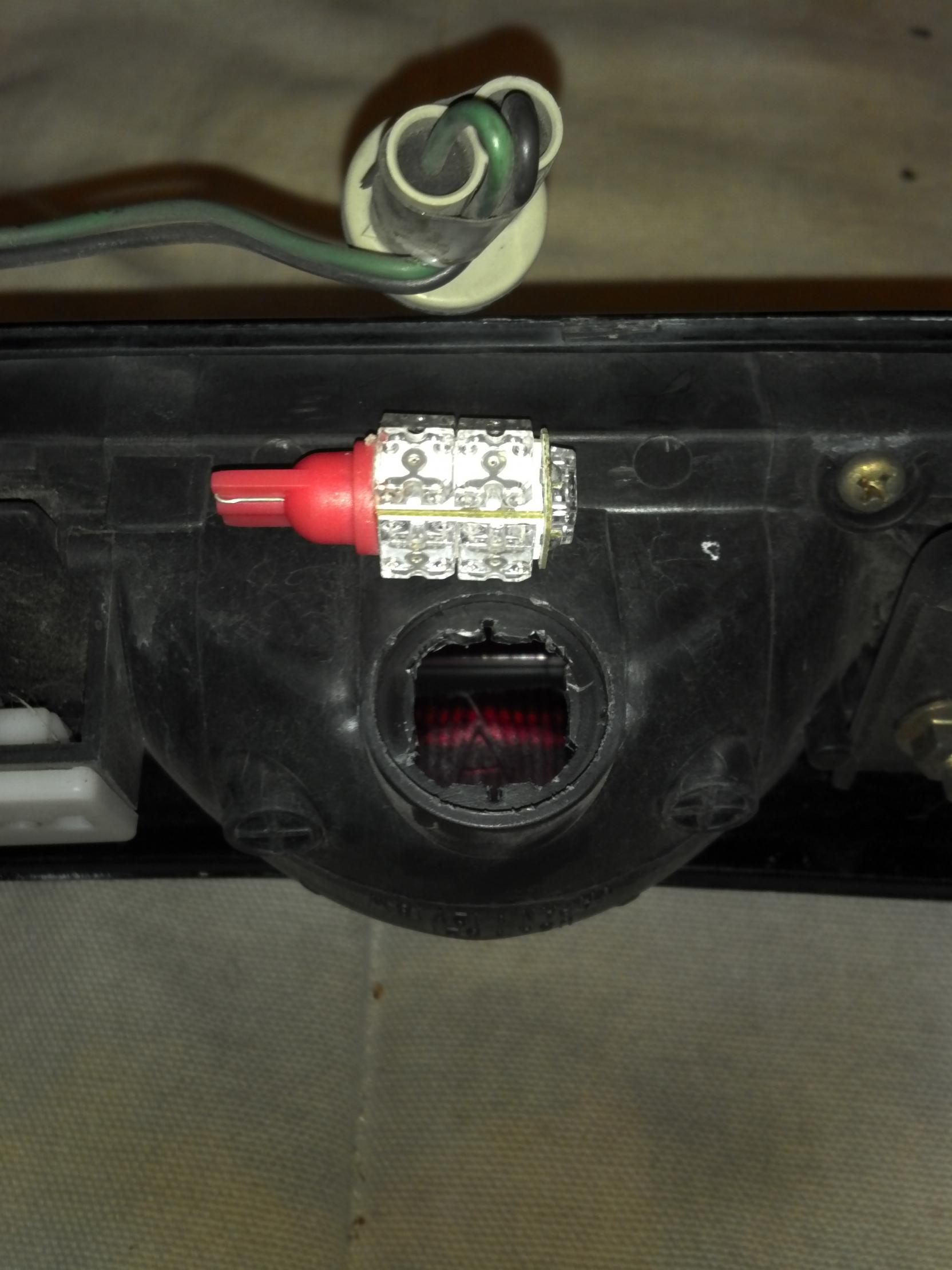

One pic shows before and after side by side. One shows the bulb and a modified housing. Another shows a Random Rolls parked next to my FD in my town.

DarkRC51

Has anyone ran into problems of the quality of the bulbs? I know this isn't a huge mod, but it can get costly.... Would this be something at the bottom of the list for a car?

BlinD26

iTrader: (27)

Ok guys, I'm looking to make the LED jump soon and tried going through the entire thread and take into account all the revisions to compile the "latest" list of tested LEDs. If David/other members can chime in to confirm the list is solid? I have also listed all the socket numbers next to the parts since some LEDs come from the same website but use different sockets:

Front Turn Signal (for 93-95 bumpers)
(www.superlumination.com)
Quantity: 2 - Socket: 1156
Product: Eagle Eye Tower
Color: Amber
Price: $24.99

Front Turn Signal (for 99 spec bumpers)
(www.superlumination.com)
Quantity: 2 - Socket: T20 Wedge
Product Name: Eagle Eye Tower
Color: Amber - 7440 Single Circuit
Price: $24.99

Front Parking Lights (for both 93-95 and 99 spec bumpers)
Quantity: 2 - Socket: 168
Product: WLED-xHP5 Wedge Base Bulb $ 5.95 (each)
Color: White WLED-WHP5

Rear Turn Signal
Quantity: 2 - Socket: 1156
7 Watt Eagle EYE SMT Tower
14x(.5) watt High Powered Wide Angle SMT LEDS These Bulbs have Advanced Surface Mount Technology LEDS + Advanced Patented Circuitry
12 high powered SMT side facing LEDS - 2 high powered SMT forward facing LEDS Only 24mm diameter x 52mm overall - fits all stock housings
Color: Amber
http://superlumination.com/1156_1157.htm

Rear Tail Lights (www.superlumination.com)
Quantity: 4 - Socket: 1157
7 Watt Eagle EYE SMT Tower
14x(.5) watt High Powered Wide Angle SMT LEDS These Bulbs have Advanced Surface Mount Technology LEDS + Advanced Patented Circuitry
12 high powered SMT side facing LEDS - 2 high powered SMT forward facing LEDS Only 24mm diameter x 52mm overall - fits all stock housings
Color: Red
http://superlumination.com/1156_1157.htm

Center Stop Light
Quantity: 3 - Socket: 921
Product: WLED-xHP15-T Wedge Base LED bulb $ 16.95 (each)
Color: Cool White

License Plate Lights
Quantity: 2 - Socket: 168
Product: WLED-xHP5 Wedge Base Bulb $ 5.95 (each)
Color: White WLED-WHP5

Back Up Lights
Quantity: 2 - Socket: 1157
7 Watt Eagle EYE SMT Tower
14x(.5) watt High Powered Wide Angle SMT LEDS These Bulbs have Advanced Surface Mount Technology LEDS + Advanced Patented Circuitry
12 high powered SMT side facing LEDS - 2 high powered SMT forward facing LEDS Only 24mm diameter x 52mm overall - fits all stock housings
Color: White

Map Light
Quantity: 2 - Socket: 168
Product: WLED-xHP5 Wedge Base Bulb
color: White

Glove Box Light
Quantity: 1 - Socket: 194
Product: WLED-xHP5 Wedge Base Bulb
Color: White

Trunk Light
Quantity: 1 - Socket: 3175
Product: High Power 2-LED Festoon Bulb $ 6.95 (each)
Color: Cool White 3022-CWHP2

Rear Side Marker
Quantity: 2 - Socket: 194
Product: WLED-xHP5 Wedge Base Bulb $ 5.95 (each)
Color: Red WLED-RHP5

David Hayes

iTrader: (6)

Well, I've had mine installed for several years and have had one bulb go out, one of the license plate ones. Just did an inventory a few days ago and spotted it.

I'd say the quality is just fine and it would be at the top of my list but I am a bit of an LED freak.

David Hayes

iTrader: (6)

The list looks pretty complete to me at first pass.

Superlumination just came out with a better 1156/1157 bulb:

12 Watt Eagle EYE SMT Tower
4x 3 Watt-3 Chip High Powered Rectangular Chip SMT LEDS
These Bulbs have Advanced Surface Mount Technology LEDS + Advanced Patented Circuitry
3 high powered SMT side facing LEDS - 1 high powered SMT forward facing LED With Optical Lens
Only 18mm diameter x 59mm overall - fits all stock housings

Fully Regulated - Proprietary Circuitry. Protected Under (US Patent # 7,345,433)
Don't be fooled by imitations, these are not available anywhere else!

$29.99 Ea.

As these are even brighter and have an optical lens (better light distribution) I'd go with these for the rear turn (1156) and brakes (1157).

lever2000

Sweet!! I wanna change my dash lights to red LED however, I don't know the bulb size. Anyone know the 87 RX bulb size for the dash lights? I'm thinking of getting them off of SuperbrightLED.com

Spec.Garage

iTrader: (17)

Why is everyone listing the reverse lights as 1157. n 1157 is a dual filiment bulb. The reverse lights should be 1156.

Someone correct me if I'm wrong.

David Hayes

iTrader: (6)

^You are correct, they are 1156 bulbs. The Sylvania bulb finder app lists both which is most likely why they got on the list that way. The 1156s will work fine and no need for a dual filament bulb.

Renesis-7

iTrader: (4)

Has anyone tried this site? http://www.clearcorners.com/products/mazda/fd/

These two are pretty interesting (and pricey):
http://www.clearcorners.com/products/mazda/fd/i_map/
http://www.clearcorners.com/products/mazda/fd/r_3br/

But, they need your actual housing to rewire and suit the new LED strip (brake light) or a different socket type? (map lights).

Better yet, anyone with electrical know-how able to do this yourself? The two colour door/map light seems like a good idea.

Renesis-7

iTrader: (4)

Thanks to all who contributed to the thread. Just finished putting in LEDs pretty much everywhere. Modding the flasher CPU as per Dale Clark worked great. Centre brake lights with the 921 Matrix bulbs work very well. A bit of trimming is required as said before. I preferred the use of a file to gradually trim away the corners.

One question though... my glove box light LED didn't fit. I ordered the same "WLED-xHP5 Wedge Base Bulb" as used in the rear side markers, map lights and license plate lights. The bulb in my glove compartment was smaller than those other lights. Anyone else have issues with the glove box light? Which LED did you use?

mikejokich

iTrader: (1)

Was reading this older thread about LED taillight bulbs. Back then, everyone in the thread were recommending the 7 watt Eagle EYE and later the 12 watt Eagle EYE bulbs. Now, Superluminations has these same bulbs that are also 14 watt, 24 watt, 50 watt and even 80 watt. Has anyone used these higher wattage bulbs? Are they too bright? What do you think is the ideal wattage for 99" spec rounded taillights?
Thanks
Mike

mikejokich

iTrader: (1)

Anybody use anything higher than a 12 watt LED bulb in the rear 99' spec taillights?

anh_cloud9

iTrader: (2)

sorry for bumping this, but interested in the question above... more than likely won't run anything past 12W tho
