Infotainment System

Reply



Old 04-21-15, 08:37 AM
  #1
REVIT
Thread Starter

REVIT93RX7's Avatar

Join Date: Mar 2008
Location: Florida
Posts: 129
Thanks: 0
Thanked 0 Times in 0 Posts
Infotainment System

I have been working on an Infotainment system for my FD3S for sometime, I'm finally getting the time and plan on posting the progress as I move forward. This is going to be a Windows 7 based system running an i5 quad core processor. The software will be developed by myself and will consist of a number of applets. As I get an example of each application I will post it and hopefully get feedback from you guys. I do plan on making this system available to anyone else who would want one. There will be a list of hardware and software requirements by the time my installation is done. The first application will be a Digital Clock, I hate not knowing what time it is. Please feel free to comment on what is shown and if anyone has any real interest please PM me and I will ensure you have the latest information.

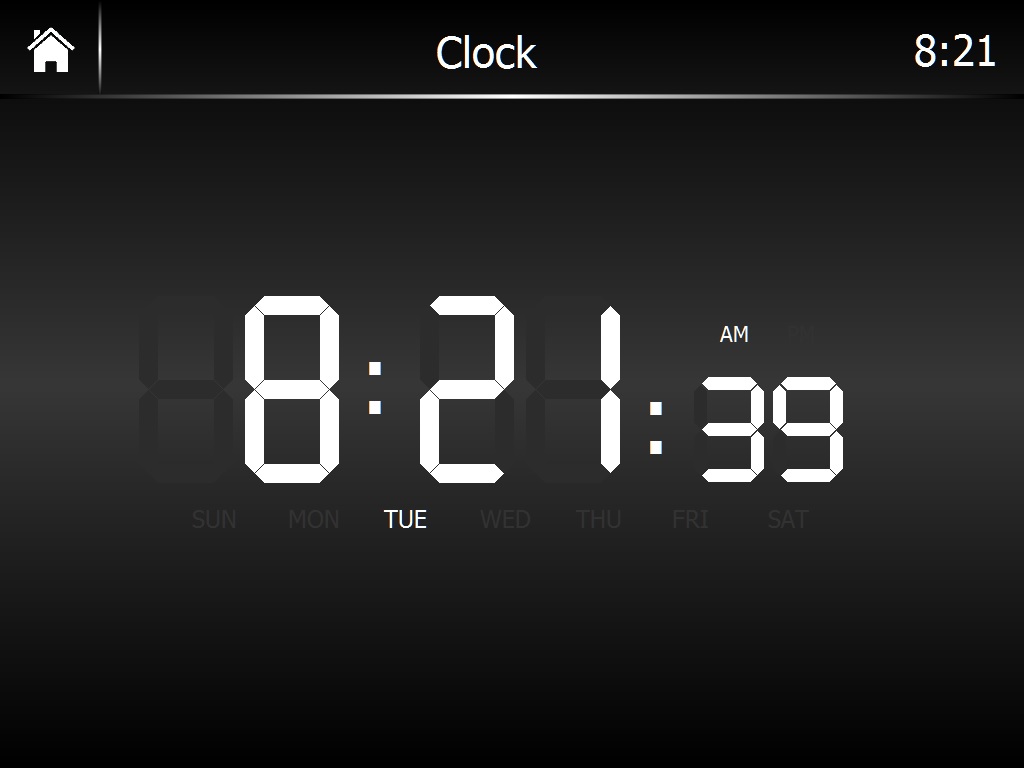

Attached Thumbnails Infotainment System-digitalclock.jpeg
REVIT93RX7 is offline
Reply With Quote
Old 04-21-15, 10:34 AM
  #2
brapbrapbrap
iTrader: (8)

airjordan223's Avatar

Join Date: Dec 2012
Location: Ohio
Posts: 385
Thanks: 0
Thanked 0 Times in 0 Posts
Having it connect to the ecu and then have a custom display with gauges (boost,water temp, oil pressure etc) would be the most ideal I think.
airjordan223 is offline
Reply With Quote
Old 04-21-15, 11:41 AM
  #3
REVIT
Thread Starter

REVIT93RX7's Avatar

Join Date: Mar 2008
Location: Florida
Posts: 129
Thanks: 0
Thanked 0 Times in 0 Posts
Ecu

Hi, thanks for the input, that is planned and I have an applet already started just not ready to show yet. Once I have the display I like, I will post it and get everyone's feedback. I will have a video of the system once it is installed. Again thanks for the input and I can't wait to get more of this going.
REVIT93RX7 is offline
Reply With Quote
Old 04-23-15, 09:51 AM
  #4
REVIT
Thread Starter

REVIT93RX7's Avatar

Join Date: Mar 2008
Location: Florida
Posts: 129
Thanks: 0
Thanked 0 Times in 0 Posts
Stop Watch Lap Timer

This is the current stop watch that I have implemented. The main functionality I see is to use it for a lap timer. What I would like to get is some feedback on how it should function. Currently when you press the Lap button it will save the current time as the lap time then it will show the delta from the previous lap. Should pressing the Lap button record the current lap time and restart the timer from 0 or work as it currently does by just continuing to count up? Any suggestions will be very helpful.
Attached Thumbnails Infotainment System-stopwatch.jpg
REVIT93RX7 is offline
Reply With Quote
Old 01-19-16, 04:07 AM
  #5
Senior Member

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
Originally Posted by REVIT93RX7 View Post
This is the current stop watch that I have implemented. The main functionality I see is to use it for a lap timer. What I would like to get is some feedback on how it should function. Currently when you press the Lap button it will save the current time as the lap time then it will show the delta from the previous lap. Should pressing the Lap button record the current lap time and restart the timer from 0 or work as it currently does by just continuing to count up? Any suggestions will be very helpful.

Looks good .if you use GPS you could use a KML with a defined start / finish line . So you would automatically get the lap times . This is basically how the app track addict does it
Markus1981 is offline
Reply With Quote
Old 01-19-16, 11:42 AM
  #6
REVIT
Thread Starter

REVIT93RX7's Avatar

Join Date: Mar 2008
Location: Florida
Posts: 129
Thanks: 0
Thanked 0 Times in 0 Posts
Infotainment

Hi Markus;
For those of us who don't know could you explain what a KML is?
REVIT93RX7 is offline
Reply With Quote
Old 01-20-16, 12:35 AM
  #7
Senior Member

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
KML stands for "Keyhole Markup Language "
This is a xml based file used for instance in google maps and can easily be created with google maps or manually in excel . https://www.earthpoint.us/ExcelToKml.aspx . A KML basically allowes you to plot your driving and play it back in Google maps in real time .
Markus1981 is offline
Reply With Quote
Old 01-20-16, 12:37 AM
  #8
Senior Member

Markus1981's Avatar

Join Date: Aug 2013
Location: Pretoria , South Africa
Posts: 456
Thanked 0 Times in 0 Posts
You could also do a easier version . Just let people put in a reference latitude longitude for the start finish . You could then reference against the GPS data , so every time you cross the reference latitude and longitude a new lap automatically begins .
Markus1981 is offline
Reply With Quote
Old 01-20-16, 12:10 PM
  #9
REVIT
Thread Starter

REVIT93RX7's Avatar

Join Date: Mar 2008
Location: Florida
Posts: 129
Thanks: 0
Thanked 0 Times in 0 Posts
GPS lap

Thanks for the reply I will look at both implementations and see what results I get I will also look into other lap recording devices and see how they manage this Thanks
REVIT93RX7 is offline
Reply With Quote
Old 01-21-16, 02:22 AM
  #10
Senior Member
iTrader: (1)

armans's Avatar

Join Date: Oct 2014
Location: San Diego
Posts: 315
Thanked 4 Times in 4 Posts
Ah KML - reminded me my parsers (kml, dae, collada) I wrote years ago for a very different application.
@REVIT93RX7 - sounds like a fun/interesting project. Feel free to share some more of whatever done so far even if unfinished
armans is offline
Reply With Quote
Old 01-21-16, 01:49 PM
  #11
REVIT
Thread Starter

REVIT93RX7's Avatar

Join Date: Mar 2008
Location: Florida
Posts: 129
Thanks: 0
Thanked 0 Times in 0 Posts
Screens

Yes it is a very fun project I will post some screen shots of some of my displays and see what you think. All of the screens shown are complete I will be adding more graphical dashboard screens and bluetooth capabilities should be fun.

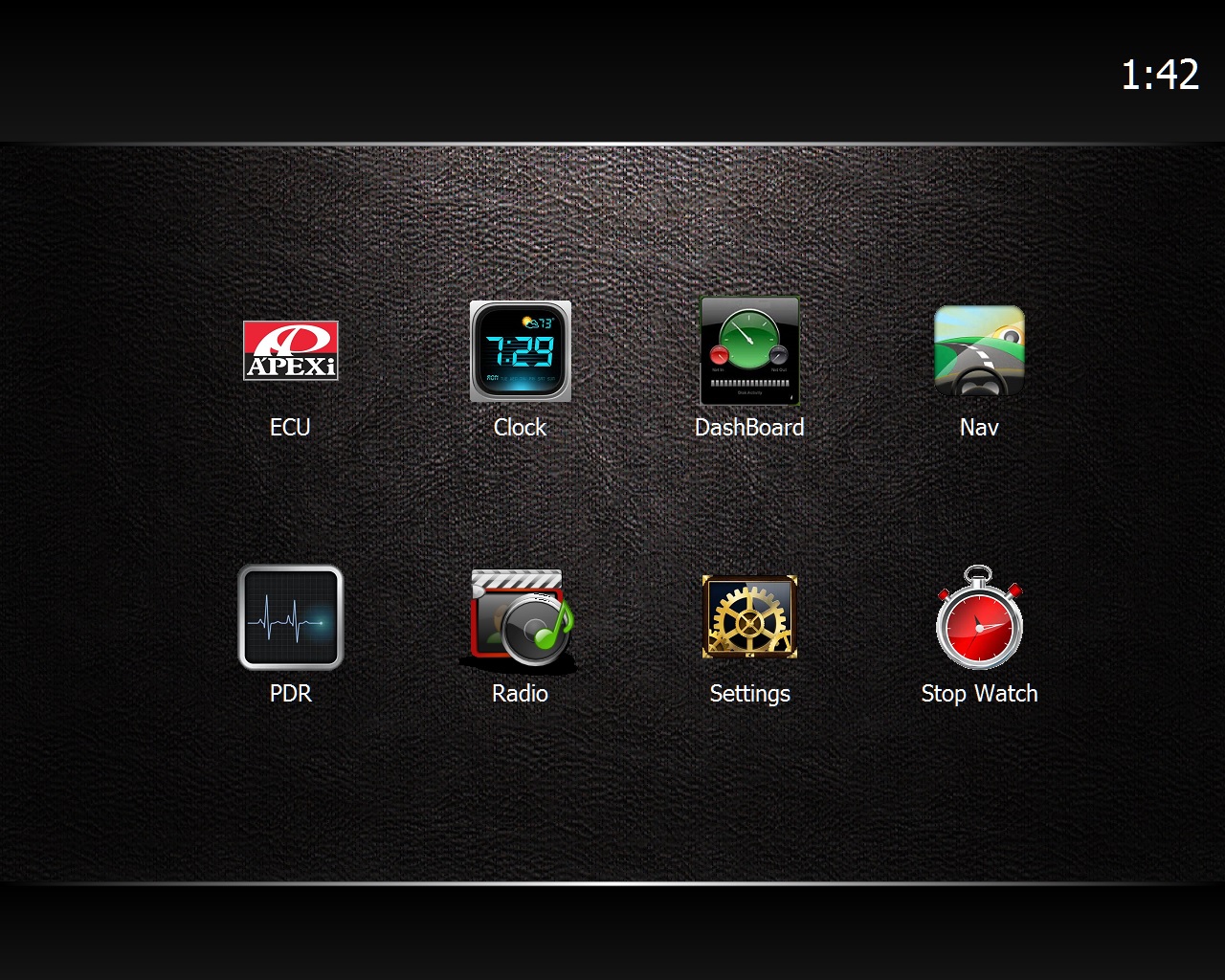

Attached Thumbnails Infotainment System-mainscreen.jpg   Infotainment System-signonscreen.jpg   Infotainment System-stopwatchscreen.jpg   Infotainment System-dashboard.jpg
REVIT93RX7 is offline
Reply With Quote
Old 01-21-16, 02:40 PM
  #12
Senior Member
iTrader: (1)

armans's Avatar

Join Date: Oct 2014
Location: San Diego
Posts: 315
Thanked 4 Times in 4 Posts
UI looks very good. What kind of hardware you're planning to use for this?
armans is offline
Reply With Quote
Old 01-22-16, 11:49 AM
  #13
REVIT
Thread Starter

REVIT93RX7's Avatar

Join Date: Mar 2008
Location: Florida
Posts: 129
Thanks: 0
Thanked 0 Times in 0 Posts
Intofatinment

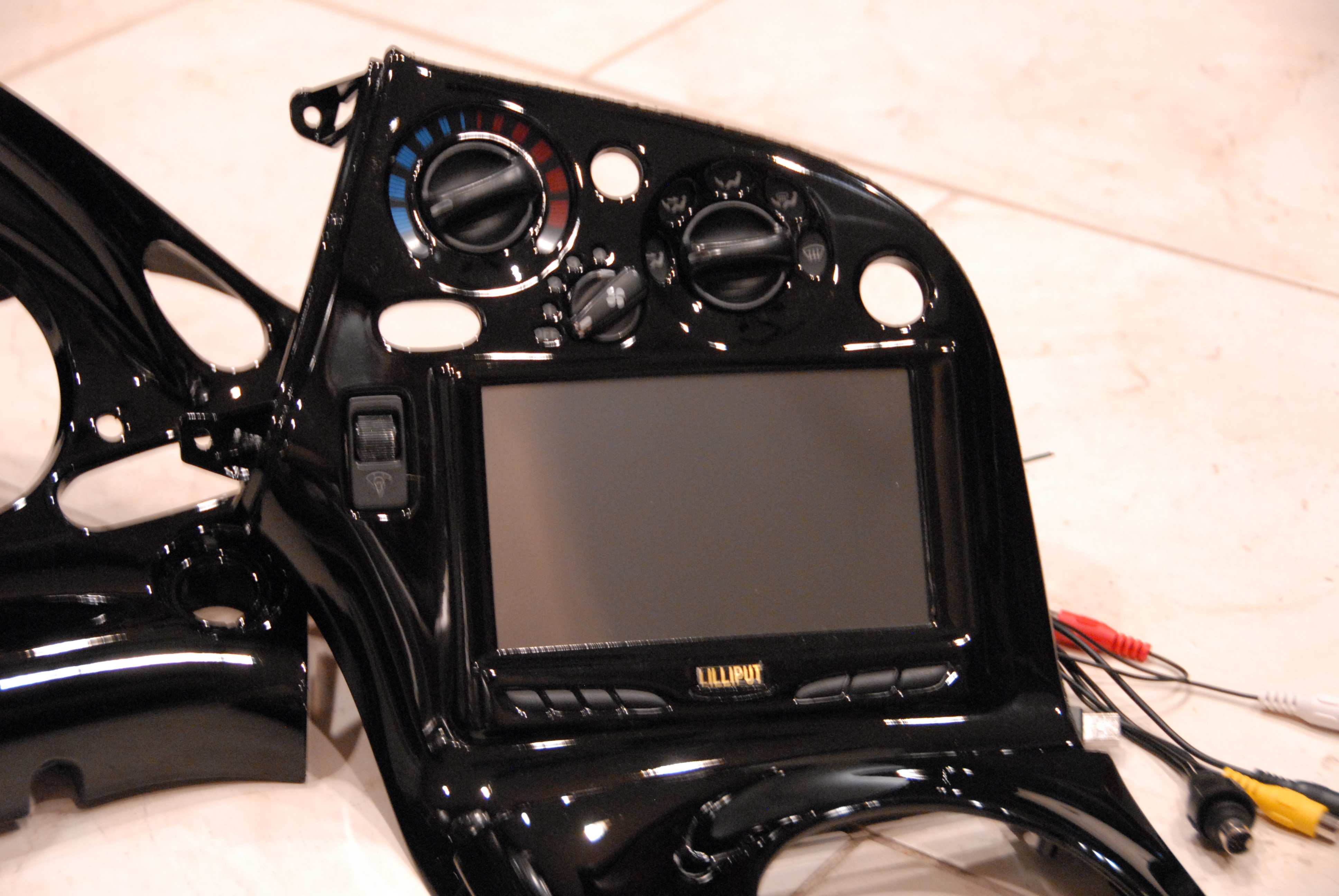

The system that I'm running is a PC with multi core i5 processor with a 7" touch screen monitor mounted in the location where the radio and storage bin are. The system is currently installed and I have been running the software for a while, collecting logging data on each run I make.
Attached Thumbnails Infotainment System-dsc_0033.jpg   Infotainment System-dsc_0021.jpg
REVIT93RX7 is offline
Reply With Quote
Old 01-22-16, 01:22 PM
  #14
My girl
iTrader: (3)

Houstonderk's Avatar

Join Date: Apr 2004
Location: Andrews AFB, MD
Posts: 2,138
Thanks: 0
Thanked 1 Time in 1 Post
I actually was wanting something like this for the power fc like how the haltech has one.
Houstonderk is offline
Reply With Quote
Old 01-22-16, 07:42 PM
  #15
Senior Member
iTrader: (1)

armans's Avatar

Join Date: Oct 2014
Location: San Diego
Posts: 315
Thanked 4 Times in 4 Posts
Looking good. Probably a better idea is porting it to a Windows Phone app so that can be used in phones as well.. (for example I'd be able to give it a test..
Also have you had the chance to change the lap timing feature so that you don't have to push the touchscreen to stop it but through some sort of gps tracking, so it becomes totally automated
armans is offline
Reply With Quote
Old 01-24-16, 11:30 AM
  #16
REVIT
Thread Starter

REVIT93RX7's Avatar

Join Date: Mar 2008
Location: Florida
Posts: 129
Thanks: 0
Thanked 0 Times in 0 Posts
Infotainment

Originally Posted by armans View Post
Looking good. Probably a better idea is porting it to a Windows Phone app so that can be used in phones as well.. (for example I'd be able to give it a test..
Also have you had the chance to change the lap timing feature so that you don't have to push the touchscreen to stop it but through some sort of gps tracking, so it becomes totally automated
Thanks for the suggestion, porting to the phone is a little more involved, you would still need some hardware to go from USB to bluetooth so you could connect the phone to the ECU, Arduino, Rasberry pi etc. It certainly is doable but not something I had thought about. I haven't implemented the autostart/stop lap timing yet. I'm working some other features at the moment. But when I work on 0-60, 1/4 times I will then add the lap start/stop.
REVIT93RX7 is offline
Reply With Quote
Old 02-11-18, 12:30 PM
  #17
Senior Member
iTrader: (7)

Brilliant7-LFC's Avatar

Join Date: Sep 2004
Location: Miami, FL
Posts: 639
Thanked 21 Times in 18 Posts
Hey Mr. Revit, I tracked down your thread as another member was looking for a more attractive way to display his Power FC info and I recommended he reach out to you.

We met at the Mazda dealership on Semoran for that Mazda event a couple years ago. Have you made any progress on the project? Howís the car doing?

Nick
Brilliant7-LFC is offline
Reply With Quote
Old 02-11-18, 12:46 PM
  #18
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,350
Thanks: 0
Thanked 3 Times in 3 Posts
I'm just coming to this thread at Brilliant7-LFC's prompt, and i love this. I've also followed the Raspexi Viewer thread(s) and Facebook page, but honestly, I'm a complete noob with electronics and cannot follow for the life of me how I would set something like this up. I'd need a virtually plug and play set up.... but if it existed, I'd be all over it.

P
ptrhahn is offline
Reply With Quote
Old 02-11-18, 03:38 PM
  #19
Senior Member
iTrader: (7)

Brilliant7-LFC's Avatar

Join Date: Sep 2004
Location: Miami, FL
Posts: 639
Thanked 21 Times in 18 Posts
Yeah, I donít even have a PFC which is what this is designed for if I remember correct. Iíve seen it in person and it looks so good. He utilized a carputer which as the name implies, is a computer in your car. Itís simply a program thatís installed on an operating system, just like Internet Explorer would be on your Windows 10 computer.

You would need to buy the hardware which would consist of the computer itself and a touchscreen. Outside of that, I donít believe thereís any necessary hardware, but thatís speculative on my part, admittedly.

Nick
Brilliant7-LFC is offline
Reply With Quote
Old 02-11-18, 06:04 PM
  #20
The bomb is in the toy!1!
iTrader: (2)

cloud9's Avatar

Join Date: Oct 2003
Location: Dallas Tx.
Posts: 1,585
Thanked 3 Times in 3 Posts
Just seeing this myself, from following ptrhahn's build thread. This project is awesome. I've been mapping out a project to separate the PFC screen from it's keys so they could be custom mounted separately; as I kind of hate the commander. But this project is above and beyond those ambitions. Hope to see some new developments here.
cloud9 is offline
Reply With Quote
Old 02-11-18, 08:19 PM
  #21
Senior Member
iTrader: (7)

Brilliant7-LFC's Avatar

Join Date: Sep 2004
Location: Miami, FL
Posts: 639
Thanked 21 Times in 18 Posts
Originally Posted by cloud9 View Post
Just seeing this myself, from following ptrhahn's build thread. This project is awesome. I've been mapping out a project to separate the PFC screen from it's keys so they could be custom mounted separately; as I kind of hate the commander. But this project is above and beyond those ambitions. Hope to see some new developments here.
Yeah man this is the real deal. Separating the screen on the commander Iíve seen a couple times before and itís supposedly straight forward but not easy. De-solder the screen from the board and extend wires, but obviously thatís an over simplification.

Good luck with your project dude.

Nick
Brilliant7-LFC is offline
Reply With Quote
Old 02-11-18, 08:22 PM
  #22
Out In the Barn
iTrader: (6)

KansasCityREPU's Avatar

Join Date: Mar 2005
Location: Liberty, Missouri
Posts: 3,549
Thanked 40 Times in 37 Posts
Originally Posted by REVIT93RX7 View Post
Thanks for the suggestion, porting to the phone is a little more involved, you would still need some hardware to go from USB to bluetooth so you could connect the phone to the ECU, Arduino, Rasberry pi etc. It certainly is doable but not something I had thought about. I haven't implemented the autostart/stop lap timing yet. I'm working some other features at the moment. But when I work on 0-60, 1/4 times I will then add the lap start/stop.
Why not just port it as an html page? This way it can work on any phone or computer. I can help with the coding if I knew the data model. I do Java, C#, SQL, etc. FWIW, it could also be made in to an Android and Apple app after that.
KansasCityREPU is offline
Reply With Quote
Old 02-12-18, 12:13 PM
  #23
REVIT
Thread Starter

REVIT93RX7's Avatar

Join Date: Mar 2008
Location: Florida
Posts: 129
Thanks: 0
Thanked 0 Times in 0 Posts
Car PC

Originally Posted by Brilliant7-LFC View Post
Hey Mr. Revit, I tracked down your thread as another member was looking for a more attractive way to display his Power FC info and I recommended he reach out to you.

We met at the Mazda dealership on Semoran for that Mazda event a couple years ago. Have you made any progress on the project? Howís the car doing?

Nick
Hi Nick;

I have been working on Bluetooth connectivity so any device can connect to it. This way I could stream the data to a phone app etc. That part is not complete but I have been working a test version.

Thanks
Jim
REVIT93RX7 is offline
Reply With Quote
Old 02-12-18, 01:31 PM
  #24
Senior Member
iTrader: (7)

Brilliant7-LFC's Avatar

Join Date: Sep 2004
Location: Miami, FL
Posts: 639
Thanked 21 Times in 18 Posts
Originally Posted by REVIT93RX7 View Post
Hi Nick;

I have been working on Bluetooth connectivity so any device can connect to it. This way I could stream the data to a phone app etc. That part is not complete but I have been working a test version.

Thanks
Jim
Sounds cool Jim! Are you fully functional with displaying of computer parameters such as boost pressure, oil and coolant temperatures and the like?

I was so impressed with your early version when I saw your car in person a couple years back, Iím really intrigued to see the progress.

Nick
Brilliant7-LFC is offline
Reply With Quote
Old 02-13-18, 11:51 AM
  #25
REVIT
Thread Starter

REVIT93RX7's Avatar

Join Date: Mar 2008
Location: Florida
Posts: 129
Thanks: 0
Thanked 0 Times in 0 Posts

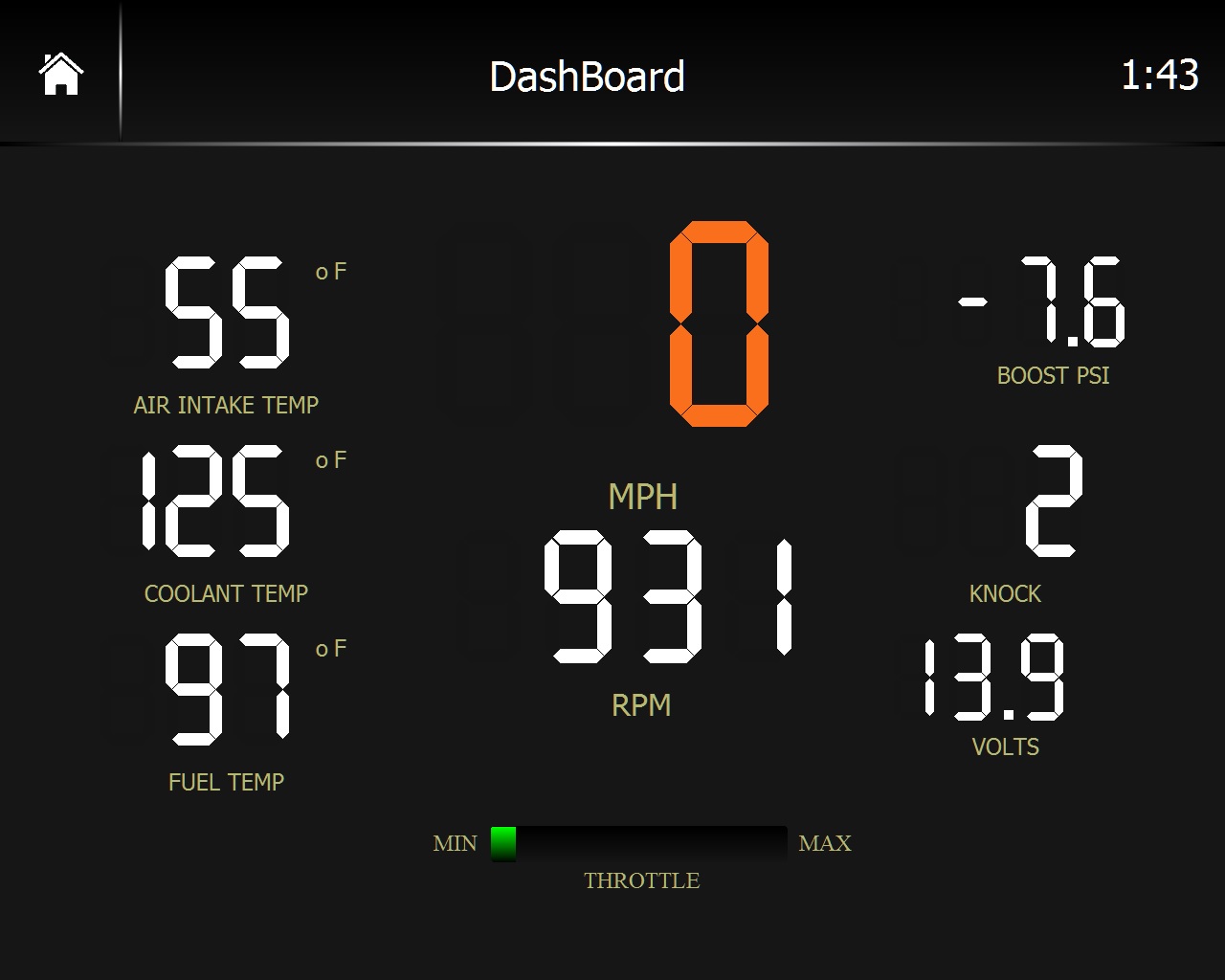

The digital dashboard shows the following parameters:
AIT
Coolant Temp
Fuel Temp
MPH
RPM
Boost PSI
Knock
Volts
Throttle position

The AIT, Coolant and Fuel Temp can be switched between F/C by using the left button if not on a touch screen or touching the control. The MPH can be switched the same way between MPH/KMH. I have a lot of things planned
but have not had many requests from anyone, so I will be happy to include features that others seem are needed. Please let me know what you think of the system, the only way to give you guys what you want is to provide me
with feedback. For the ones that have already I thank you.

regards
Jim
REVIT93RX7 is offline
Reply With Quote
