Hi.

planning my FD restoring back to factory bose and at the same time adding bluetooth module to work with Bose.

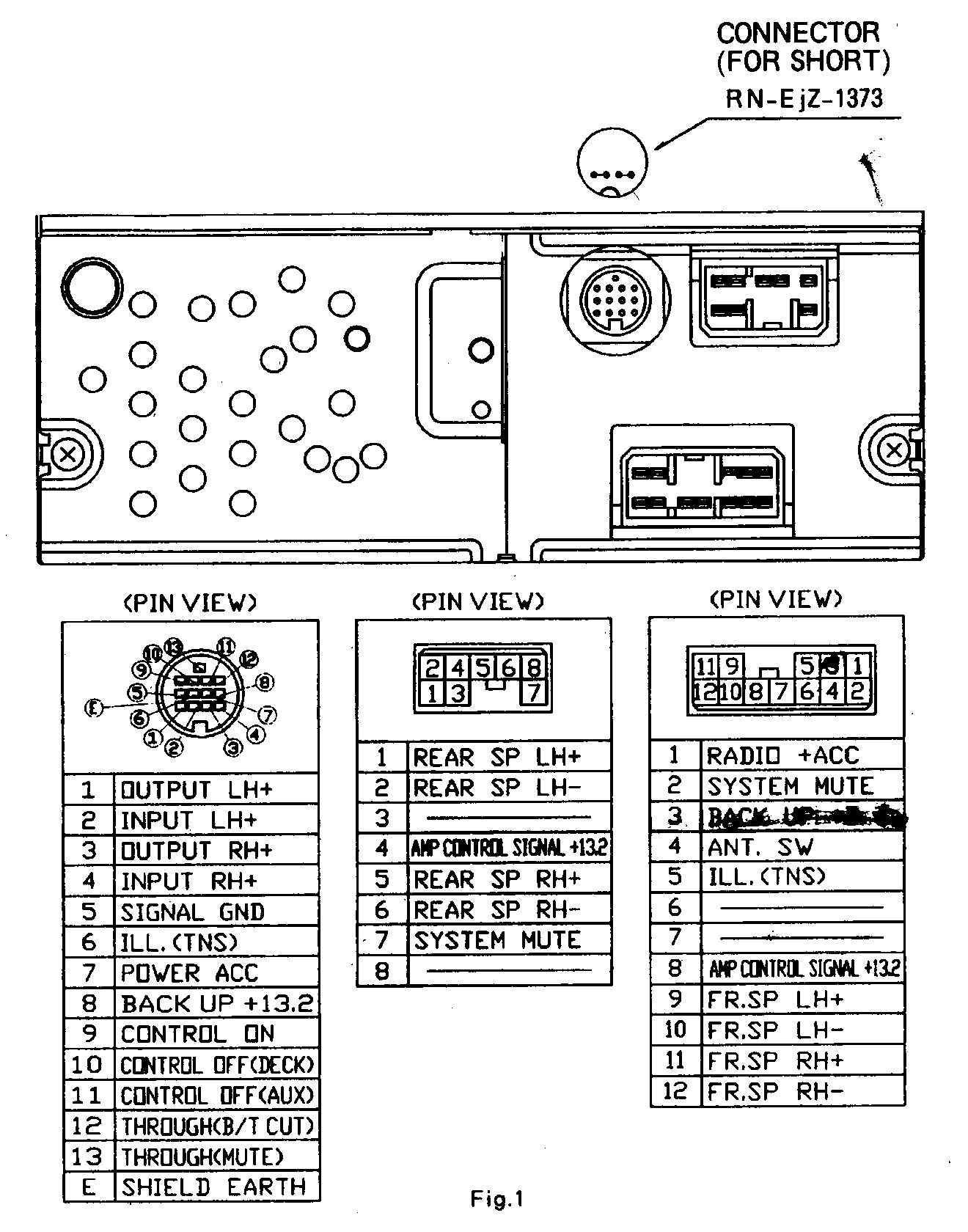

and plan to control BT volume with Bose. As far as I know, I can hook 13pin din connector which connects Tape and CD unit.

Hope it works.
Appreciate any comments and interests.

Thank you for reading!



Any updates to this?



Hi. Thank you for your interests.

btw. Its been stopped awhile now. But figured out what to do. I have tested modern amplifier which supports bluetooth and aux both. And it can detects sound play input automatically so I dont need to change input Bt or aux manually.

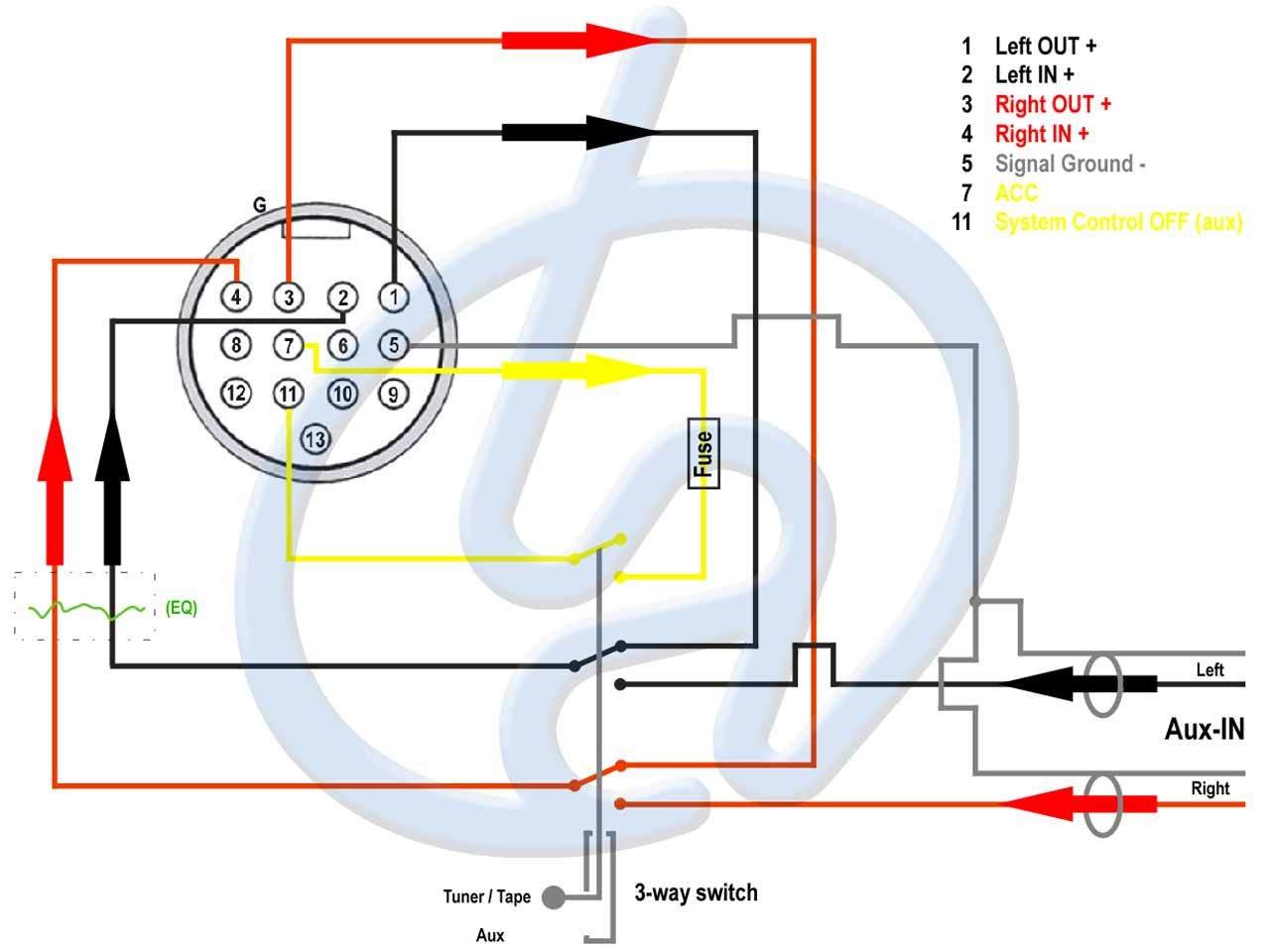

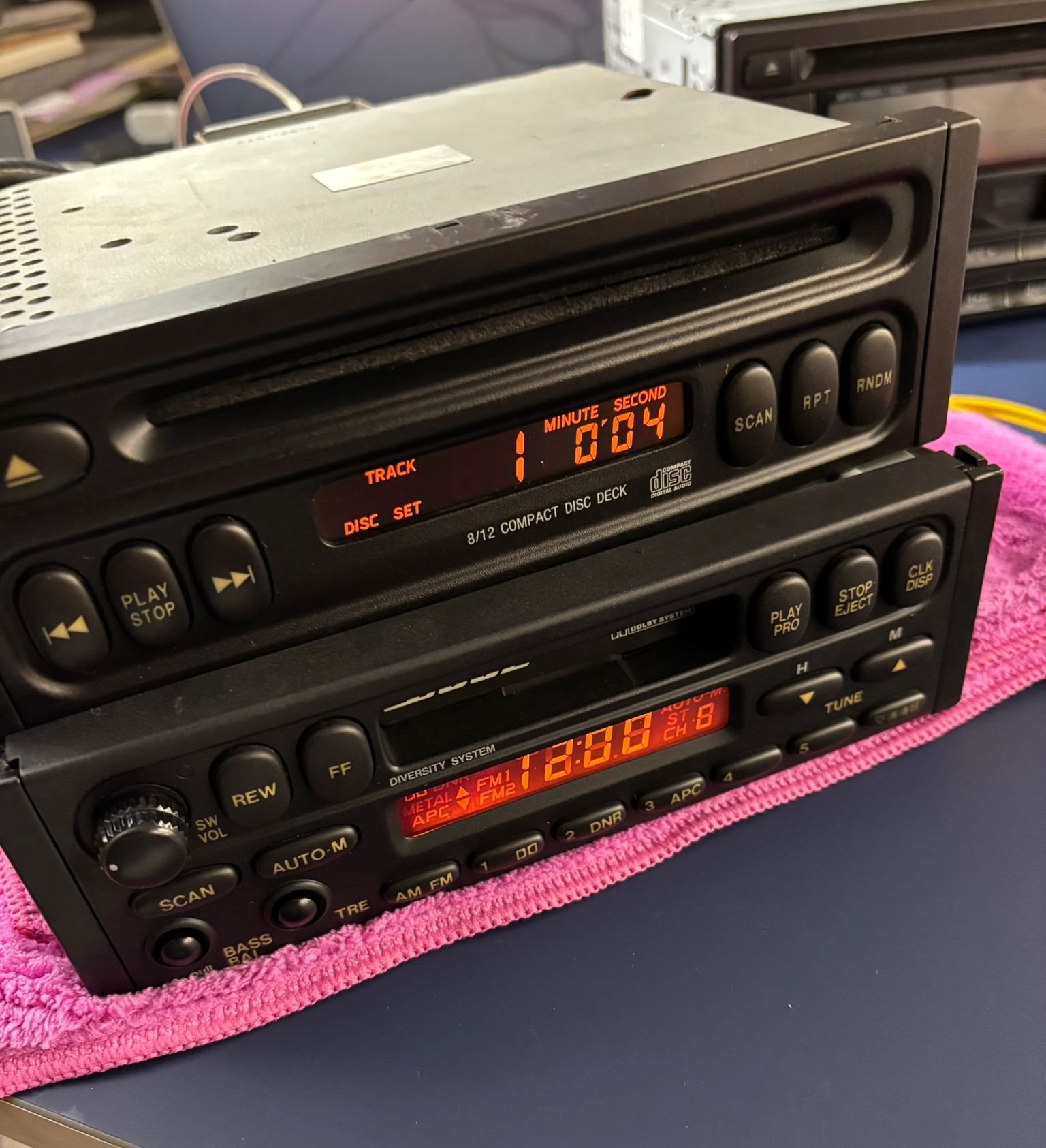

So I connected original bose headunit to aux on new amplifier and original speakers and woofers are connected to new amplifier.

and then if I want to play music from bose, then just play music from bose cd player. If I want to play music from my iphone thru BT, then connets iphone to BT and play it, then it will automatically detects BT input in priority.

I am done for test now and just stopped during installation stuffs on my fd. Sooner I hope I can finish it.

if you have any questions, let me know. Pls excuse my language.

Thanks.
